10TE008 Overview

toggle switch dpdt CO 10a

Preview

Download Datasheet

View All

Last Update:

4-25-05

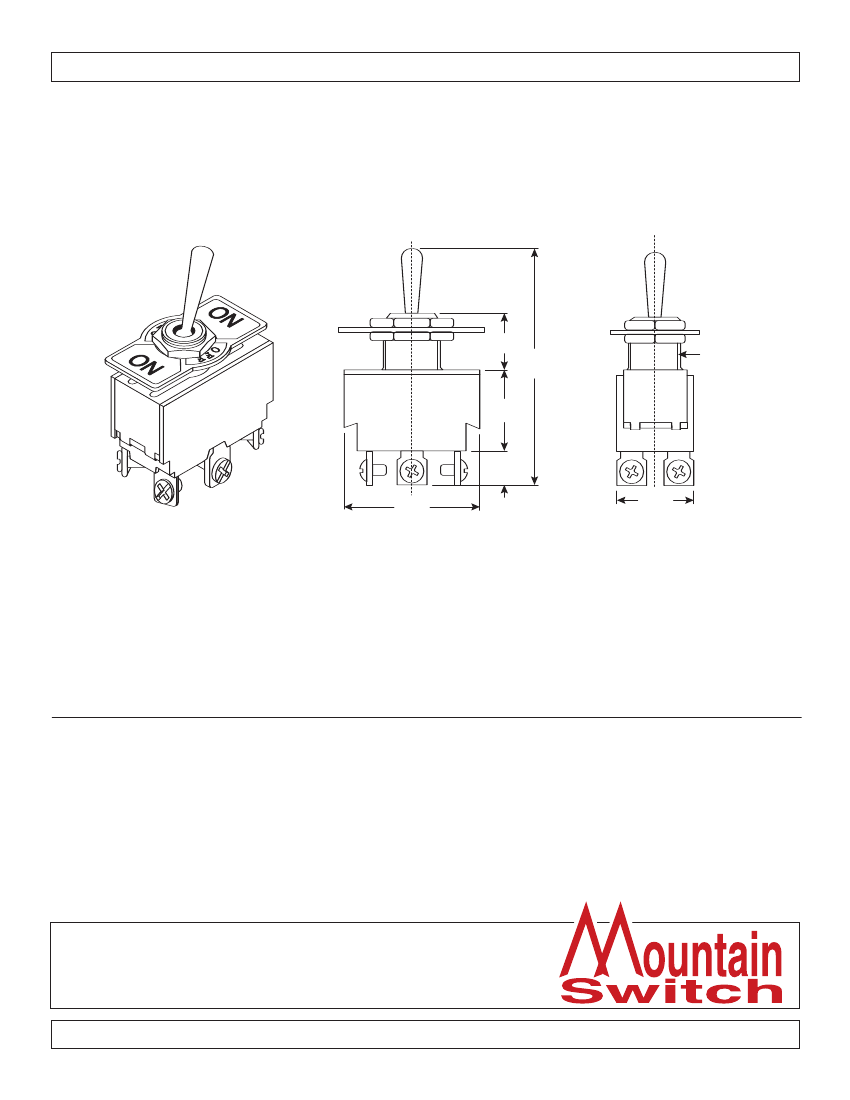

Dimensions: mm (In)

Ref. #:

MS-100544

8.99

(.354)

55.88

(2.20)

M12 x 1mm

19.43

(.765)

7.98

(.314)

35.3

(1.39)

19.2

(.756)

Electrical Specifications:

•

Rating: 10A/125VAC, 3A/250VAC

•

Contact resistance: 50mΩ max.

•

Insulation resistance: 500VDC 100MΩ min.

•

Dielectric strength: 1000VAC for 1 minute

Mechanical Specifications:

•

Circuit: 6P DPDT on-off-on

•

Mechanical Life: 20,000 cycles

Materials:

•

Case: phenol or melamine

•

Toggle handle: A, acrylonitrile - butadiene - styrene; B, brass, chrome plated

•

Bushing: brass, chrome plated

•

Housing: mild steel, zinc plated

•

End contact: coin silver

•

End terminal: brass, silver plated

•

Center contact & terminal: brass, coin silver or silver plated

•

Hardware: nut - brass, nickel plated

•

Spring washer: spring steel bright zinc plated

Toggle Switch

10TE008

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
