SocketModem IP
®
Universal Socket Benefits
• Interchangeable communications
devices
• Intelligent Universal IP stack
• Global approvals
• Easy migration to future networks
Embedded Modem + Internet Applications
The SocketModem
®
IP embedded modem creates Internet-ready devices by integrating modem functionality
and a complete TCP/IP protocol stack into a single, Universal Socket design. The space efficient (1" x 2.5"), ready-
to-integrate embedded modem sends and receives data via e-mail or socket interfaces. The intelligence of the
embedded Universal IP
™
stack provides a common AT command interface across multiple Universal Socket
devices. The SocketModem IP embedded modem brings Internet connectivity to any device without adding
development time and costs. It also complies with telecom requirements globally allowing for worldwide
shipments.
Features
• AT command interface for IP configuration
• Complete modem solution including the controller, data pump
and DAA
• Universal Socket connectivity
• Intelligent Universal IP stack
• DNS, FTP client, POP3, SMTP, Telnet server, ICMP, IP, TCP/UDP
socket communications and PPP protocol support
• PAP and CHAP authentication
• Serial interface supports DTE speeds to 230.4K bps
• TIA-602 AT command compatible in modem mode
• Global approvals with a single communications device design
• Flash memory to update firmware with the latest enhancements
• Two-year warranty
Highlights
Applications. With connect rates from 300 to 56,000 bps, the
SocketModem IP embedded modem is ideal for:
• Appliances
• ATM terminals
• Credit card and check
verification systems
• Data collection
• Gas pumps
• Industrial and medical
remote monitoring systems
• Point-of-sale terminals
• Remote diagnostics
• Remote metering
• Ticketing machines
• Security systems
• Television set-top boxes
• Vending/gaming
machines
Developer's Kit. The Developer's Kit allows you to plug in the
communications device and use it for testing, programming
and evaluation. The kit includes one development board with
RS-232 DB-25 connector, wall power adapter, RJ-11 jack,
RS-232 cable and Developer Guide CD.
Specifications
Power Requirements
3.3V or 5V DC
Power Usage
Typical: 140mA
Maximum: 150mA
Internet-enable Any Device. The SocketModem IP embedded
modem Internet-enables any device at a minimal cost. Using
the embedded Universal IP stack, it sends and receives data
over the Internet without connecting to a PC or a gateway
server.

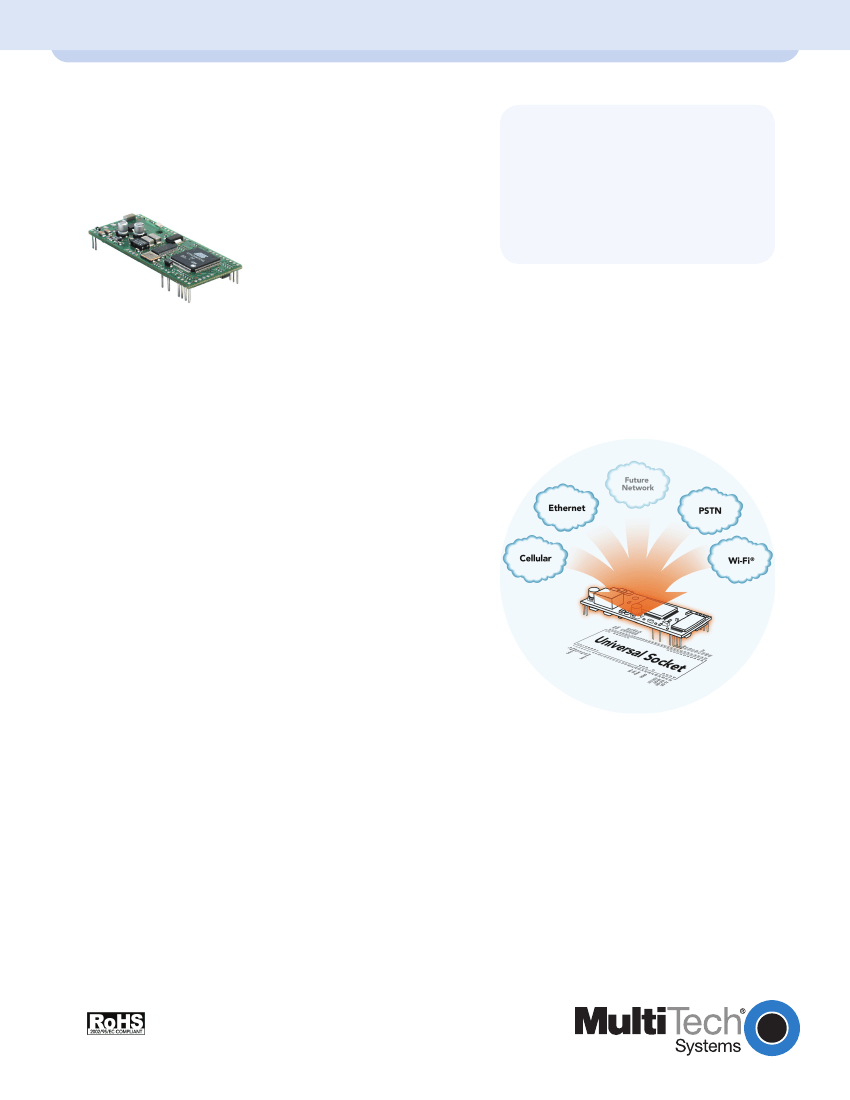

Universal Socket Connectivity. Multi-Tech’s Universal Socket
is a flexible, comm-port architecture that provides cellular,
Ethernet, PSTN or Wi-Fi network access with interchangeable
communications devices. This means you can utilize one
system design and populate it with your connectivity
device of choice accommodating multiple connectivity
requirements. In addition, you are assured a seamless
migration to future technologies.
Universal IP. Multi-Tech’s Universal IP consists of a common
set of TCP/IP networking protocols and machine-to-machine
(M2M) applications implemented using a standard AT
command interface. Universal IP allows developers to write
their host application one time while having the freedom
to select from a growing number of Universal Socket
communication devices.

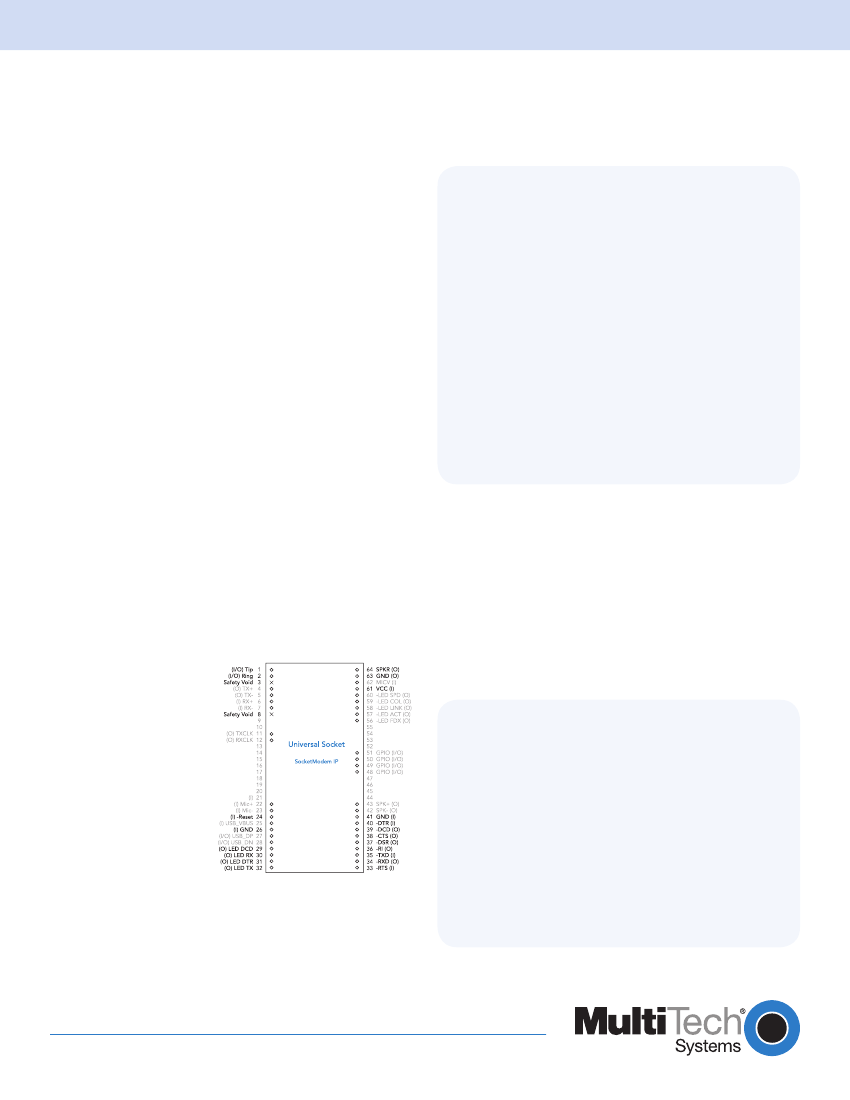

SocketModem IP Pin-out. SocketModem IP interfaces easily
with existing devices
through a standard
serial interface. A
simple programming
interface between the
device application
and SocketModem IP
activates the powerful
Internet connectivity
functions.
Global Compliance.
The SocketModem IP
embedded modem
has successfully
completed international
compliance testing (homologation) for global approval. This
means one communications device can be specified per
design without having to integrate specific country approved
devices for each system used across the world.
Physical Description
2.541" L × 1.045" W × 0.680" H; 0.6 oz.
(6.45 cm × 2.65 cm × 1.7 cm; 0.017 kg.)
Operating Environment
Temperature Range: 0° to +70° C
Approvals
EMC: FCC CFR47 Part 15 (Class B); ICES-003 Canada
(Class B); EN 55022 (Class B), EN 55024
Safety: cUL 60950, UL 60950, EN 60950,
AS/NZ 60950:2000, CCC
Ordering Information
Product
MT5656SMI-IP-92
MT5656SMI-IP-L-92
Ordering Codes
-IP
-L
-92
.Rx
Description
V.92 Serial Data Only + IP
V.92 Serial Data Only + IP
Region
Global
Global
Embedded Universal IP Stack
3.3V Power Input (Default is 5V)
V.92/56K Data Rate
Version control
Made in Mounds View, MN, U.S.A.
Features and specifications are subject to change without notice.
Trademarks / Registered Trademarks: SocketModem, Multi-Tech, and the
Multi-Tech logo: Multi-Tech Systems, Inc. / All other products and technologies
are the trademarks or registered trademarks of their respective holders.
