0609-C-2530-B-ZZZZ: DescriptionMains Power Connector; CategoryThe connector The connector; File Size384KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

0609-C-2530-B-ZZZZ Overview

Mains Power Connector

0609-C-2530-B-ZZZZ Parametric

Parameter Name	Attribute value
Objectid	1236735714
Reach Compliance Code	compliant
YTEOL	0.4
Other features	STANDARD : CSA C22.2, IEC 60320, UL 498
body width	0.866 inch
subject depth	0.827 inch
body length	1.89 inch
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
insulator material	POLYAMIDE6
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Maximum operating temperature	120 °C
Minimum operating temperature	-25 °C
Guideline	CSA; UL
Termination type	QUICK CONNECT
Total number of contacts	3

Preview

Download Datasheet

View All

Cord Sets

www.schurter.com/pg07_2

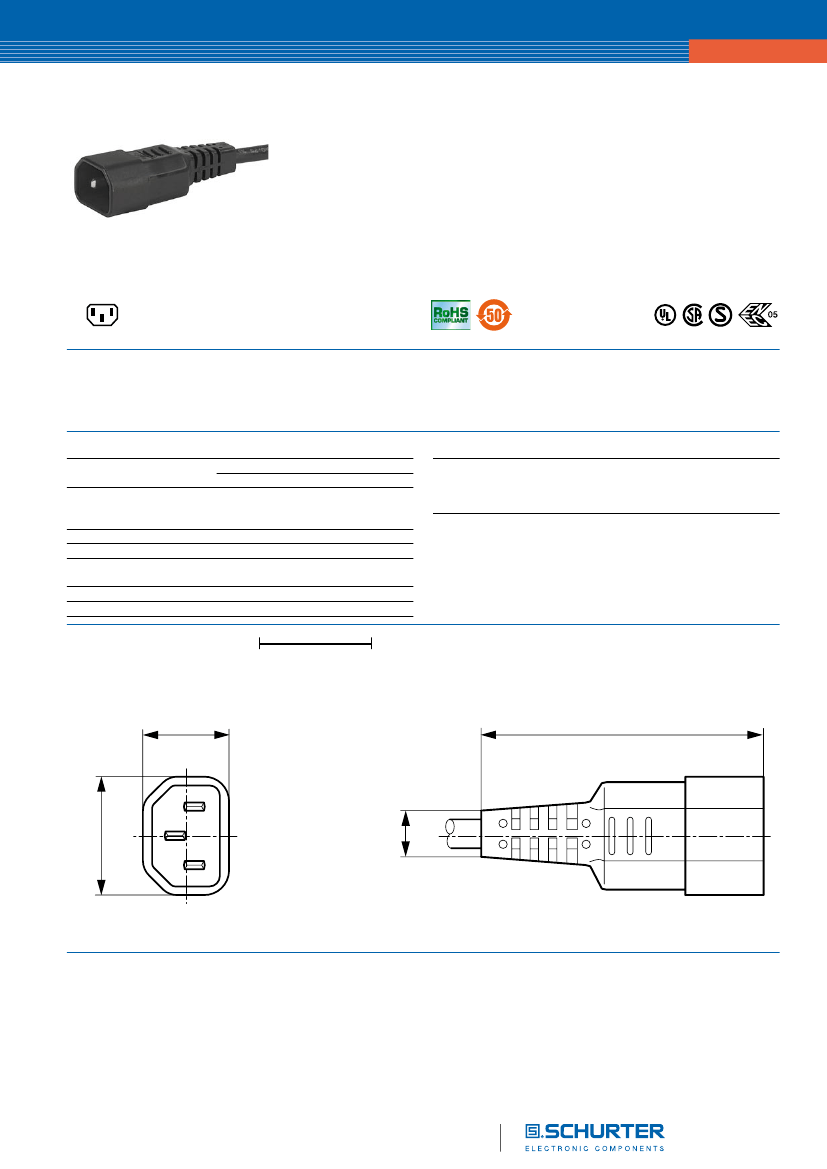

Interconnection Cord with IEC Plug E, Straight

0609

70° C

Description

Approvals

Interconnection Cord, Protection class I, Pin temperature 70 °C, Cable

- UL File Number: E45116

- CSA File Number: 32338

Weblinks

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

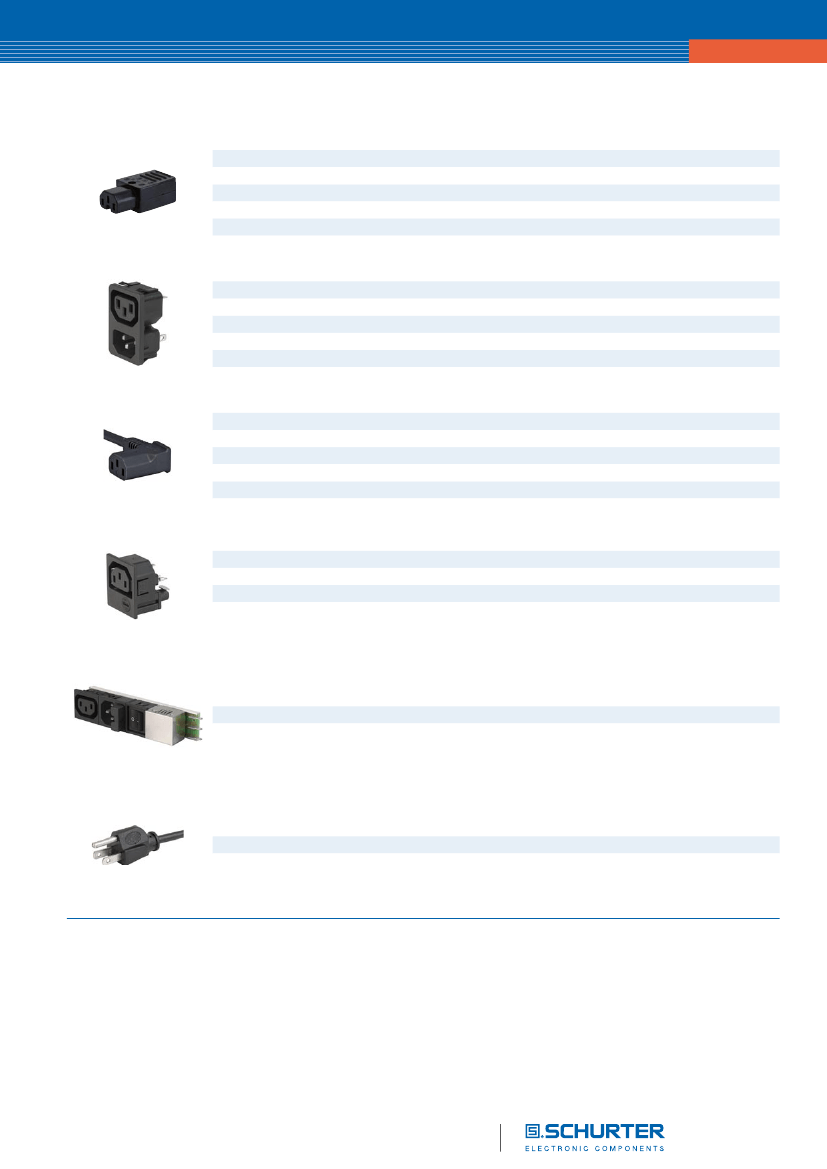

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

10 A / 250 VAC; 60 Hz

> 4 kVDC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

moulded

PVC, black or grey

28.3 mm

Plug

E acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

20.6

67.5

ø 11

Connectors

28.3

Recommended Resources

Application circuit of uPC1892

Power-on delay output high level circuit

Bandpass filter circuit composed of single power supply op amp 8FC7

Slow turn-on 15V voltage regulator (1)

Add an intermediate relay to make a simple phase failure protector circuit diagram

Blocking AC power supply with TDA4600
