HV9100
HV9102
HV9103
High-Voltage Switchmode Controllers with MOSFET
+V
IN
Min
10V
10V
10V
Max
70V
120V
120V
Feedback
Voltage
±
1.0%
±
1.0%
±1.0%
Max
Duty Cycle
49%
49%
99%
MOSFET Switch
BV
DSS
150V
200V
200V
R
DS (ON)
5.0Ω
7.0Ω
7.0Ω
Package Options
HV9100P
HV9102P
HV9103P
14 Pin Plastic DIP 20 Pin Plastic PLCC
HV9100PJ
HV9102PJ
Standard temperature range for all parts is industrial (-40° to +85°C).
Features
10 to 120V input range
200V, 7.0Ω output MOSFET
Current-Mode Control
High Efficiency
Up to 1MHz Internal Oscillator
Internal Start-up Circuit
Applications
DC/DC Converters
Distributed Power Systems
ISDN Equipment
PBX Systems
Modems
bs
Absolute Maximum Ratings
O
V
DS
V
DD
, Logic Voltage
I
D
(Peak)
Storage Temperature
11/12/01
+V
IN
, Input Voltage
Input Voltage Logic, Linear, FB and Sense -0.3V to V
DD
+0.3V
2.5A
-65°C to 150°C
750mW
1400mW
For detailed circuit and application information, please refer
to application notes AN-H13 and AN-H21 to AN-H24.
Power Dissipation, Plastic DIP
Power Dissipation, PLCC
Supertex Inc. does not recommend the use of its products in life support applications and will not knowingly sell its products for use in such applications unless it receives an adequate "products liability
indemnification insurance agreement." Supertex does not assume responsibility for use of devices described and limits its liability to the replacement of devices determined to be defective due to
workmanship. No responsibility is assumed for possible omissions or inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications, refer to the
Supertex website: http://www.supertex.com. For complete liability information on all Supertex products, refer to the most current databook or to the Legal/Disclaimer page on the Supertex website.
1
ol
120V
200V
15.0V
et
General Description
The Supertex HV9100 through HV9103 are a series of BiCMOS/
DMOS single-output, pulse width modulator ICs intended for use
in high-speed high-efficiency switchmode power supplies. They
provide all the functions necessary to implement a single-switch
current-mode PWM, in any topology, with a minimum of external
parts.
Utilization of Supertex proprietary BiCMOS/DMOS technology
results in a device with one tenth of the operating power of
conventional bipolar PWM ICs, which can operate at more than
twice their switching frequency. Dynamic range for regulation is
also increased, to approximately 8 times that of similar bipolar
parts. They start directly from any DC input voltage between 10
and 70VDC for the HV9100 or 10 to 120VDC for the HV9102 and
HV9103, requiring no external power resistor. The output stage
for the HV9100 is a 150V, 5.0 ohm MOSFET and for the HV9102
and HV9103 is a 200V, 7.0 ohm MOSFET. The clock frequency
is set with a single external resistor.
Accessory functions are included to permit fast remote shutdown
(latching or nonlatching), and undervoltage shutdown.
e
HV9103PJ
Ordering Information
HV9100/HV9102/HV9103

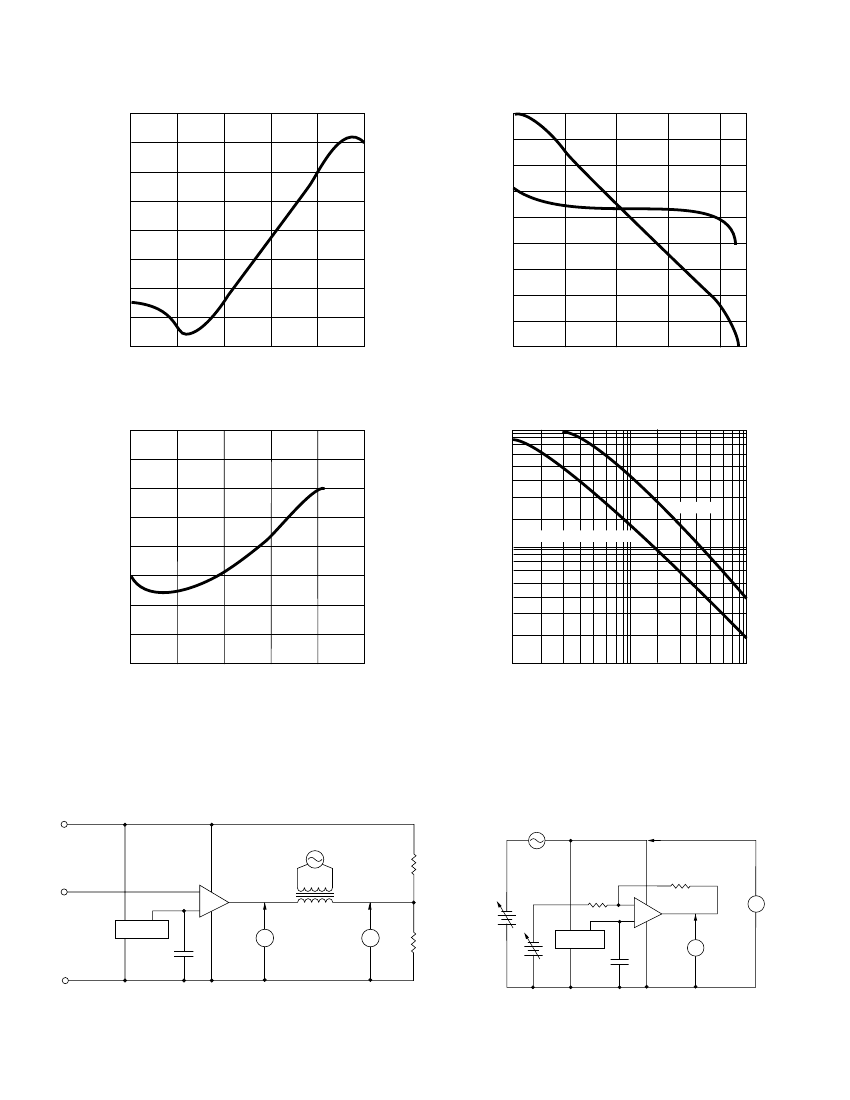

Typical Performance Curves
Fig. 1
0
-10
-20
-30
PSRR – Error Amplifier and Reference
Fig. 3
80
70
60
50
Error Amplifier
Open Loop Gain/Phase
180°
120°
60°
0°
-60°
-120°
-180°
Gain (dB)
-40
-50
-60
-70
-80
10Hz
100Hz
1KHz
10KHz
100KHz
1MHz
30
20
10
0
-10
100Hz
1KHz
10KHz
100KHz
1MHz
Frequency
Fig. 2
10
6
10
5
10
4
10
3
Error Amplifier Output Impedance (Z
0
)
Fig. 4
1M
Output Switching Frequency
vs. Oscillator Resistance
HV9103
f
OUT
(Hz)
(Ω)
10
2
10
1.0
0.1
.01
100Hz
1KHz
10KHz
100KHz
1MHz
10MHz
100k
HV9100, 9101, 9102
10k
10k
100 k
1M
R
OSC
(Ω)
Test Circuits
Error Amp Z
OUT
0.1V swept 10Hz – 1MHz
PSRR
+10V
(V
DD
)
1.0V swept 100Hz – 2.2MHz
60.4K
–
100K1%
10.0V
100K1%
4.00V
–
+
(FB)
Reference
GND
(–V
IN
)
0.1µF
+
V
1
Tektronix
P6021
(1 turn
secondary)
V
1
V
2
40.2K
Reference
0.1µF
V
2
NOTE: Set Feedback Voltage so that
V
COMP
= V
DIVIDE
±
1mV before connecting transformer
5
Phase
(dB)
40
