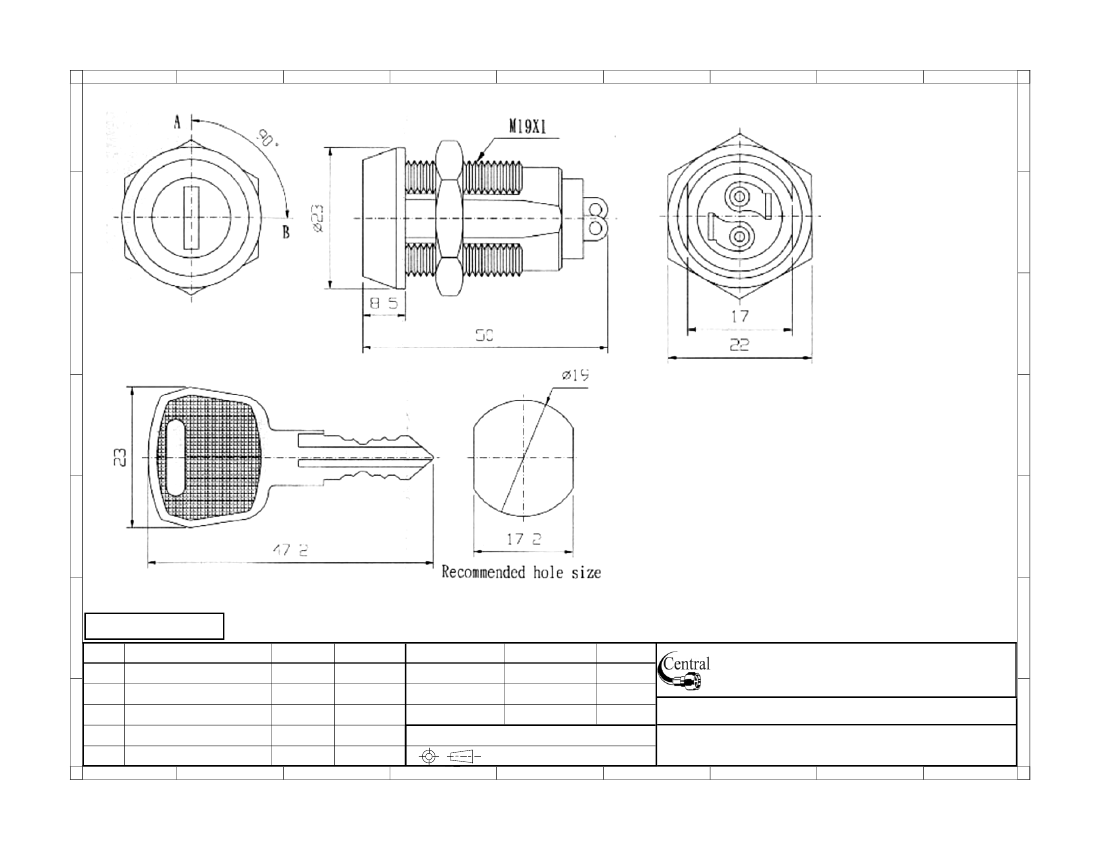

SPECIFICATIONS
•
Zinc alloy die cast housing and cylinder
•
5-disk tumblers mechanism
•
Reversible double cut brass key, nickel plated
•
Dust shutter
•
Silver plated contacts and terminals
•
2 positions, 2 terminals (off/on)
•
Key is removable in locked position only
•
100 combinations available
•
XXX = Combination (001-100)
D
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
05/11/06
05/11/06
05/11/06 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
SWTK-5246-XXX-KEY
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Key lock switch
G
