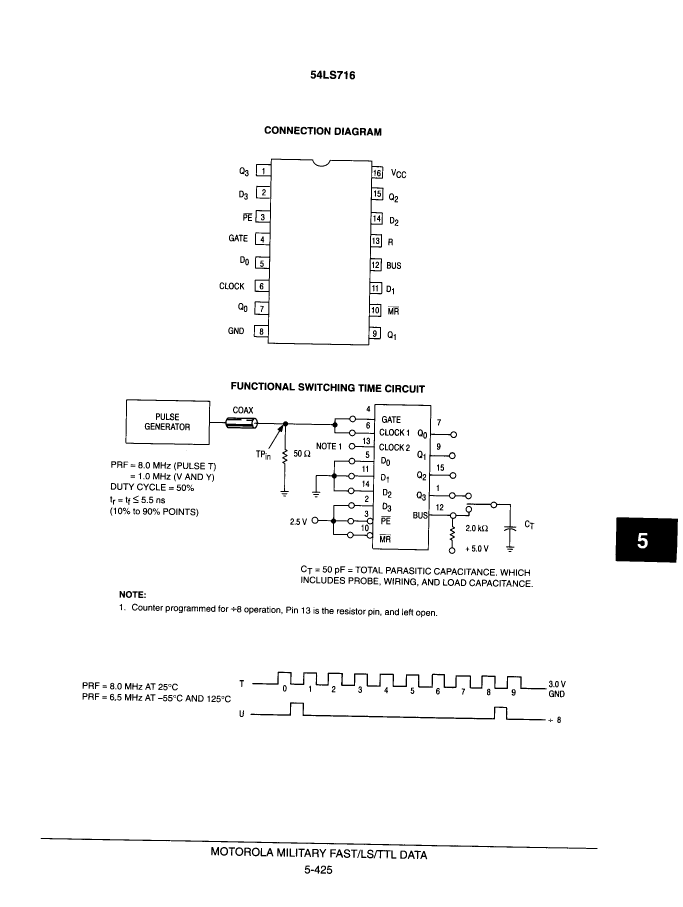

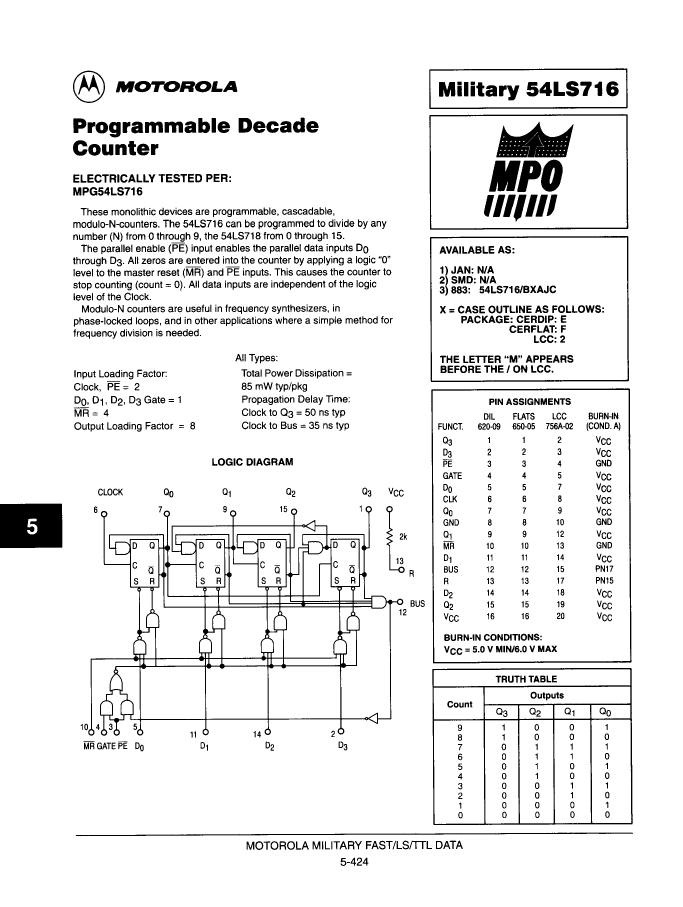

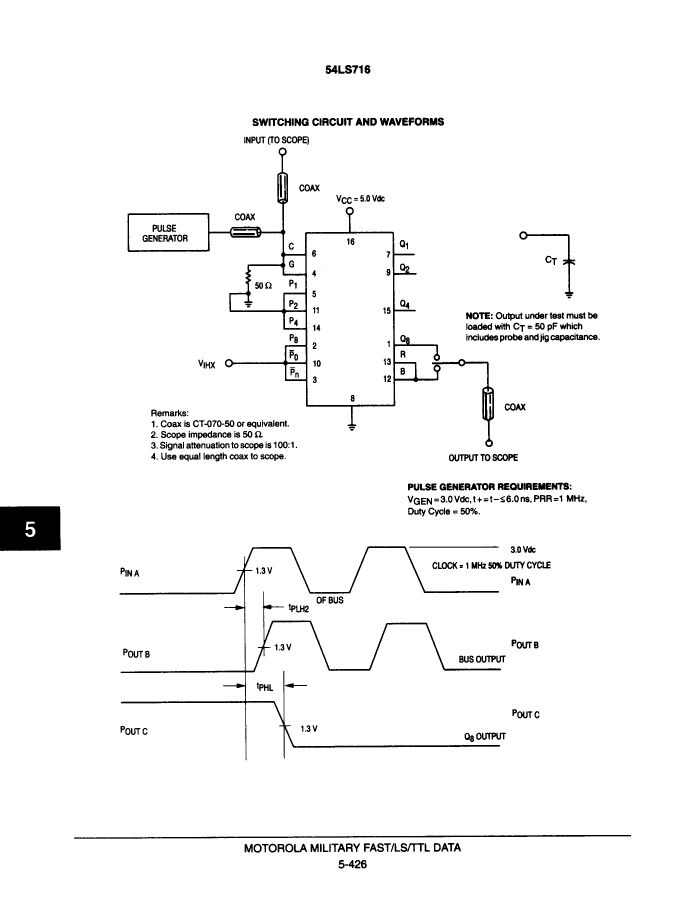

IC,COUNTER,DOWN,DECADE,LS-TTL,LLCC,20PIN,CERAMIC

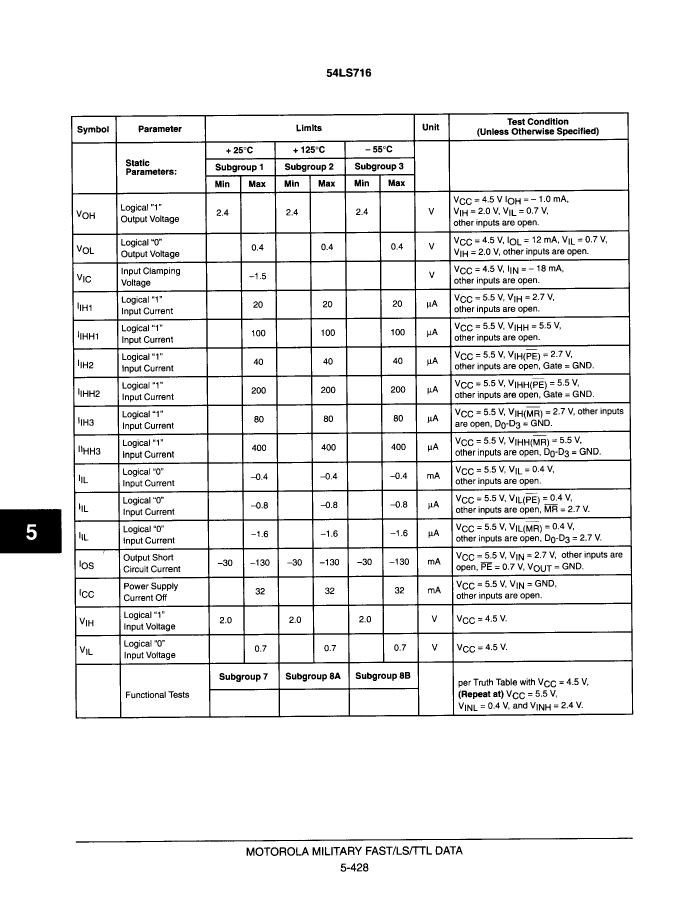

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NXP |
| package instruction | QCCN, LCC20,.35SQ |
| Reach Compliance Code | unknown |
| Counting direction | DOWN |
| JESD-30 code | S-XQCC-N20 |
| JESD-609 code | e0 |
| Load/preset input | YES |
| Logic integrated circuit type | DECADE COUNTER |
| Maximum Frequency@Nom-Sup | 6500000 Hz |
| MaximumI(ol) | 0.012 A |
| Operating mode | ASYNCHRONOUS |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Maximum supply current (ICC) | 32 mA |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Base Number Matches | 1 |
| 54LS716/B2AJC | SN74LS716NS | SN74LS716NDS | 741X043121FP | SN74LS716JD | |
|---|---|---|---|---|---|
| Description | IC,COUNTER,DOWN,DECADE,LS-TTL,LLCC,20PIN,CERAMIC | IC,COUNTER,DOWN,DECADE,LS-TTL,DIP,16PIN,PLASTIC | IC,COUNTER,DOWN,DECADE,LS-TTL,DIP,16PIN,PLASTIC | Chip Resistor Arrays | IC,COUNTER,DOWN,DECADE,LS-TTL,DIP,16PIN,CERAMIC |
| Is it Rohs certified? | incompatible | incompatible | incompatible | - | incompatible |
| Maker | NXP | - | NXP | - | NXP |
| package instruction | QCCN, LCC20,.35SQ | DIP, DIP16,.3 | DIP, DIP16,.3 | - | DIP, DIP16,.3 |
| Reach Compliance Code | unknown | unknown | unknown | - | unknown |
| Counting direction | DOWN | DOWN | DOWN | - | DOWN |
| JESD-30 code | S-XQCC-N20 | R-PDIP-T16 | R-PDIP-T16 | - | R-XDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | - | e0 |
| Load/preset input | YES | YES | YES | - | YES |
| Logic integrated circuit type | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER | - | DECADE COUNTER |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | - | ASYNCHRONOUS |
| Number of functions | 1 | 1 | 1 | - | 1 |
| Number of terminals | 20 | 16 | 16 | - | 16 |
| Maximum operating temperature | 125 °C | 70 °C | 70 °C | - | 70 °C |
| Package body material | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | - | CERAMIC |
| encapsulated code | QCCN | DIP | DIP | - | DIP |
| Encapsulate equivalent code | LCC20,.35SQ | DIP16,.3 | DIP16,.3 | - | DIP16,.3 |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Package form | CHIP CARRIER | IN-LINE | IN-LINE | - | IN-LINE |
| power supply | 5 V | 5 V | 5 V | - | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | - | 5 V |
| surface mount | YES | NO | NO | - | NO |
| technology | TTL | TTL | TTL | - | TTL |
| Temperature level | MILITARY | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | - | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | - | 2.54 mm |
| Terminal location | QUAD | DUAL | DUAL | - | DUAL |
