FEATURES AND SPECIFICATIONS
Interface Modules
39170
Interface Modules provide a cost effective
and simple transition from cable assemblies to
discrete wiring
Interface modules are DIN-Rail mounted, PCB-based
interconnect devices that provide an expedient and
simplistic means to transition between system
Input/Output (I/O) connectors and field equipment.
Modules incorporate terminal blocks and other high-
density electronic connectors.
Molex’s Interface Modules have pre-drilled component
holes, allowing for the addition of other electronic
components, if necessary. Typical additions and
modifications to the standard modules may include
resistors, capacitors, diodes or light emitting diodes
(LEDs) for increased functionality.
Custom interface modules are also available and allow
the user to develop a connector interface system to
meet virtually any application and product
requirement. Molex works seamlessly with our
customers to develop application specific modules to
meet unique design requirements.

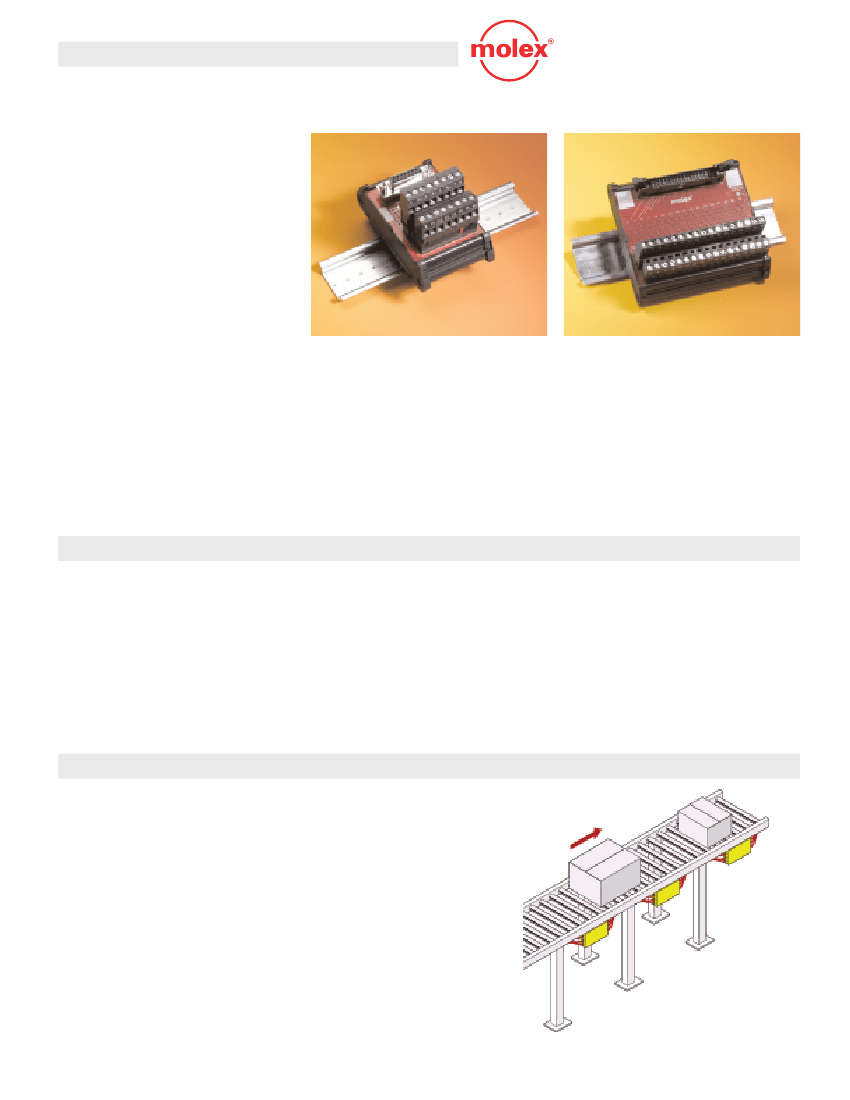

D-Sub module
Ribbon-Cable module
Features and Benefits
I
High-reliability rising cage clamp connection
technology (on terminal blocks) provides reliable
connection without strand damage
I
High-packing density of compact modules enables
space savings where real estate is limited
I
Blocks are clearly marked to reduce wiring errors
and installation time
I
Fixed or pluggable terminal blocks available for
discrete wire connections providing design flexibility
I
Pre-drilled component holes allow for the easy
addition of other components
I
Pluggable terminal blocks are provided with coding
pins (keys) to prevent mis-mating
SPECIFICATIONS
Reference Information
Packaging: Box
Designed In: Inches
Electrical
Terminal Blocks
Voltage: 300V
Current: 15.0A max.
Dielectric Withstanding Voltage: 4000V DC
Insulation Resistance: 5000 Megohms min.
APPLICATIONS
I
Machine Builders
- Semiconductor equipment
- Mill machines
- Compressor systems
I
Process Control Equipment/Systems
- Instrumentation
- Distributed Control Systems (DCS)
- Power generation equipment
I
Industrial Control Equipment
- PLCs
- Micro-controllers
- Motion controllers
I
Material Handling Equipment
- Conveyor systems
- Elevators/people movers
- Automated warehouse controls
I
Transportation
- Signal control
- Railway switching
- Jetway systems
I
Construction Equipment
- Scissor lifts
- Beam lifts
Ribbon Cable Connector
Voltage: 120V
Current: 1.0A
Dielectric Withstanding Voltage: 1000V RMS
Insulation Resistance: 1000 Megohms min.
D-Sub Connector
Voltage: 125V
Current: 2.50A
Dielectric Withstanding Voltage: 500V RMS
Insulation Resistance: 1000 Megohms min.
Physical
Terminal Blocks
Housing: PA Polyamide (Nylon 6/6)
Contact: Phosphor Bronze (CuSn)
Plating: Contact Area — Tin (Sn)
Operating Temperature: +110°C max.
Flammability: UL 94V-0
Tightening Torque-Recommended: 0.56Nm (5 in. lbs)
ORDERING INFORMATION
Interface Modules
39170

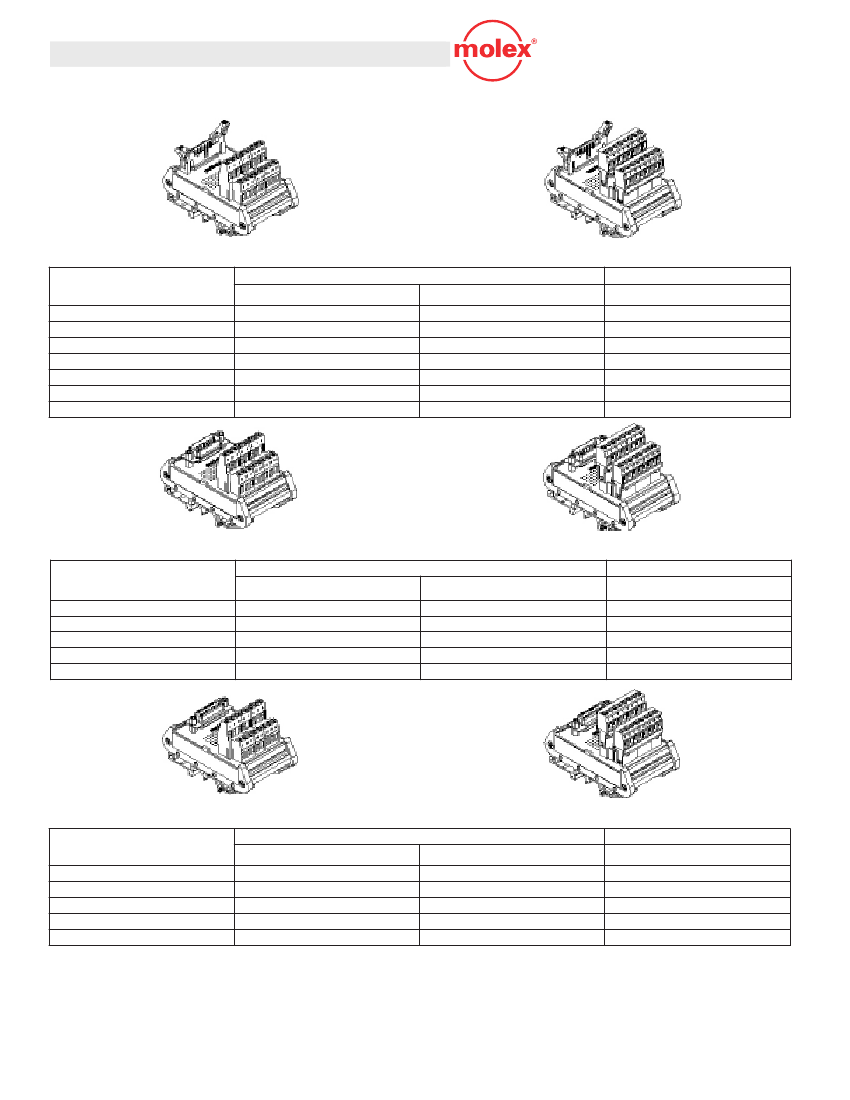

Ribbon-Cable Connector to Fixed 5.08mm (.200”) Terminal Block
Order No.
Circuits
14
16
20
26
34
40
50
Ribbon-Cable Connector to Fixed Mount
5.08mm (.200”) Terminal Block
39170-1014
39170-1016
39170-1020
39170-1026
39170-1034
39170-1040
39170-1050
Ribbon-Cable Connector to Pluggable 5.08mm (.200”) Terminal Block
Dimensions
Ribbon-Cable Connector to Pluggable
5.08mm (.200”) Terminal Block
39170-1114
39170-1116
39170-1120
39170-1126
39170-1134
39170-1140
39170-1150
Length
50.80mm (2.000”)
53.30mm (2.100”)
61.00mm (2.400”)
76.20mm (3.000”)
95.00mm (3.740”)
111.50mm (4.390”)
135.60mm (5.340”)
Male D-Sub Connector to Fixed 5.08mm (.200”) Terminal Block
Order No.
Circuits
9
15
25
37
50
Male-D Sub Connector to Fixed Mount
5.08mm (.200”) Terminal Block
39170-2009
39170-2015
39170-2025
39170-2037
39170-2050
Male D-Sub Connector to Pluggable 5.08mm (.200”) Terminal Block
Dimensions
Male-D Sub Connector to Pluggable
5.08mm (.200”) Terminal Block
39170-2109
39170-2115
39170-2125
39170-2137
39170-2150
Length
39.40mm (1.550”)
54.40mm (2.140”)
79.80mm (3.140”)
106.40mm (4.190”)
142.00mm (5.590”)
Female D-Sub Connector to Fixed 5.08mm (.200”) Terminal Block
Order No.
Circuits
9
15
25
37
50
Female-D Sub Connector to Fixed Mount
5.08mm (.200”) Terminal Block
39170-3009
39170-3015
39170-3025
39170-3037
39170-3050
Female D-Sub Connector to Pluggable 5.08mm (.200”) Terminal Block
Dimensions
Female-D Sub Connector to Pluggable
5.08mm (.200”) Terminal Block
39170-3109
39170-3115
39170-3125
39170-3137
39170-3150
Length
39.40mm (1.550”)
54.40mm (2.140”)
79.80mm (3.140”)
106.40mm (4.190”)
142.00mm (5.590”)
Americas Headquarters
Lisle, Illinois 60532 U.S.A.
1-800-78MOLEX
amerinfo@molex.com
Far East North Headquarters
Yamato, Kanagawa, Japan
81-462-65-2324
feninfo@molex.com
Far East South Headquarters
Jurong, Singapore
65-6-268-6868
fesinfo@molex.com
European Headquarters
Munich, Germany
49-89-413092-0
eurinfo@molex.com
Corporate Headquarters
2222 Wellington Ct.
Lisle, IL 60532 U.S.A.
630-969-4550
Fax:630-969-1352
Visit our Web site at http://www.molex.com/product/tblocks.html
Order No. USA-316
Printed in USA/2.5K/JI/JI/2005.06
©2005 Molex
