5-794638-0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5-794638-0

Preview

5-794638-0: DescriptionPower Connector, 20 Contact(s), Male, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size236KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-794638-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-794638-0	-	-	View	Buy Now

5-794638-0 Overview

Power Connector, 20 Contact(s), Male, Surface Mount Terminal, Plug

5-794638-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1988575672
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	15 weeks
Samacsys Description	Configuration Features: PCB Mount Orientation Vertical \| Number of Positions 20 \| Number of Rows 2 \| Number of Power Positions 20 \| Contact Features: Contact Retention Within Housing Without \| Contact Mating Area Plating Material Thickness 30 MICIN \| Contact Mating Area Plating Material Gold \| Contact Mating Area Plating Material Thickness .76 MICM \| Contact Current Rating (Max) 5 AMP \| Multiple Contact Types Without \| Contact Type Pin \| PCB Contact Termination Area Plating Material Tin \| Dimensions: Wire S
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-04 10:57:02
YTEOL	7
Other features	POLARIZATION
body width	0.27 inch
subject depth	0.364 inch
body length	1.338 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	150 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
MIL compliance	NO
Power Connector Ratings	5A
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Plug information	2-794617-0
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	9.398 mm
Panel mounting	NO
Plating thickness	30u inch
polarization key	POLARIZED
Rated current (signal)	5 A
Rated voltage	250 V
Guideline	UL
Terminal length	0.06 inch
Terminal pitch	3 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.6672 N

Preview

Download Datasheet

View All

8

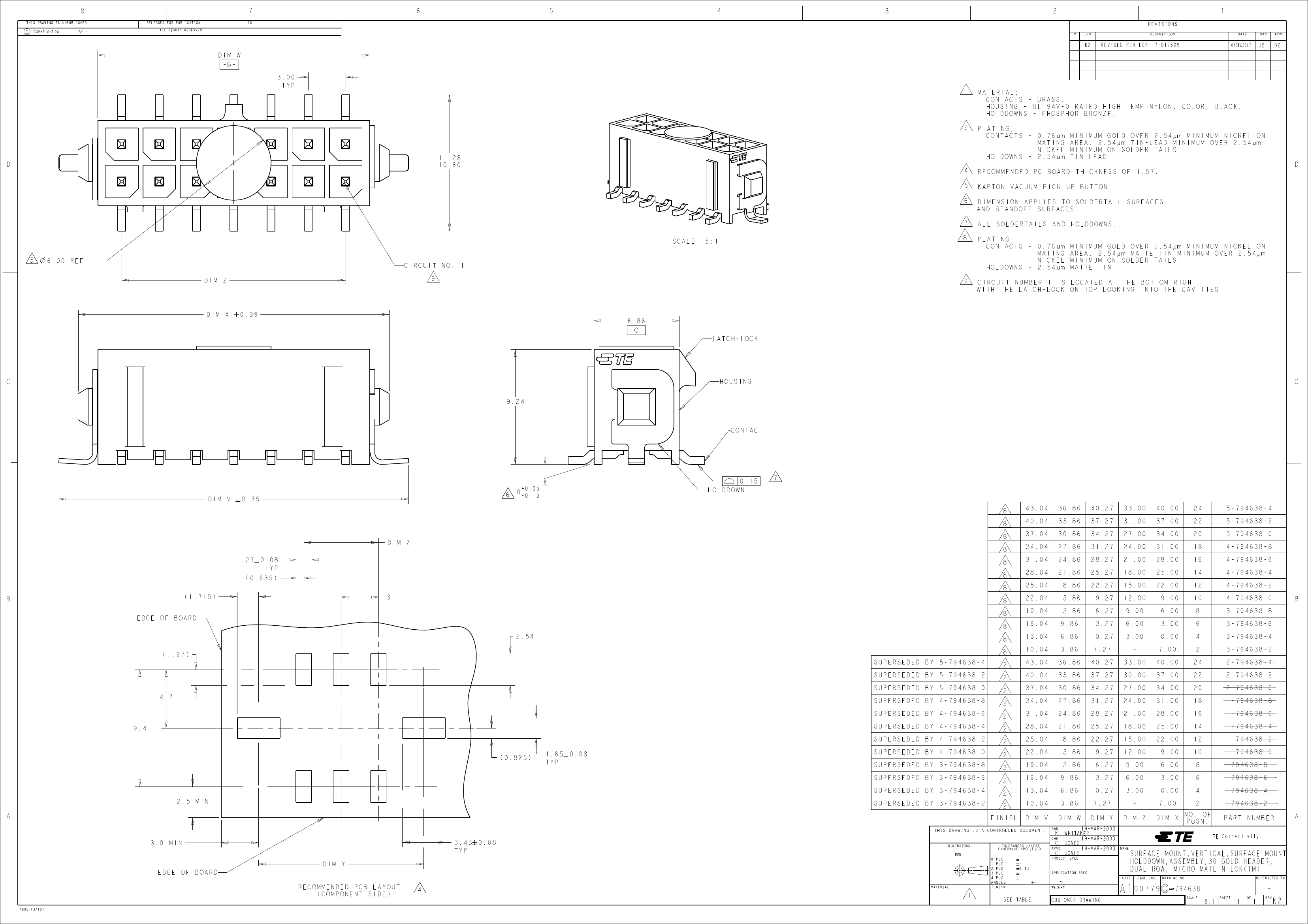

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

K2

REVISED PER ECR-17-017609

04DEC2017

JB

DZ

DIM W

-B-

3.00

TYP

1

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON, COLOR; BLACK.

HOLDDOWNS - PHOSPHOR BRONZE.

PLATING;

CONTACTS - 0.76µm

MATING

NICKEL

HOLDOWNS - 2.54µm

MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL ON

AREA. 2.54µm TIN-LEAD MINIMUM OVER 2.54µm

MINIMUM ON SOLDER TAILS.

TIN LEAD.

2

D

11.28

10.60

4

5

6

7

SCALE

5:1

8

RECOMMENDED PC BOARD THICKNESS OF 1.57.

KAPTON VACUUM PICK UP BUTTON.

DIMENSION APPLIES TO SOLDERTAIL SURFACES

AND STANDOFF SURFACES.

ALL SOLDERTAILS AND HOLDDOWNS.

PLATING;

CONTACTS - 0.76µm

MATING

NICKEL

HOLDOWNS - 2.54µm

MINIMUM GOLD OVER 2.54µm MINIMUM NICKEL ON

AREA. 2.54µm MATTE TIN MINIMUM OVER 2.54µm

MINIMUM ON SOLDER TAILS.

MATTE TIN.

D

5

6.00

REF

DIM Z

CIRCUIT NO. 1

9

CIRCUIT NUMBER 1 IS LOCATED AT THE BOTTOM RIGHT

WITH THE LATCH-LOCK ON TOP LOOKING INTO THE CAVITIES

DIM X

# 0.39

6.86

-C-

LATCH-LOCK

C

9.24

HOUSING

C

CONTACT

DIM V

# 0.35

6

0

+0.05

-0.15

7

HOLDDOWN

8

43.04

40.04

37.04

34.04

31.04

28.04

25.04

22.04

19.04

16.04

13.04

10.04

43.04

40.04

37.04

34.04

31.04

28.04

25.04

22.04

19.04

16.04

13.04

10.04

DIM V

DWN

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM W

40.27

37.27

34.27

31.27

28.27

25.27

22.27

19.27

16.27

13.27

10.27

7.27

40.27

37.27

34.27

31.27

28.27

25.27

22.27

19.27

16.27

13.27

10.27

7.27

DIM Y

33.00

31.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

DIM Z

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM X

24

22

20

18

16

14

12

10

8

6

4

2

24

22

20

18

16

14

12

10

8

6

4

2

NO. OF

POSN.

5- 794638 -4

5- 794638 -2

5- 794638 -0

4- 794638 -8

4- 794638 -6

4- 794638 -4

4- 794638 -2

4- 794638 -0

3- 794638 -8

3- 794638 -6

3- 794638 -4

3- 794638 -2

2- 794638 -4

2- 794638 -2

2- 794638 -0

1- 794638 -8

1- 794638 -6

1- 794638 -4

1- 794638 -2

1- 794638 -0

794638 -8

794638 -6

794638 -4

794638 -2

PART NUMBER

TE Connectivity

DIM Z

1.27

0.08

TYP

8

( 0.635 )

B

( 1.715 )

EDGE OF BOARD

3

8

2.54

8

SUPERSEDED BY 5-794638-4

SUPERSEDED BY 5-794638-2

8

2

FINISH

B

( 1.27 )

4.7

SUPERSEDED BY 5-794638-0

SUPERSEDED BY 4-794638-8

SUPERSEDED BY 4-794638-6

9.4

SUPERSEDED BY 4-794638-4

SUPERSEDED BY 4-794638-2

( 0.825 )

1.65

TYP

0.08

SUPERSEDED BY 4-794638-0

SUPERSEDED BY 3-794638-8

SUPERSEDED BY 3-794638-6

SUPERSEDED BY 3-794638-4

2.5

MIN

SUPERSEDED BY 3-794638-2

A

3.0

MIN

DIM Y

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

4805 (3/13)

MATERIAL

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

3.43

TYP

0.08

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

EDGE OF BOARD

4

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

19-MAR-2003

K. WHITAKER

CHK

19-MAR-2003

C. JONES

APVD

19-MAR-2003

C. JONES

PRODUCT SPEC

APPLICATION SPEC

NAME

-

WEIGHT

1

-

SEE TABLE

CUSTOMER DRAWING

A1

00779

SIZE

SURFACE MOUNT,VERTICAL,SURFACE MOUNT

HOLDDOWN,ASSEMBLY,30 GOLD HEADER,

DUAL ROW, MICRO MATE-N-LOK(TM)

CAGE CODE

DRAWING NO

RESTRICTED TO

794638

SCALE

8:1

SHEET

1

OF

1

REV

-
