Last Update:
4-21-05

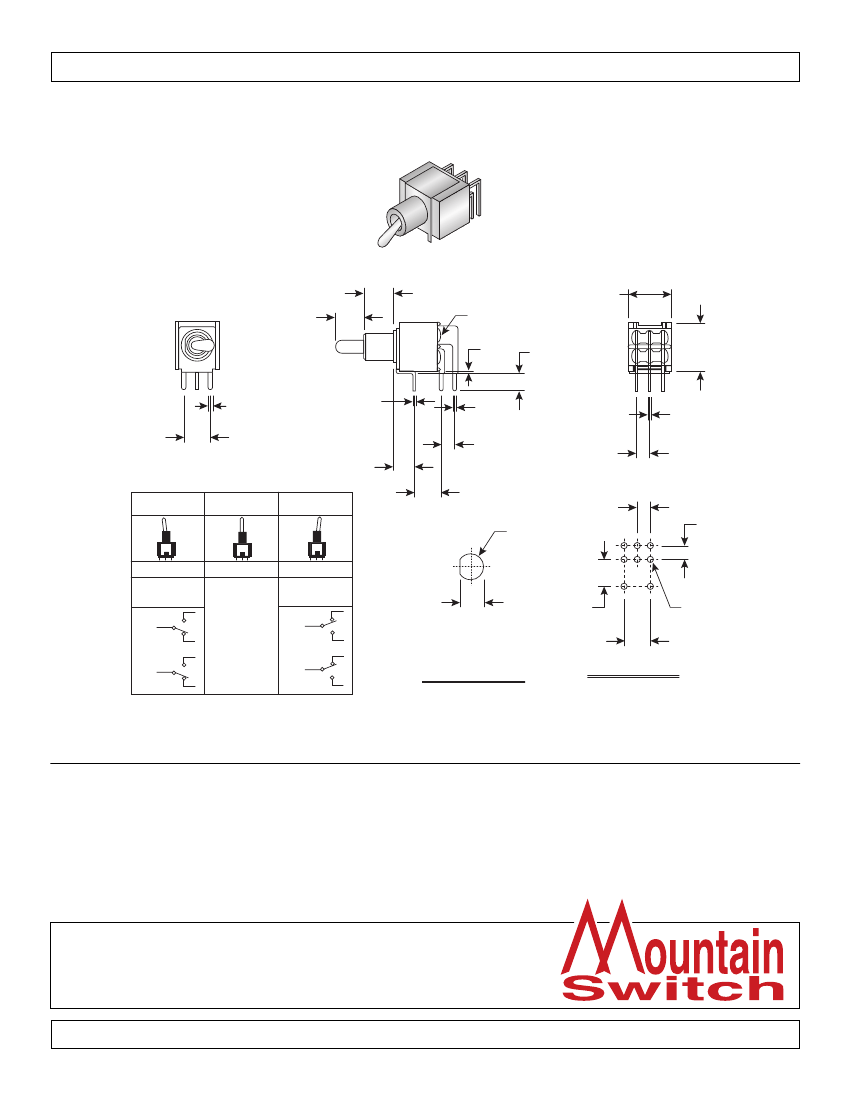

Dimensions: mm (In.)
Ref. #:
MS-100515
4.93
(.194)
5.59
(.22)
Epoxy seal
.51
(.02)
3.30
(.13)
8.13
(.32)
4 5 6
9.14
(.36)
1 2 3
.76
(.03)
5.08
(.20)
0.41
(.016)
.76
(.03)
2.54
(.10)
.51
(.02)
2.54
(.10)
SWITCH FUNCTION
4.01
(.158)
POS.1
POS.2
POS.3
5.08
(.20)
ø4.95
(ø.195)
2.54
(.100)
2.54
(.10)
ON
2-3,5-6
1
2 Comm.
NONE
ON
2-1,5-4
1
2 Comm.
4.55
(.179)
3
5.08
(.20)
ø1.09
(.043)
5.08
(.20)
P.C. MOUNTING
3
OPEN
5 Comm.
Without locking ring
4
5 Comm.
6
6
4
PANEL MOUNTING
Electrical Specifications:
•
Electrical life: 30,000 make-and-break cycles at full load
•
Contact resistance: 20m
Ω
max. initial @ 2-4VDC100mA
•
Insulation resistance: 1,000M
Ω
min.
•
Dieletric strength: 1,000 V RMS@sea level
•
Rating: 1A/250VAC
3A/120VAC or 28VDC
Materials:
•
Case: Diallyl phthalate (DAP) (UL94V-0)
•
Actuator: Brass, chrome plated
•
Brushing: Brass, nickel plated
•
Housing: Stainless Steel
•
Switch Support: Brass, tin plated
•
Terminals/Contact: Brass, Silver plated
Mechanical Specifications:
•
Operating temperature: -30°C to +85°C
Toggle Switch
108-2MD1T2B2M6QE
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
