TAZD155J020CSLC0823 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> TAZD155J020CSLC0823

TAZD155J020CSLC0823: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 5% +Tol, 5% -Tol, 1.5uF, Surface Mount, 1510, CHIP, LEAD FREE; CategoryPassive components capacitor; File Size193KB，15 Pages; ManufacturerAVX

Download Datasheet Parametric View All

TAZD155J020CSLC0823 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 5% +Tol, 5% -Tol, 1.5uF, Surface Mount, 1510, CHIP, LEAD FREE

TAZD155J020CSLC0823 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1783783447
package instruction	, 1510
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	5.61
capacitance	1.5 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
leakage current	0.01 mA
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	25 V
size code	1510
surface mount	YES
Delta tangent	0.06
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	J BEND

Preview

Download Datasheet

View All

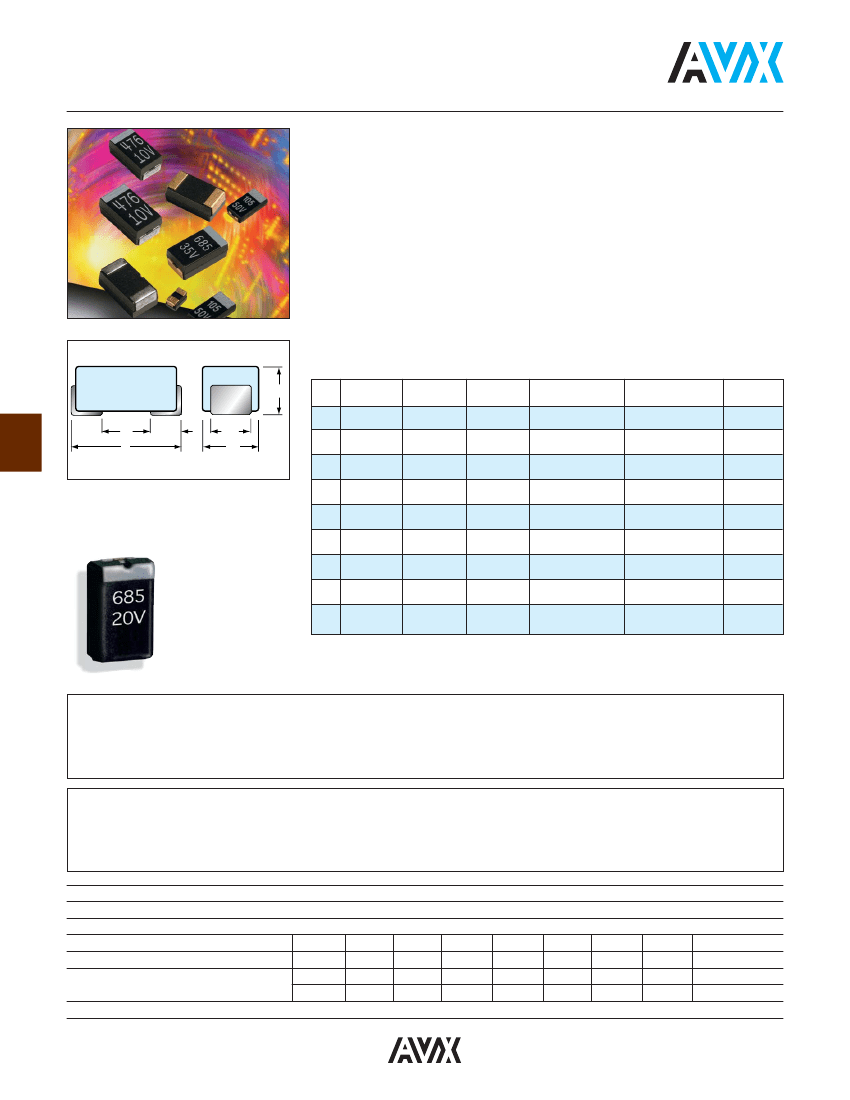

TAZ Series

Including CWR09, CWR19, CWR29 and COTS-Plus

The TAZ part has fully molded, compliant

leadframe construction designed for

use in applications utilizing solder

(Reflow, Wave or Vapor Phase),

conductive adhesive or thermal com-

pression bonding techniques. Each

chip is marked with polarity, capaci-

tance code and rated voltage.

The series comprises ten case sizes

(see dimensional chart below) with

the maximum size V case giving

capacitance values to 470 µF. The C

case, with its non-standard aspect

ratio, is retained as a QPL (Qualified

Product List) only special.

TAZ & CWR09, CWR19, CWR29 CASE DIMENSIONS:

millimeters (inches)

Case Length (L)

Width (W)

Height (H)

Code ±0.38 (0.015) ±0.38 (0.015) ±0.38 (0.015)

2.54 (0.100)

3.81 (0.150)

5.08 (0.200)

3.81 (0.150)

5.08 (0.200)

5.59 (0.220)

6.73 (0.265)

7.24 (0.285)

6.93 Max

(0.273)

1.27 (0.050)

2.54 (0.100)

3.43 (0.135)

2.79 (0.110)

3.81 (0.150)

5.41 Max

(0.213)

1.27 (0.050)

1.78 (0.070)

Term. Width (W

)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

1.27±0.13

(0.050±0.005)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

2.41+0.13/-0.25

(0.095+0.005/-0.010)

Term. Length (A)

±0.13 (0.005)

0.76 (0.030)

1.27 (0.050)

1.19 (0.047)

S min

0.38 (0.015)

1.65 (0.065)

2.92 (0.115)

1.65 (0.065)

2.92 (0.115)

3.43 (0.135)

3.56 (0.140)

4.06 (0.160)

N/A

MARKING

(White marking on black body)

Polarity Stripe (+)

Capacitance Code

Rated Voltage

X**

3.30±0.13

(0.130±0.005)

2.67±0.13

2.79 (0.110)

(0.105±0.005)

3.68+0.13/-0.51

2.79 (0.110) (0.145+0.005/-0.020)

2.74 Max

(0.108)

3.05±0.13

(0.120±0.005)

* C case available in CWR09 series only (non standard)

** X case available in CWR19/CWR29 series only

Case sizes A through E share a common (0.050" nom) height profile, compatible with PCMCIA type II applications. These

allow downsizing in all portable applications, ranging from sub-miniature hard-disc drive (HDD)/computer to portable com-

munications/GPS systems. The F case at 0.070" nom offers the versatility of a low profile design, while allowing capaci-

tance ratings to 100 µF for low voltage filtering applications.

Cases G and H offer lower profile and greater volumetric efficiency than their nearest EIA sized counterparts

(ref. CWR11). These are especially suited to power supply applications. The regular configuration allows for banking

(brickwalling) applications where maximum capacitance with minimal ESR and inductance are required in a limited

board space.

Technical Data:

Capacitance Range:

Capacitance Tolerance:

Rated DC Voltage: (V

)

Category Voltage: (V

)

Surge Voltage: (V

)

Unless otherwise specified, all technical

0.1 to 470 µF

±20%, ±10%, ±5%

2.7

5.2

3.5

-55°C to +125°C

data relate to an ambient temperature of 25°C

85°C:

125°C:

85°C:

125°C:

Operating Temperature Range:
