SFH11-NBPC-D13-ST-BK datasheet, PDF

Datasheet> All Categories > The connector> SFH11-NBPC-D13-ST-BK

Preview

SFH11-NBPC-D13-ST-BK: Descriptionconn header .100" 26pos; CategoryThe connector; File Size280KB，1 Pages; ManufacturerSullins; Environmental Compliance

Download Datasheet View All

SFH11-NBPC-D13-ST-BK Overview

conn header .100" 26pos

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

2537

2817

2915

DESCRIPTION

UPDATE NOTE 10 PROCESSING TEMPERATURE,

ADD INSERTION DEPTH 6.6 mm

ADD 33 TO 36 POSITION

ADD 'N' MATERIAL OPTION & UPDATE NOTES

DATE

02/29/2012

08/20/2013

2/6/2014

.236 6.00

.100 2.54

PRELIMINARY

.146 3.70

.039 1.00

.106 2.70

.248 6.29

.276 7.00

.335 8.50

.126 3.20

.100 2.54

.024 0.60

.016 0.40

.040 1.02

.100 2.54

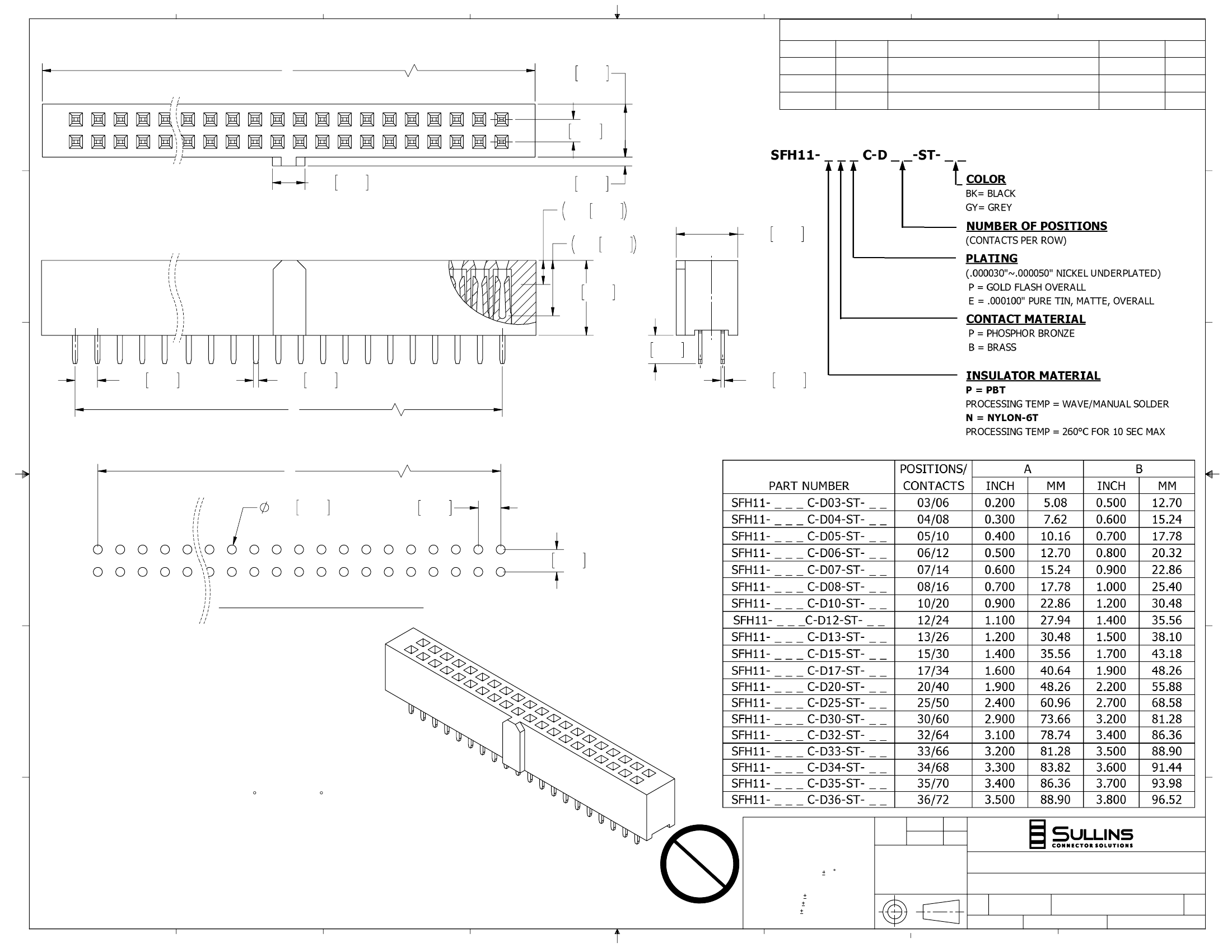

RECOMMENDED PCB LAYOUT

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING.

2. CONTACT MATERIAL: SEE PART NUMBER CODING.

3. PLATING: SEE PART NUMBER CODING.

4. CONTACT RESISTANCE: 20m OHMS MAX.

5. OPERATING TEMPERATURE: -40 C TO +105 C.

6. UL FLAMMABILITY RATING: 94V-0.

7. CURRENT RATING: 3 AMPS.

8. INSULATOR RESISTANCE: 1000M OHMS MIN.

9. DIELECTRIC WITHSTANDING: 500 VAC

10. PROCESSING TEMP.: SEE PART NUMBER CODING.

11. MATES WITH SBH11 SERIES.

12. FOR PCB CONNECTOR.

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

ANGULAR:

DRAWN

DATE

11/3/2008

NAME

TITLE

DECIMALS

.XX= .02 [.5]

.XXX= .005 [.13]

.XXXX= .0005 [.013]

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

PART NUMBER

SIZE

HEADER FEMALE, .100[2.54] CC, ST

CAGE CODE

SFH11- _ _ _ C-D _ _ -ST- _ _

DWG. NO.

SCALE: 2:1

54453

11160

REV

SHEET 1 OF 1

FILE NAME: 11160, SFH11- _ _ _ C-D _ _ -ST- _ _ PRELIMINARY REV F
