54F158A/BFA

Description
IC F/FAST SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CDFP16, Multiplexer/Demultiplexer
Categorylogic    logic
File Size133KB,5 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

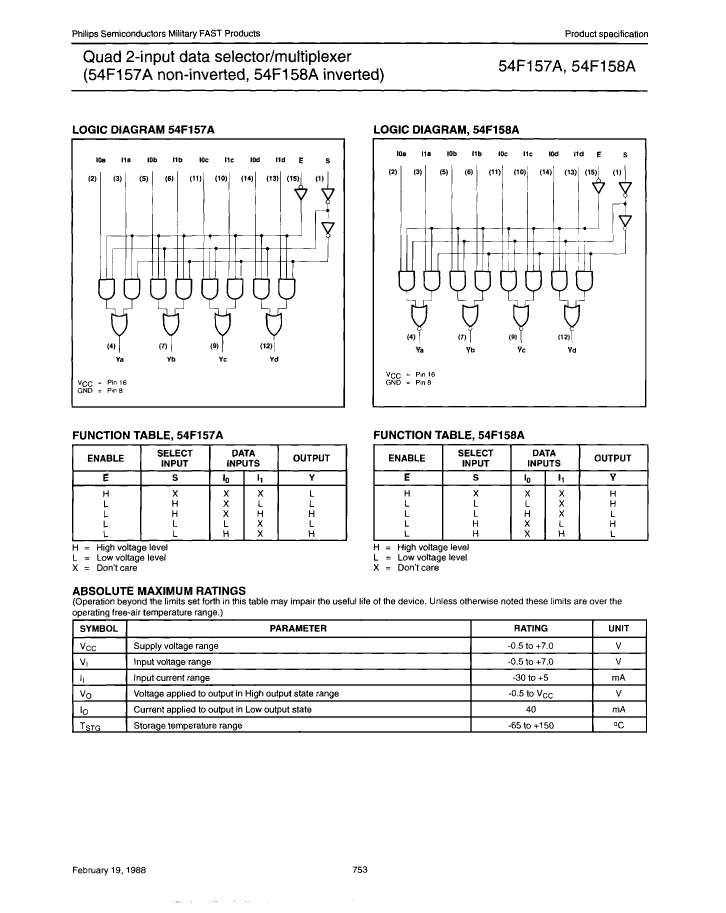

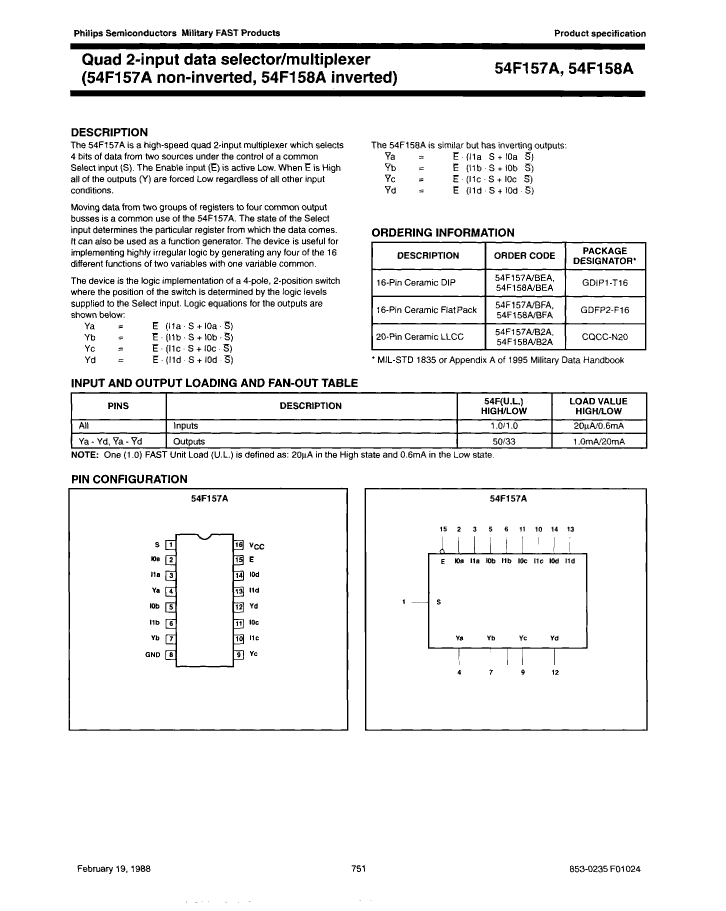

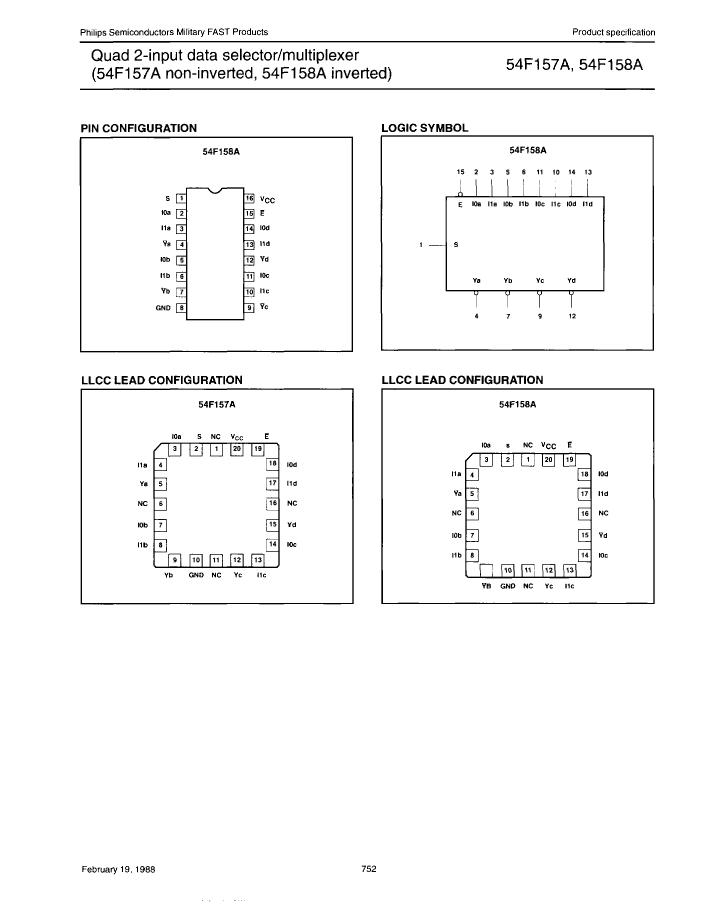

54F158A/BFA Overview

IC F/FAST SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CDFP16, Multiplexer/Demultiplexer

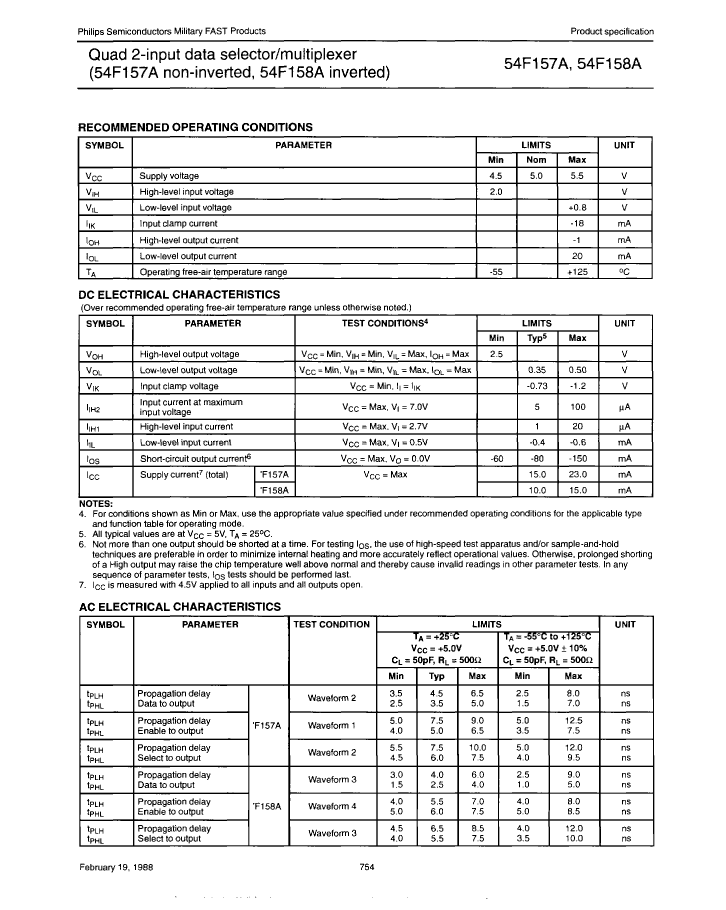

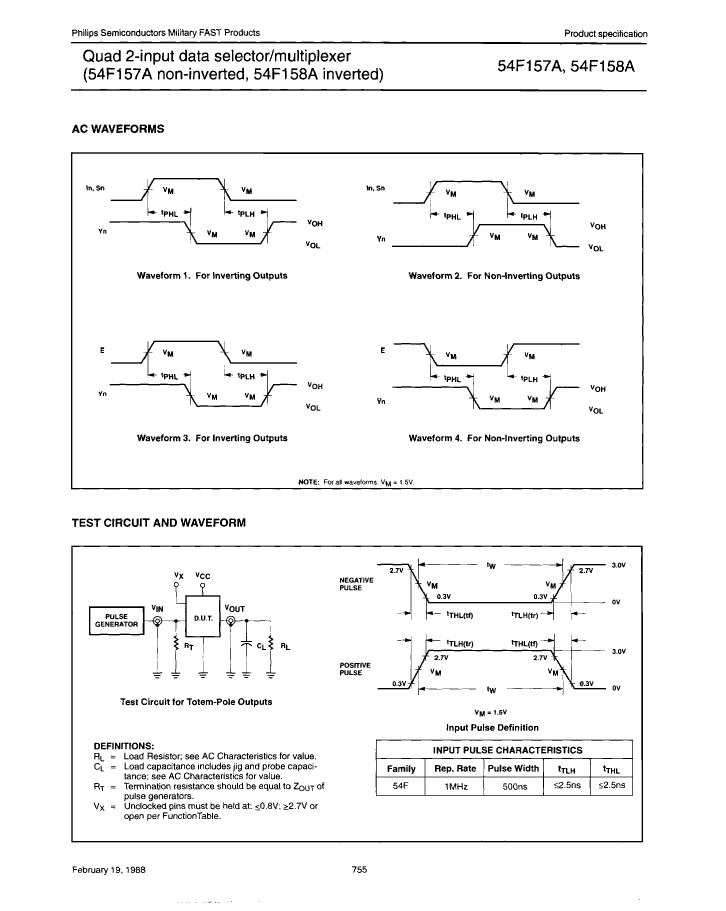

54F158A/BFA Parametric

Parameter NameAttribute value
MakerNXP
Reach Compliance Codeunknown
seriesF/FAST
JESD-30 codeR-CDFP-F16
Load capacitance (CL)50 pF
Logic integrated circuit typeMULTIPLEXER
Number of functions4
Number of entries2
Output times1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityINVERTED
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDFP
Package shapeRECTANGULAR
Package formFLATPACK
Maximum supply current (ICC)15 mA
propagation delay (tpd)10 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formFLAT
Terminal locationDUAL
Base Number Matches1
