0715H03218084: DescriptionBoard Connector, 84 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size99KB，2 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

0715H03218084 Overview

Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator

0715H03218084 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	308950311
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.165 inch
subject depth	0.138 inch
body length	3.307 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	84

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

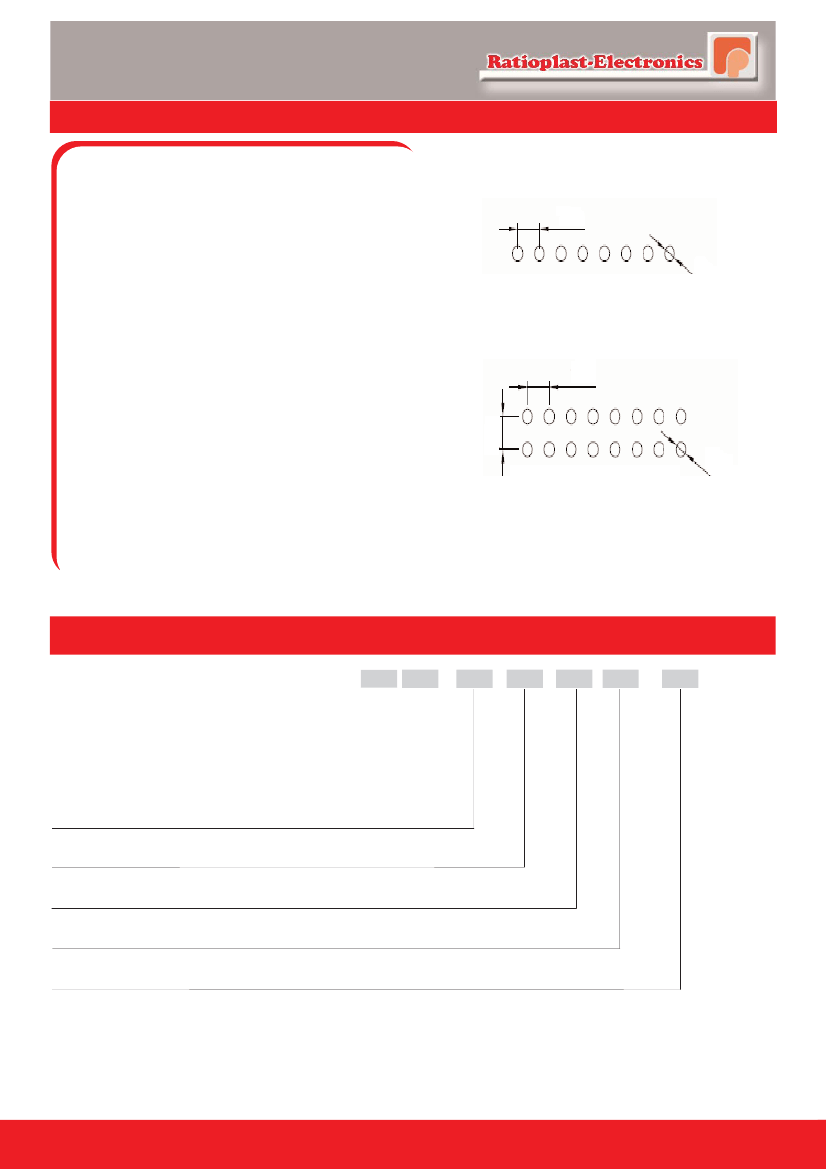

Serie 071

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

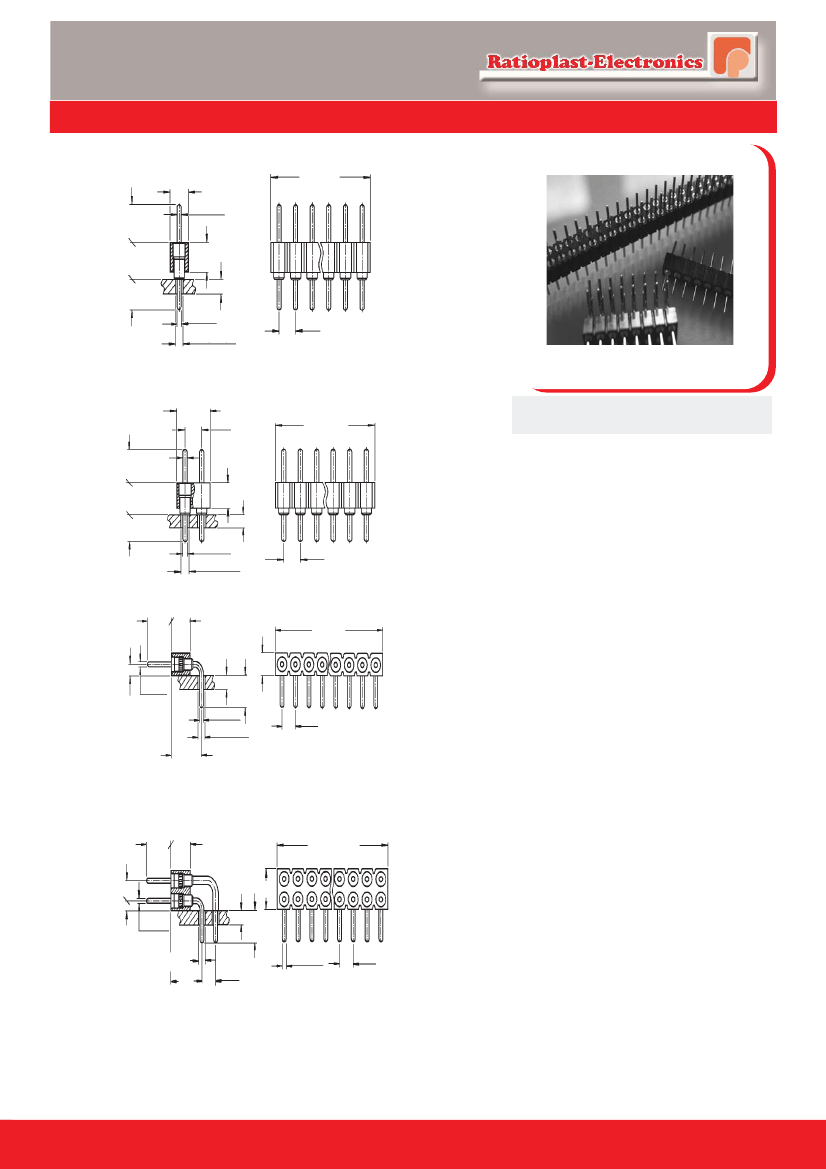

STIFTLEISTE RASTER 2,0mm mit Rundstift 0,47mm

PINHEADER PITCH 2,0mm with round contact 0,47mm

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Glasfaserverstärktes Polyamid

Hochtemperaturfest, UL94-V0

Schwarz

Lötpin Messing / Clip Kupfer

500 V AC für 1 Minute

3,0 A

- 55°C ... +85°C

245°C (5 sek.)

max. 260°C (20 sek.)

2,00

Ø 0,90

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

Glass filled polyester

High temperature, UL94-V0

Black

Solderpin Braas / Clip copper

500 V ACfor 1 minute

3,0 A

- 55°C ... +85°C

245°C (5 sec.)

max. 260°C (20 sec.)

2,00

Ø 0,90

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

071 5H

XXX

Veredelung - Plating

03 = 0,25μm Vergoldet - Gold plated

(Au) (Standard)

00 = 5,00μm Verzinnt - Tin plated

(Sn)

Andere Veredelungen auf Anfrage - Other plating on request

1 = 1- reihig - 1- row

2 = 2- reihig - 2- row

1 = Gerade - Straight

2 = Gewinkelt - Right angled

8 = 2,0 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (002... 050) (1- reihig - 1- row))

(004... 100) (2- reihig - 2- row))

Seite: 96

Version 1 / 2011

www.ratioplast.com
