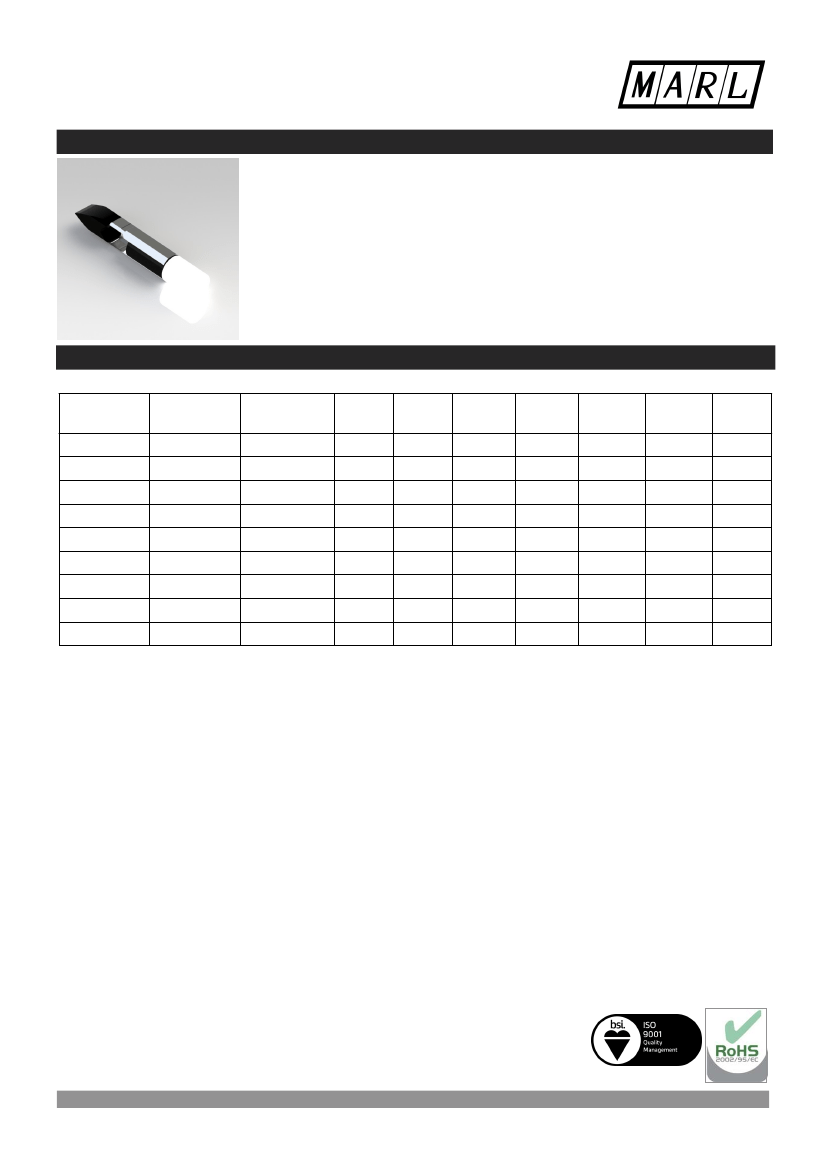

209 RS series
features
• Direct replacement for T5.5 Slide Base
• Ideal for industrial pushbutton switches and annunciator panels
• Durable to shock and vibration
• ‘Fit and Forget’ reliability
• Warm white LEDs may be used behind coloured lens as a true
replacement for a filament lamp
• Pack Quantity = 20 Pieces
specifications
Ordering information and typical characteristics (Ta = 25°C)
RS Part
Number
2387747
2387797
2387810
2387753
2387804
2829998
2830005
2830011
2387769
Marl Part
Number
209-501-21-38
209-501-22-38
209-521-22-38
209-532-21-38
209-532-22-38
209-997-21-38
209-997-22-38
209-997-23-38
209-521-21-38
Colour
Red
Red
Yellow
Green
Green
White
White
White
Yellow
Voltage
Vac/dc
12 Vdc
24 Vdc
24 Vdc
12 Vdc
24 Vdc
12 Vdc
24 Vdc
24-28 Vdc
12 Vdc
Current
DC
(mA)
16
15
15
15
14
15
15
14
15
Luminous
Intensity
(mcd)
600
600
600
2300
2300
27000
27000
27000
600
Wave
Length
(nm)
630
630
585
515
515
* See pg.2
* See pg.2
* See pg.2
585
Operating
Temp.
(°C)
-40 - +80
-40 - +80
-40 - +80
-40 - +75
-40 - +75
-30 - +85
-30 - +85
-30 - +85
-40 - +80
Storage
Temp.
(°C)
-40 - +100
-40 - +100
-40 - +100
-40 - +100
-40 - +100
-40 - +100
-40 - +100
-40 - +100
-40 - +100
De-rating
Graphs
D
D
D
F
F
I
I
I
D
^ = Voltage for 20mA product is Vf at 20mA, not Vopr
- Products must be de-rated according to the de-rating information. Each de-rating graph refers to
specific LEDs. Please refer to graphs on page 2.
- Luminous intensity is measured at 20mA on a discrete LED unless otherwise stated.
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 209 RS - version 2014-05-22-173227
page 1 of 4

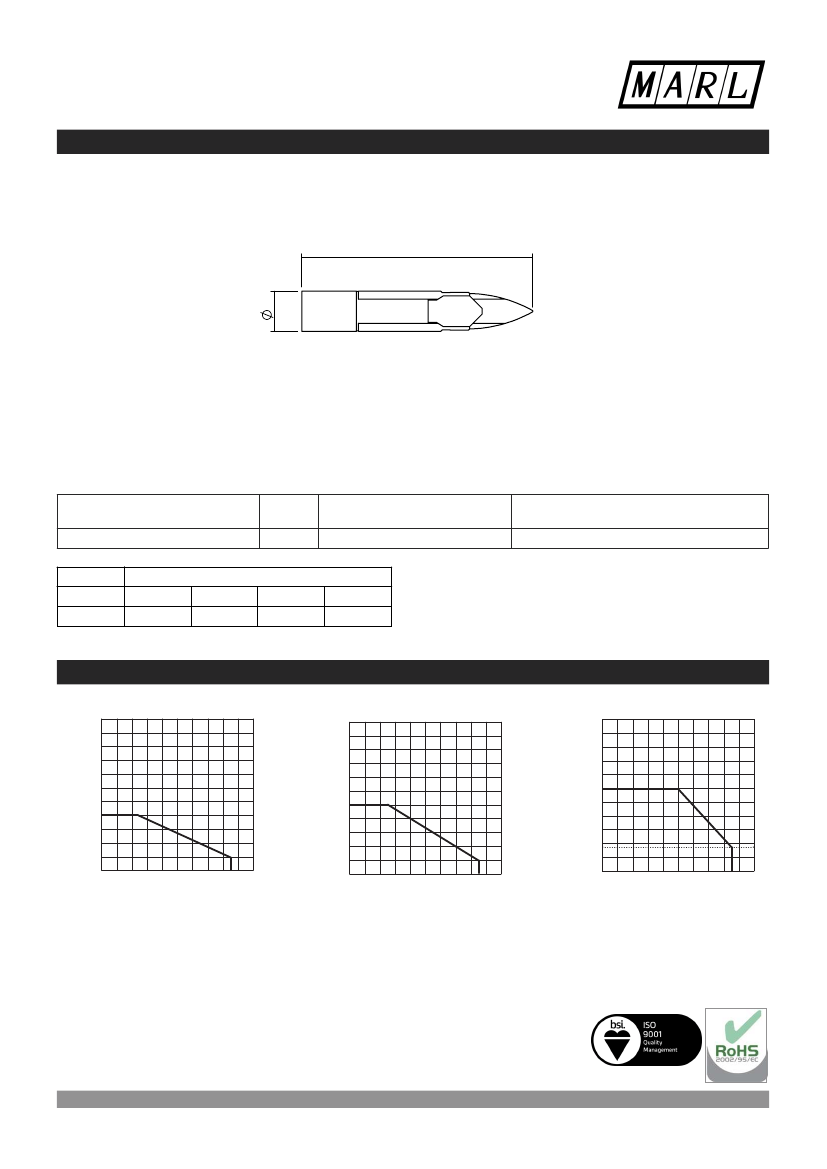

209 RS series
technical data
28.80
5
+ Printed on base denotes Anode.
Colour dot on product denotes LED colour.
Dimensions in mm (typical)
Not to scale
Lamp Base Style
Series
Metric Equivalent
(mm)
Max. Power Dissipation
(mW)
T5.5 Slide Base
997F-C
x
y
0.31
0.32
209
-
500
*Typical emission colour White
-
-
-
-
-
-
Intensities (Iv) and colour shades of white (x,y co-ordinates) may vary between leds within a batch
de-rating information
Derating Graph D
55
50
45
40
35
55
50
Derating Graph F
55
50
45
40
35
Derating Graph I
Forward Current IF (mA)
Forward Current IF (mA)
40
35
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
100.0
Forward Current IF (mA)
45
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
100.0
30
25
20
15
10
5
0
0.0
20.0
40.0
60.0
80.0
8.5
100.0
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 209 RS - version 2014-05-22-173227
page 2 of 4
209 RS series
also available
Part numbers also available in the 209 series:
Part
Colour
Number
209-501-20-38
209-501-23-38
209-501-24-38
209-501-59
209-502-20
209-521-04-38
209-521-23-38
209-521-59
209-521-59-38
209-521-72
209-532-20-38
209-532-23-38
209-556-23-38
209-557-23-38
209-904-20-38
209-930-21-38
209-930-22-38
209-930-23-38
209-930-51-38
209-965-22-38
209-993-21-38
209-993-22-38
209-993-23-38
209-993-41-38
209-993-46-38
209-993-48-38
209-997-04-38
209-997-20-38
209-997-24-38
209-997-46-38
209-997-48-38
209-997-59-38
209-997-74-38
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Yellow
Yellow
Green
Green
Red/Yellow
Green/Yellow
Red
Blue
Blue
Blue
Blue
Blue
Warm White
Warm White
Warm White
Warm White
Warm White
Warm White
White
White
White
White
White
White
White
Vopr
5/6 Vdc
28 Vdc
48 Vdc
56 Vdc
5/6 Vdc
20 mA dc
28 Vdc
56 Vdc
56 Vdc
24 Vac 50 Hz
5/6 Vdc
28 Vdc
28 Vdc
28 Vdc
5/6 Vdc
12 Vdc
24 Vdc
28 Vdc
52 Vdc
24 Vdc
12 Vdc
24 Vdc
28 Vdc
8 Vdc
35 Vdc
60 Vdc
20 mA dc
5/6 Vdc
48 Vdc
35 Vdc
60 Vdc
56 Vdc
48 Vac 50 Hz
Voltage
RP = Reverse Polarity
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 209 RS - version 2014-05-22-173227
page 3 of 4
209 RS series
design considerations
Single-Chip LEDs
All devices feature water clear high intensity LEDs as standard. In devices where discrete LEDs are used, the single
chip LED devices have been modified by the removal of the domed portion of the encapsulation (flat-topped) to provide
even illumination of switches and annunciators. Non flat topped versions are also available.
Flat-topping does not apply to devices using surface-mounted device (SMD) LEDs.
Product Evaluation
Filament replacement LEDs have been specifically designed to meet the primary objective of providing improved reliability. As
this product range is suitable for both new-build and retro-fit, (sometimes in very old systems), a wide range of illuminated push
button switches and lamp holders can be encountered. Due to subjectivity, evaluation of the LED type is recommended,
(samples of all standard models are available). Care should be taken to correctly simulate operating ambient light conditions to
ensure that the correct device has been selected to maximise viewing characteristics such as viewing angle, colour
compatibility and on/ off contrast ratio.
Electro-Static Discharge (ESD)
Build up of electro-static discharge occurs in many situations involving people moving and handling products. The range of
possible situations is very diverse but voltage levels as high as several thousand volts can and do arise in many individual
situations. When an operator charged up to these levels handles a static sensitive device, there is a very probable likelihood
that the device will be irreversibly damaged. It is essential that precautions are taken at all stages during manufacture and
assembly of these products. Although LEDs were never considered to be static sensitive devices, changes in manufacturing
technology and materials used to produce higher intensity products over a large range of the wavelength spectrum have
changed this. Marl has an approved system of ESD control from goods in, through production and into final packing and
despatch. Marl recommend all users of LED based products follow the guidelines of BS 100015.
Power De-Rating
The forward voltage/ current value of an LED is dependant upon the ambient temperature of the environment in which it is
operated. Therefore, care must be taken to operate the LED at the correct voltage/ current values, depending upon the
ambient temperature. Consequently, a recommendation regarding operating voltages and currents is given in order to address
these temperature effects. This recommendation is termed ‘de-rating’. It is usual for forward voltages and currents to be
specified for ambient temperature of 25°C. However, because the values of these qualities vary with temperature, marl should
be contacted if the device is to be operated at a temperature significantly higher than 25°C. Marl accept no liability for any
product that is operated higher than the stated voltage.
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 209 RS - version 2014-05-22-173227
page 4 of 4
