DM01505000W01006 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> DM01505000W01006

DM01505000W01006: DescriptionElectric Double Layer Capacitor; CategoryPassive components capacitor; File Size496KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/

Download Datasheet Parametric Compare View All

DM01505000W01006 Overview

Electric Double Layer Capacitor

DM01505000W01006 Parametric

Parameter Name	Attribute value
Maker	SAMWHA
Reach Compliance Code	compliant
ECCN code	EAR99
Capacitor type	ELECTRIC DOUBLE LAYER CAPACITOR
Manufacturer's serial number	DM
Base Number Matches	1

Preview

Download Datasheet

View All

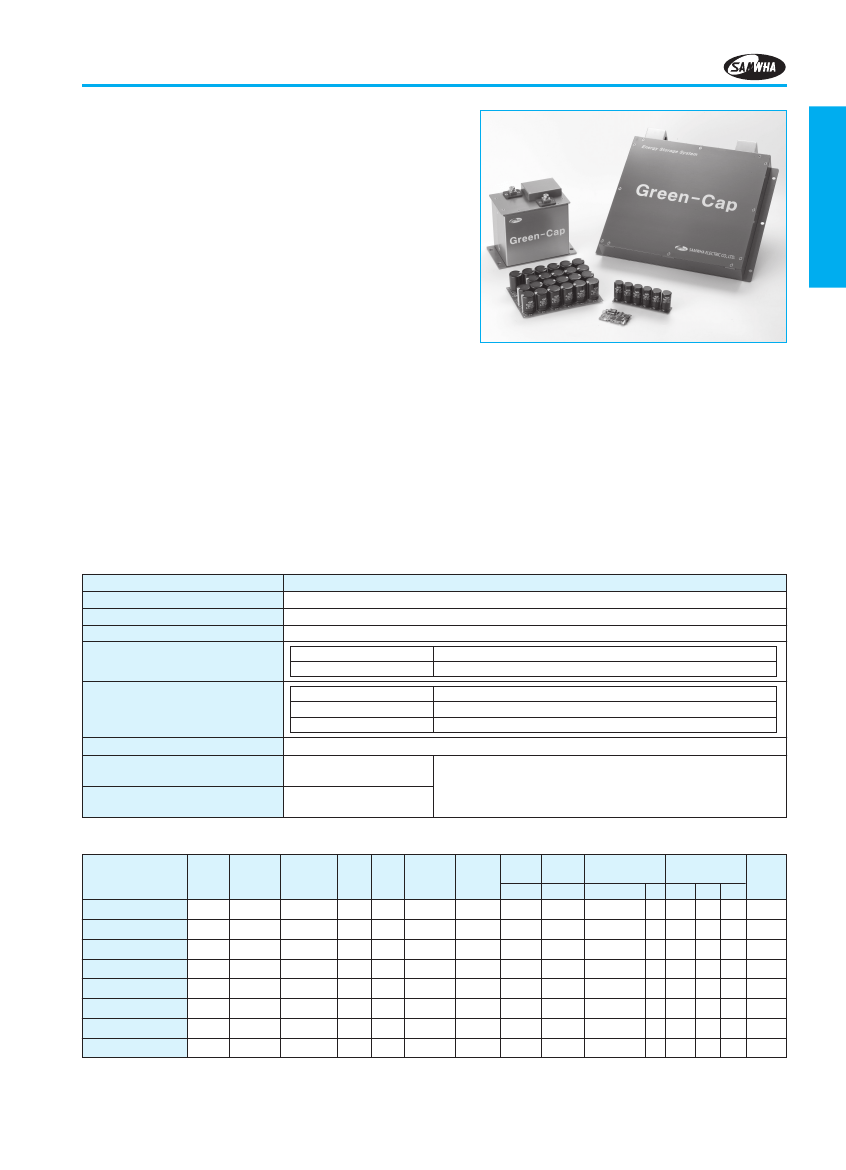

Green-Cap (ELECTRIC DOUBLE LAYER CAPACITORS)

Application

Green-Cap Module

Green-Cap(EDLC)

·Low

internal resistance

·Balancing

and overvoltage protection of individual cell

·Efficient

heat Transfer to outside

·Next

Generation Vehicle(FCEV, HEV) & Heavy Duty Transportation

·Short

term UPS and telecommunications

·Portable

Power Tool

·Wind

Turbine Pitch System

·Electric

Scooter

·Heavy

Duty Transportation

·Golf

Car

●

Product & Spec.

Item

Capacitance tolerance

Operating temperature range

Storage Temperature Range

Temperature characteristics

0% ~ +20%

-40 ~ 60° or -40 ~ 65° or -25 ~ 70°

-40 ~ 70°

Capacitance change

Internal resistance

Test time

Capacitance change

Internal resistance

Within

±5%

of initial value at +20°

Within 150% of initial value at +20°

1000 hours

Within

±30%

of initial specified value

Within 100% of initial specified value

Characteristics

Endurance(60°

Shelf life (60°

Life Time at RT

(1)

Cycle Life (25°

(1) (2)

After 1000 hours no load test same as endurance

10 years

500,000 cycles

(1) I△CI≺30% and

△ESR≺200%

of initially specified value,

respectively and LC≺specified value

(2) Cycle : between rated voltage and half rated voltage

under constant current at 25°

Part Number

DM00500015W01002

DM00500025W01002

DM01500666W01006

DM01505000W01006

DM04501111W01018

DM04501666W01018

DM07500266W01060

DM12500600W01050

ESR, ESR,

Max.

Max. Peak Stored Specific

Rated

Capacitance

1KHz DC Continuous Current Energy Energy

Operating

Voltage

(F)

) (m

) Current (A)

Voltage

(A)

(Wh) (Wh/kg)

125

5.4

16.2

48.6

135

1.5

2.5

66.6

500

111.1

166.6

26.6

110

1.7

5.6

5.2

143

2.4

8.1

6.3

52.5

0.2

0.3

150

100

150

3.1

5.3

167

1705

1316

1705

333

1705

0.005

0.009

2.43

15.63

31.25

46.88

20.83

130.21

1.47

1.80

4.05

2.61

2.40

3.13

2.60

2.00

Cell

Composition

ITEM

2.7V 3F

2.7V 5F

2.7V 400F

2.7V 3000F

Dimension(mm) Weight

(kg)

EA L W

117

417

18 0.0034

0.005

0.6

68 157

2.7V 2000F 18

2.7V 3000F 18

2.7V 400F 60

418 191 121

481 191 157

372 316

2.7V 3000F 50 1000 350 310

Note: Other Green-Cap modules are supplied on custom-made basis. Dimension and Weight could be changed without notice.

DM01505000W01006 Related Products

	DM01505000W01006	DM00500025W01002	DM00500015W01002	DM01500666W01006
Description	Electric Double Layer Capacitor	Electric Double Layer Capacitor, 5V, 20% +Tol, 0% -Tol, 2500000uF, Chassis Mount, ROHS COMPLIANT	Electric Double Layer Capacitor, 5V, 20% +Tol, 0% -Tol, 1500000uF, Chassis Mount, ROHS COMPLIANT	Electric Double Layer Capacitor, 15V, 20% +Tol, 0% -Tol, 66600000uF, Chassis Mount, ROHS COMPLIANT
Reach Compliance Code	compliant	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Capacitor type	ELECTRIC DOUBLE LAYER CAPACITOR	ELECTRIC DOUBLE LAYER CAPACITOR	ELECTRIC DOUBLE LAYER CAPACITOR	ELECTRIC DOUBLE LAYER CAPACITOR
Manufacturer's serial number	DM	DM	DM	DM
Base Number Matches	1	1	1	1
Is it lead-free?	-	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
capacitance	-	2500000 µF	1500000 µF	66600000 µF
Installation features	-	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
Maximum operating temperature	-	60 °C	60 °C	60 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C
Package shape	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
positive tolerance	-	20%	20%	20%
Rated (DC) voltage (URdc)	-	5 V	5 V	15 V
surface mount	-	NO	NO	NO
Terminal shape	-	BINDING POST	BINDING POST	BINDING POST
