Preview

5,08RFL: DescriptionBoard Connector, 31 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/; Environmental Compliance

Download Datasheet Parametric Compare View All

5,08RFL Overview

Board Connector, 31 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket

5,08RFL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lumberg
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	31
Base Number Matches	1

Preview

Download Datasheet

View All

5,08 R

5,08 RF

5,08 RFL

5,08 U

5,08 UF

5,08 UFL

5,08 R

5,08 U

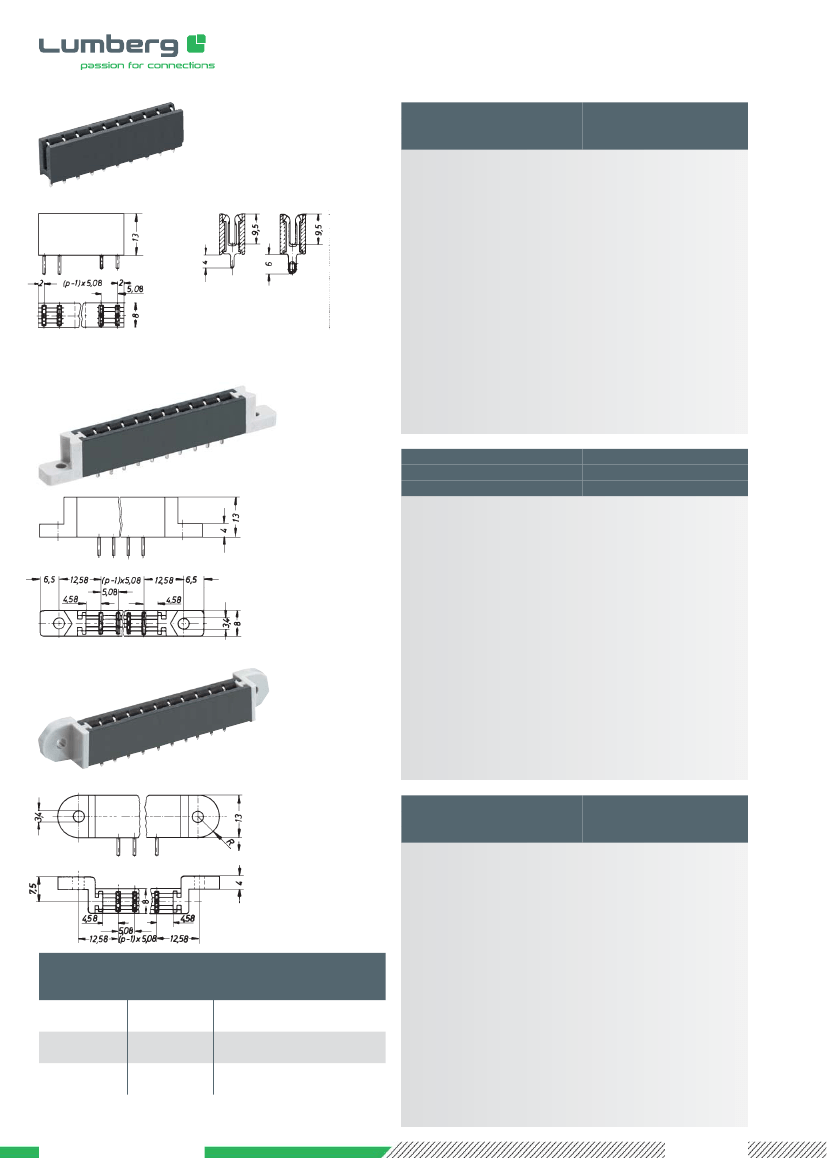

Buchsenleiste für direktes Stecken, mit und ohne vormon-

tiertem Flanschpaar F/FL

5,08 R(...): mit Lötstiften

5,08 U(...): mit Lötösen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Flansch

Kontaktfeder

3. Mechanische Daten

Kontaktierung mit

4. Elektrische Daten

Durchgangswiderstand

Bemessungsstrom

Bemessungsspannung

1

Prüfspannung

nach DIN EN 60664/IEC 60664

≤

3 mΩ

5A

250 V AC

≥

1,5 kV eff.

Leiterplatte 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

PC

CuSn, vernickelt und verzinnt

5,08 RF

1

5,08 R

5,08 RF

5,08 RFL

5,08 U

5,08 UF

5,08 UFL

Socket board for direct mating, with and without mount-

ed pair of flanges F/FL

5,08 R(...): with solder pins

5,08 U(...): with solder eyes

1. Temperature range

2. Materials

Insulating body

Flange

Contact spring

3. Mechanical data

-25 °C/+100 °C

PPO

PC

CuSn, nickeled and tinned

5,08 RFL

Mating with

4. Electrical data

printed circuit board 1.5 ± 0.14 mm

1

Contact resistance

≤

3 mΩ

Rated current

5A

250 V AC

Rated voltage

1

Test voltage

≥

1.5 kV eff.

according to DIN EN 60664/IEC 60664

5,08 R

5,08 RF

5,08 RFL

5,08 U

5,08 UF

5,08 UFL

Réglette à prises femelles pour enfichage direct, avec et

sans collets F/FL attachés

5,08 R(...): avec plots à souder

5,08 U(...): avec cosses à souder

1. Température d’utilisation

Bestellbezeichnung

Designation

Désignation

Polzahl

poles

pôles

Verpackungseinheit

Package unit

Unité d’emballage

2. Matériaux

Corps isolant

Collet

Ressort de contact

3. Caractéristiques mécaniques

Raccordement avec

4. Caractéristiques électriques

Résistance de contact

Courant assigné

Tension assignée

1

Tension d’essai

suivant DIN EN 60664/CEI 60664

≤

3 mΩ

5A

250 V AC

≥

1,5 kV eff.

carte imprimée 1,5 ± 0,14 mm

-25 °C/+100 °C

PPO

PC

CuSn, nickelé et étamé

5,08

R

U

RF

UF

RFL

UFL

3–33

3–31

200

Verpackung: lose im Karton

Packaging: in bulk, in a cardboard box

Emballage: en vrac, dans un carton

1

www.lumberg.com

11/2012
