823310480 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 823310480

823310480: DescriptionUSB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Detent, Receptacle; CategoryThe connector The connector; File Size314KB，3 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

823310480 Overview

USB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Detent, Receptacle

823310480 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Other features	BLACK COLOUR
Board mount options	PEG
body width	0.159 inch
subject depth	0.248 inch
body length	0.283 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	DETENT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

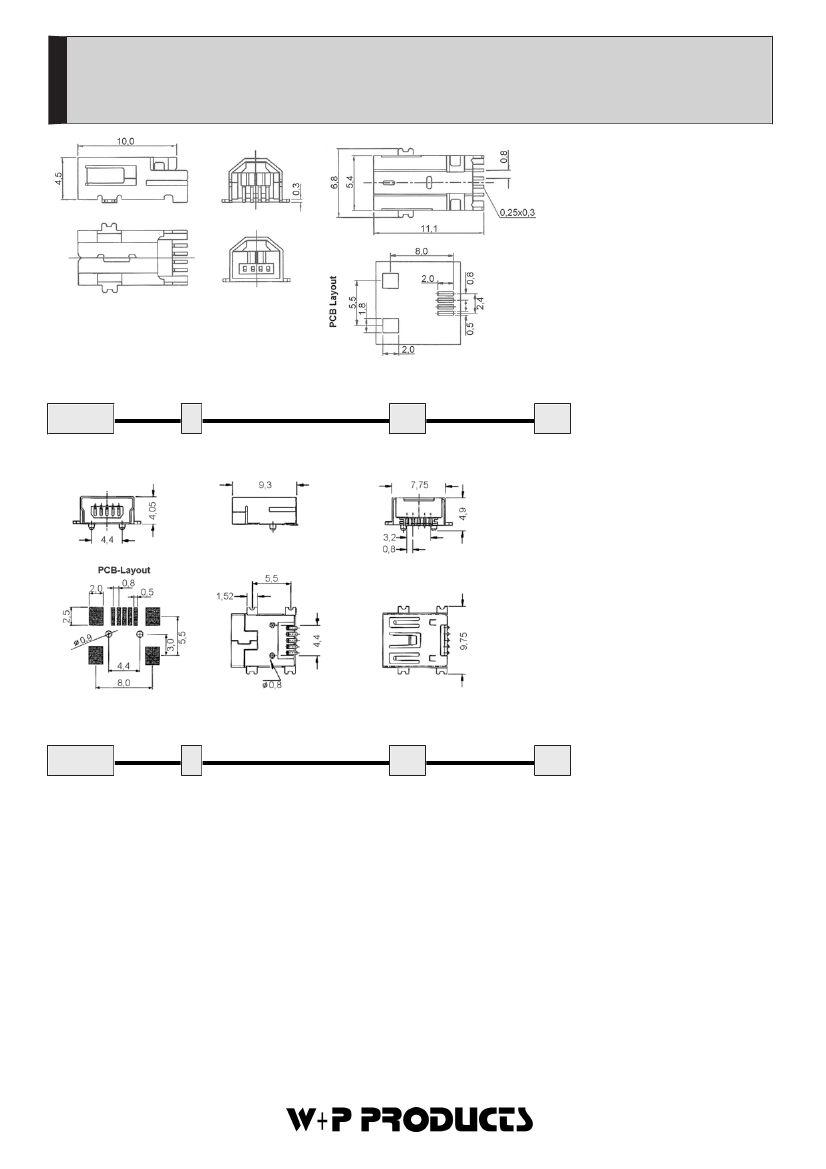

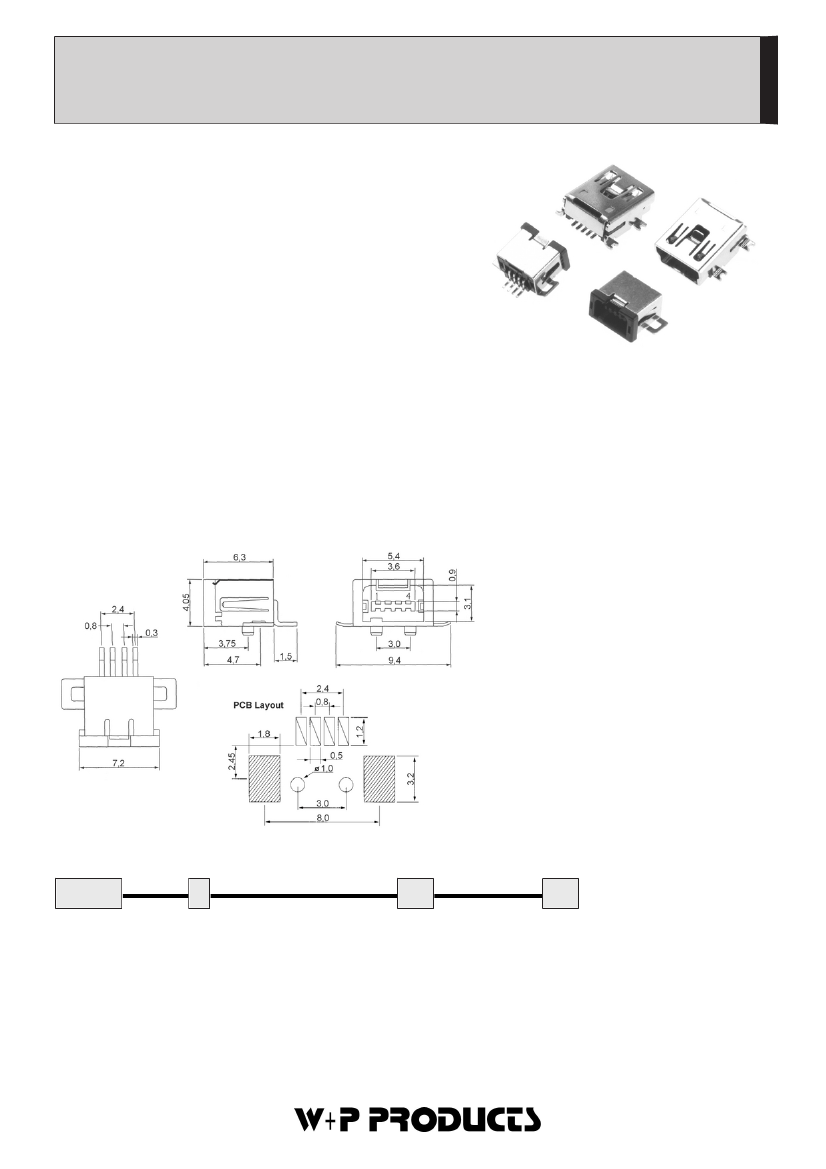

8233

Mini-USB Steckverbinder - SMT

Mini-USB Connectors - SMT

Technische Daten /Technical

Data

Gehäuse

Messing, verzinnt

Shell

Tin plated brass

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Farbe

Schwarz

Colour

Black

Kontaktmaterial

Phosphorbronze

Contact Material

Phosphor bronze

Kontaktoberfläche

Gold über Nickel (siehe Optionen unten)

Contact Surface

Gold over nickel (see options below)

Oberfläche Lötanschluss

Zinn über Nickel

Plating Solder Side

Tin plated over nickel

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

Isolationswiderstand

> 5x10

Ω

Insulation Resistance

> 5x10

Ω

Spannungsfestigkeit

500V

Test Voltage

500V

Nennspannung

50V

Voltage Rating

50V

Nennstrom

Current Rating

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

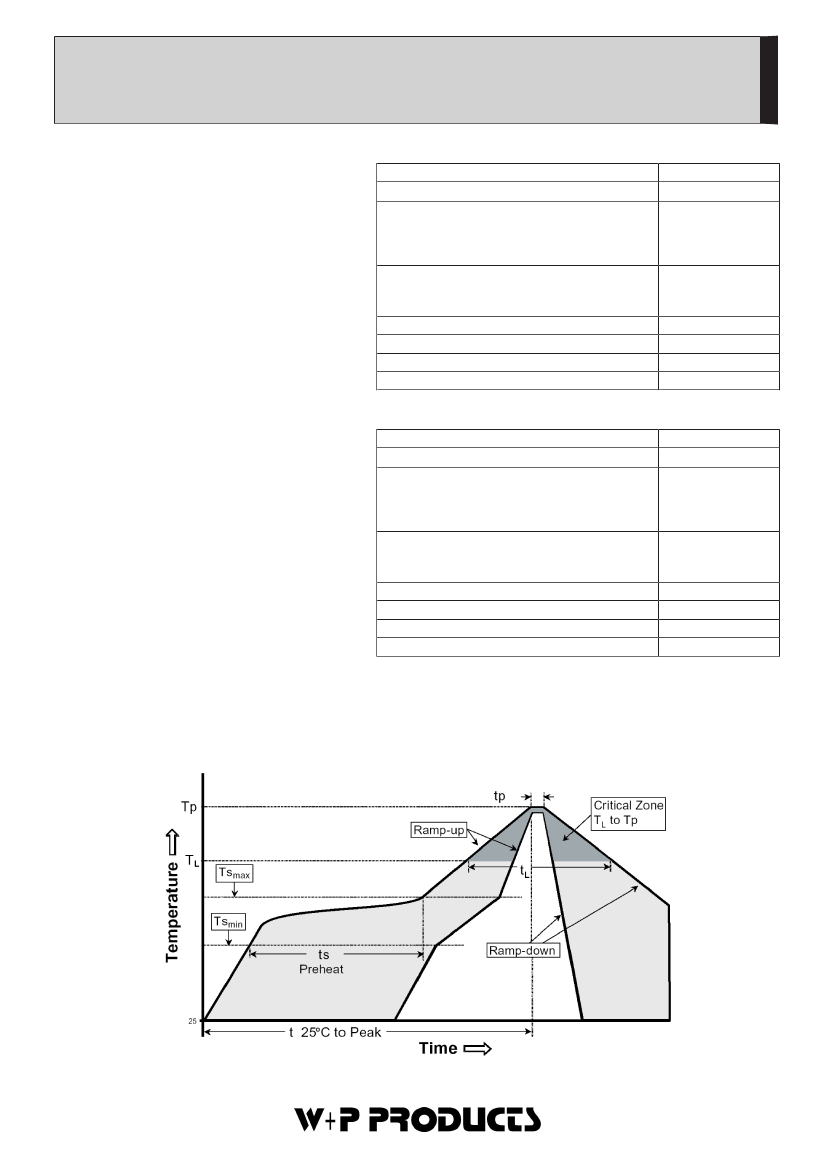

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Series

Type

Contacts

Plating

8233

Type A (female)

Sel. Au/Sn

Sel. Au 0,75µm / Sn

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

823310480 Related Products

	823310480	823310460	823320580
Description	USB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Detent, Receptacle	USB Connector, 4 Contact(s), Male, Right Angle, Surface Mount Terminal, Detent, Receptacle	USB Connector, 5 Contact(s), Male, Right Angle, Surface Mount Terminal, Detent, Receptacle
Maker	W+P Products GmbH	W+P Products GmbH	W+P Products GmbH
Reach Compliance Code	compliant	compliant	compliant
Other features	BLACK COLOUR	BLACK COLOUR	BLACK COLOUR
Board mount options	PEG	PEG	PEG
body width	0.159 inch	0.159 inch	0.159 inch
subject depth	0.248 inch	0.248 inch	0.366 inch
body length	0.283 inch	0.283 inch	0.305 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	USB, SER A FLAT	USB, SER A FLAT	USB, SER B SQ
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	DETENT	DETENT	DETENT
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Number of ports	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	BRASS	BRASS	BRASS
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	4	5
Base Number Matches	1	1	1
