HDR-EC26FDTG2+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HDR-EC26FDTG2+

HDR-EC26FDTG2+: DescriptionTelecom and Datacom Connector, 26 Contact(s), Female, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

HDR-EC26FDTG2+ Overview

Telecom and Datacom Connector, 26 Contact(s), Female, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT

HDR-EC26FDTG2+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	EMI SHIELDED
body width	0.295 inch
subject depth	0.217 inch
body length	0.976 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE9T
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.091 inch
Terminal pitch	0.7874 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

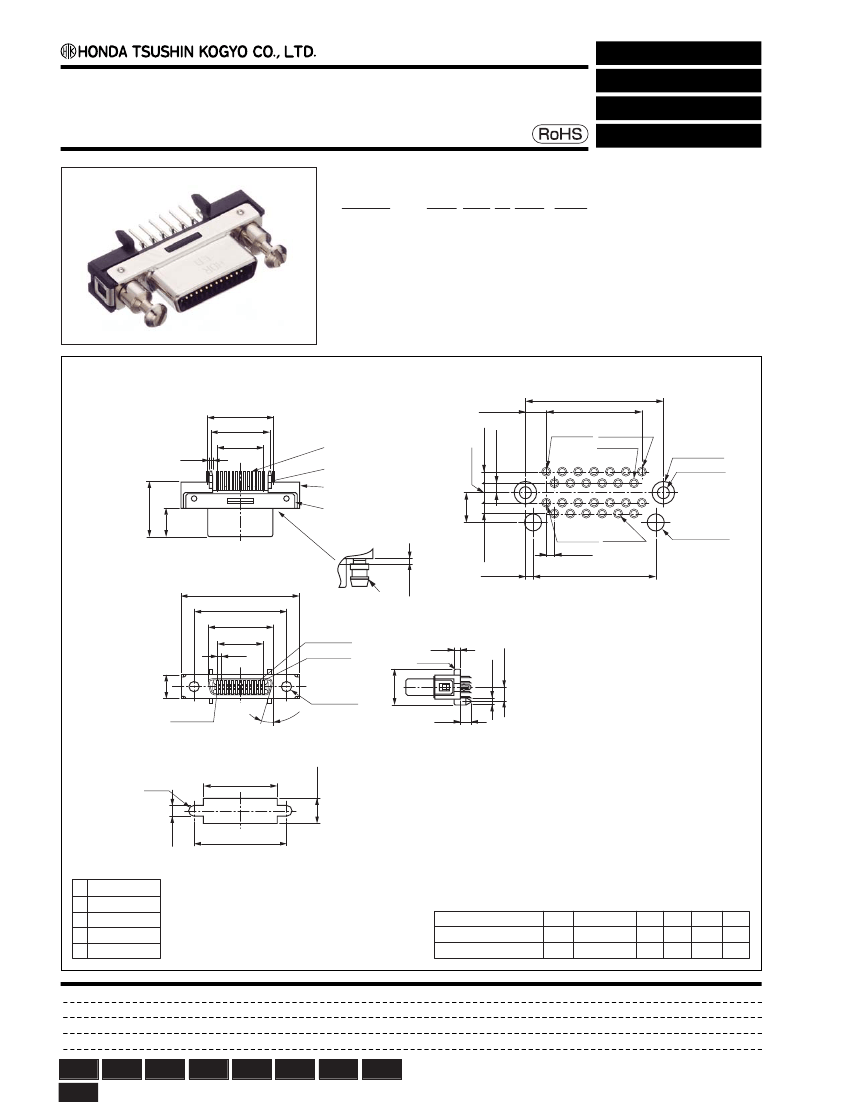

0.8mm pitch connector

Straight through hole type female connector for PCB

HDR-EC( )FDT( )-( )+

●

Configuration of product Part No.

For PCB

Straight Through hole

EMI shielded

HDR- EC ( ) FD T ( )- ( )+

➀

➁

➂ ➃ ➄

➅

➀

Series name

➅

Lock screw

➁

No. of contacts: 14 or 26

Blank: None

➂

Type of contact

SL : Provided

FD: Straight through hole type, female

(Panel thickness: 1.12 mm)

➃

With ground contact

➄

Contact plating

G2: Min. 0.76

μm

Gold plate

2.975

±0.03

1.96

±0.03

1.15

±0.03

0.98

±0.03

0.8

2.125

±0.03

±0.05

ø0.65

±0.05

POS.#1

POS.#2

(PAD)

2-ø2MAX.

2-ø1.2

±0.05

™

∞

11.5

±0.3

±0.15

POS.#n ø1

±0.05

0.8

±0.03

(PAD)

±0.05

Recommended PCB layout

2-ø1.75

±0.08

POS.#1

7.5

±0.3

M2≈0.4

POS.#n

15˚

2.3

R1.1

+0.2

2.2

±0.1

●

Components

➀

Insulator

➁

Contacts

➂

Shell

➃

Lock screws

➄

Board lock pin

Recommended panel

cut-out dimensions

5.2

±0.1

●

Dimensions

Part No.

HDR-EC14FDT( )-( )+

0.8≈6=4.8

8.8

7.5

9.05 19.2

HDR-EC26FDT( )-( )+

24.8

0.8≈12=9.6

13.6 12.3 13.85 14.4

Mating connector:

HDR series male connector

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

1.55

2.975

±0.2

0.8≈(n/2-1)= B

0.8

POS.#2

1.12

0.775

±0.03

1.3

R0.5

HDR-EC26FDTG2+ Related Products

	HDR-EC26FDTG2+	HDR-EC14FDTG2-SL+	HDR-EC14FDTG2+	HDR-EC26FDTG2-SL+
Description	Telecom and Datacom Connector, 26 Contact(s), Female, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 14 Contact(s), Female, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 14 Contact(s), Female, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 26 Contact(s), Female, Straight, Solder Terminal, Locking, Plug, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	EMI SHIELDED	EMI SHIELDED	EMI SHIELDED	EMI SHIELDED
body width	0.295 inch	0.295 inch	0.295 inch	0.295 inch
subject depth	0.217 inch	0.217 inch	0.217 inch	0.217 inch
body length	0.976 inch	0.787 inch	0.787 inch	0.976 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	70 mΩ	70 mΩ	70 mΩ	70 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	POLYAMIDE9T	POLYAMIDE9T	POLYAMIDE9T	POLYAMIDE9T
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	LOCKING	SCREWLOCKS	LOCKING	SCREWLOCKS
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
PCB row number	4	4	4	4
Number of rows loaded	2	2	2	2
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL
Terminal length	0.091 inch	0.091 inch	0.091 inch	0.091 inch
Terminal pitch	0.7874 mm	0.7874 mm	0.7874 mm	0.7874 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	26	14	14	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
