HCTS02HMSR datasheet, PDF - EEWORLD Datasheet

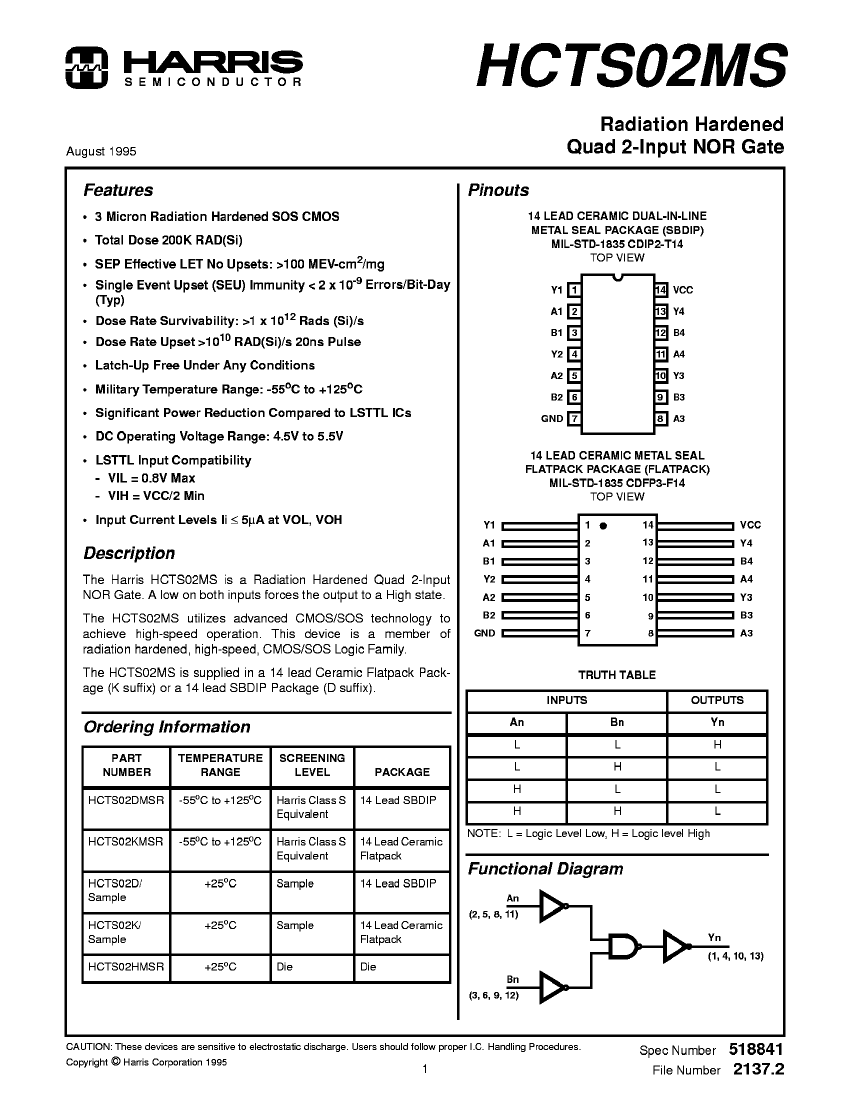

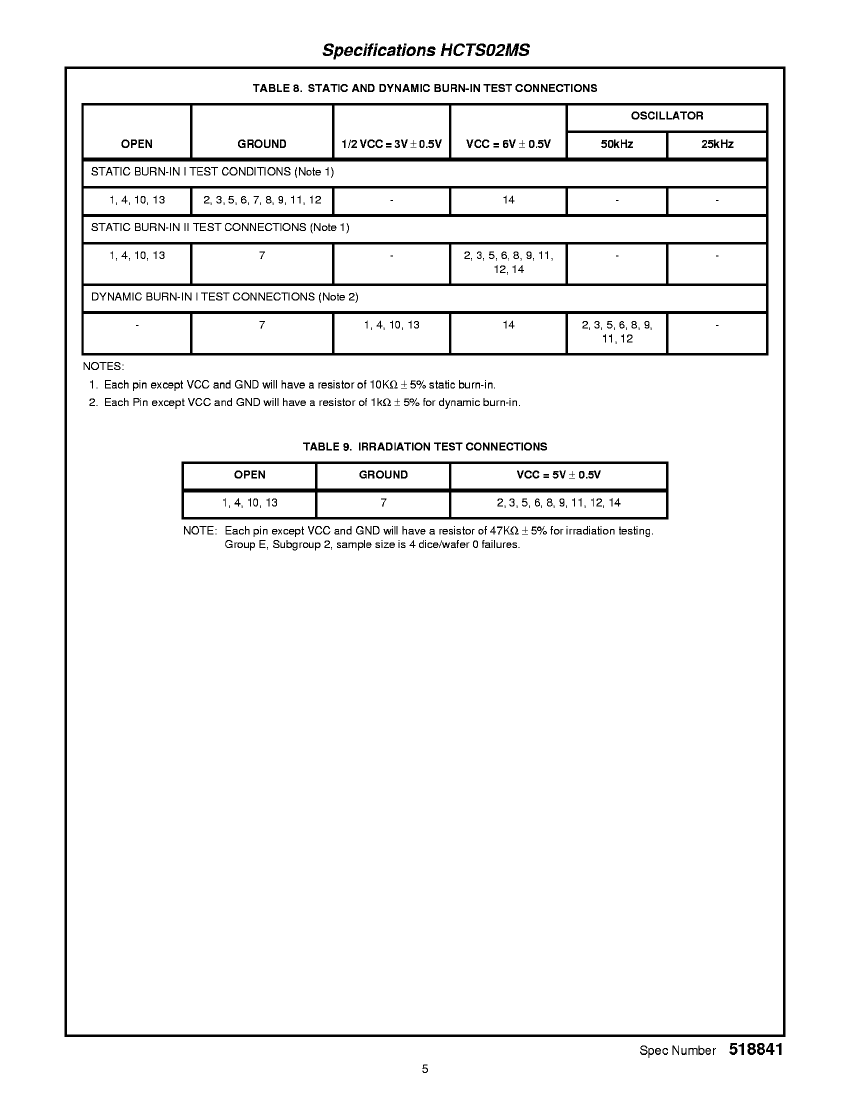

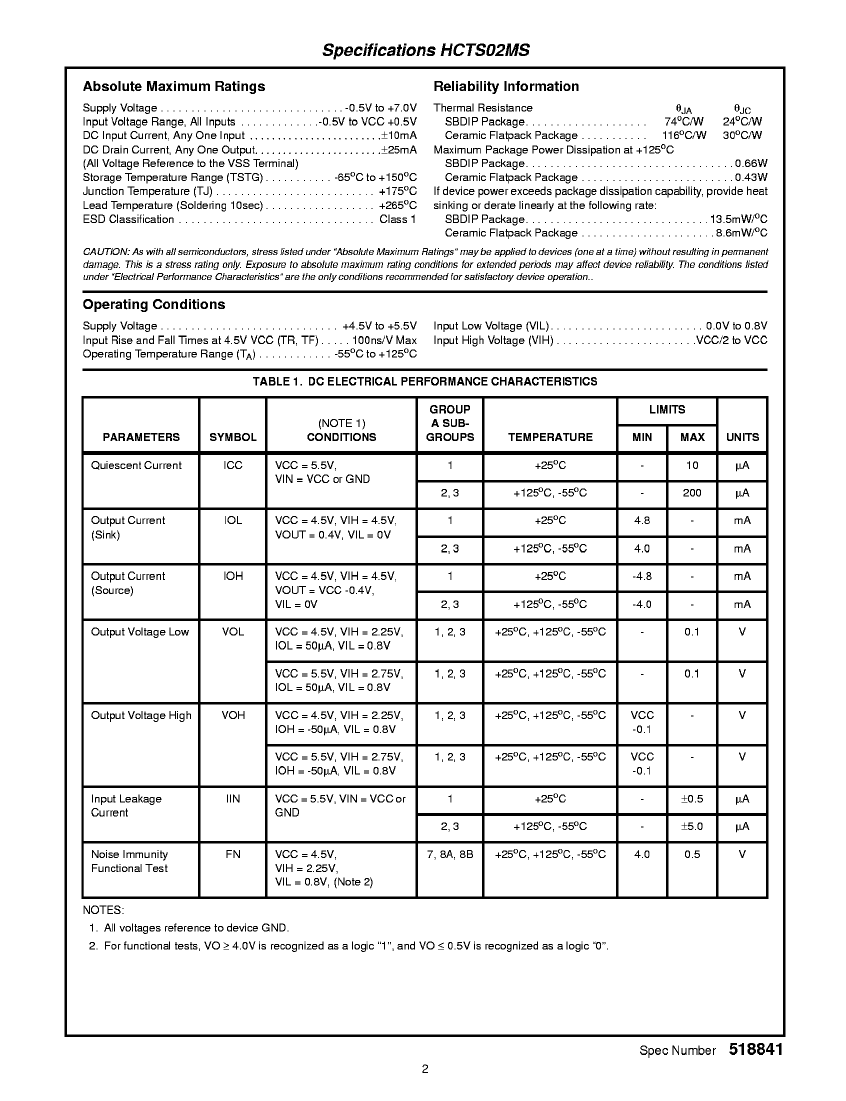

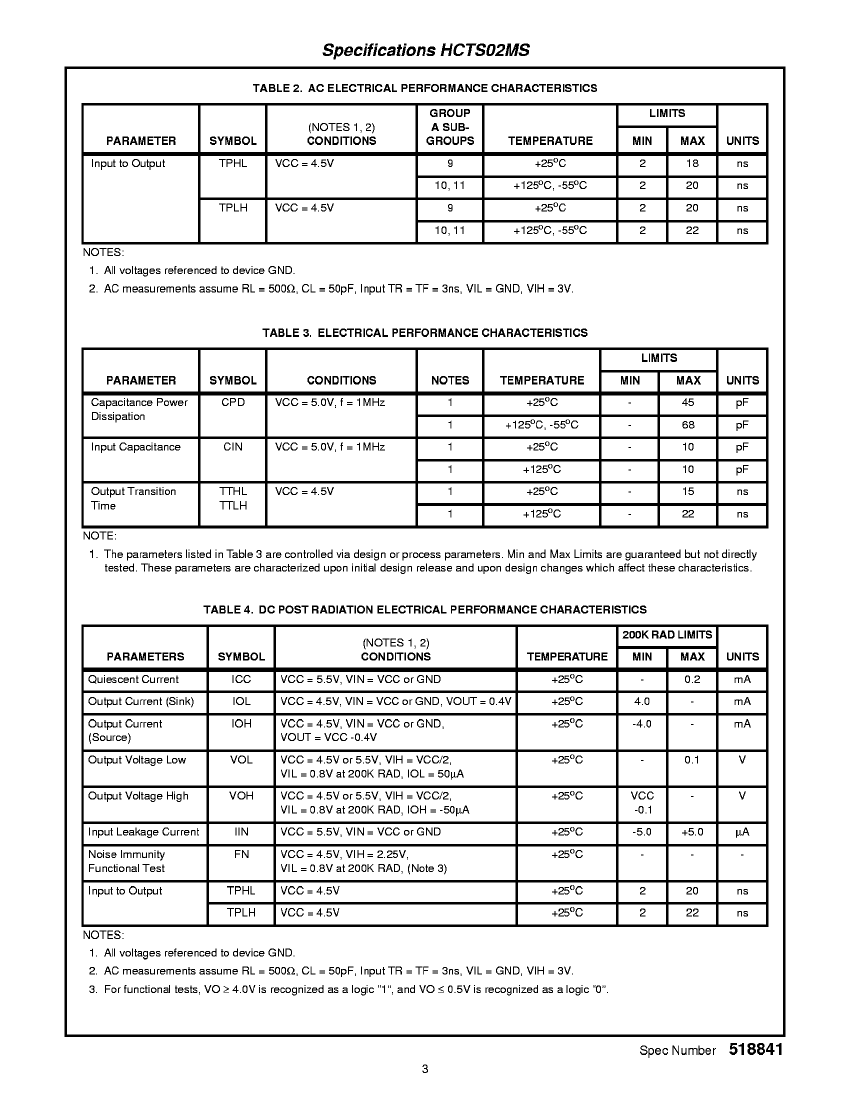

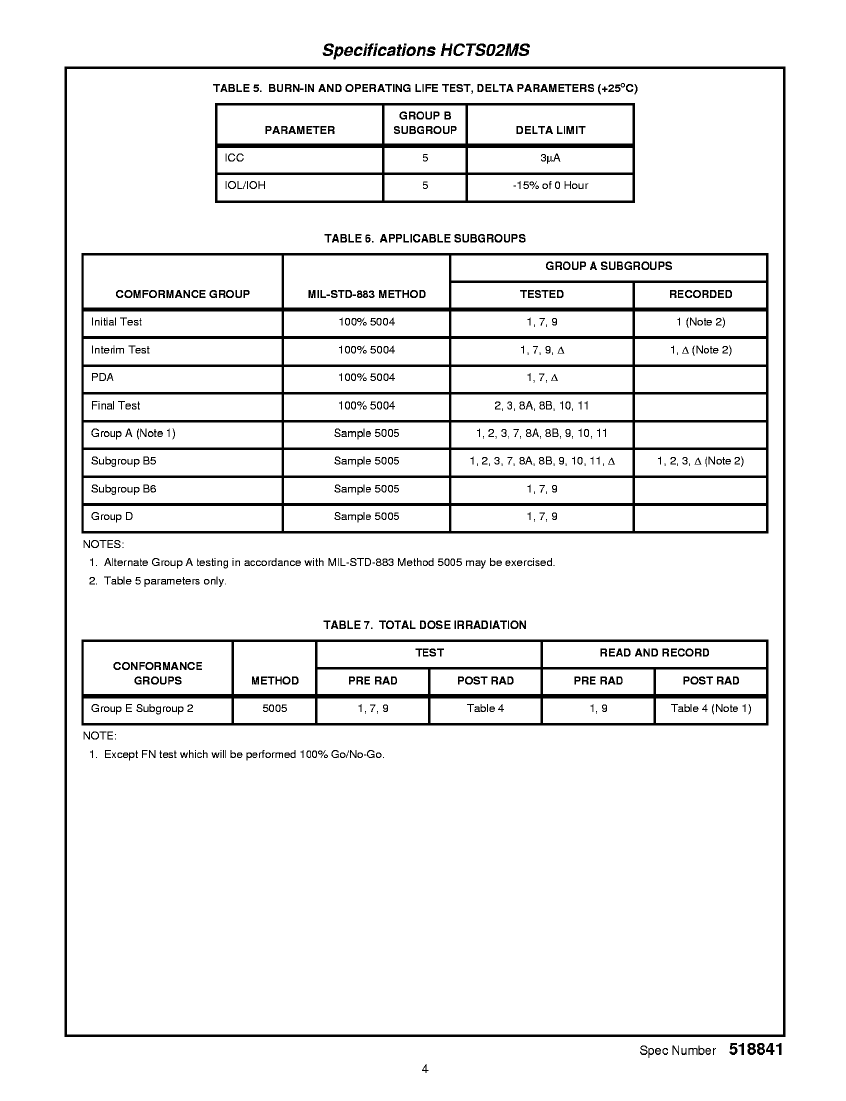

HCTS02HMSR: DescriptionNOR Gate, HCT Series, 4-Func, 2-Input, CMOS; Categorylogic logic; File Size278KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCTS02HMSR Overview

NOR Gate, HCT Series, 4-Func, 2-Input, CMOS

Parameter Name	Attribute value
Maker	Harris
package instruction	DIE,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	X-XUUC-N14
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1

	HCTS02HMSR	5962R9568201V9A	HCTS02K/SAMPLE	HCTS02D/SAMPLE	HCTS02KMSR
Description	NOR Gate, HCT Series, 4-Func, 2-Input, CMOS	NOR Gate, HCT Series, 4-Func, 2-Input, CMOS	NOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14	NOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDIP14	NOR Gate, HCT Series, 4-Func, 2-Input, CMOS, CDFP14
package instruction	DIE,	DIE,	,	,	DFP, FL14,.3
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow
series	HCT	HCT	HCT	HCT	HCT
JESD-30 code	X-XUUC-N14	X-XUUC-N14	R-CDFP-F14	R-CDIP-T14	R-CDFP-F14
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE
Number of functions	4	4	4	4	4
Number of entries	2	2	2	2	2
Number of terminals	14	14	14	14	14
Package body material	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	FLATPACK	IN-LINE	FLATPACK
propagation delay (tpd)	20 ns	20 ns	20 ns	20 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	NO LEAD	FLAT	THROUGH-HOLE	FLAT
Terminal location	UPPER	UPPER	DUAL	DUAL	DUAL
Maker	Harris	-	Harris	Harris	Harris
encapsulated code	DIE	DIE	-	-	DFP
