GPIB Cables
GPIB Cables

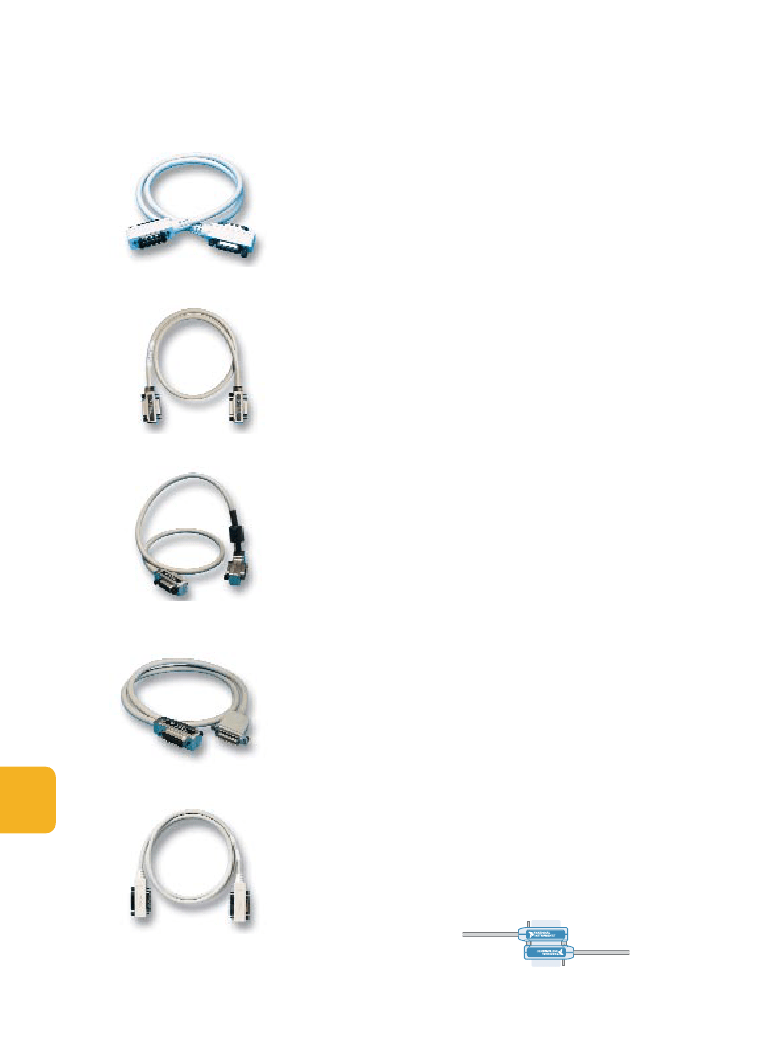

X1 Cable
(See Figure 1)
Single-shielded cable with unshielded plug/receptacles.
1 m ....................................................................................................................763001-01
2 m ....................................................................................................................763001-02
4 m ....................................................................................................................763001-03
8 m ....................................................................................................................763001-04
X2 Cable
(See Figure 2)
Figure 1. X1 Cable
Double-shielded cable with shielded plug/receptacles.
0.5 m................................................................................................................763061-005
1 m ....................................................................................................................763061-01
2 m ....................................................................................................................763061-02
4 m ....................................................................................................................763061-03
8 m ....................................................................................................................763061-04
X4 Cable
(See Figure 3)
Double-shielded standard GPIB to right-angle GPIB cable.
1 m ....................................................................................................................182008-01
2 m ....................................................................................................................182008-02
4 m ....................................................................................................................182008-04
8 m ....................................................................................................................182008-08
Figure 2. X2 Cable
X5 Cable
(See Figure 4)
GPIB Instrument Control/Connectivity
Double-shielded standard GPIB to single-end male GPIB cable.
1 m ....................................................................................................................182009-01
2 m ....................................................................................................................182009-02
4 m ....................................................................................................................182009-04
8 m ....................................................................................................................182009-08
Figure 3. X4 Cable
X11 Cable
(See Figure 5)
Single-shielded, lightweight GPIB cable (uses 28 awg conductors).
1 m ....................................................................................................................182815-01
2 m ....................................................................................................................182815-02
4 m ....................................................................................................................182815-04
8 m ....................................................................................................................182815-08
X12 Cable
Figure 4. X5 Cable
Reverse-entry, single-shielded GPIB cable with molded plug/receptacles.
1 m ....................................................................................................................182773-01
2 m ....................................................................................................................182773-02
4 m ....................................................................................................................182773-04
8 m ....................................................................................................................182773-08
Figure 5. X11 Cable
706
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com
GPIB Cables and Accessories
GPIB Cables and Accessories

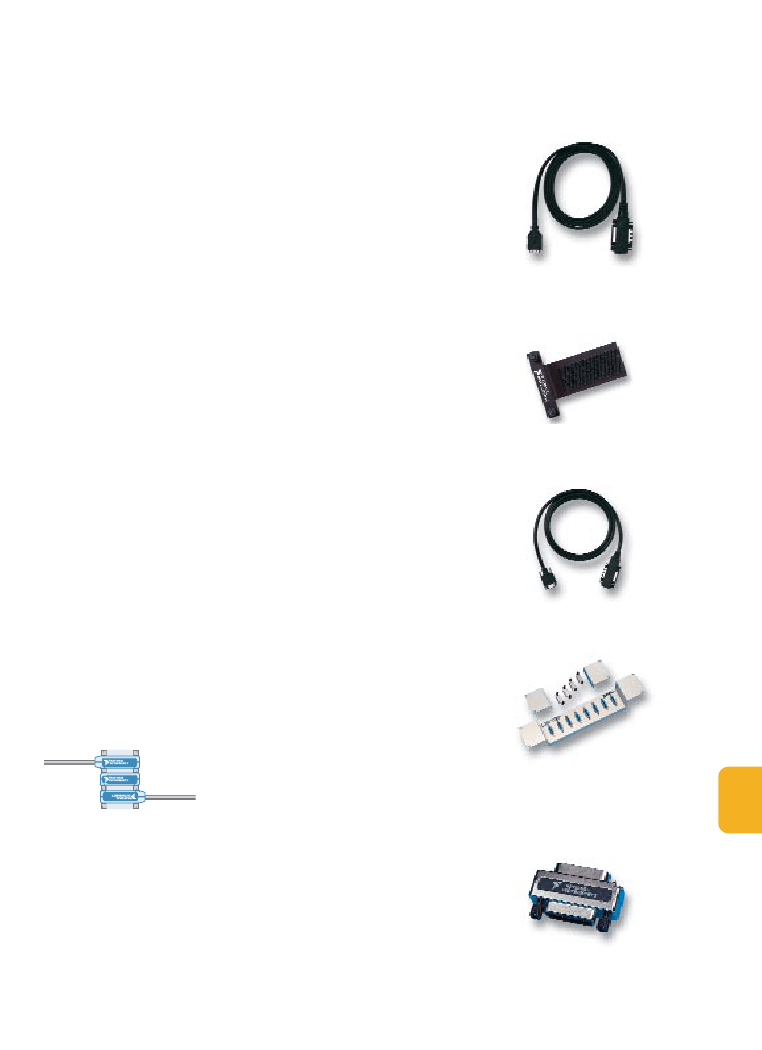

PCMCIA-GPIB Cable
(See Figure 6)
A 25-pin latching connector to shielded GPIB cable for the PCMCIA-GPIB and
PCMCIA-GPIB+.
1 m ....................................................................................................................186557-01
2 m ....................................................................................................................186557-02
4 m ....................................................................................................................186557-04
PCMCIA Cable Strain Relief Kit
(See Figure 7)
Attaches to the bottom of your notebook computer and provides adjustable strain
relief for one or two PCMCIA cables attached to the installed PCMCIA card(s).
PCMCIA cable strain relief kit ........................................................................777550-01
Figure 6. PCMCIA-GPIB Cable
X13 Cable
(See Figure 8)
Micro GPIB connector to shielded GPIB cable for the PCI-GPIB/LP, PMC-GPIB, and
some VXI and PXI embedded controllers.
1 m ....................................................................................................................183285-01
2 m ....................................................................................................................183285-02
8-Port GPIB Strip
(See Figure 9)
Useful in applications where daisy chaining multiple GPIB cables is inconvenient.
Includes two sets of rack-mount hardware.
8-port GPIB strip..............................................................................................776707-01
Dimensions – 8.7 by 32.8 by 2.5 cm (3.5 by 13.0 by 1.0 in.)
Figure 7. PCMCIA Cable Strain Relief Kit

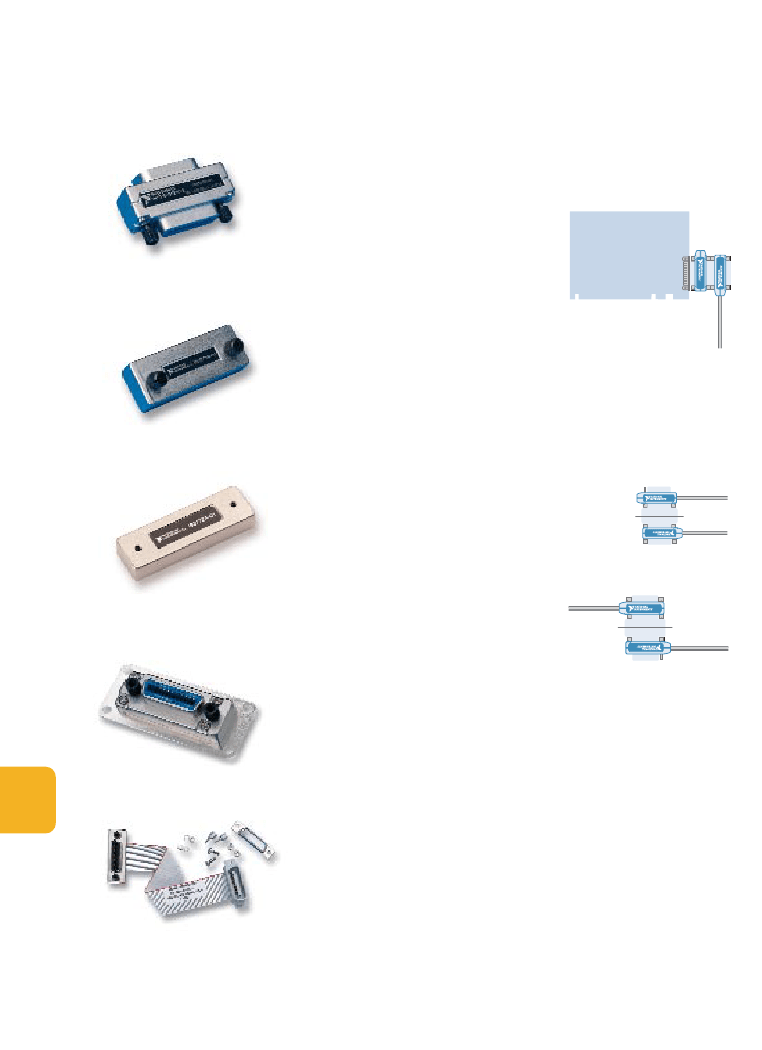

XA Adapter
(See Figure 10)
Required for attaching X Series cables to GPIB interfaces installed in computers with
recessed back panels, such as the Macintosh, IBM PS/2, Sun SPARCstation, and
IBM RISC System/6000.
XA adapter ........................................................................................................181638-01
Width – 1.6 cm (0.6 in.)
GPIB Instrument Control/Connectivity
Figure 8. X13 Cable
Reverse Cable Adapter
Connects two GPIB cables so the cables are oriented in opposite directions.
Reverse cable adapter ......................................................................................182768-01
Width – 2.3 cm (0.9 in.)
Figure 9. 8-Port GPIB Strip
Figure 10. XA Adapter
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com
707
Parallel and Serial Cables
Parallel and Serial Cables
Reverse Slimline Adapter
(See Figure 11)
Narrow version of reverse cable adapter. Cable can turn in reverse orientation
(180 degrees from normal).
Reverse slimline adapter ..................................................................................182770-01
Width – 1.8 cm (0.7 in.)
GPIB BOARD
Figure 11. Reverse Slimline Adapter
Connector Covers
(See Figures 12 and 13)
Prevents dust and other contaminants from corroding or damaging the exposed GPIB
cable contacts. Shipped in multiples of four.
Male side ..........................................................................................................776947-01
Female side........................................................................................................776947-02
Figure 12. Male Connector Cover
Bulkhead Adapter
(See Figure 14)
Female to female ..............................................................................................182766-01
GPIB Instrument Control/Connectivity
Reverse entry ....................................................................................................182767-01
Figure 13. Female Connector Cover
G1 Internal Adapter Cable
(See Figure 15)
Internal ribbon cable for Sun-3 and Sun-4 workstations that connects to the
GPIB connector on the VME-GPIB and is terminated with a shielded
chassis-mounted GPIB receptacle.
229 mm ............................................................................................................180383-09
Figure 14. Bulkhead Adapter
Figure 15. G1 Internal Adapter Cable
708
National Instruments • Tel: (800) 433-3488 • Fax: (512) 683-9300 • info@ni.com • ni.com
Parallel and Serial Cables
Parallel and Serial Cables

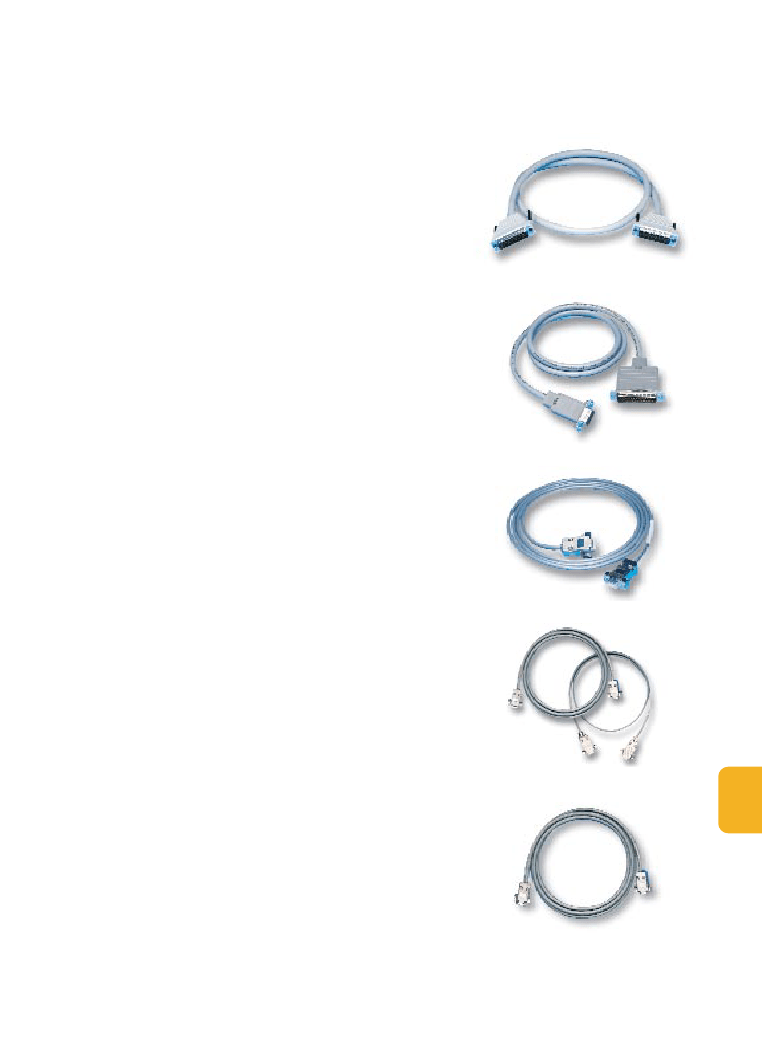

GPIB-1284CT Cable
(See Figure 16)
GPIB-1284CT (25-pin male D-Sub) to IBM PC parallel (25-pin male D-Sub).
1 m ....................................................................................................................181072-10
2 m ....................................................................................................................181072-20
RS1 Cable
(See Figure 17)
GPIB-232CV-A/GPIB-232CT-A (9-pin female D-Sub) to IBM PC (25-pin male D-Sub).
1 m ....................................................................................................................181074-10
Figure 16. GPIB-1284CT Cable
Serial Null-Modem Cable
(See Figure 18)
GPIB-232CV-A/GPIB-232CT-A (9-pin female D-Sub) to IBM PC (9-pin female D-Sub).
1 m ....................................................................................................................182238-01
2 m ....................................................................................................................182238-02
4 m ....................................................................................................................182238-04
S10 Cable
(See Figure 19)
GPIB-232CV/CT-A [9-pin female D-Sub (DTE)] to 9-pin male D-Sub (DCE).
1 m ....................................................................................................................183045-01
2 m ....................................................................................................................183045-02
4 m ....................................................................................................................183045-04
Figure 17. RS1 Cable
RS2 Cable
(See Figure 19)
GPIB-485CT-A (9-pin female D-Sub) to AT-485/2 (9-pin female D-Sub).
1 m ....................................................................................................................183283-01
2 m ....................................................................................................................183283-02
4 m ....................................................................................................................183283-04
GPIB Instrument Control/Connectivity
1394 Cables
2 m ....................................................................................................................185797-02
4.5 m..................................................................................................................185797-04
4.5 m (latching) ................................................................................................185798-04
See page 720 for other serial cables.
Figure 18. Serial Null-Modem Cable
Figure 19. S10 and RS2 Cables
Figure 20. 1394 Cables
