ACPL-3130/J313 ACNW3130
Very High CMR 2.5 Amp Output Current
IGBT Gate Driver Optocoupler
Data Sheet
Description
The ACPL-3130 contains a GaAsP LED while the ACPL-
J313 and the ANCW3130 contain an AlGaAs LED. The LED
is optically coupled to an integrated circuit with a power
output stage. These optocouplers are ideally suited for
driving power IGBTs and MOSFETs used in motor control
inverter applications. The high operating voltage range
of the output stage provides the drive voltages required
by gate controlled devices. The voltage and current
supplied by these optocouplers make them ideally suited
for directly driving IGBTs with ratings up to 1200 V/100 A.
For IGBTs with higher ratings, the ACPL-3130 series can be
used to drive a discrete power stage which drives the IGBT
gate. The ANCW3130 has the highest insulation voltage of
V
IORM
= 1414 V
peak
in the IEC/EN/DIN EN 60747-5-2. The
ACPL-J313 has an insulation voltage of V
IORM
= 891 V
peak
and the V
IORM
= 630 V
peak
is also available with the ACPL-
3130 (Option 060).
Features
•
•
•
•
High speed response.
Very high CMR.
Bootstrappable supply current.
Safety Approval (pending):
UL Recognized
- 3750 V
rms
for 1 min. for ACPL-3130/J313.
- 5000 V
rms
for 1 min. For ACNW3130
CSA Approval
IEC/EN/DIN EN 60747-5-2 Approved
- V
IORM
= 630 V
peak
for ACPL-3130 (Option 060)
- V
IORM
= 891 V
peak
for ACPL-J313
- V
IORM
= 1414 V
peak
for ACNW3130
Specifications
• 2.5 A maximum peak output current.
• 2.0 A minimum peak output current.
• 40 kV/µs minimum Common Mode Rejection (CMR) at
V
CM
= 1500 V
• 0.5 V maximum low level output voltage (V
OL
) eliminates
need for negative gate drive
• I
CC
= 5 mA maximum supply current
• Under Voltage Lock-Out protection (UVLO) with
hysteresis
• Wide operating V
CC
range: 15 to 30 Volts
• 500 ns maximum switching speeds
• Industrial temperature range: -40°C to 100°C
Functional Diagram
N/C
ANODE
CATHODE
N/C
1
2
3
4
8 V
CC
7 V
O
6 V
O
5 V
EE
SHIELD
ACPL-3130 and ACPL-J313
N/C
ANODE
CATHODE
N/C
1
2
3
4
8 V
CC
7 V
O
6 N/C
5 V
EE
Applications
•
•
•
•
IGBT/MOSFET gate drive
AC/Brushless DC motor drives
Industrial inverters
Switching Power Supplies (SPS)
SHIELD
ACNW3130
Note: A 0.1 µF bypass capacitor must be connected between pins V
CC
and V
EE
.
CAUTION: It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
Truth Table
V
CC
– V
EE
“POSITIVE GOING”
(i.e., TURN-ON)
0 - 30 V
0 - V
- 3.5 V
3.5 - 30 V
V
CC
– V
EE
“NEGATIVE GOING”
(i.e., TURN-OFF)
0 - 30 V
0 - 9.5 V
9.5 - 2 V
2 - 30 V
LED
OFF
ON
ON
ON
VO
LOW
LOW
TRANSITION
HIGH
Ordering Information
Specify part number followed by option number (if desired).
Example:
ACPL-3130-XXXE
060 = IEC/EN/DIN EN 60747-5-2, V
IORM
= 630V
PEAK
(ACPL-3130 only)
300 = Gull Wing Surface Mount Option
500 = Tape and Reel Packaging Option
XXXE = Lead Free Option.
Option 500 contains 1000 units (ACPL-3130/J313), 750 units (ACNW3130) per reel.
Other options contain 50 units (ACPL-3130/J313), 42 units (ACNW3130) per tube
Option data sheets available. Contact Avago Technologies sales representative, authorized distributor, or visit our WEB
site at http://www.avagotech.com/optocouplers.

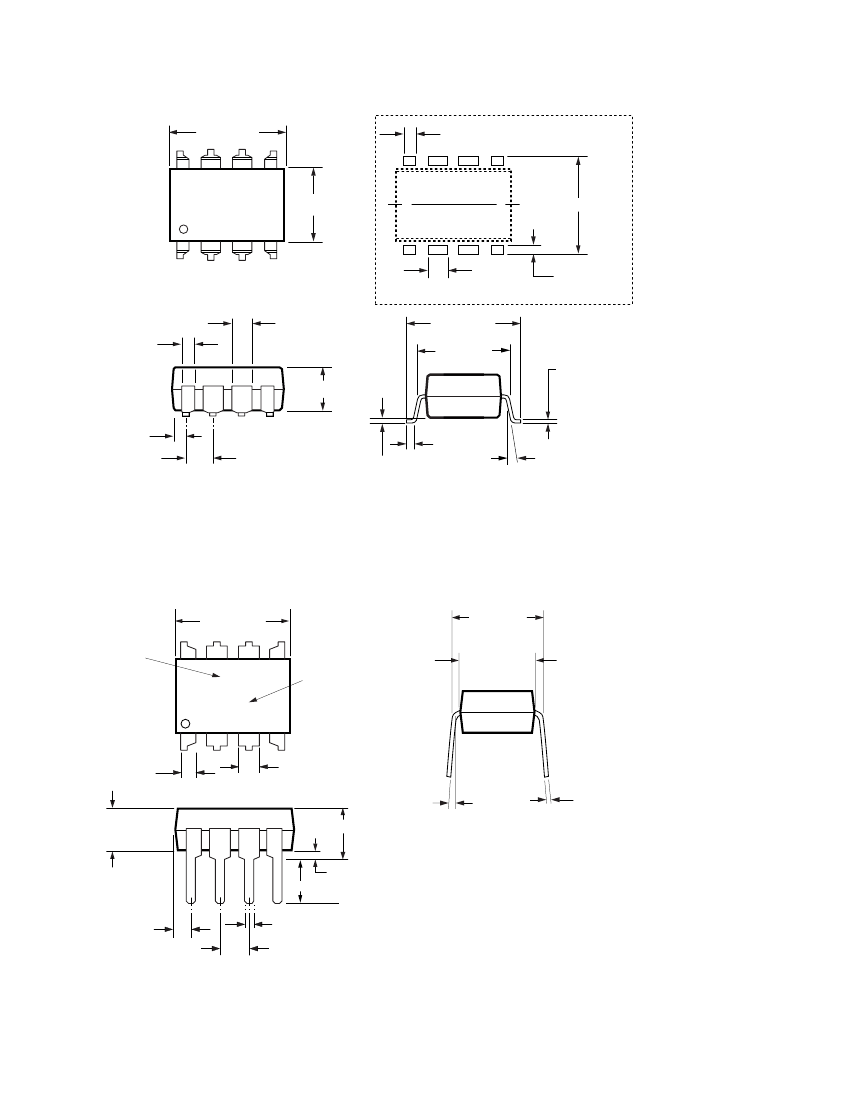

Package Outline Drawings
ACPL-3130 Outline Drawing (Standard DIP Package)
9.65 ± 0.25
(0.380 ± 0.010)
TYPE NUMBER
8
7
6
5
OPTION CODE*
DATE CODE
7.62 ± 0.25
(0.300 ± 0.010)
6.35 ± 0.25
(0.250 ± 0.010)
A XXXXZ
YYWW
1
1.19 (0.047) MAX.
2
3
4
1.78 (0.070) MAX.
5 TYP.
+ 0.076
0.254 - 0.051
+ 0.003)
(0.010 - 0.002)
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
0.51 (0.020) MIN.
2.92 (0.115) MIN.
1.080 ± 0.320
(0.043 ± 0.013)
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
DIMENSIONS IN MILLIMETERS AND (INCHES).
* MARKING CODE LETTER FOR OPTION NUMBERS.
"V" = OPTION 060
OPTION NUMBERS 300 AND 500 NOT MARKED.
NOTE: FLOATING LEAD PROTRUSION IS 0.5 mm (20 mils) MAX.
2
ACPL-3130 Gull Wing Surface Mount Option 300 Outline Drawing
LAND PATTERN RECOMMENDATION
9.65 ± 0.25
(0.380 ± 0.010)
8
7
6
5
1.016 (0.040)
6.350 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
1
2
3
4
1.27 (0.050)
1.780
(0.070)
MAX.
9.65 ± 0.25
(0.380 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
2.0 (0.080)
1.19
(0.047)
MAX.
3.56 ± 0.13
(0.140 ± 0.005)
+ 0.076
0.254 - 0.051
+ 0.003)
(0.010 - 0.002)
1.080 ± 0.320
(0.043 ± 0.013)
0.635 ± 0.130
2.54
(0.025 ± 0.005)
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
0.635 ± 0.25
(0.025 ± 0.010)
12 ˚ NOM.
ACPL-J313 Outline Drawing
9.80 ± 0.25
(0.386 ± 0.010)
TYPE NUMBER
8
7
6
5
DATE CODE
7.62 ± 0.25
(0.300 ± 0.010)
6.35 ± 0.25
(0.250 ± 0.010)
A XXXX
YYWW
1
1.19 (0.047) MAX.
2
3
4
1.78 (0.070) MAX.
5 TYP.
+ 0.076
0.254 - 0.051
+ 0.003)
(0.010 - 0.002)
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
0.51 (0.020) MIN.
2.92 (0.115) MIN.
1.080 ± 0.320
(0.043 ± 0.013)
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
DIMENSIONS IN MILLIMETERS AND (INCHES).
OPTION NUMBERS 300 AND 500 NOT MARKED.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
3
ACPL-J313 Gull Wing Surface Mount Option 300 Outline Drawing
LAND PATTERN RECOMMENDATION
9.80 ± 0.25
(0.386 ± 0.010)
8
7
6
5
1.016 (0.040)
6.350 ± 0.25
(0.250 ± 0.010)
10.9 (0.430)
1
2
3
4
1.27 (0.050)
1.780
(0.070)
MAX.
9.65 ± 0.25
(0.380 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
2.0 (0.080)
1.19
(0.047)
MAX.
3.56 ± 0.13
(0.140 ± 0.005)
+ 0.076
0.254 - 0.051
+ 0.003)
(0.010 - 0.002)
1.080 ± 0.320
(0.043 ± 0.013)
0.635 ± 0.130
2.54
(0.025 ± 0.005)
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.5 mm (20 mils) MAX.
0.635 ± 0.25
(0.025 ± 0.010)
12 ˚ NOM.
ACNW3130 Outline Drawing (8-Pin Wide Body Package)
11.15 ± 0.15
(0.442 ± 0.006)
8
7
6
5
11.00 MAX.
(0.433)
9.00 ± 0.15
(0.354 ± 0.006)
A
ACNWXXXX
YYWW
1
2
3
4
TYPE NUMBER
DATE CODE
1.55
(0.061)
MAX.
10.16 (0.400)
TYP.
7 TYP.
+ 0.076
0.254 - 0.0051
+ 0.003)
(0.010 - 0.002)
5.10 MAX.
(0.201)
3.10 (0.122)
3.90 (0.154)
2.54 (0.100)
TYP.
1.78 ± 0.15
(0.070 ± 0.006)
0.40 (0.016)
0.56 (0.022)
0.51 (0.021) MIN.
DIMENSIONS IN MILLIMETERS (INCHES).
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
ACNW3130 Gull Wing Surface Mount Option 300 Outline Drawing
11.15 ± 0.15
(0.442 ± 0.006)
8
7
6
5
LAND PATTERN RECOMMENDATION
9.00 ± 0.15
(0.354 ± 0.006)
13.56
(0.534)
1
2
3
4
1.3
(0.051)
1.55
(0.061)
MAX.
12.30 ± 0.30
(0.484 ± 0.012)
11.00 MAX.
(0.433)
2.29
(0.09)
4.00 MAX.
(0.158)
1.78 ± 0.15
(0.070 ± 0.006)
2.54
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
0.75 ± 0.25
(0.030 ± 0.010)
1.00 ± 0.15
(0.039 ± 0.006)
+ 0.076
0.254 - 0.0051
+ 0.003)
(0.010 - 0.002)
7 NOM.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
Recommended Solder Reflow Temperature Profile
300
PREHEATING RATE 3 °C + 1 C/–0.5 °C/SEC.
REFLOW HEATING RATE 2.5 °C ± 0.5 C/SEC.
PEAK
TEMP.
245 °C
PEAK
TEMP.
240 °C
TEMPERATURE ( °C)
200
160 °C
150 °C
140 °C
2.5 °C ± 0.5 °C/SEC.
30
SEC.
3 °C + 1 °C/–0.5 °C
30
SEC.
PEAK
TEMP.
230 °C
SOLDERING
TIME
200 °C
100
PREHEATING TIME
150 °C, 90 + 30 SEC.
50 SEC.
TIGHT
TYPICAL
LOOSE
ROOM
TEMPERATURE
0
0
50
100
TIME (SECONDS)
150
200
250
Note: Use of non chlorine-activated fluxes is highly recommended.
