15-02-0146 datasheet, PDF - EEWORLD Datasheet

15-02-0146: DescriptionBoard Connector, 14 Contact(s), Male, Straight, Crimp Terminal, Locking, White Insulator, Plug; CategoryThe connector The connector; File Size423KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

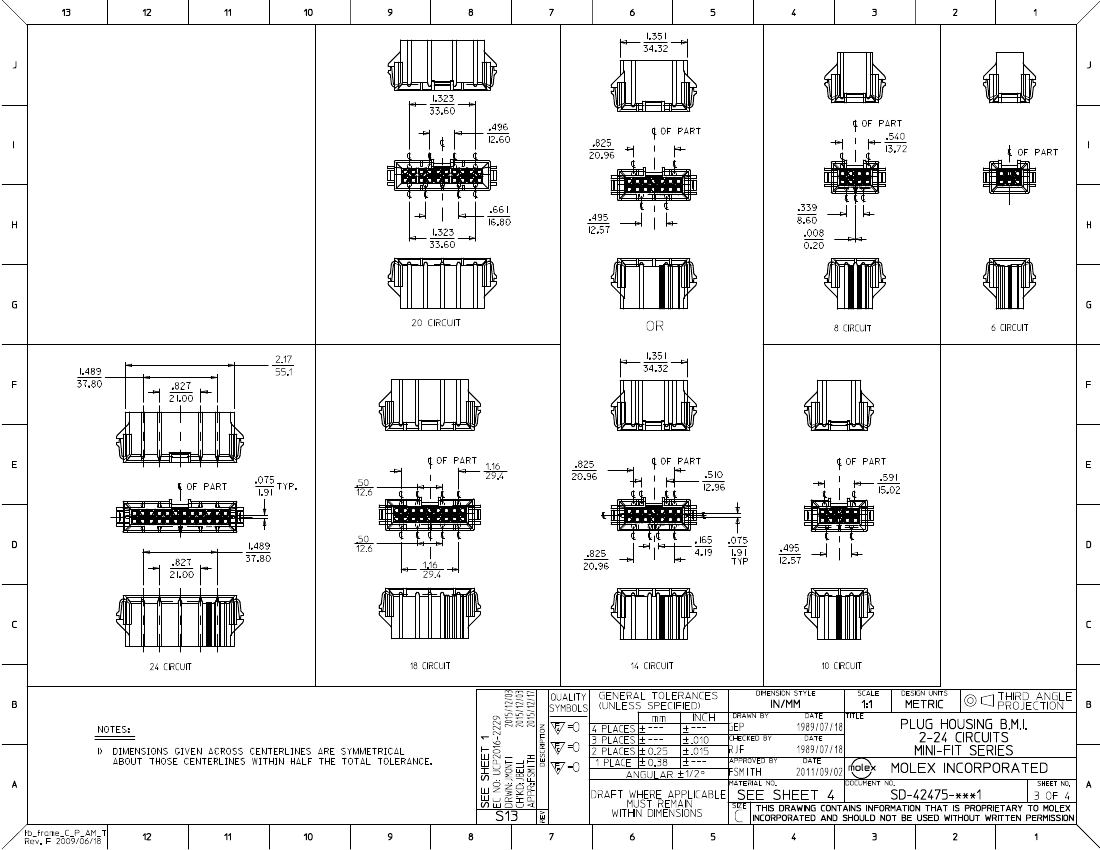

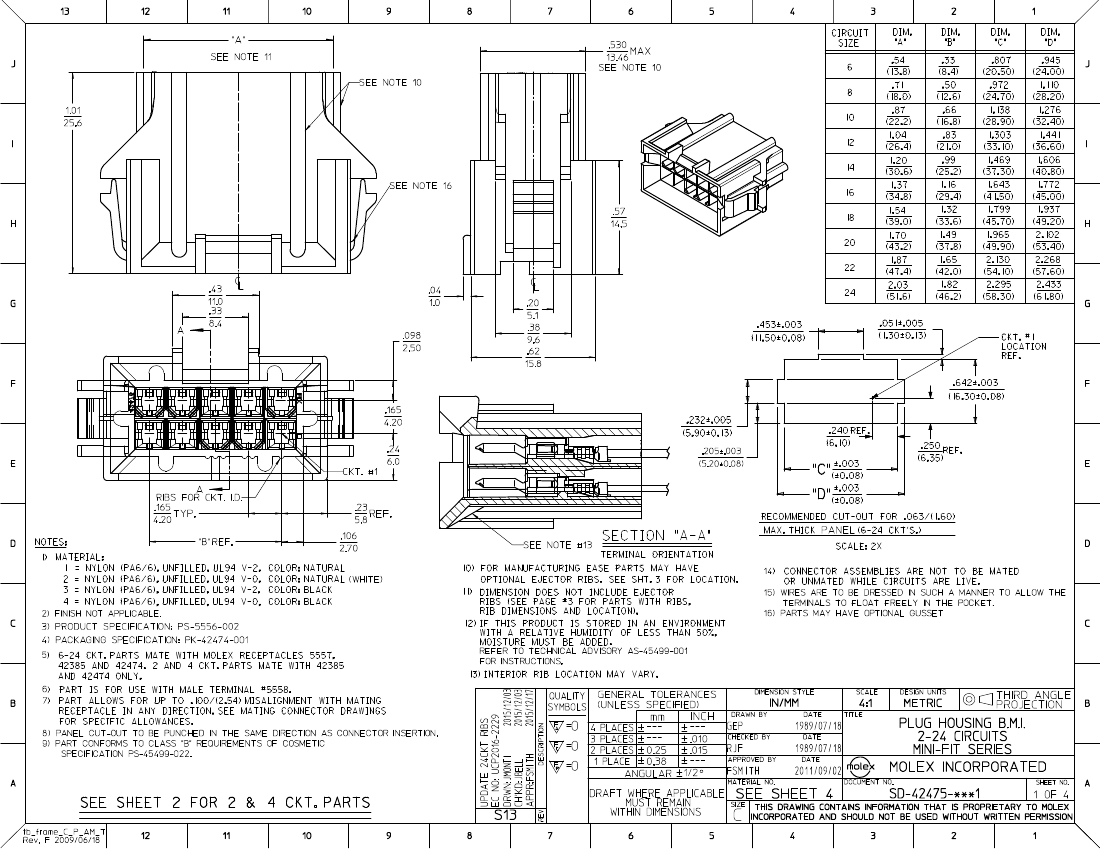

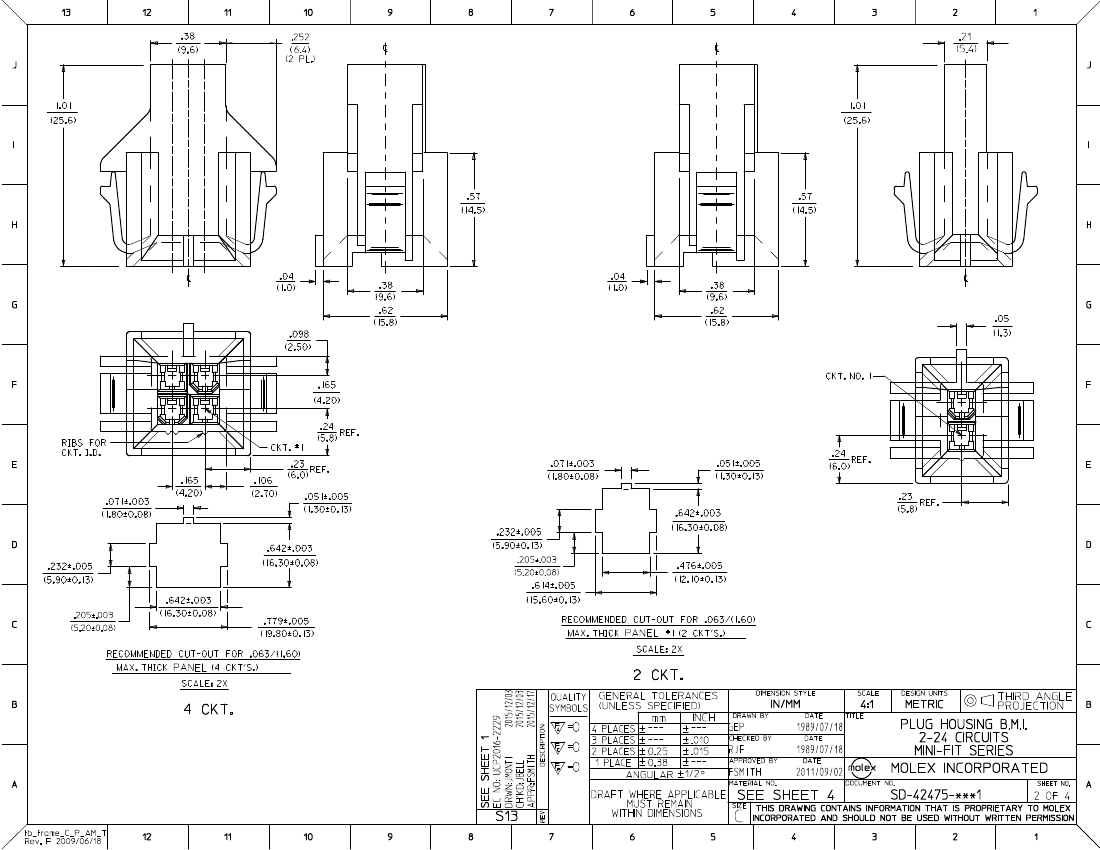

15-02-0146 Overview

Board Connector, 14 Contact(s), Male, Straight, Crimp Terminal, Locking, White Insulator, Plug

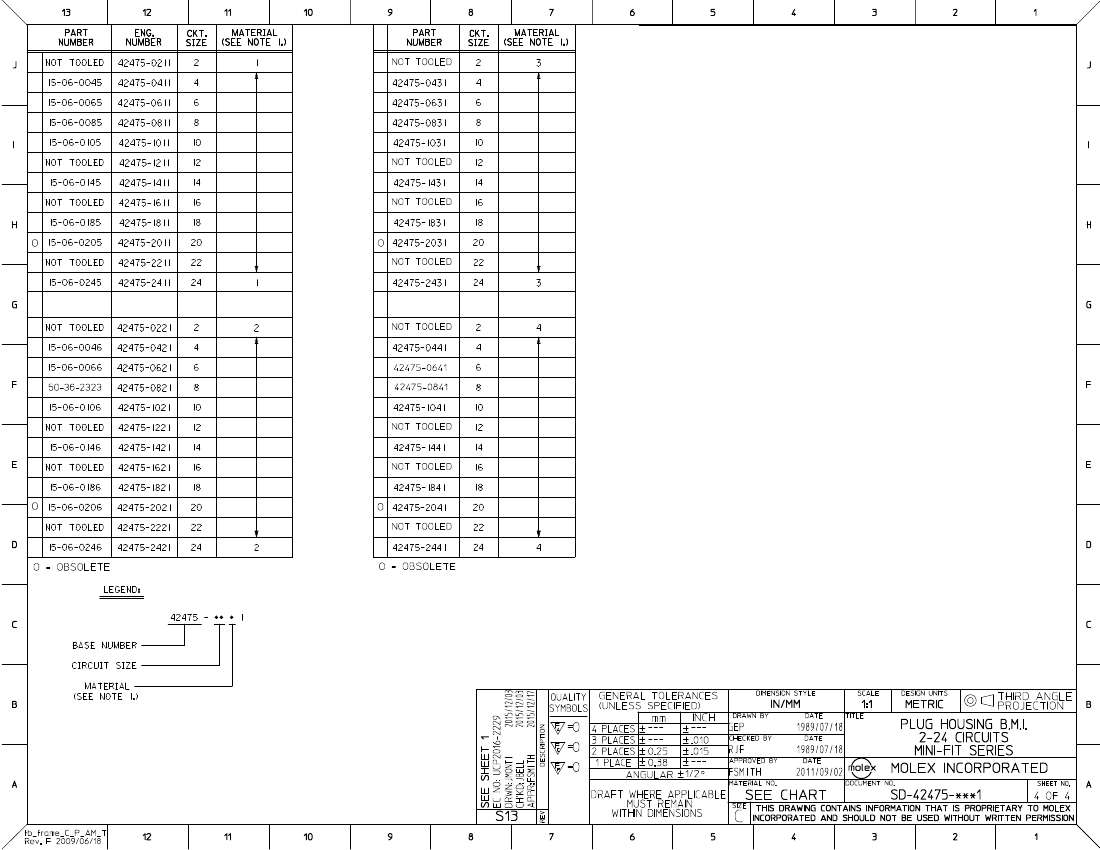

Parameter Name	Attribute value
Objectid	316145172
Reach Compliance Code	unknown
ECCN code	EAR99
subject depth	1.01 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0P14
Contact point gender	MALE
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Filter function	NO
maximum insertion force	14.6784 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
Termination type	CRIMP
Total number of contacts	14
Evacuation force-minimum value	.4726 N
