Amazing in Control
High starting torque and torque control capability in open
loop mode give you full control of your machine dynamics and
performance. Options for all of the major open network
systems.
Torque master
Frequency response vs Torque variation
Example with 7.5 kW 4-pole motor
200

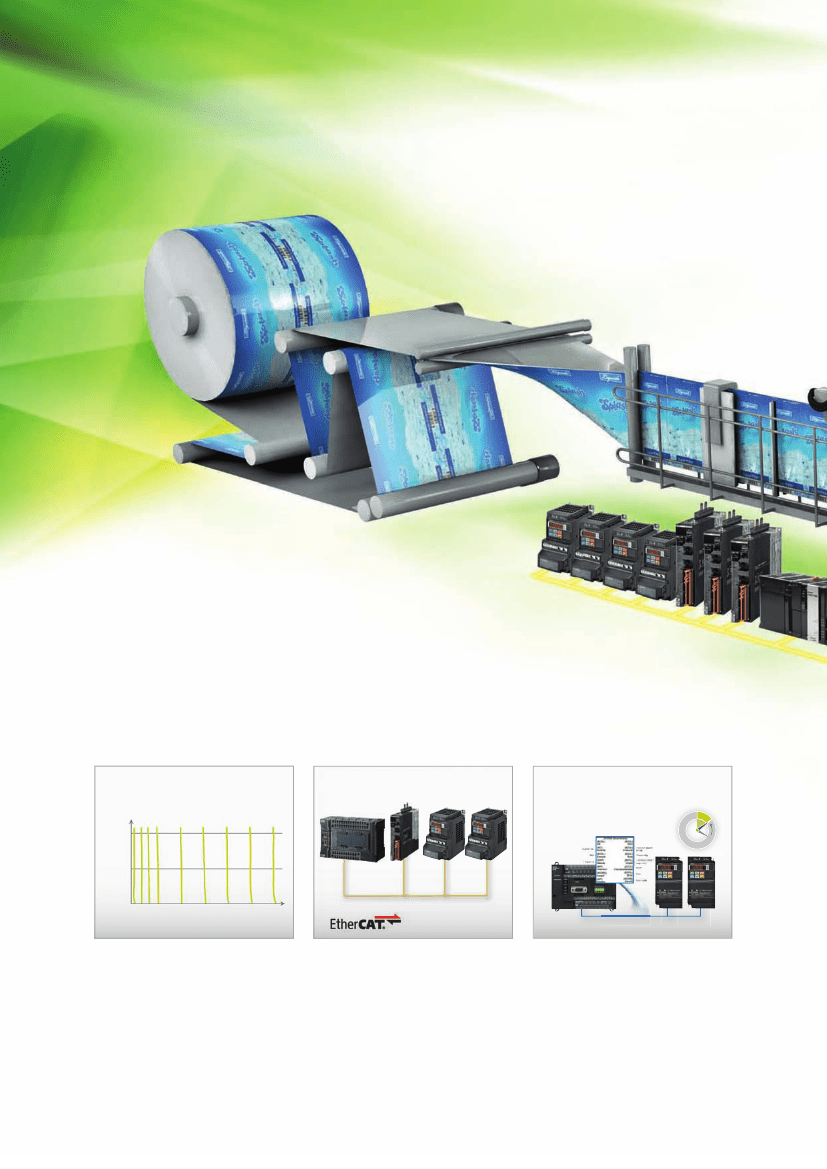

Easy network integration
Easy communications setting
Easy programming
using OMRON Function Blocks
Torque (%)
100
0
0.5 3 6 10
20
30
40
50
60 Hz
The MX2-V1 delivers 200% starting
torque near stand-still (0.5 Hz) and
can operate in torque control in open
loop mode. This allows the MX2-V1
to be used in applications where
closed loop AC vector drives were
previously used.
Standard industrial networks, such
as EtherCAT, CompoNet or DeviceNet
as options. High-speed EtherCAT
provides solutions for the entire
system from input to output with
Sysmac Series.
Built-in RS-485 Modbus
communications. OMRON Function
Blocks are available for the CP H/L
and CJ-series PLCs. Those control the
MX2-V1 via Modbus communications
easily.
4
Safety in Control
Safety is embedded in the MX2-V1, according to ISO 13849-1,
Cat. 3, with two safety inputs and an External Device
Monitoring (EDM) output.
No external contactors on the motor side are required,
meaning simpler wiring for the user.
Safety embedded;
ISO 13849-1, Cat. 3
MOTOR CONTROL
Permanent magnet motors

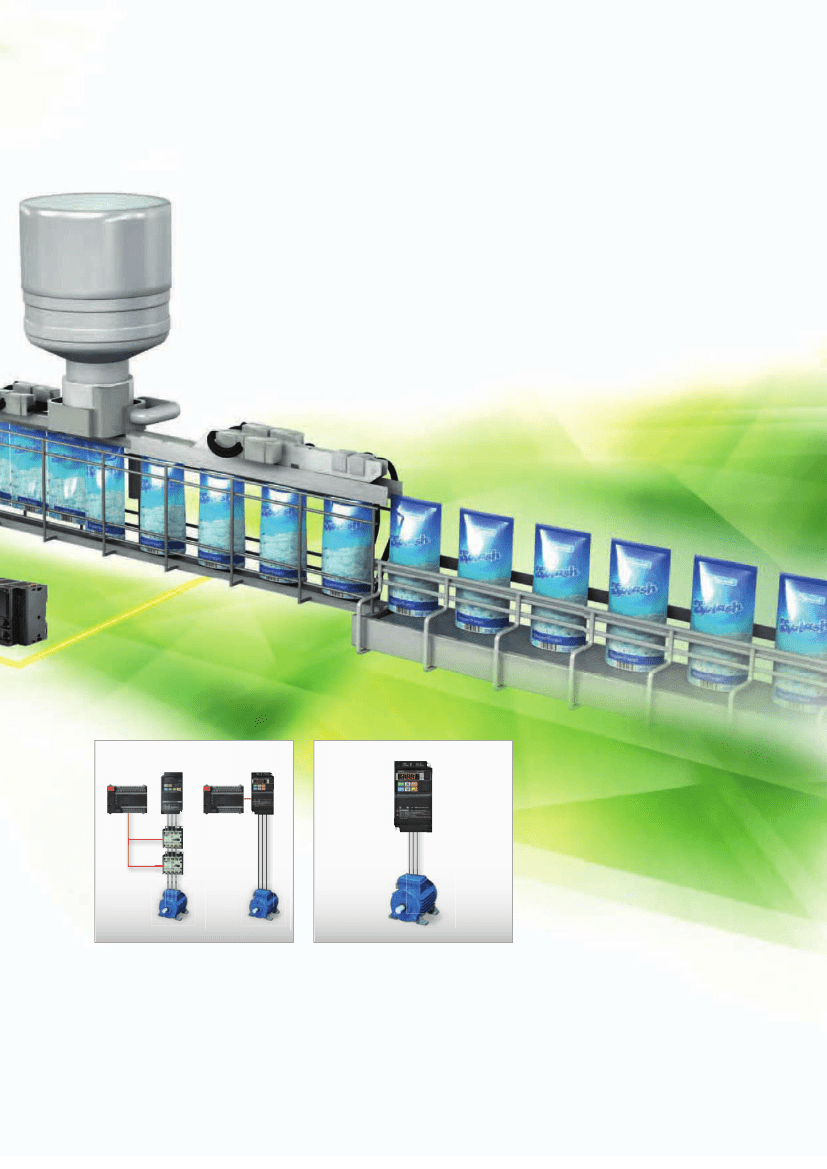

Dual contactors at the output of the
inverter are no longer required.
Direct connection to a safety
controller ensures compliance to ISO
13849-1, Cat. 3.
The PM motor conforming to high-
efficiency regulations can be
controlled. The PM motor promotes
further energy saving and achieves
earth-friendly machine control.
5
