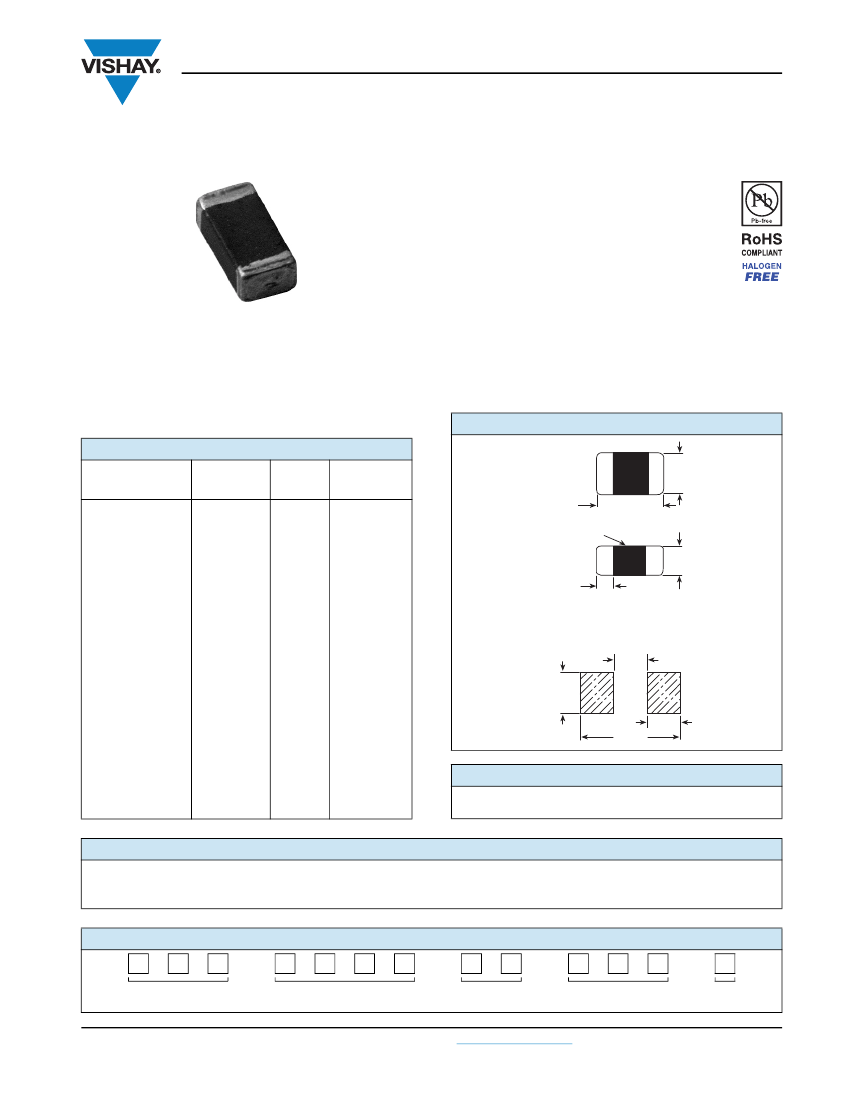

ILB-1206
Vishay Dale
Multilayer Ferrite Beads
FEATURES
High reliability
Surface mountable
Magnetically self shielded
Nickel barrier plating virtually eliminates silver
migration
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21 definition
•
•
•
•
MECHANICAL SPECIFICATIONS
Solderability:
90 % coverage after 5 s dip in 235 °C solder
following 60 s preheat at 120 °C to 150 °C and type R flux
dip
Resistance to Solder Heat:
10 s in 260 °C solder, after
preheat and flux per above
Terminal Strength:
1.0 kg (2.2 lbs) minimum for 30 s
Beam Strength:
2.0 kg (4.4 lbs) minimum
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 125 °C
Thermal Shock:
300 cycles, - 40 °C to + 125 °C
Biased Humidity:
85 % RH at 85 °C, 1000 h at full rated
current
DIMENSIONS
in inches [millimeters]
Dimensional Outline
0.063 ± 0.008
[1.6 ± 0.20]
0.126 ± 0.008
[3.2 ± 0.20]
Ferrite Body
0.043 ± 0.008
[1.1 ± 0.20]
0.020 ± 0.012
[0.50 ± 0.30]
STANDARD ELECTRICAL SPECIFICATIONS
Z
FREQUENCY
± 25 % AT 100 MHz
(MHz)
)
19
26
31
50
60
70
80
90
100
120
150
200
300
500
600
800
1000
1200
1500
2000
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
30
DCR
MAX.
)
0.05
0.05
0.05
0.10
0.10
0.10
0.20
0.20
0.20
0.20
0.20
0.20
0.30
0.30
0.30
0.30
0.40
0.40
0.50
0.50
RATED
DC CURRENT
(mA)
500
500
500
600
600
600
400
400
400
400
300
300
300
200
200
200
200
100
100
100
Recommended Pad Layout
0.087
[2.2]
0.055
[1.4]
0.043
[1.1]
0.173
[4.4]
PACKAGING OPTIONS
• Bulk: 1000 pieces per plastic bag
• Tape and Reel: Paper carrier tape, 3000 pieces per reel
DESCRIPTION
ILB-1206
MODEL
19
IMPEDANCE VALUE
± 25 %
IMPEDANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
L
PRODUCT
FAMILY
B
1
2
SIZE
0
6
E
R
1
9
IMPEDANCE
VALUE
0
V
IMPEDANCE
TROLERANCE
PACKAGE
CODE
Document Number: 34023
Revision: 04-Feb-11
For technical questions, contact:
magnetics@vishay.com
www.vishay.com
1
ILB-1206
Vishay Dale
Multilayer Ferrite Beads

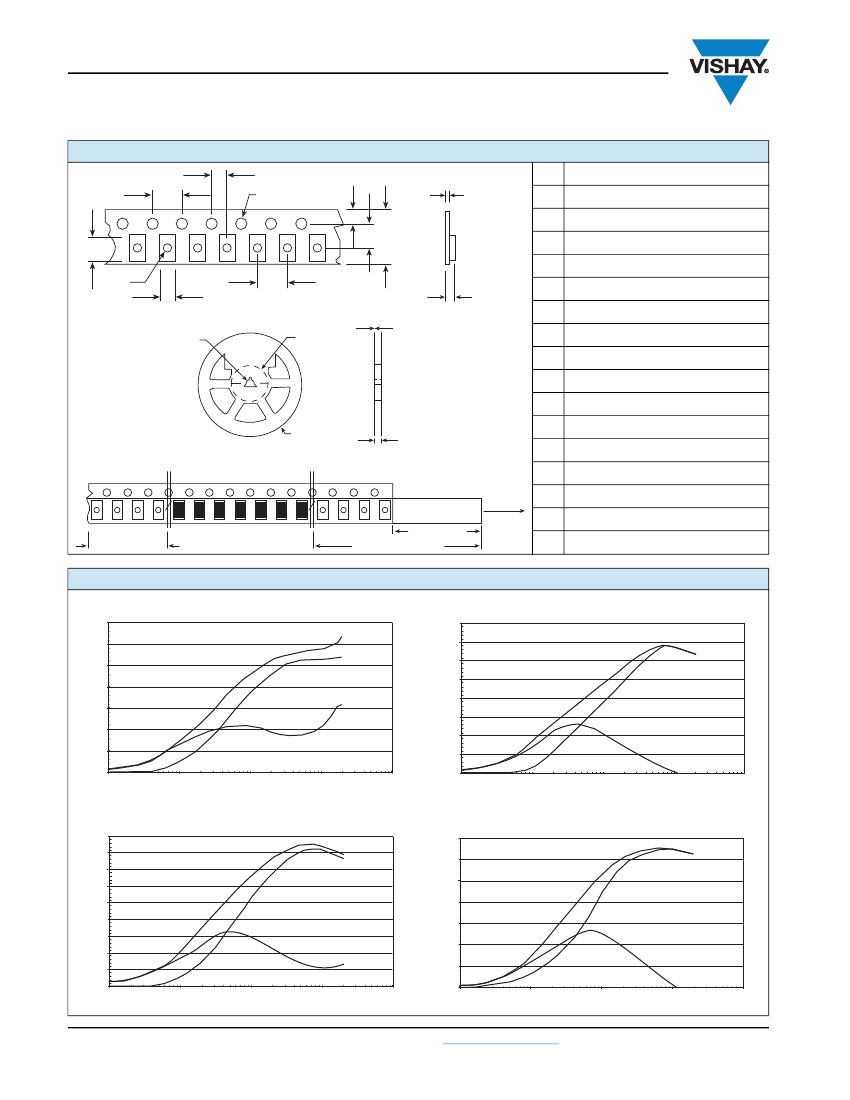

TAPE AND REEL SPECIFICATIONS
in inches [millimeters]
P
2
P
0
ØD
0
E
1
F
T
W
A
0
B
0
D
0
0.071 ± 0.008 [1.80 ± 0.2]
0.140 ± 0.006 [3.45 ± 0.15]
0.059 + 0.005/- 0.000 [1.5 + 0.127/- 0.0]
0.039 min. [1.0 min.]
0.069 ± 0.004 [1.75 ± 0.1]
0.138 ± 0.002 [3.50 ± 0.05]
0.049 ± 0.002 [1.24 ± 0.05]
0.157 ± 0.004 [4.00 ± 0.1]
0.157 ± 0.004 [4.00 ± 0.1]
0.079 ± 0.002 [2.00 ± 0.05]
0.327 max. [8.3 max.]
0.009 ± 0.002 [0.2 ± 0.05]
7.000 ± 0.079 [178 ± 2.0]
2.500 [63.5]
0.512 ± 0.020 [13.00 ± 0.5]
0.315 + 0.059/- 0.000 [8.00 + 1.5/- 0.0]
0.079 ± 0.002 [2.00 ± 0.05]
B
0
D
1
E
1
ØD
1
A
0
P
1
K
0
F
K
0
T
1
ØC
ØN
P
0
P
1
P
2
W
ØA
T
W
1
A
Cover Tape Leader
Unreel
Direction
Empty Trailer
Components
Empty Tape
N
C
W
1
160 mm min.
160 mm Minimum
390 mm Minimum
T
1

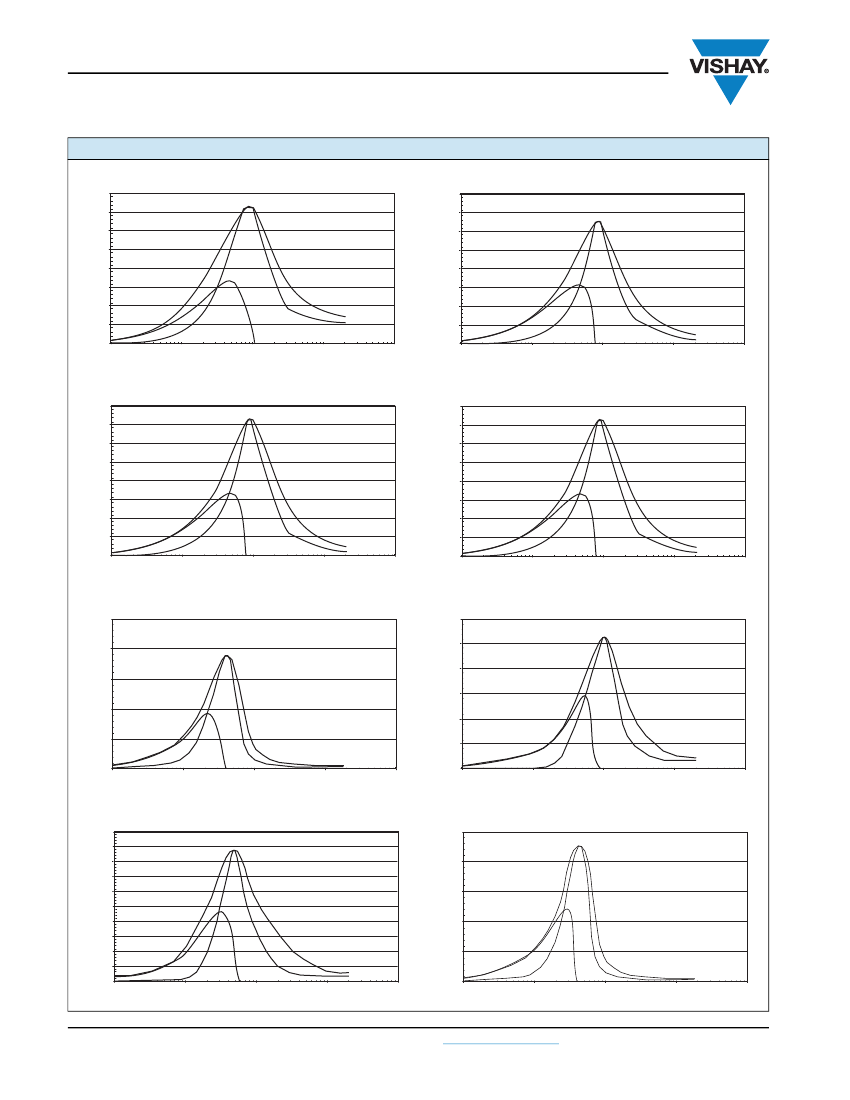

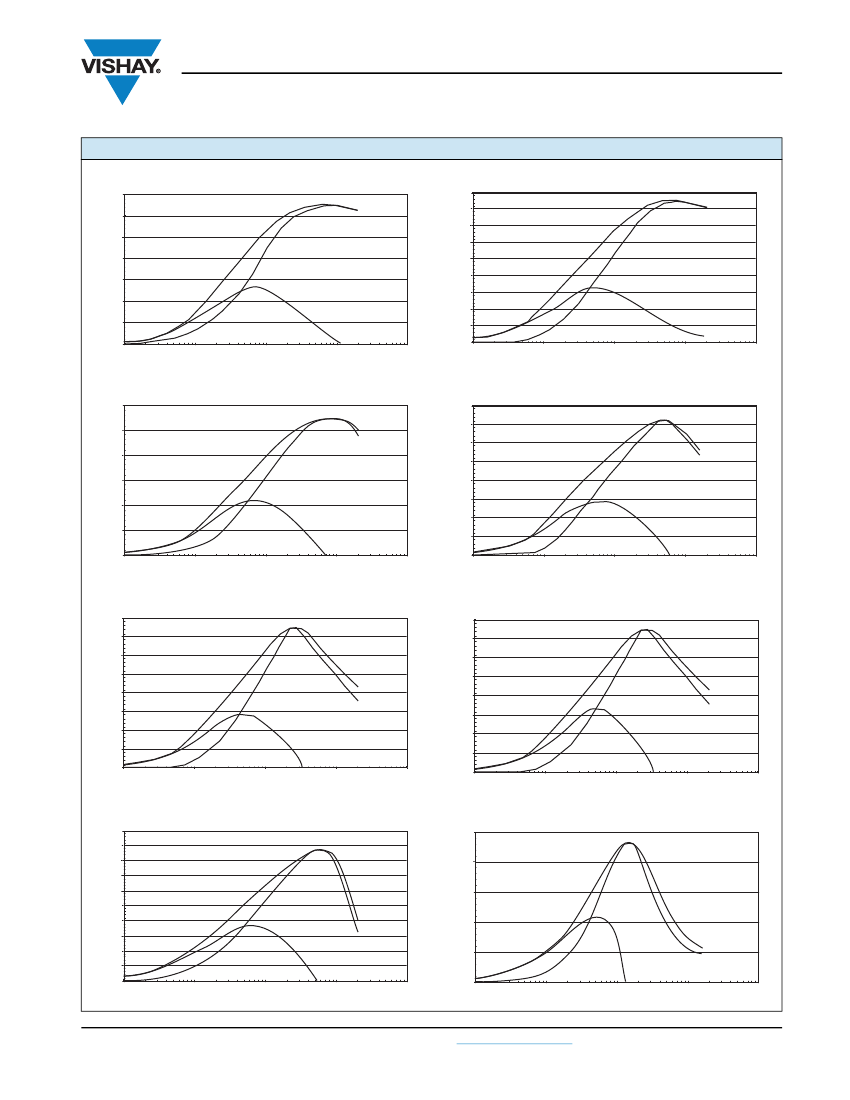

TYPICAL CURVES
- Frequency Characteristics of R, X, and Z
ILB-1206 19
Ω
35
ILB-1206 26
Ω
40
Z
35
Z
R
30
IMPEDANCE (Ω)
25
20
15
10
5
0
1
10
100
IMPEDANCE (Ω)
30
25
20
15
10
5
X
R
X
1000
10 000
0
1
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
ILB-1206 31
Ω
45
40
Z
R
ILB-1206 50
Ω
70
Z
60
IMPEDANCE (Ω)
IMPEDANCE (Ω)
35
30
25
20
15
X
10
5
0
R
50
40
30
20
10
X
1
10
100
1000
10 000
0
1
10
100
1000
10 000
FREQUENCY (MHz)
FREQUENCY (MHz)
www.vishay.com
2
For technical questions, contact:
magnetics@vishay.com
Document Number: 34023
Revision: 04-Feb-11
