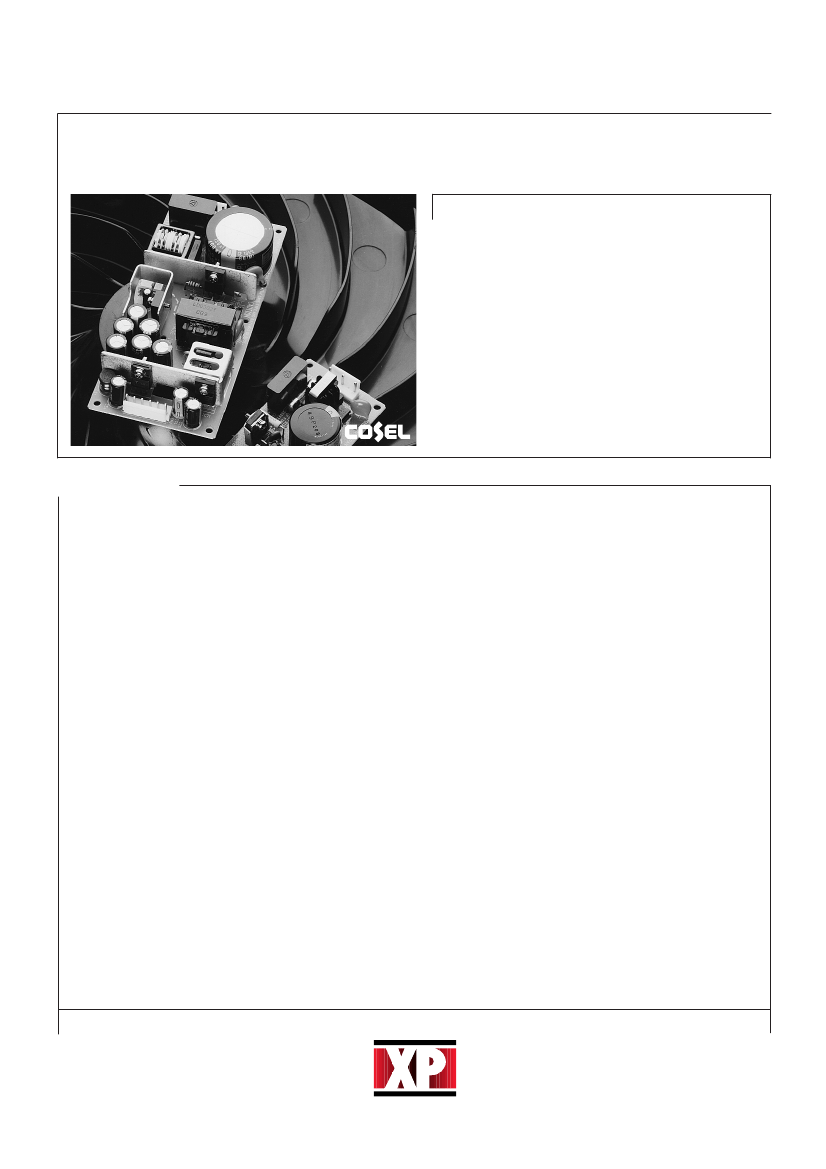

Triple Output Switchers
15-60 Watts
CPC Series
•
T
HE
XP
ERTS
I
N
P
OWER
Low Profile
•
Small, Compact PCB Format
•
Isolated Auxiliary Outputs
•
Low Noise
•
85-264 VAC Universal Input
•
Optional Covers & Looms
•
International Safety Approvals
Specification
Input
Input Voltage
Input Frequency
Inrush Current
•
•
•
85-264 VAC (110-370 VDC)
47-440 Hz
60 A max at 200 V input & full load
(cold start)
Leakage Current
Mating Connectors
Cable Looms
Covers
•
•
•
•
Isolation
•
Input to output 3000 VAC for 1 min,
500 VDC, 50 Mohm
Input to earth 2000 VAC for 1 min,
500 VDC, 50 Mohm
Output to earth 500 VAC for 1 min,
500 VDC, 50 Mohm
0.75 mA max.
Available as an option
Available as an option
Available as an option
Output
Hold-Up Time
Output Voltage
Output Voltage
Adjustment
Output Voltage
Set Point
Line Regulation
Load Regulation
Ripple & Noise
Minimum Load
Short Circuit &
Overload Protection
Overvoltage
Protection
•
•
•
•
•
•
•
•
•
•
10 ms min at 85 V input & full load
(100 ms typical at 200 V input)
See Table, 5 V adjustable,
V1 is isolated from V2 & V3
5 V ±5%
±6% max
0.4% max over specified input range
2% 5 V output,
1% auxiliary outputs
40 mV pk-pk typical
(180 mV pk-pk max)
No minimum load - See Note 3
Operates >105% of rating
auto recovery
Operates >115% of rating +5 V output
Environmental
Operating
Temperature
Storage
Temperature
Relative Humidity
Vibration
Shock
•
•
•
•
•
-10°C to +70°C, derate above +50 °C
Consult Sales Office
-20 °C to +75 °C
20-90% non-condensing
10-55 Hz at 2 G, 3 mins period for
60 mins along X, Y & Z axis
20 G for 11 ms, once on X, Y & Z axis
EMC & Safety
EMC
Safety Approvals
•
•
FCC curve B, EN55022B
Approved to UL1950, IEC950,
CSA22.2 No.234, EN60950
General
Switching Frequency •
Efficiency
•
Variable frequency 40-400 kHz
dependant on line & load
70-72% typical
•
•
www.xpplc.com
sales@xpplc.com
AC-DC Power Supplies
OUTPUT VOLTAGE & CURRENT RATINGS
Output
Power
15 W
15 W
30 W
30 W
60 W
60 W
Output 1
(1)
@ 2.0 A (3.0
@ 2.0 A (3.0
@ 3.0 A (4.5
@ 3.0 A (4.5
@ 5.0 A (7.0
@ 5.0 A (7.0
Output Ratings
Output 2
(2)
+12 V @ 0.3 A (0.6 A
+15 V @ 0.3 A (0.6 A
+12 V @ 1.2 A (2.0 A
+15 V @ 1.0 A (2.0 A
+12 V @ 2.5 A (3.5 A
+15 V @ 2.0 A (3.5 A
Output 3
(2)
@ 0.2 A (0.30
@ 0.2 A (0.30
@ 0.3 A (0.45
@ 0.3 A (0.45
@ 0.5 A (0.70
@ 0.5 A (0.70
CPC
Model
Number
CPC15UT1
CPC15UT2
CPC30UT1
CPC30UT2
CPC60UT1
CPC60UT2
+5
+5
+5
+5
+5
+5
V
V
V
V
V
V
A
A
A
A
A
A
pk)
pk)
pk)
pk)
pk)
pk)
pk)
pk)
pk)
pk)
pk)
pk)
-12
-15
-12
-15
-12
-15
V
V
V
V
V
V
A
A
A
A
A
A
pk)
pk)
pk)
pk)
pk)
pk)
•
Notes
1. Isolated from 2 & 3.
2. Linear regulated..
3. The specified output currents are available for a maximum duration of 10 s if the average current level is below rating and the total
power is below rating for the unit. Outputs 2 & 3 may be loaded to 80% of their rated current when +5 V is not loaded. ‘FG’
terminal should be used as AC input earth. It is isolated from the DC output.
4. Mating input & output connectors are available. Example: order as CPC30 CON KIT for 30 watt models.
5. Loom kit option: comprising of 2 x 300 mm length cable looms, one terminated with a mating connector for input and the other for
output terminals.
6. Cover option: wrap around chassis & safety cover supplied as a kit or fitted.
Triple Output Switchers 15-60 Watts CPC Series

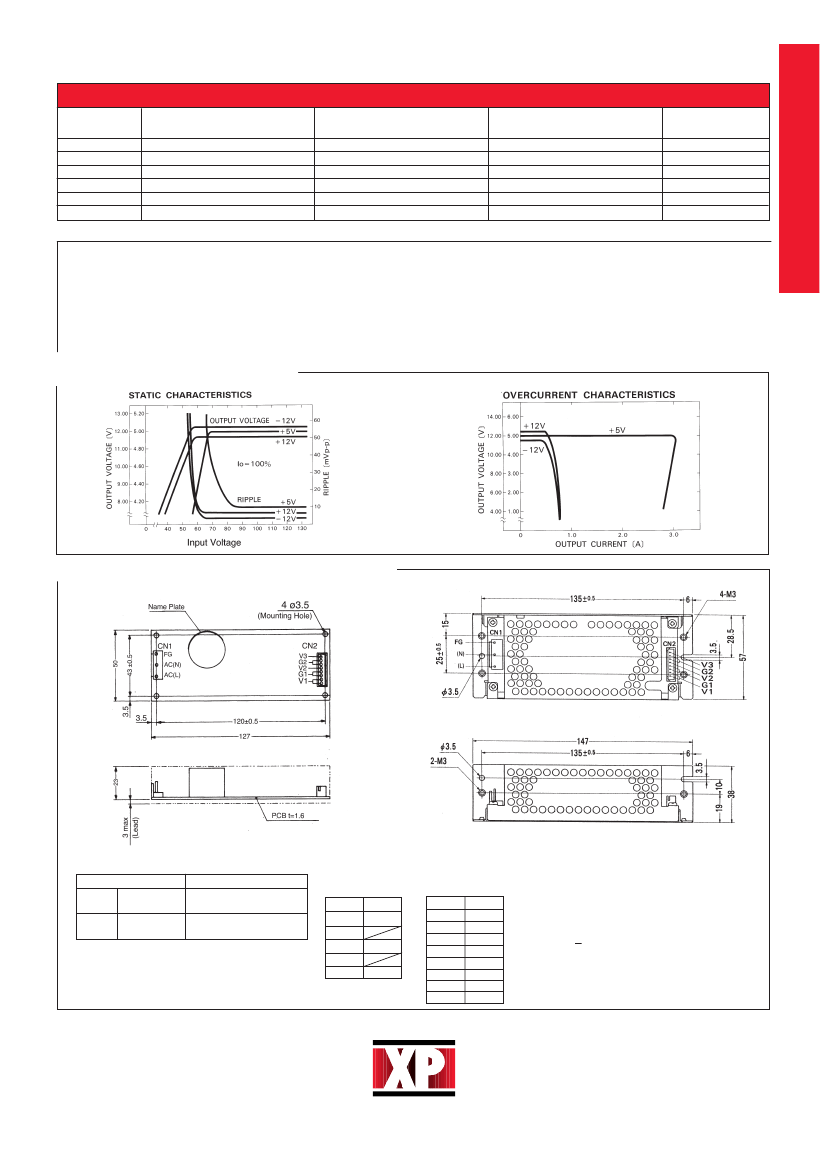

Operating Characteristics
Mechanical Details - 15 Watt Models
PCB Version
Covered Version
Fuse Rating 250 V T2 A
Supplied as cover kit (not fitted). Order as
CPC15/COVER KIT
Supplied fitted use suffix C e.g. CPC15UT1-C
Mating Connector (Terminal)
I/O Connector
CN1
CN2
B3P5-VH
B8B-XH-A
VHR-5N (SVH-21T-1.1
or SVH-21-P1.1)
XHP-8 (BXH-001T-P0.6
or SXH-001T-P0.6)
Mfr: JST
PIN ASSIGNMENT
CN1
CN2
Pin No.
1
2
3
4
5
Input
AC(L)
AC(N)
FG
Pin No.
1
2
3
4
5
6
7
8
Input
V1
V1
G1
G1
V2
G2
G2
V3
NOTES:
2 A per pin maximum for CN2
Weight: 150g or less
Tolerance: +1
Dimensions in mm
PWB Material: Glass composite (CEM3)
www.xpplc.com
sales@xpplc.com

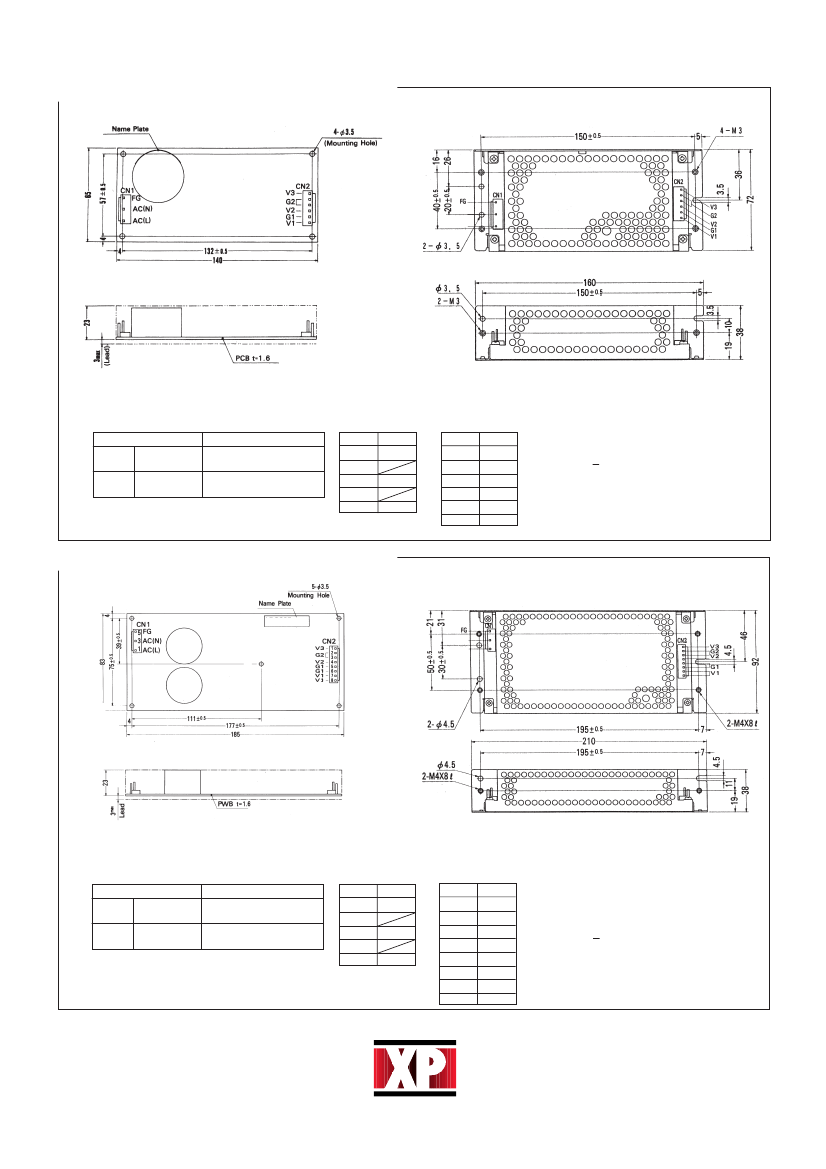

Mechanical Details - 30 Watt Models
PCB Version
Covered Version
Fuse Rating 250 V T3 A
Supplied as cover kit (not fitted). Order as
CPC30/COVER KIT
Supplied fitted use suffix C e.g. CPC30UT1-C
PIN ASSIGNMENT
CN1
CN2
I/O Connector
CN1
CN2
B3P5-VH
B6P-VH
Mating Connector (Terminal)
Pin No.
1
2
3
4
5
Input
AC(L)
AC(N)
FG
Pin No.
1
2
3
4
5
6
Input
V3
G2
G2
V2
G1
V1
VHR-5N (SVH-21T-1.1
or SVH-21-P1.1)
VHR-6N (SVH-21T-1.1
or SVH-21T-P1.1))
Mfr: JST
NOTES:
2 A per pin maximum for CN2
Weight: 220g or less
Tolerance: +1
Dimensions in mm
PWB Material: Glass composite (CEM3)
Mechanical Details - 60 Watt Models
PCB Version
Covered Version
Fuse Rating 250 V T3 A
Supplied as cover kit (not fitted). Order as
CPC60/COVER KIT
Supplied fitted use suffix C e.g. CPC60UT1-C
PIN ASSIGNMENT
CN1
CN2
I/O Connector
CN1
CN2
B3P5-VH
B8P-VH
Mating Connector (Terminal)
Pin No.
1
2
3
4
5
Input
AC(L)
AC(N)
FG
Pin No.
1
2
3
4
5
6
7
8
Input
V3
G2
G2
V2
G1
G1
V1
V1
VHR-5N (SVH-21T-1.1
or SVH-21-T-P1.1)
VHR-8N(SVH-21T-1.1
or SVH-21T-P1.1)
Mfr: JST
NOTES:
5 A per pin maximum for CN2
Weight: 300g or less
Tolerance: +1
Dimensions in mm
PWB Material: Glass composite (CEM3)
www.xpplc.com
sales@xpplc.com
AC-DC Power Supplies

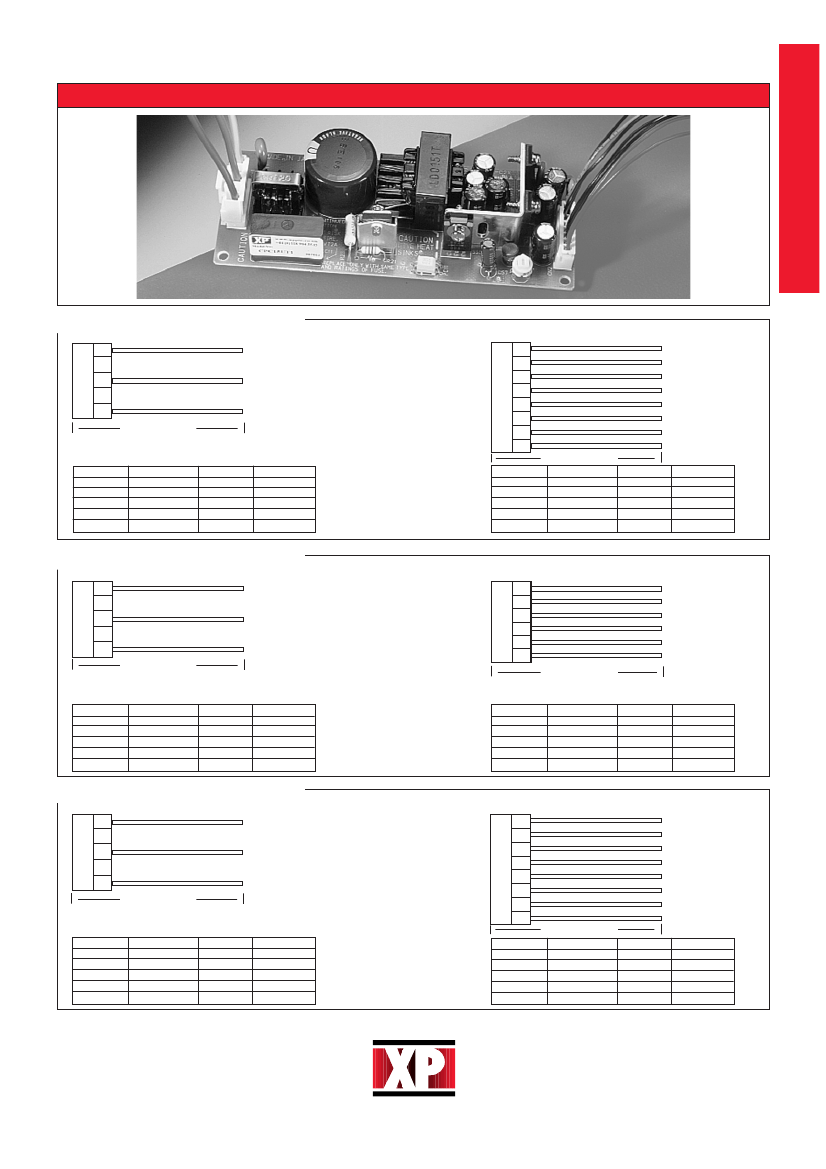

LOOM KITS
CPC
Triple Output Switchers 15-60 Watts CPC Series
Loom Kit - 15 Watt Models
Input Connector
1
2
3
4
5
Output Connector
1
2
3
4
5
6
7
8
11.81” (300 mm)
M
Pin No.
1
2
3
4
5
Wire Gauge
0.5 mm
-
0.5 mm
-
0.5 mm
Colour
Brown
-
Blue
-
Grn/Yel
Input
L
-
N
-
E
Order as CPC 15 Loom KT
Pin No.
1&2
3&4
5
6&7
8
Colour
Red
Black
Yellow
Black
Grey
M
Loom Kit - 30 Watt Models
Input Connector
1
2
3
4
5
M
Pin No.
1
2
3
4
5
Wire Gauge
0.5 mm
-
0.5 mm
-
0.5 mm
Colour
Brown
-
Blue
-
Grn/Yel
Input
L
-
N
-
E
Order as CPC 30 Loom KT
Pin No.
1
2&3
4
5
6
Wire Gauge
0.5 mm
0.5 mm
0.5 mm
0.5 mm
0.5 mm
Colour
Grey
Black
Yellow
Black
Red
M
Loom Kit - 60 Watt Models
Input Connector
1
2
3
4
5
M
Pin No.
1
2
3
4
5
Wire Gauge
0.5 mm
-
0.5 mm
-
0.5 mm
Colour
Brown
-
Blue
-
Grn/Yel
Input
L
-
N
-
E
Order as CPC 60 Loom KT
Pin No.
1&2
2&3
4
5&6
7&8
Wire Gauge
0.5 mm
0.5 mm
0.5 mm
0.5 mm
0.5 mm
Colour
Grey
Black
Yellow
Black
Red
M
M
M
M
11.81” (300 mm)
Wire Gauge
22 AWG
22 AWG
22 AWG
22 AWG
22 AWG
M
Output
V1
G1
V2
G2
V3
Output Connector
1
2
3
4
5
6
11.81” (300 mm)
11.81” (300 mm)
M
Output
V3
G2
V2
G1
V1
Output Connector
1
2
3
4
5
6
7
8
11.81” (300 mm)
11.81” (300mm)
M
Output
V3
G2
V2
G1
V1
www.xpplc.com
sales@xpplc.com
Rev 2.0
