Preview

5189-25TB: DescriptionD Type Connector, 25 Contact(s), Male, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size210KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

5189-25TB Overview

D Type Connector, 25 Contact(s), Male, Solder Terminal, Locking, Receptacle

5189-25TB Parametric

Parameter Name	Attribute value
Objectid	306937637
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.57 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
Rated current (signal)	3 A
Guideline	UL
Shell surface	TIN
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

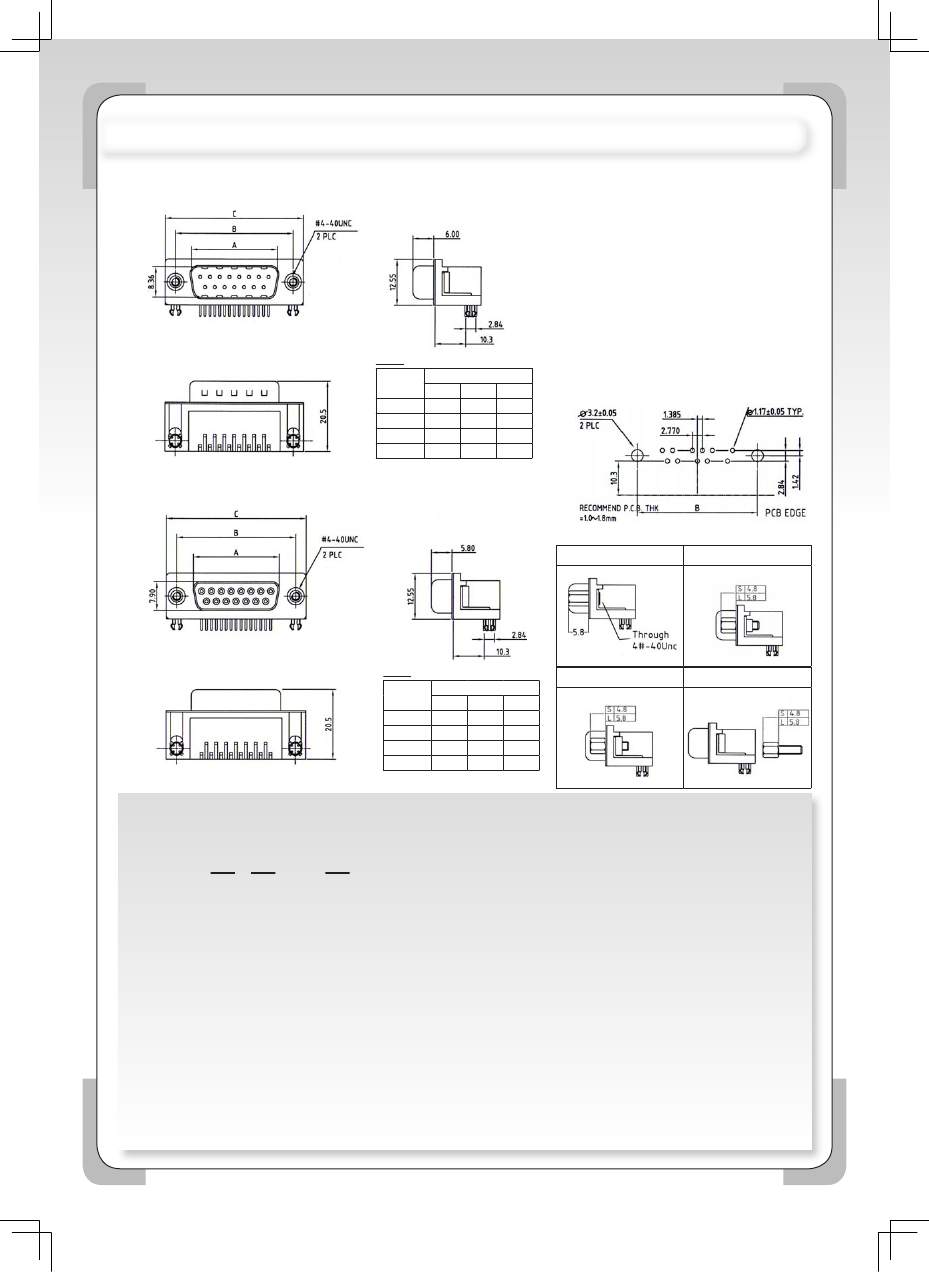

D-SUB. CONNECTOR RIGHT ANGLE WITH STAMPED CONTACTS

WITH 4 PRONGED BOARDLOCKS (CONTACT EXTENSION: 9.4MM)

Current Rating:

3.0 Amperes

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

SPECIFICATIONS

MATERIALS

5189

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

16.92 24.99 30.81

25.25 33.32 39.14

38.96 47.04 53.04

55.42 63.50 69.32

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Recommended P.C.Board Layout

N

(BLANK)

5190

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

16.33 24.99 30.81

24.66 33.32 39.14

38.38 47.04 53.04

54.84 63.50 69.32

NJ

NH

ORDERING INFORMATION:

P/N 5 1 x x - x x T B / x x

1

2

3

1. CONNECTOR TYPE:

"89" MALE

"90" FEMALE

2. NO. OF CONTACTS:

09, 15, 25, 37

3. MOUNTING OPTION:

" " LOCKED SCREWS (4.8MM)

"N" WITHOUT SCREWS (5.8MM)

"NH" LOOSE SCREWS (4.8MM)

"NJ" ASSEMBLED SCREWS (4.8MM)

C0062
