DM74LS05 Hex Inverters with Open-Collector Outputs
August 1986
Revised March 2000
DM74LS05
Hex Inverters with Open-Collector Outputs
General Description
This device contains six independent gates each of which
performs the logic INVERT function. The open-collector
outputs require external pull-up resistors for proper logical
operation.
Pull-Up Resistor Equations
Where:
N
1
(I
OH
)
=
total maximum output high current
for all outputs tied to pull-up resistor
N
2
(I
IH
)
=
total maximum input high current for
all inputs tied to pull-up resistor
N
3
(I
IL
)
=
total maximum input low current for
all inputs tied to pull-up resistor
Ordering Code:
Order Number
DM74LS05M
DM74LS05SJ
DM74LS05N
Package Number
M14A
M14D
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y
=
A
Input
A
L
H
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
Y
H
L
© 2000 Fairchild Semiconductor Corporation
DS006346
www.fairchildsemi.com
DM74LS05
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Output Voltage
Operating Free Air Temperature Range
Storage Temperature Range
7V
7V
7V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
V
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Voltage
LOW Level Output Current
Free Air Operating Temperature
0
Parameter
Min
4.75
2
0.8
5.5
8
70
Nom
5
Max
5.25
Units
V
V
V
V
mA
°C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol
V
I
I
CEX
V
OL
Parameter
Input Clamp Voltage
HIGH Level
Output Current
LOW Level
Output Voltage
I
I
I
IH
I
IL
I
CCH
I
CCL
Input Current @ Max Input Voltage
HIGH Level Input Current
LOW Level Input Current
Supply Current with Outputs HIGH
Supply Current with Outputs LOW
Conditions
V
CC
=
Min, I
I
= −18
mA
V
CC
=
Min, V
O
=
5.5V
V
IL
=
Max
V
CC
=
Min, I
OL
=
Max
V
IH
=
Min
I
OL
=
4 mA, V
CC
=
Min
V
CC
=
Max, V
I
=
7V
V
CC
=
Max, V
I
=
2.7V
V
CC
=
Max, V
I
=
0.4V
V
CC
=
Max
V
CC
=
Max
1.2
3.6
0.35
0.25
Min
Typ
(Note 2)
Max
−1.5
100
0.5
0.4
0.1
20
−0.36
2.4
6.6
mA
µA
mA
mA
mA
Units
V
µA
V
Note 2:
All typicals are at V
CC
=
5V, T
A
=
25°C.
Switching Characteristics
at V
CC
=
5V and T
A
=
25°C
R
L
=
2 kΩ
Symbol
Parameter
Min
t
PLH
t
PHL
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
6
3
C
L
=
15 pF
Max
20
15
Min
20
4
C
L
=
50 pF
Max
45
20
ns
ns
Units
www.fairchildsemi.com
2
DM74LS05
Physical Dimensions
inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
3
www.fairchildsemi.com
DM74LS05
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M14D
www.fairchildsemi.com
4
DM74LS05 Hex Inverters with Open-Collector Outputs
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

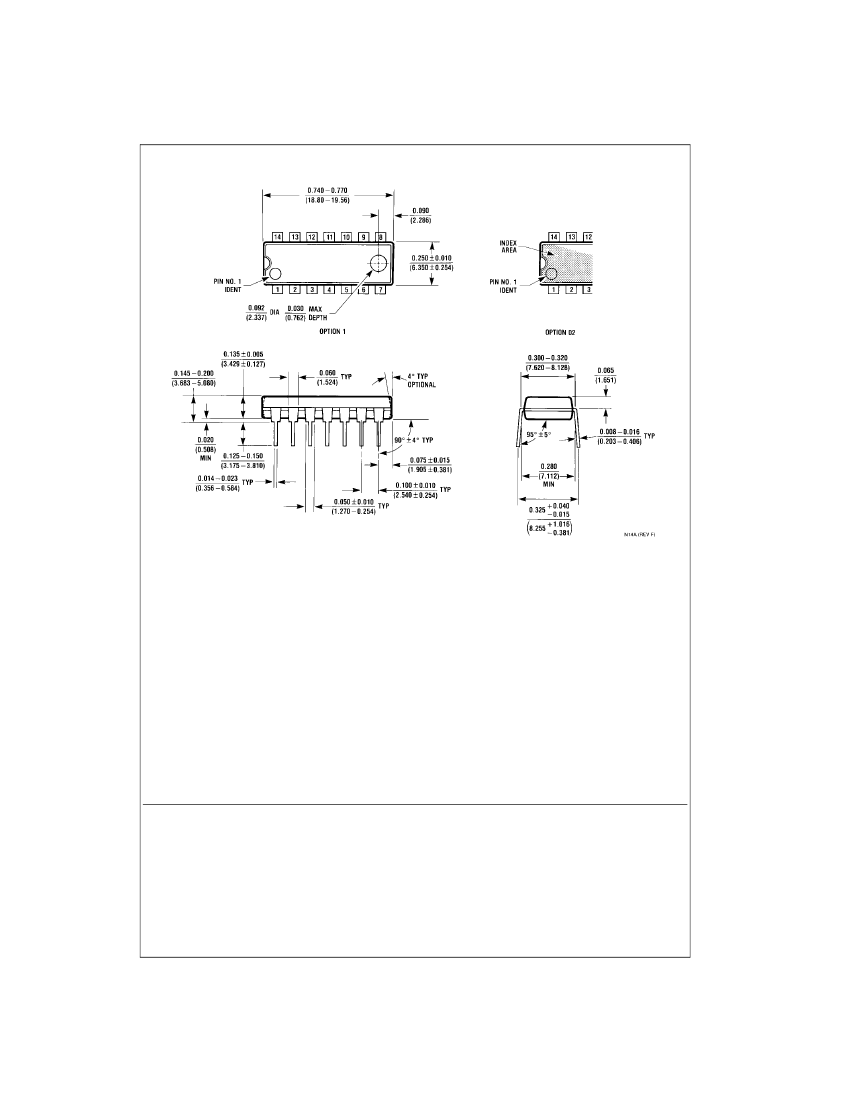

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
5
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
www.fairchildsemi.com
