CXP832P40A
CMOS 8-bit Single Chip Microcomputer
Description
The CXP832P40A is a CMOS 8-bit single chip
microcomputer integrating on a single chip an A/D
converter, serial interface, timer/counter, time base
timer, 32kHz timer/counter, capture timer counter,
LCD controller/driver, remote control reception
circuit and 14-bit PWM output besides the basic
configurations of 8-bit CPU, PROM, RAM, and I/O port.
Also the CXP832P40A provides sleep/stop function
which enables to lower power consumption.
The CXP832P40A is the PROM-incorporated
version of the CXP83240A with built-in mask ROM.
This provides the additional feature of being able to
write directry into the program. Thus, it is most
suitable for evaluation use during system
development and for small-quantity production.
Features
•
Wide-range instruction system (213 instructions) to cover various types of data.
— 16-bit arithmetic/multiplication and division/boolean bit operation instructions
•
Minimum instruction cycle
400ns at 10MHz operation
8µs at 500kHz operation
122µs at 32kHz operation
•
Incorporated PROM capacity 40K bytes
•
Incorporated RAM capacity
1120 bytes (includes LCD display data area)
•
Peripheral functions
— A/D converter
8-bit, 8-channel, successive approximation method
(Conversion time of 32µs/10MHz)
— Serial interface
8-bit, 8-stage FIFO incorporated
(Auto transfer for 1 to 8 bytes), 1 channel
8-bit clock synchronized type, 1 channel
— Timer
8-bit timer, 8-bit timer/counter, 19-bit time base timer,
16-bit capture timer/counter, 32kHz timer/counter
— LCD controller/driver
Maximum 160 segment display possible (during 1/4 duty)
4 common output, 40 segment output
Display method static, 1/2, 1/3, 1/4 duty
Bias method 1/2, 1/3 bias
— Remote control reception circuit
8-bit pulse measurement counter with on-chip, 6-stage FIFO
— PWM output circuit
14 bits, 1 channel
•
Interruption
15 factors, 15 vectors, multi-interruption possible
SLEEP/STOP
•
Standby mode
•
Package
100-pin plastic QFP/LQFP

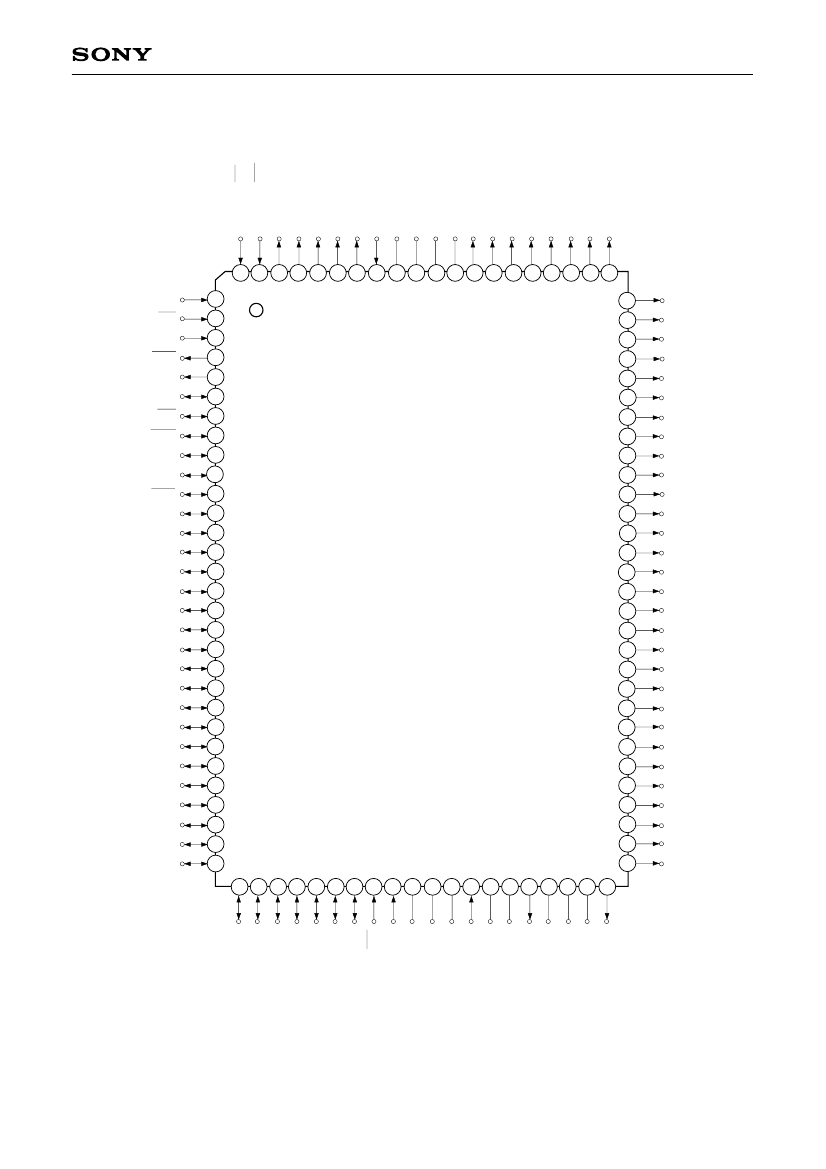

100 pin QFP (Plastic)

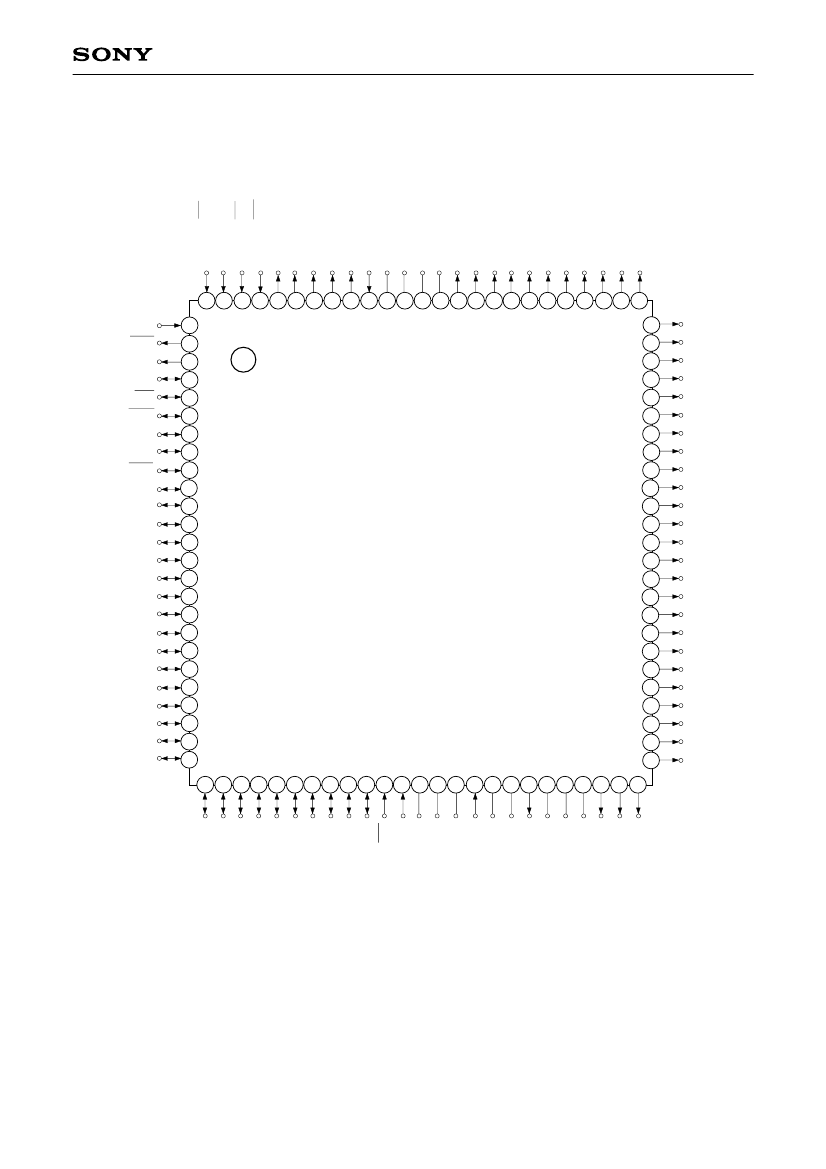

100 pin LQFP (Plastic)
tructure
Silicon gate CMOS IC
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
–1–
E94X39-PP
CXP832P40A
Pin Description
Symbol
I/O
(Port A)
8-bit I/O port. I/O can
be set in a single bit
unit.
Incorporation of pull-up
resistor can be set
through the software in
a unit of 4 bits. (8 pins)
(Port B)
8-bit I/O port. I/O can
be set in a single bit
unit.
Incorporation of pull-up
resistor can be set
through the software in
a unit of 4 bits.
(8 pins)
Functions
PA0/AN0
to
PA7/AN7
I/O/Analog input
Analog inputs to A/D converter.
(8 pins)
PB0/CINT
PB1/CS0
PB2/SCK0
PB3/SI0
PB4/SO0
PB5/SCK1
PB6/SI1
PB7/SO1
I/O/Input
I/O/Input
I/O/I/O
I/O/Input
I/O/Output
I/O/I/O
I/O/input
I/O/Output
External capture input to 16-bit timer/counter.
Chip select input for serial interface (CH0).
Serial clock I/O (CH0).
Serial data input (CH0).
Serial data output (CH0).
Serial clock I/O (CH1).
Serial data input (CH1).
Serial data output (CH1).
(Port C)
8-bit I/O port. I/O can be set in a single bit unit. Capable of driving 12mA
sync current. Incorporation of pull-up resistor can be set through the
software in a unit of 4 bits.
(8 pins)
External event inputs for
timer/counter.
(2 pins)
(Port E)
7-bit port. lower 5 bits
are for inputs; upper
2 bits are for outputs.
(7 pins)
External interruption request inputs.
(4 pins)
Non-maskable interruption request
input.
Remote control reception circuit input.
14-bit PWM output.
Rectangular wave output
for 16-bit timer/counter
(duty output 50%).
Output for 32kHz
oscillation
frequency division.
PC0 to PC7
I/O
PE0/INT0/
EC0
PE1/INT1/
EC1
PE2/INT2
PE3/INT3/
NMI
PE4/RMC
PE5/PWM
PE6/TO/
ADJ
Input/Input/Input
Input/Input/Input
Input/Input
Input/Input/Input
Input/Input
Output/Output
Output/Output/
Output
PH0 to PH7
I/O
(Port H)
8-bit I/O port. I/O can be set in a single bit unit. Incorporation of pull-up
resistor can be set through the software in a unit of 4 bits.
(8 pins)
–5–
