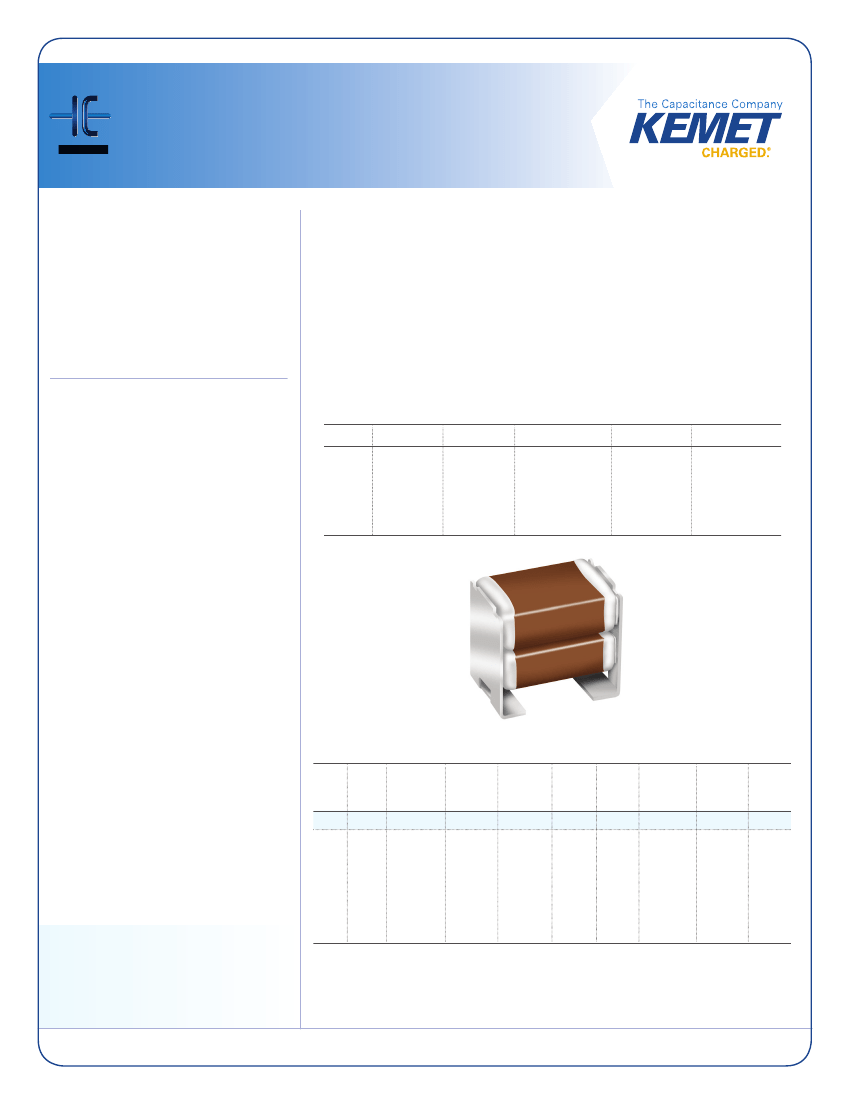

Surface Mount Multilayer
Ceramic Capacitors
PRODUCTS
KPS Series Commercial and Automotive Grade
X7R Dielectric
Programs Supported
Demanding alternative energy, industrial/lighting, automotive, military/aerospace and
telecommunications applications:
• Power supplies
• Smoothing circuits
• DC-to-DC converters
• Input/output filters
• Piezoelectric and mechanical noise reduction
• Improving flex performance in board flex application
Why Choose KEMET
KEMET applies world-class service and quality
to deliver industry-leading, high performance
capacitance solutions worldwide. With 95% of
possible dielectric solutions, KEMET offers the
world’s most complete line of surface mount
and through-hole capacitor technologies across
tantalum, ceramic, film, aluminum and paper
dielectrics. One world. One KEMET.
Features & Benefits
•
•
•
•
•
•
•
•
•
•
•
•
Higher capacitance in the same footprint
Potential board space savings
Single and double chip options available
Advanced protection against thermal and
mechanical stress
Provides up to 10 mm of board flex capability
Reduces audible, microphonic noise
Extremely low ESR and ESL
Pb-free and RoHS-compliant
Capable of Pb-free reflow profiles
Non-polar device, minimizing installation concerns
Tantalum and electrolytic alternative
Automotive Grade (AEC-Q200) available
Electrical/Physical Characteristics
Case Size
1210,
1812,
2220
Tolerances
±10%, ±20%
Dielectric
X7R
(Temperature
characteristic
= ±15%
capacitance
shift from -55°
to +125°C)
Temperature Range
-55°C to +125°C
Voltage Options
10 V, 16 V, 25 V,
50 V, 100 V, 250 V,
500 V, 630 V
Capacitance Values
0.1 µF to 47 µF
Product Checklist
• Do you require a device capable of Pb-free
reflow profiles?
• Do you require advanced protection against
thermal and mechanical stress?
• Is your circuit board subject to high levels
of board flexure during assembly, mounting
or depanelization?
• Does your circuit have integrated current
limitation?
• Does your application have a direct battery
or power source connection?
• Do you prefer a high capacitance ceramic
alternative to tantalum or aluminum
capacitor technologies?
• Do you require a device with high ripple
current capability?
Ordering Information
Ceramic
Case Specification/ Capacitance Capacitance
Size
Code (pF) Tolerance
1
Series
(L”x W”)
2220
1210
1812
2220
C
C = Standard
106
2 Sig. Digits
+ Number
of Zeros.
M
K = ±10%
M = ±20%
Rated
Voltage
(VDC)
5
8 = 10 V
4 = 16 V
3 = 25 V
5 = 50 V
1 = 100 V
A = 250 V
C = 500 V
B = 630 V
Dielectric
Failure
Rate/
Design
2
Leadframe Packaging/
Grade
Finish
2
(C-Spec)
3
C
C = 100%
Matte Sn
7186
7186 =
7” Reel
Unmarked
7289 =
13” Reel
Unmarked
C
R
R = X7R 1 = KPS Single
Chip Stack
2 = KPS Double
Chip Stack
For more information, samples
and engineering kits,
please visit us at www.kemet.com
or call 1.877.myKEMET.
SA1112
1
2
3
Double chip stacks (“2” in the 13th character position of the ordering code) are only available in M (±20%) capacitance tolerance.
Single chip stacks (“1” in the 13th character position of the ordering code) are available in K (±10%) or M (±20%) tolerances.
Additional leadframe finish options may be available. Contact KEMET for details.
Additional reeling or packaging options may be available. Contact KEMET for details.
Copyright © 2012 KEMET
