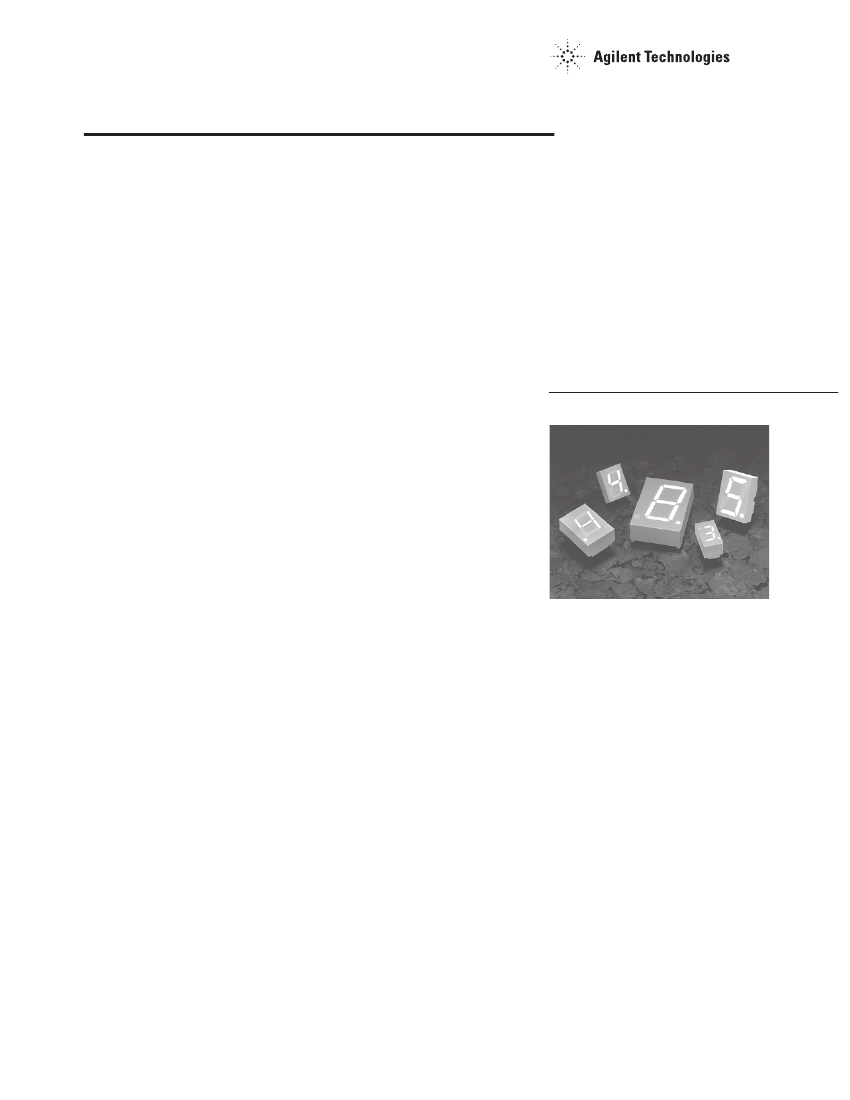

Low Current Seven Segment
Displays
Technical Data
HDSP-335x Series
HDSP-555x Series
HDSP-751x Series
HDSP-A10x Series
HDSP-A80x Series
HDSP-A90x Series
HDSP-E10x Series
HDSP-F10x Series
HDSP-G10x Series
HDSP-H10x Series
HDSP-K12x, K70x Series
HDSP-N10x Series
HDSP-N40x Series
Features
•
•
•
•
Low Power Consumption
Industry Standard Size
Industry Standard Pinout
Choice of Character Size
7.6 mm (0.30 in), 10 mm (0.40
in), 10.9 mm (0.43 in), 14.2
mm (0.56 in), 20 mm (0.80 in)
Choice of Colors
AlGaAs Red, High Efficiency
Red (HER), Yellow, Green
Excellent Appearance
Evenly Lighted Segments
±50°
Viewing Angle
Design Flexibility
Common Anode or Common
Cathode
Single and Dual Digit
Left and Right Hand Decimal
Points
±1.
Overflow Character
Categorized for Luminous
Intensity
Yellow and Green Categorized
for Color
Use of Like Categories Yields a
Uniform Display
Excellent for Long Digit
String Multiplexing
Description
These low current seven segment
displays are designed for applica-
tions requiring low power
consumption. They are tested and
selected for their excellent low
current characteristics to ensure
that the segments are matched at
low currents. Drive currents as
low as 1 mA per segment are
available.
Pin for pin equivalent displays
are also available in a standard
current or high light ambient
design. The standard current
displays are available in all colors
and are ideal for most applica-
tions. The high light ambient
displays are ideal for sunlight
ambients or long string lengths.
For additional information see
the 7.6 mm Micro Bright Seven
Segment Displays, 10 mm Seven
Segment Displays, 7.6 mm/10.9
mm Seven Segment Displays,
14.2 mm Seven Segment
Displays, 20 mm Seven Segment
Displays, or High Light Ambient
Seven Segment Displays data
sheets.
•
•
•
•
•
2
Devices
AlGaAs
HDSP-
A101
A103
A107
A108
F101
F103
F107
F108
G101
G103
E100
E101
E103
E106
H101
H103
H107
H108
K121
K123
N100
N101
N103
N105
N106
HER
HDSP-
7511
7513
7517
7518
Yellow
HDSP-
A801
A803
A807
A808
Green
HDSP-
A901
A903
A907
A908
Description
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
7.6 mm Common Anode
±1.
Overflow
7.6 mm Common Cathode
±1.
Overflow
10 mm Common Anode Right Hand Decimal
10 mm Common Cathode Right Hand Decimal
10 mm Common Anode
±1.
Overflow
10 mm Common Cathode
±1.
Overflow
10 mm Two Digit Common Anode Right Hand Decimal
10 mm Two Digit Common Cathode Right Hand Decimal
10.9 mm Common Anode Left Hand Decimal
10.9 mm Common Anode Right Hand Decimal
10.9 mm Common Cathode Right Hand Decimal
10.9 mm Universal
±1.
Overflow
[1]
14.2 mm Common Anode Right Hand Decimal
14.2 mm Common Cathode Right Hand Decimal
14.2 mm Common Anode
±1.
Overflow
14.2 mm Common Cathode
±1.
Overflow
14.2 mm Two Digit Common Anode Right Hand Decimal
14.2 mm Two Digit Common Cathode Right Hand Decimal
20 mm Common Anode Left Hand Decimal
20 mm Common Anode Right Hand Decimal
20 mm Common Cathode Right Hand Decimal
20 mm Common Cathode Left Hand Decimal
20 mm Universal
±1.
Overflow
[1]

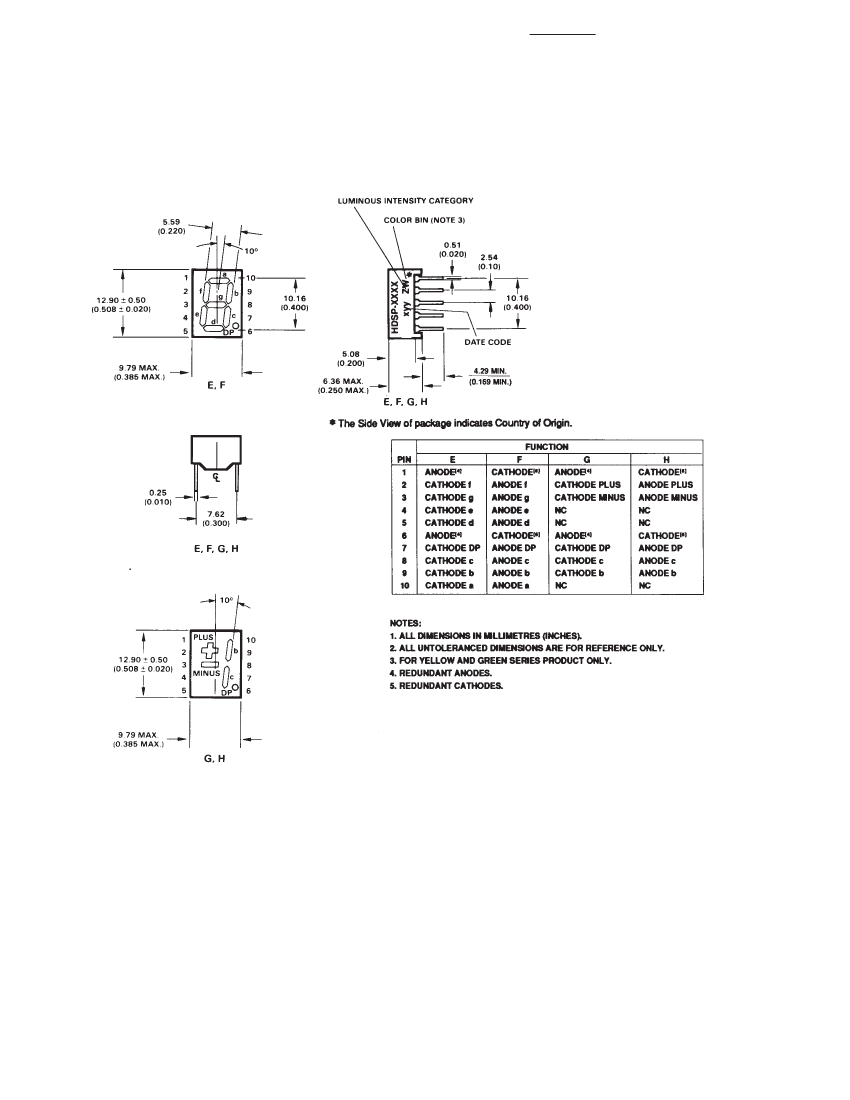

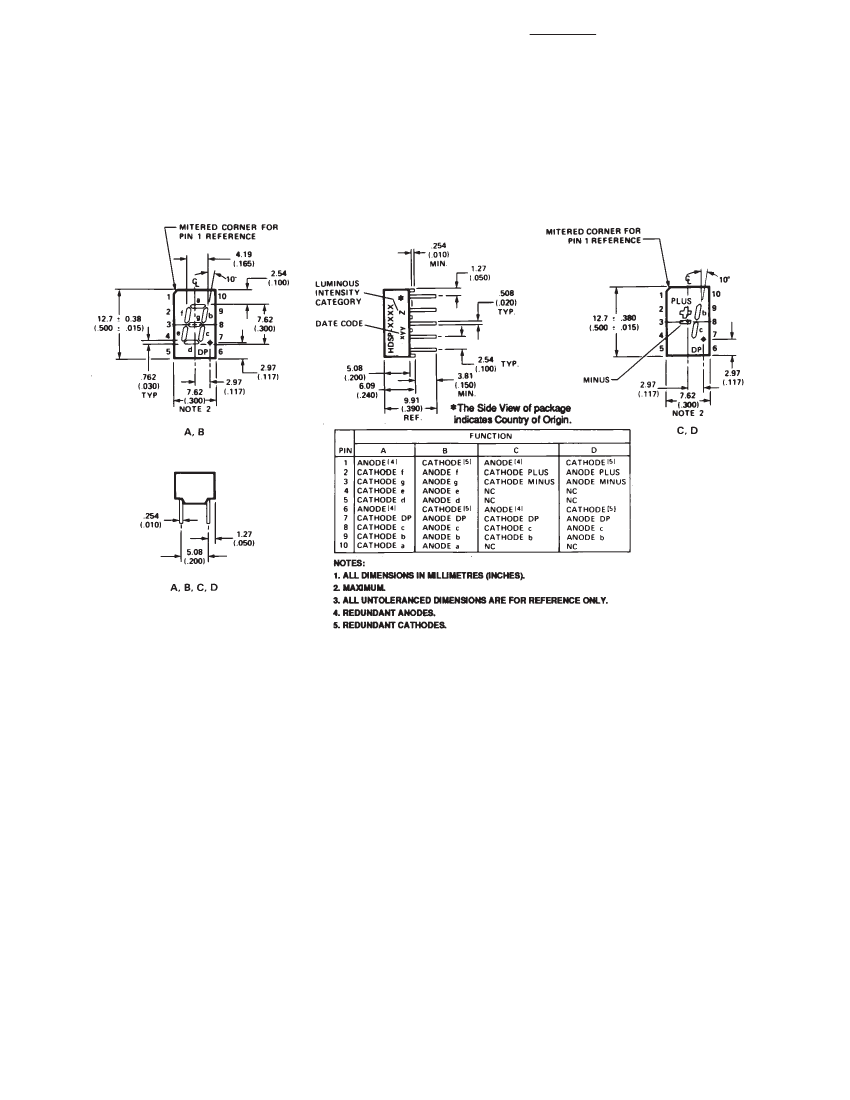

Package
Drawing
A
B
C
D
E
F
G
H
X
Y
I
J
K
L
M
N
O
P
R
S
Q
T
U
V
W
3350
3351
3353
3356
5551
5553
5557
5558
K701
K703
N401
N403
N406
Note:
1. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagrams L or W.
3
Part Numbering System
5082 - x xx x - x x x xx
HDSP - x xx x - x x x xx
Mechanical Options
[1]
00: No mechanical option
Color Bin Options
[1,2]
0: No color bin limitation
Maximum Intensity Bin
[1,2]
0: No maximum intensity bin limitation
Minimum Intensity Bin
[1,2]
0: No minimum intensity bin limitation
Device Configuration/Color
[1]
G: Green
Device Specific Configuration
[1]
Refer to respective datasheet
Package
[1]
Refer to Respective datasheet
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Agilent representative for
details.
2. Bin options refer to shippable bins for a part-number. Color and Intensity Bins are typically restricted to 1 bin per tube (excep-
tions may apply). Please refer to respective datasheet for specific bin limit information.
