KE5315CTE902K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> KE5315CTE902K

KE5315CTE902K: DescriptionGeneral Purpose Inductor, 9000uH, 10%, 1 Element, Ferrite-Core, SMD, 2112, CHIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size69KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

KE5315CTE902K Overview

General Purpose Inductor, 9000uH, 10%, 1 Element, Ferrite-Core, SMD, 2112, CHIP, ROHS COMPLIANT

KE5315CTE902K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	2112
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2112
structure	Chip
core material	FERRITE
DC Resistance	85 Ω
Nominal inductance(L)	9000 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Manufacturer's serial number	KE
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Package height	1.5 mm
Package length	5.3 mm
Package form	SMT
Package width	3.1 mm
method of packing	TR
Maximum rated current	0.003 A
self resonant frequency	1.2 MHz
series	KE5315
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	DCR IS MEASURED AT 15% TOLERANCE, INDUCTANCE IS MEASURED AT 1MA DC CURRENT
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

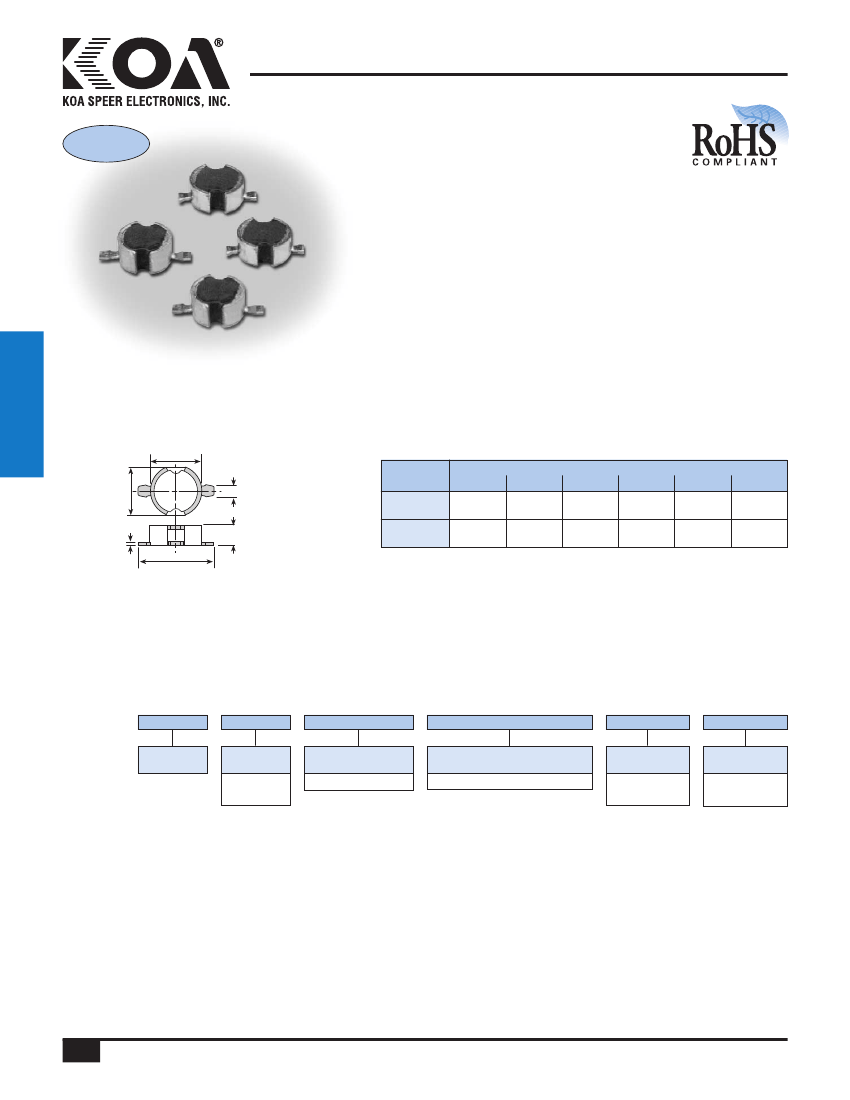

chip type voltage step-up coils

NEW

features

•

Small size and low profile. Designed to a compact

and thin shape requiring the least installation space,

suitable for small sized portable equipment.

•

High inductance. The unique wire-winding structure

achieves high inductance and low resistance and makes

this product suitable for high output performance and

high efficiency circuits.

•

Suitable for reflow soldering

•

Products with lead-free terminations meet

RoHS requirements

inductors

dimensions and construction

Size

KE4513

Dimensions

inches

(mm)

.122±.008 .122±.008 .177±.008 .051±.004 .029±.004 .008±.031

(3.1±0.2) (3.1±0.2)

(4.5±0.2)

(1.3±0.1) (0.74±0.1) (0.2±0.8)

.122±.008 .122±.008 .209±.008 .059±.004 .029±.004 .008±.031

(3.1±0.2) (3.1±0.2)

(5.3±0.2)

(1.5±0.1) (0.74±0.1) (0.2±0.8)

KE5315

ordering information

New Part #

Type

4513

Size

4513

5315

Terminal

Surface Material

C: SnCu

Packaging

TE: Taping

122

Nominal

Inductance

3 digits

(unit: µH)

Tolerance

K: ±10%

M:±20%

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

6/06/06

242

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
