Part Number:
Status:
Description:
0192210648
Active
Compression Style Ring Tongue Terminal for 4/0 AWG Wire, Stud Size 1/4", Plated,
Barrel Length 19.05mm (.750")
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Series
General
Product Family
Series
Comments
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19221
Heavy Duty
Yes
N/A
Battery Cable Lug
Ring
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed
None
Tin
Bag
160
4
160
4
1/4" (M6)
Crimp or Compression
4/0
96.3 - 117.0
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
19221Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Die Set (large) for
0192900031
the HHLS Hydralic
Crimper
Material Info
Old Part Number
BCL-4014-PL
Reference - Drawing Numbers

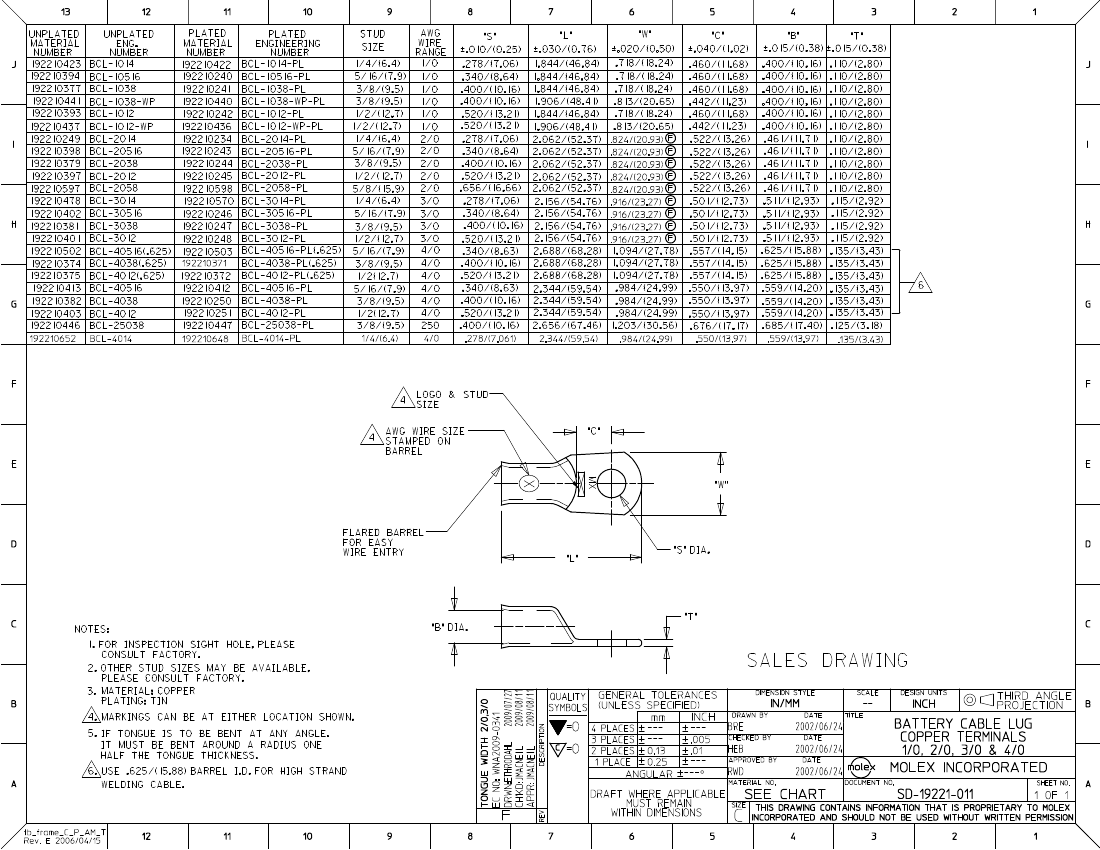

Sales Drawing
SD-19221-011
