C&K BPA Series
Side Actuated DIP Switches
Features/Benefits
•
Side actuated contacts
•
Available in thru-hole or
SMT models
I
DIP
Typical Applications
•
Address switch for industrial controls
•
Logic switching for computers and
peripherals
•
High pressure contact system
does not require tape seal
•
Function controlling for numerous
applications
•
RoHS compliant - options available
How To Order
Complete part numbers for BPA Series are shown on pages I–14 thru I–15. All switches supplied in “OFF” position.
Specifications
SWITCH FUNCTION: 2 thru 10 position available
(except 3 position).
CONTACT RATING: 100 mA max. @ 5 V DC or 25 mA max.
@ 24 V DC.
MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.
@ 5 V DC 10mA.
CONTACT RESISTANCE: 50 milliohms initial max.
INSULATION RESISTANCE: 100 V DC 100 megohms min.
DIELECTRIC WITHSTAND VOLTAGE: 300 V AC for 1 minute.
STORAGE TEMPERATURE: -40°C to 85°C.
OPERATING TEMPERATURE: -20°C to 85°C.
OPERATING FORCE: 800 grams max.
SOLDERABILITY: Flow solderable and washable
(soldering: 235°C ± 5°C for 5 sec.)
PACKAGING: Switches supplied in rigid dispensing tubes in full-
tube quantities only, this may affect order quantity. Numbers
of switches per tube varies with model. Tape and reel
packaging available for SMT options.
Materials
HOUSING: PBT (thru-hole) color: Black. PPA (SMT) color: Red
RoHS, Version (thru-hole and SMT) PPS, color black
(UL94V-0).
COVER: PBT (thru-hole) color: Red. PPA (SMT) color: Red
RoHS, Version (thru-hole and SMT) PPS, color black
(UL94V-0).
ACTUATOR: PBT (thru-hole): PA-6T (SMT) (UL94V-0).
CONTACTS: Beryllium copper with gold plate.
TERMINALS: Brass/Tin-lead plated. RoHS, Version brass, gold
plate over nickel plate.
NOTE:
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

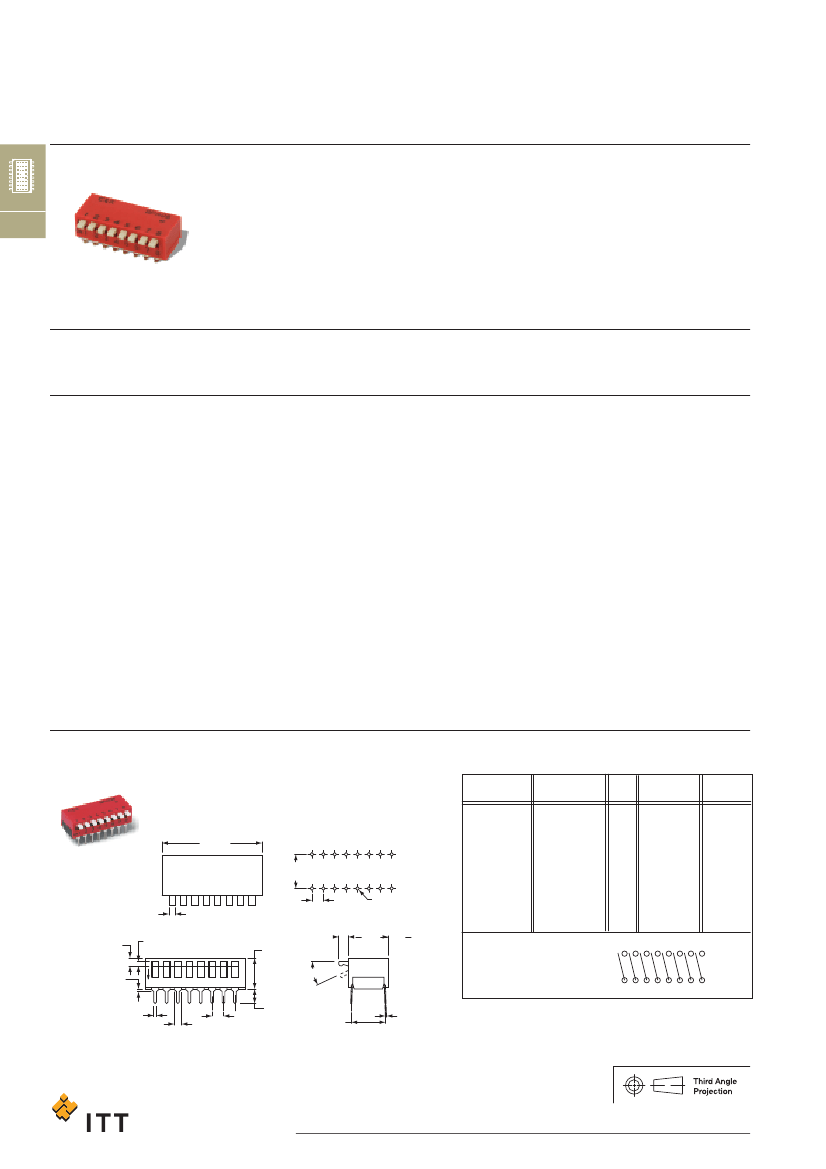

Side Actuator – Thru-hole Terminals
ROHS
PART NUMBER
TIN LEAD
PART NUMBER
NO.
POS.
2
3
4
5
6
7
8
9
10
DIM. ‘A’
.276 (7,0)
.376 (9,6)
.476 (12,1)
.575 (14,6)
.677 (17,2)
.776 (19,7)
.878 (22,3)
.976 (24,8)
1.075 (27,3)
QUANTITY
PER TUBE
60
45
35
30
25
20
20
15
15
DIM 'A'
.300
(7,6)
1
2
3
4
5
6
7
8
BPA08K
.069
(1,75)
REF
.022
(0,56)
.055
(1,40)
.039
(1,0)
ON 1
2
3
4
5
6
7
8
.100
(2,54)
.083
(2,1)
25
ø.032 TYP.
(0,8)
.346
(8,79)
BPA02B
BPA03B
BPA04B
BPA05B
BPA06B
BPA07B
BPA08B
BPA09B
BPA10B
Schematic
BPA02K
BPA04K
BPA05K
BPA06K
BPA07K
BPA08K
BPA09K
BPA10K
.266
(6,76)
MAX.
SPST
.024
(0,61)
.063
(1,6)
.128
.100 (3,25)
(2,54) TYP.
TYP.
.295/.343
(7,6/8,7)
.010 TYP.
(0,25)
NOTE:
Reverse throw available, contact ITT for P/N and quote.
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-14
www.ittcannon.com
C&K BPA Series
Side Actuated DIP Switches

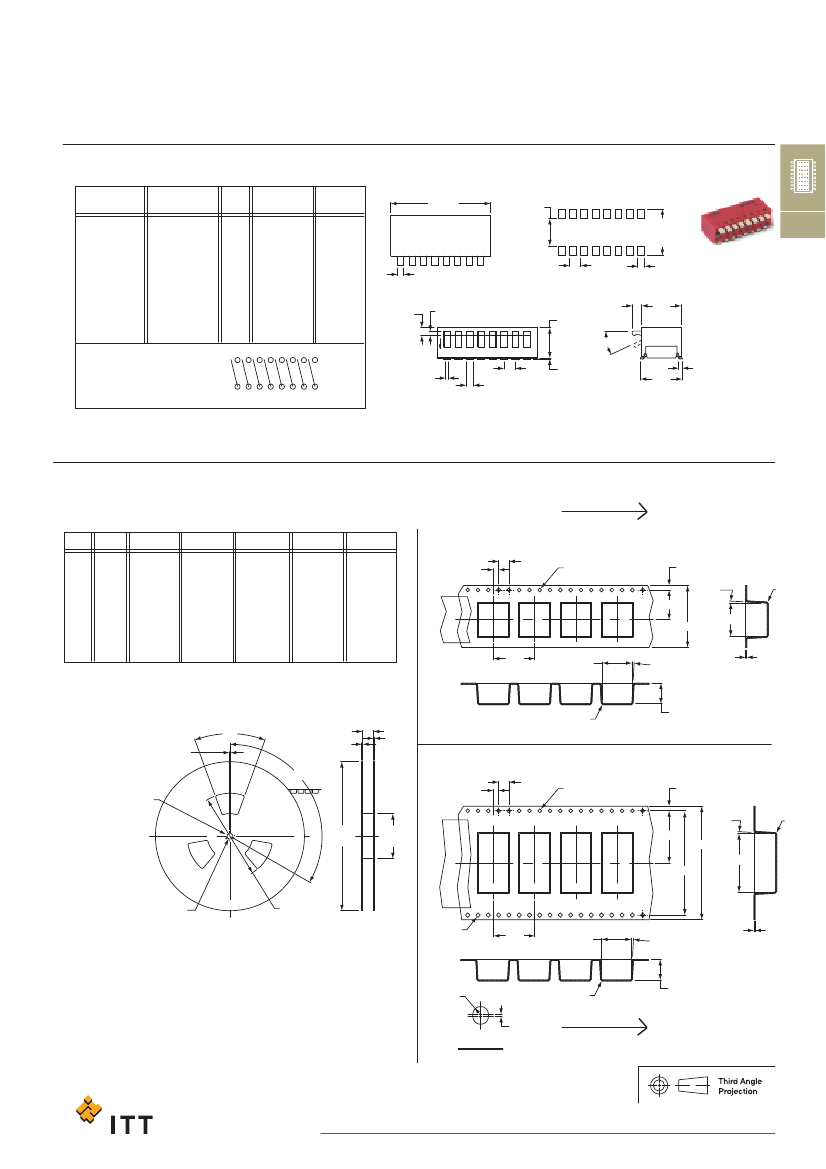

Side Actuator – Surface Mount Terminals
ROHS
PART NUMBER
TIN LEAD
PART NUMBER
NO.
POS.
2
3
4
5
6
7
8
9
10
DIM. ‘A’
.276 (7,0)
.376 (9,6)
.476 (12,1)
.575 (14,6)
.677 (17,2)
.776 (19,7)
.878 (22,3)
.976 (24,8)
1.075 (27,3)
QUANTITY
PER TUBE
60
45
35
30
25
20
20
15
15
.069
(1,75)
REF
.039
(1,0)
ON 1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
DIM 'A'
BPA02SB
BPA03SB
BPA04SB
BPA05SB
BPA06SB
BPA07SB
BPA08SB
BPA09SB
BPA10SB
Schematic
BPA02SK
BPA04SK
BPA05SK
BPA06SK
BPA07SK
BPA08SK
BPA09SK
BPA10SK
.240 MAX.
(6,1)
TYP.
.410 MIN.
(10,41)
TYP.
.060 MIN.
(1,52)
TYP.
.083
(2,1)
25
.008
(0,20)
.031
(0,79)
.346
(8,79)
I
DIP
DIP
BPA08SK
.055
(1,40)
.100 TYP.
(2,54)
.266
(6,76)
SPST
.024
(0,61)
.063
(1,6)
.100
(2,54)
TYP.
.366
(9,30)
NOTE:
Tape and reel packaging available by adding “R” to end of
project number.
Tape & Reel Packaging – Surface Mount Options Only
Direction of feed
2, 4, 5, 5, & 7 Positions
.079
(2,00)
.157
(4,00)
Ø.059
(1,50)
.069
(1,75)
DIM. 'A'
DIM. 'C'
3
MAX.
DIM 'D'
Ø.012
(0,30)
MAX.
QTY/
REEL
POLES
2
3
4
5
6
7
8
9
10
DIM. ‘A’
.453
.453
.453
.453
.559
.559
.795
.795
.795
(11,5)
(11,5)
(11,5)
(11,5)
(14,2)
(14,2)
(20,2)
(20,2)
(20,2)
DIM. ‘B’
––
––
––
––
1.118 (28,4)
1.118 (28,4)
1.590 (40,4)
1.590 (40,4)
1.590 (40,4)
DIM. ‘C’
.945 (24,0)
.945 (24,0)
.945 (24,0)
.945 (24,0)
1.260 (32,0)
1.260 (32,0)
1.732 (44,0)
1.732 (44,0)
1.732 (44,0)
DIM. ‘D’
.311 (7,9)
.409 (10,4)
.508 (12,9)
.606 (15,4)
.709 (18,0)
.807 (20,5)
.894 (22,7)
1.004 (25,5)
1.106 (28,1)
DIM. ‘E’
.961 (24,4)
.961 (24,4)
.961 (24,4)
.961 (24,4)
1.276 (32,4)
1.276 (32,4)
1.748 (44,4)
1.748 (44,4)
1.748 (44,4)
500
500
500
500
500
500
500
500
500
Note:
For tape and reel packaging, add ‘R’ to end of part number.
.630
(16,0)
.450
(11,5)
3 MAX.
.016
(0,40)
40
.079
(2,00)
120
.827
(21,0)
DIM. 'E'
.079
(2,00)
.079
(2,00)
Ø.012
(0,30)
MAX.
.315
(8,00)
8, 9 & 10 Positions
.079
(2,00)
.157
(4,00)
Ø.059
(1,50)
.069
(1,75)
3
MAX.
DIM. 'C'
DIM 'D'
DIM. 'B'
Ø.012
(0,30)
MAX.
12.99
(330,0)
3.937
(100,0)
DIM. 'A'
.512
(13,0)
7.48
(190,0)
SEE
DETAIL A
.630
(16,0)
.450
(11,5)
3 MAX.
.016
(0,40)
Ø.030
(0,75)
.008
(0,20)
Ø.012
(0,30)
MAX.
.315
(8,00)
DETAIL A
Direction of feed
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-15
www.ittcannon.com
