54LS541DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS541DM

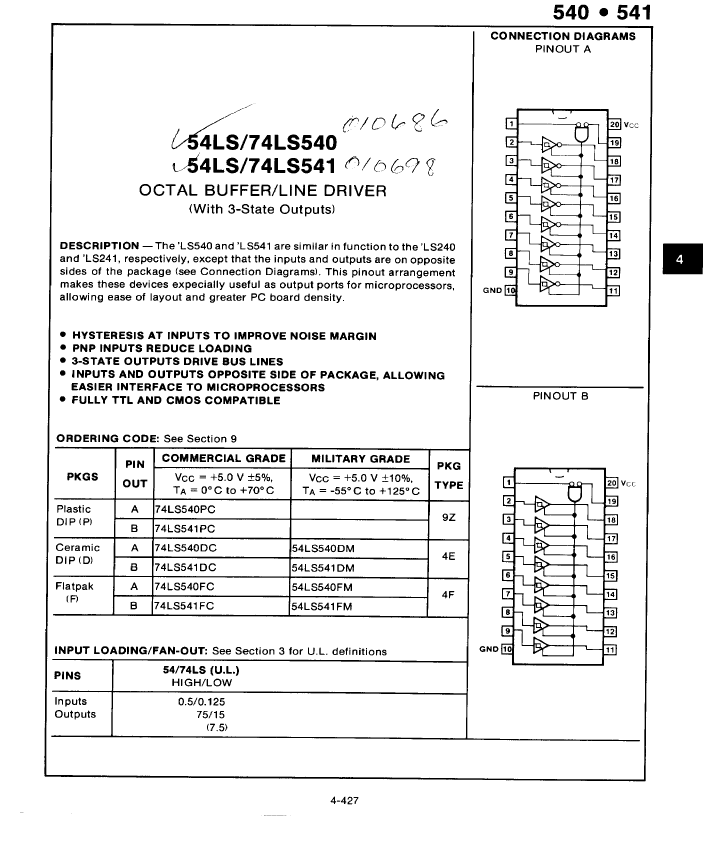

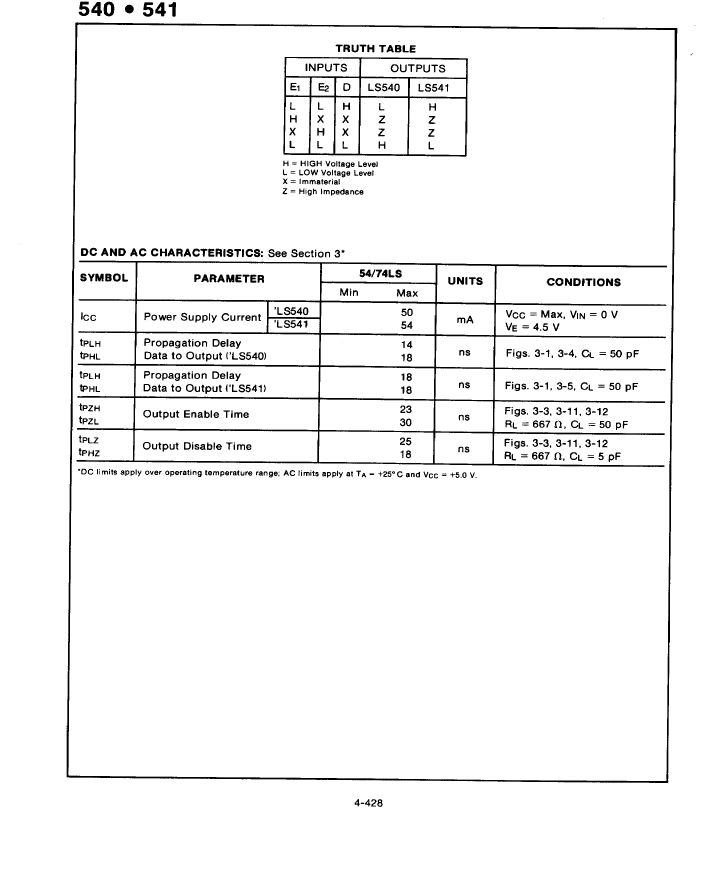

54LS541DM: DescriptionBus Driver, 1-Func, 8-Bit, True Output, TTL, CDIP20,; Categorylogic logic; File Size50KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS541DM Overview

Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDIP20,

54LS541DM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	2A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS541DM Related Products

	54LS541DM	54LS540FM	54LS541FM	54LS540DM	74LS540DC	74LS540PC	74LS541DC
Description	Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, CDFP20,	Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDFP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20,	Bus Driver, 1-Func, 8-Bit, True Output, TTL, CDIP20,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDIP-T20	R-XDFP-F20	R-XDFP-F20	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-XDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	TRUE	INVERTED	INVERTED	INVERTED	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DFP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP20,.3	FL20,.3	FL20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30
Base Number Matches	1	1	1	1	-	-	-
