51374-1039 datasheet, PDF - EEWORLD Datasheet

51374-1039: DescriptionCard Edge Connector, 10 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator,; CategoryThe connector The connector; File Size290KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

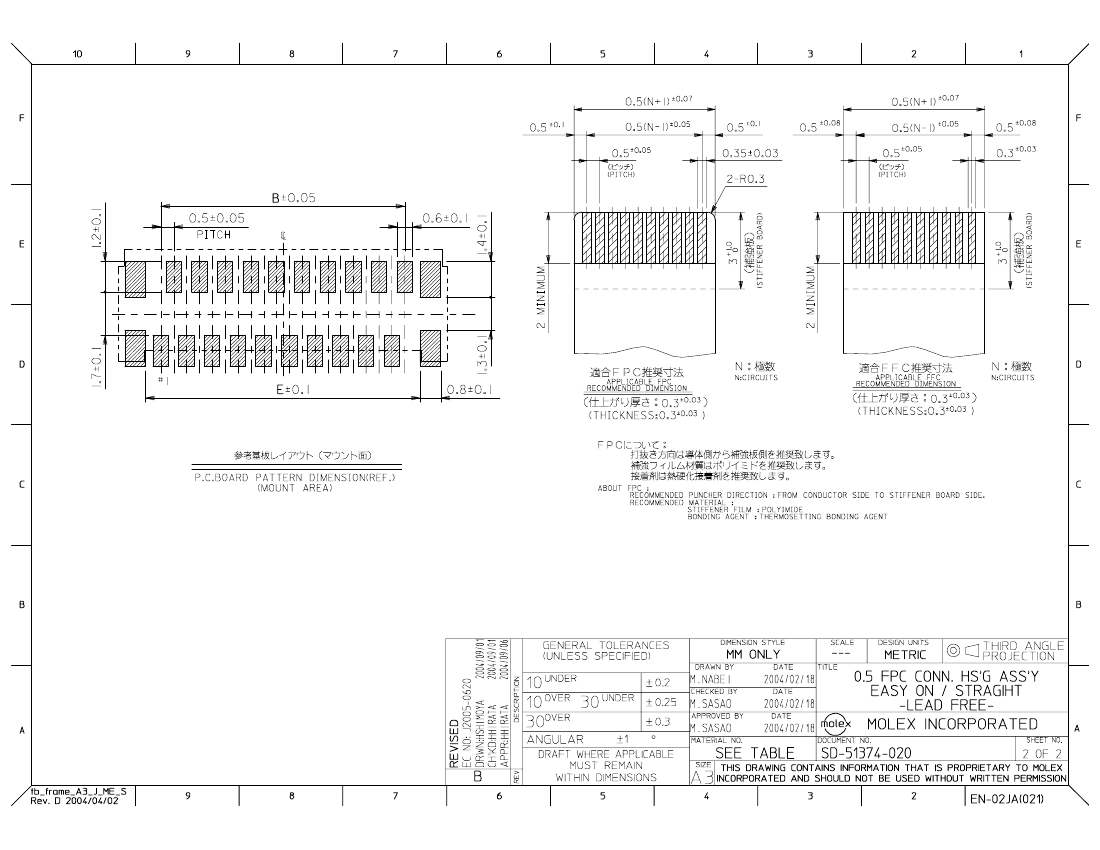

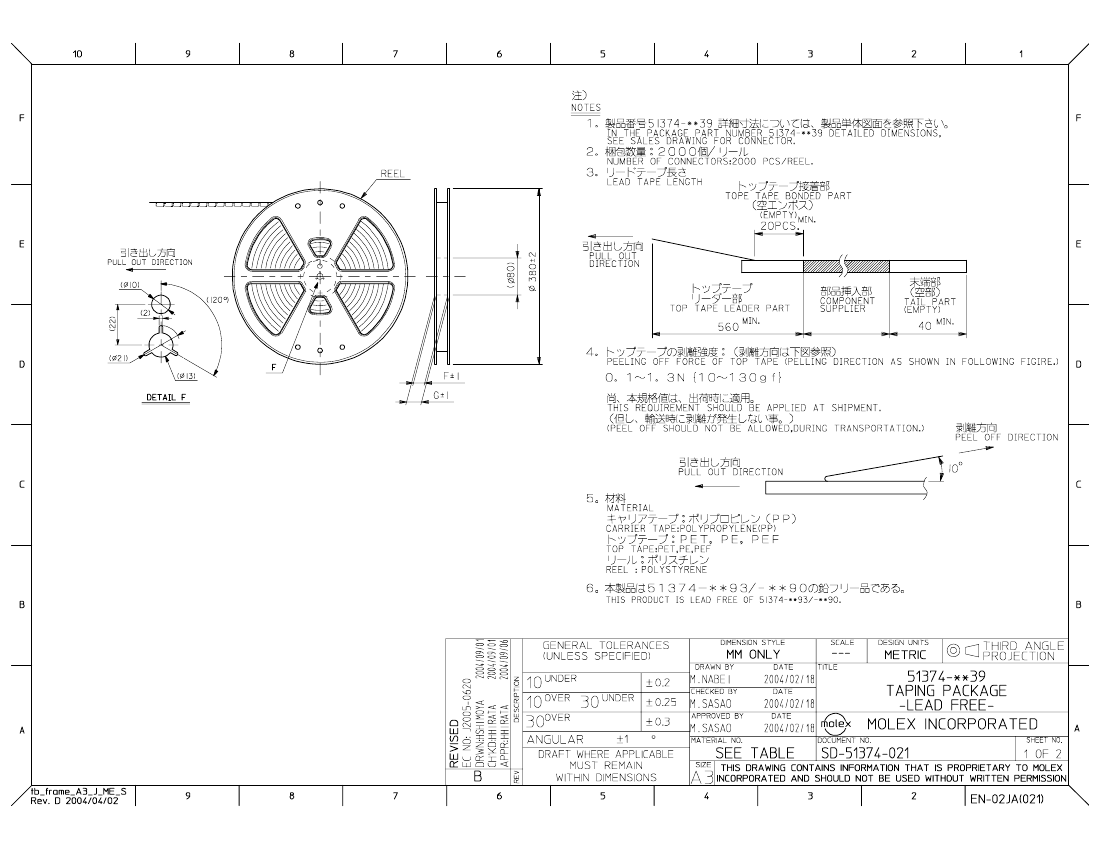

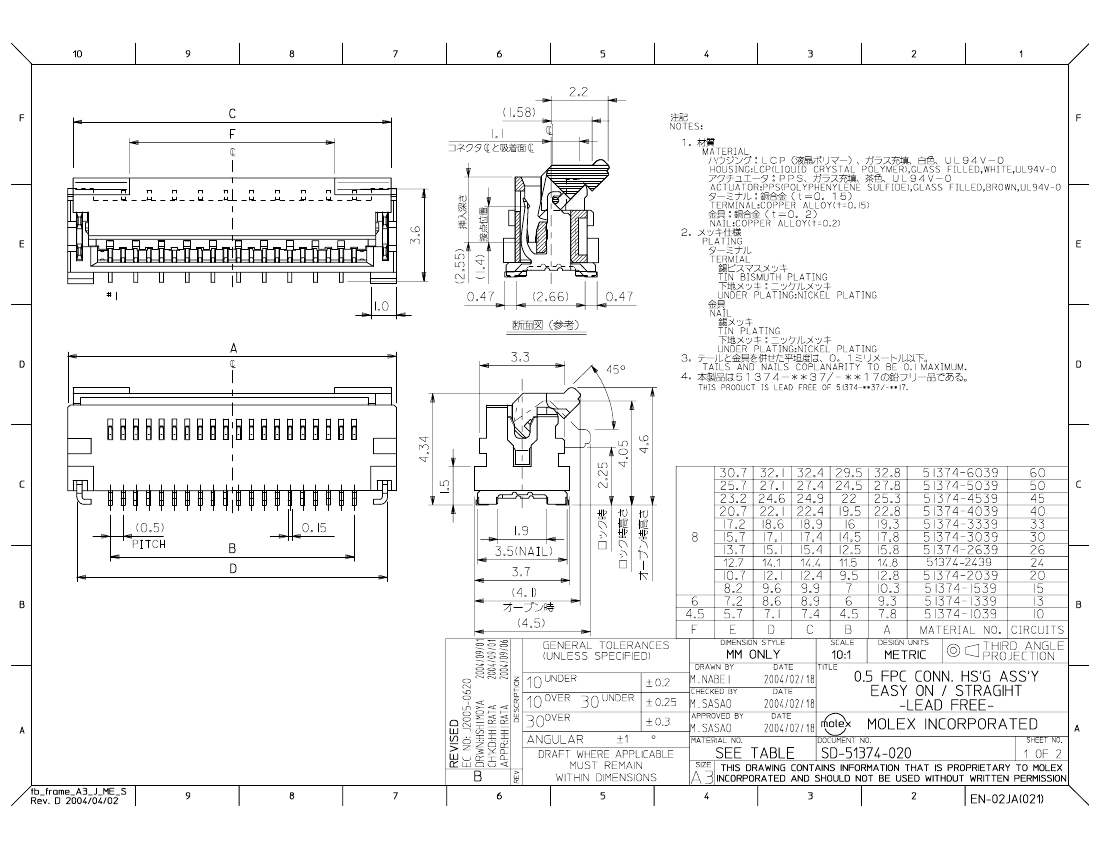

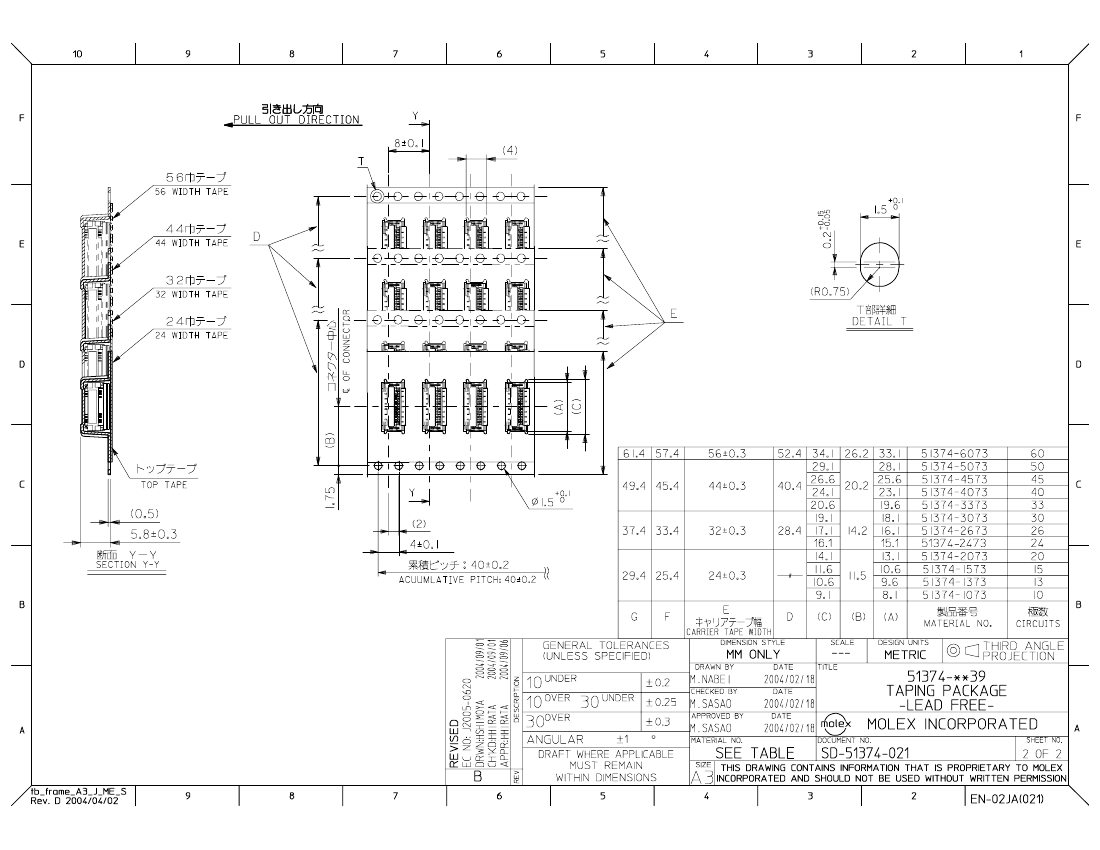

51374-1039 Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Board mount options	FITTING NAIL
body length	0.307 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
maximum insertion force	ZIF N
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
PCB contact pattern	STAGGERED
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

	51374-1039	51374-6039
Description	Card Edge Connector, 10 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator,	Card Edge Connector, 60 Contact(s), 1 Row(s), Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator,
Reach Compliance Code	unknown	unknown
Board mount options	FITTING NAIL	FITTING NAIL
body length	0.307 inch	1.291 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI	SN-BI ON NI
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR
maximum insertion force	ZIF N	ZIF N
Insulator color	WHITE	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
PCB row number	2	2
Number of rows loaded	1	1
PCB contact pattern	STAGGERED	STAGGERED
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	60
