CXP86212/86216, CXP86324/86332
CXP86440/86448/86460
CMOS 8-bit Single Chip Microcomputer
Description
The CXP86212/86216, CXP86324/86332, CXP86440/
86448/86460 are the CMOS 8-bit single chip
microcomputer integrating on a single chip an A/D
converter, serial interface, timer/counter, time-base
timer, on-screen display function, I
2
C bus interface,
PWM output, remote control reception circuit, HSYNC
counter, watchdog timer, 32kHz timer/counter besides
the basic configurations of 8-bit CPU, ROM, RAM, I/O
ports.
The CXP86212/86216, CXP86324/86332, CXP86440/
86448/86460 also provide a SLEEP function that
enables to lower the power consumption.

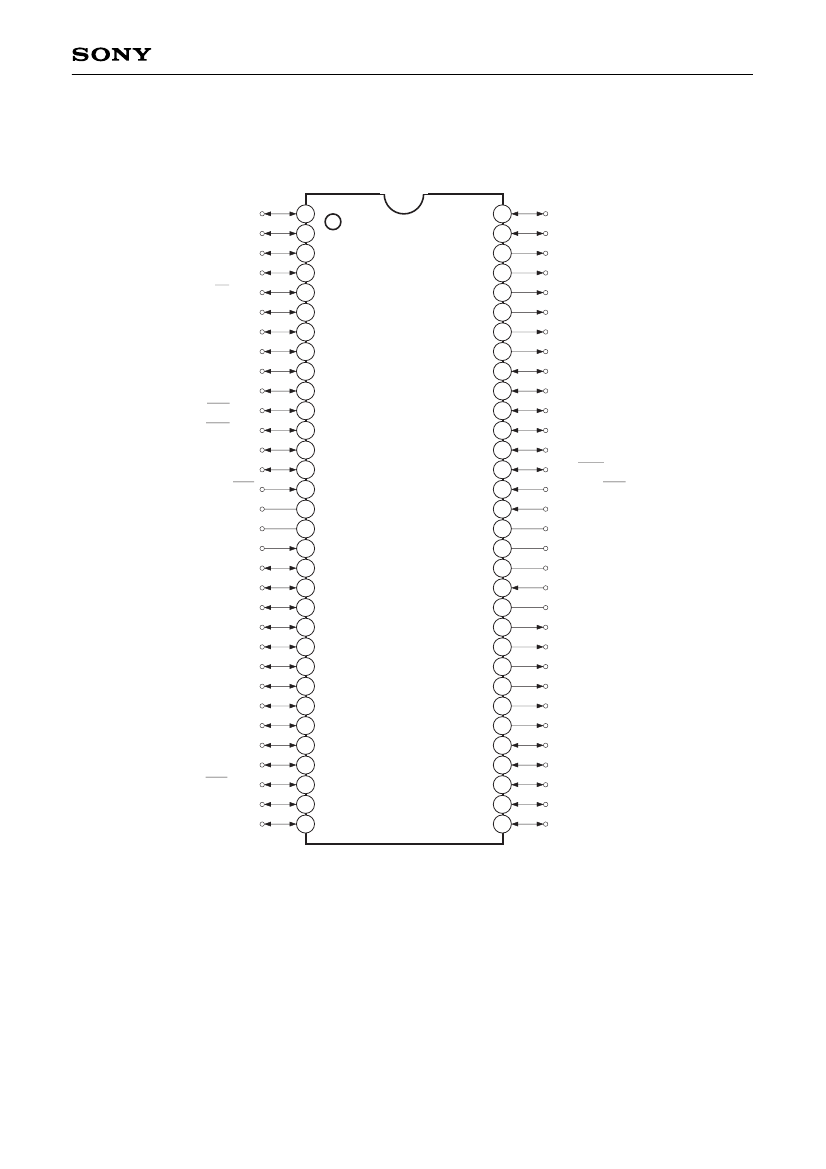

64 pin SDIP (Plastic)

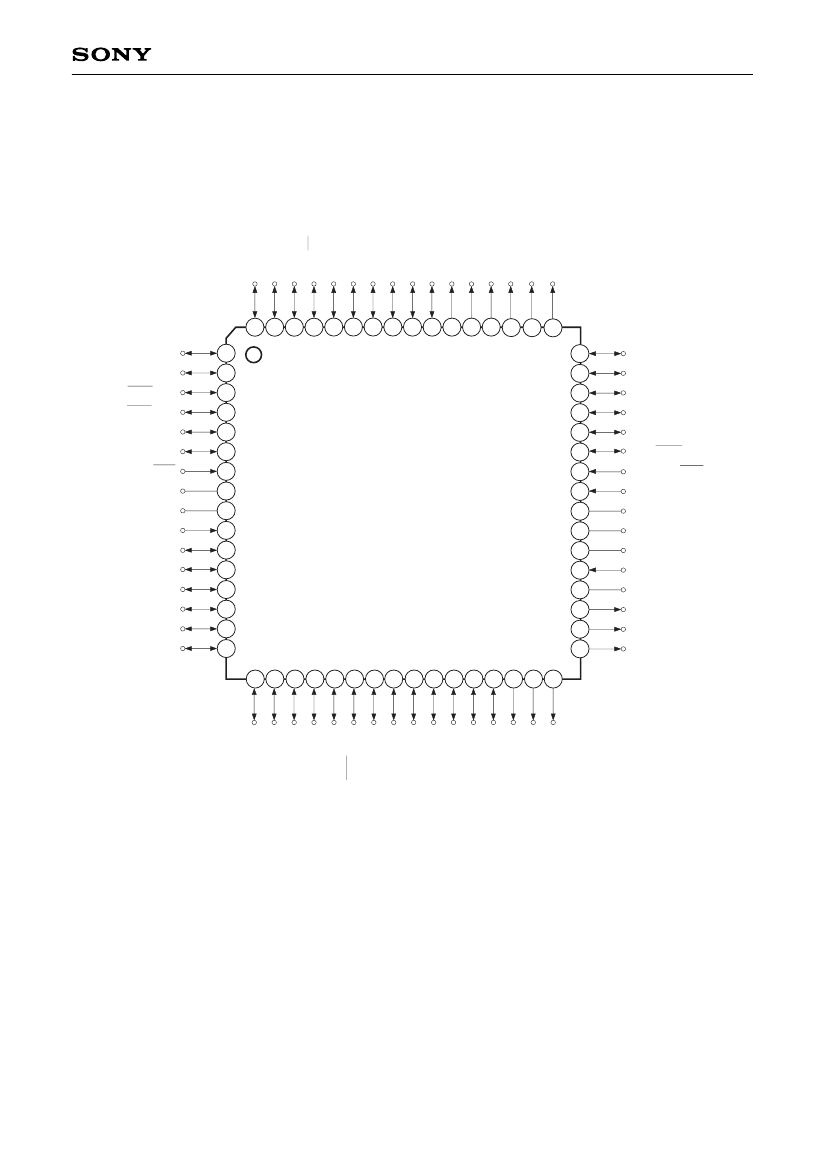

64 pin QFP (Plastic)
Features

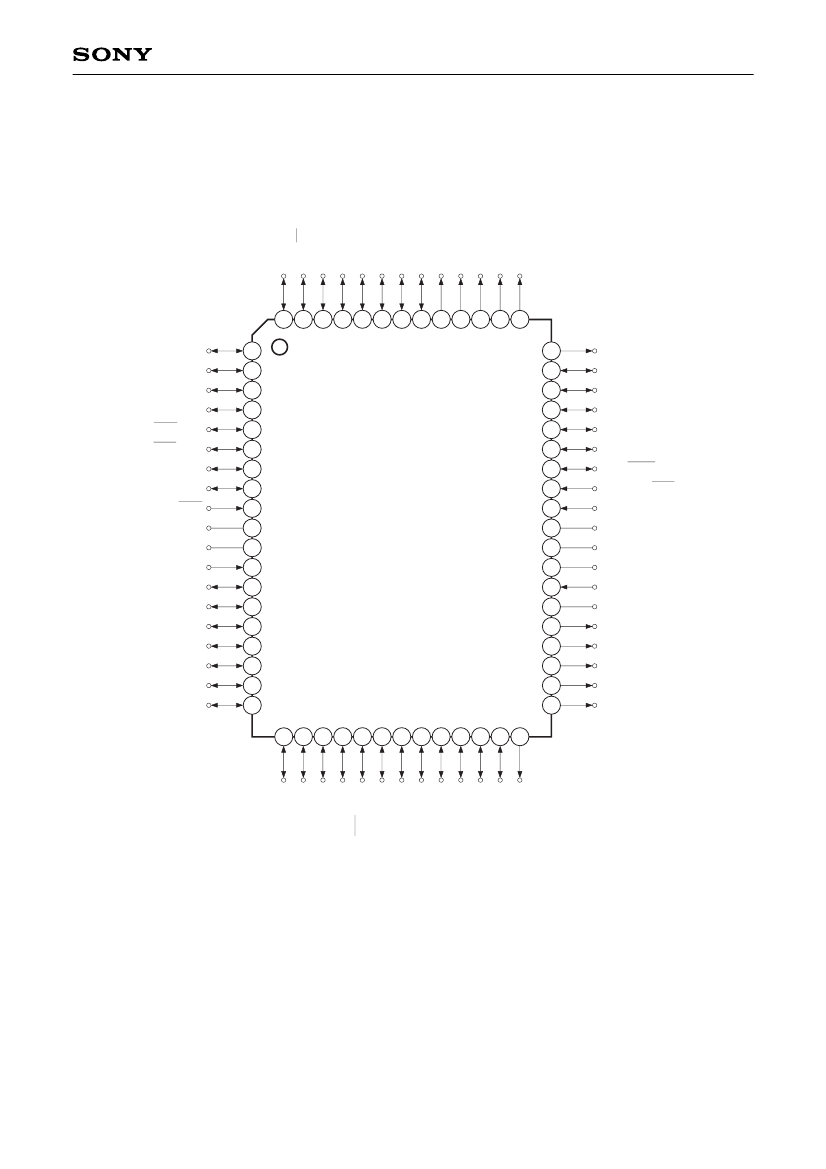

64 pin LQFP (Plastic)
•
A wide instruction set (213 instructions) which covers
various types of data
– 16-bit operation/multiplication and division/
Boolean bit operation instructions
•
Minimum instruction cycle
250ns at 16MHz operation
122µs at 32kHz operation
•
Incorporated ROM
12K bytes (CXP86212)
24K bytes (CXP86324)
40K bytes (CXP86440)
16K bytes (CXP86216)
32K bytes (CXP86332)
48K bytes (CXP86448)
Structure
60K bytes (CXP86460)
•
Incorporated RAM
352 bytes (CXP86212/86216) 704 bytes (CXP86324/86332) Silicon gate CMOS IC
1536 bytes (CXP86440/86448/86460)
(Excludes VRAM for on-screen display and sprite RAM)
•
Peripheral functions
– A/D converter
8-bit 6-channel successive approximation method
(Conversion time of 3.25µs at 16MHz)
– Serial interface
8-bit clock sync type, 1 channel
– Timer
8-bit timer
8-bit timer/counter
19-bit time-base timer
32 kHz timer/counter
– On-screen display (OSD) function
12
×
16 dots, 128 character types (CXP86212/86216),
256 character types (CXP86324/86332),
384 character types (CXP86440/86448/86460)
15 character colors, 2 lines
×
24 characters,
frame background 8 colors/ half blanking,
background on full screen 15 colors/ half blanking
edging/ shadowing/ rounding for every line,
background with shadow for every character (CXP86440/86448/86460),
double scanning,
sprite OSD (CXP86440/86448/86460),
12
×
16 dots, 1 screen, 8 colors for every dot
2
C bus interface
–I
– PWM output
8 bits, 8 channels
14 bits, 1 channel
– Remote control reception circuit
8-bit pulse measurement counter, 6-stage FIFO
– HSYNC counter
2 channels
– Watchdog timer
•
Interruption
13 factors, 13 vectors, multi-interruption possible
•
Standby mode
Sleep
•
Package
64-pin plastic SDIP/QFP/LQFP
•
Piggyback/evaluator
CXP86400 64-pin ceramic PQFP
CXP86490 64-pin ceramic PSDIP (Supports custom font)
Perchase of Sony's I
2
C components conveys a licence under the Philips I
2
C Patent Rights to use these components
in an I
2
C system, provided that the system conforms to the I
2
C Standard Specifications as defined by Philips.
