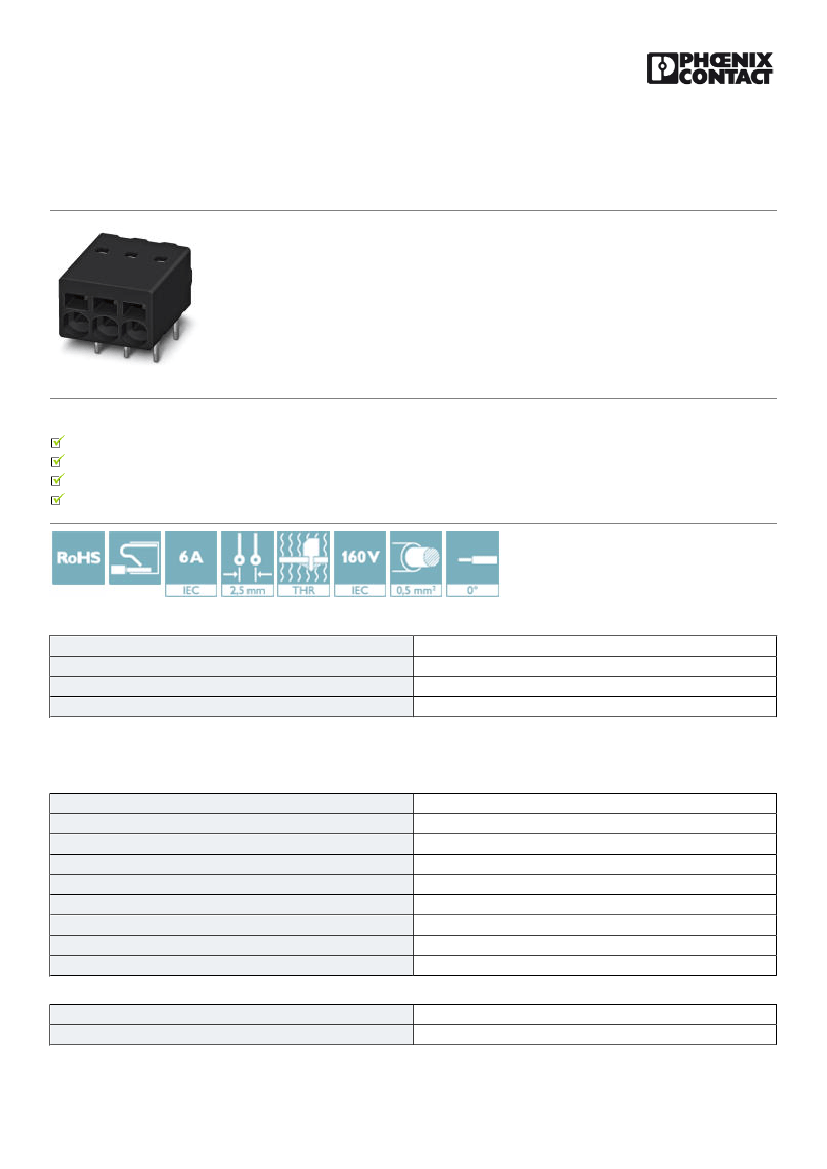

Sample set - SAMPLE PTSM 05/ 4-25-H-THR - 1701095
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 6 A, nom. voltage: 160 V, pitch: 2.5 mm, number of positions: 4,
connection method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection
direction: 0 °, color: black
The figure shows the 3-pos. version
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
High current carrying capacity of 6 A in very compact dimensions
Designed for integration into the SMT soldering process
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
5 pc
85369010
Germany
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Pin spacing
Hole diameter
10 mm
2.5 mm
7.5 mm
10.5 mm
5 mm
7.1 mm
2.1 mm
2.5 mm
1.2 mm
General
Range of articles
Insulating material group
PTSM 0,5/..-H-THR
IIIa
12/20/2018 Page 1 / 4
https://www.phoenixcontact.com/in/products/1701095
Sample set - SAMPLE PTSM 05/ 4-25-H-THR - 1701095
Technical data
General
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Stripping length
Number of positions
2.5 kV
2.5 kV
2.5 kV
63 V
160 V
200 V
EN-VDE
6A
0.5 mm²
6A
LCP
V0
6 mm
4
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
0.5 mm²
0.2 mm²
0.5 mm²
0.25 mm²
0.25 mm²
0.34 mm²
26
20
Conductor cross section flexible, with ferrule without plastic sleeve max. 0.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

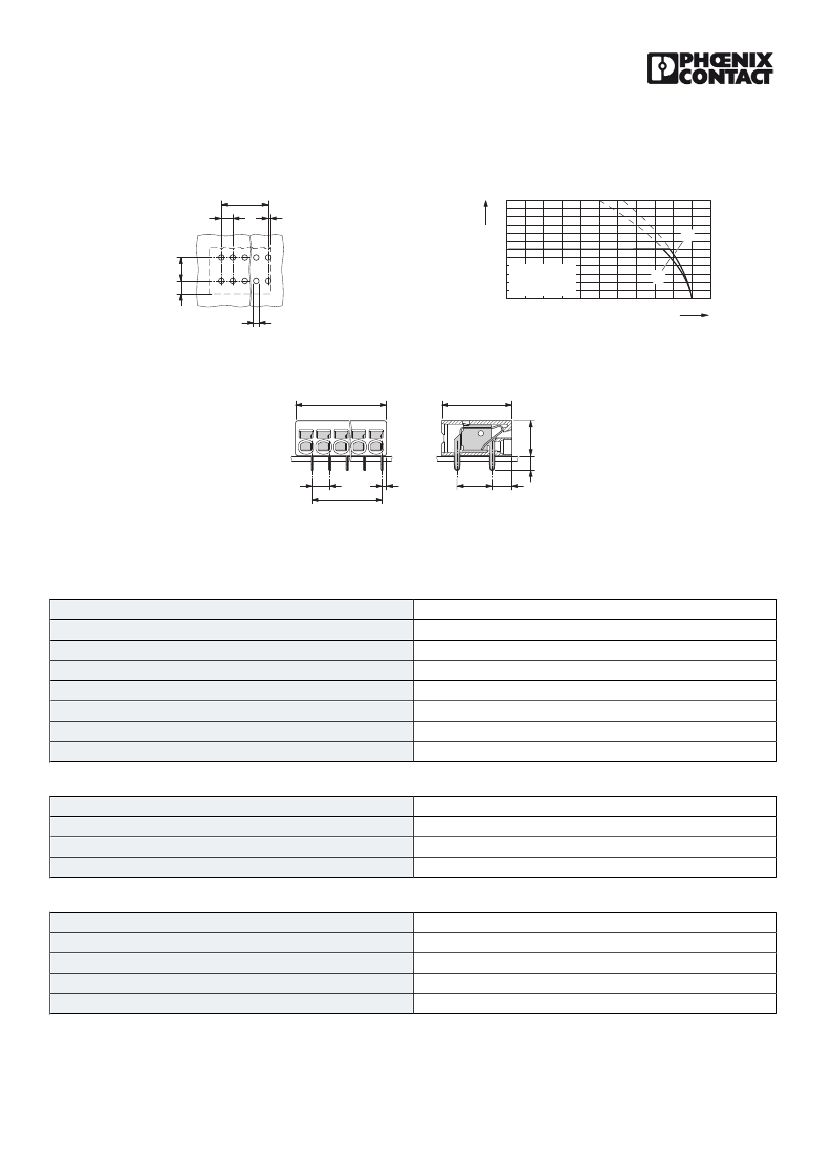

Drawings
12/20/2018 Page 2 / 4
https://www.phoenixcontact.com/in/products/1701095
Sample set - SAMPLE PTSM 05/ 4-25-H-THR - 1701095
Drilling diagram
2,5
0,5
Current strength [A]
Diagram
12
10
8
6
4
2
0
0
10
20
30
40
50
60
70
80
90 100 110
1
= 0,75mm
2
= 0,5mm
2
2
a
1
2
2,8
5
1,2
Ambient temperature [°C]
Dimensional drawing
a+3
10
2,5
a
0,65
5
2,8
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141111
27141109
27141190
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002643
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
34131203
39121432
39121432
2,1
5
12/20/2018 Page 3 / 4
https://www.phoenixcontact.com/in/products/1701095
Sample set - SAMPLE PTSM 05/ 4-25-H-THR - 1701095
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
B.01742
Accessories
Accessories
Screwdriver tools
Screwdriver - SZS 0,4X2,0 - 1205202
Micro screwdriver, bladed, size: 0.4 x 2.0 x 60 mm, 2-component grip, with non-slip grip and twist cap
Additional products
PCB terminal block - PTSM 0,5/ 4-2,5-H THR R32 - 1770908
PCB terminal block, nominal current: 6 A, nom. voltage: 160 V, pitch: 2.5 mm, number of positions: 4, connection
method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection direction: 0 °, color: black
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
12/20/2018 Page 4 / 4
