The EX-200 Series offers a ruggedized hybrid thick film construction in a low profile hermetically sealed 16pin DDIL package,
which can withstand severe environmental conditions. This product utilizes VI’s EMXO technology resulting in excellent stability
performance and fast warm-up with low power consumption.
Features
•
•
•
•
Ruggedized hybrid thick film construction
Low Power Consumption
Previous Model: EX-240 series
Frequency Range: 10 MHZ - 20 MHZ
Applications
•
Severe Environmental Conditions
Performance Specifications
Frequency Stabilities
1
Parameter
vs. operating temperature range (refer-
enced to +25°C)
Min
-20
-30
-50
Typ
Max
+20
+30
+50
Units
ppb
ppb
ppb
Condition
-0… +70°C
-20… +70°C
-40… +85°C
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
1 of 4
Performance Specifications
Frequency Stabilities
1
Parameter
Initial Tolerance (for fixed frequency)
vs. supply voltage change
vs. load change
vs. aging / day
vs. aging / 1 year
vs. aging / 10 year
vs. aging / 10 year
vs. aging / 10 year
Warm-up Time
Min
-1.0
-10
-10
-2.0
-200
-1000
-1500
-2000
Typ
Max
+1.0
+10
+10
+2.0
+200
+1000
+1500
+2000
90
120
Units
ppm
ppb
ppb
ppb
ppb
ppb
ppb
ppb
seconds
seconds
VDC
VDC
Watts
Watts
Condition
at time of shipment, nominal EFC
VS ± 5%
Load ± 5%
after 7 days of operation
10 to <12MHz
12 to <16MHz
16 to 20MHz
to ± 1ppm of final frequency @+25°C
to ± 100ppb of final frequency @+25°C
Supply Voltage (Vs)
Supply voltage (Standard)
Supply voltage (Option)
Power Consumption
4.75
3.135
5.0
3.3
5.25
3.465
2.5
0.7
during warm-up
steady state @ +25°C
RF Output
Signal [Standard]
Load
Signal Level (Vol)
Signal Level (Voh)
Rise/Fall Time
Duty cycle
Signal [Option]
Load
Output Power (Standard)
Output Power (Option)
Harmonics
Sub-Harmonics
Tuning Range
Tuning Range
0
+3.0
50
+1.5
+4.5
+3.0
+6.0
-25
-60
Fixed; No adjust
Sufficient to compensate for 10
years aging
EFC (0V to 4Vdd)
40
0.9
+7
60
Sinewave
ohm
dBm
dBm
dBc
dBc
50 ohm load
50 ohm load
15
0.1
HCMOS
pF
VDC
VDC
ns
%
(10-90%)
(Voh-Vol)/2
Frequency Tuning (EFC)
Additional Parameters
-100
-130
-140
-145
-150
1
0.2
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
ppb/g
ppb
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
Test at 10g sine vibration at 100Hz
Tau = 1 sec
Phase Noise @ 10 MHz
G-Sensitivity
Allan Deviation
• Mechanical Shock (survive)
• Vibration Random (survive)
• Vibration Sine (survive)
• Thermal Shock (survive)
Environmental Conditions (Designed to meet)
MIL-STD-202, Test Method 213, Condition E (100G, 0.5msec)
MIL-STD-202, Test Method 214, Condition I-H (20Grms, 3 minutes/axis)
MIL-STD-202, Test Method 204, Condition D (20Grms, 20 minutes/axis)
MIL-STD-202, Test Method 107, Condition A-2 (50 Cycles, -55°C to +85 °C)
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
2 of 4

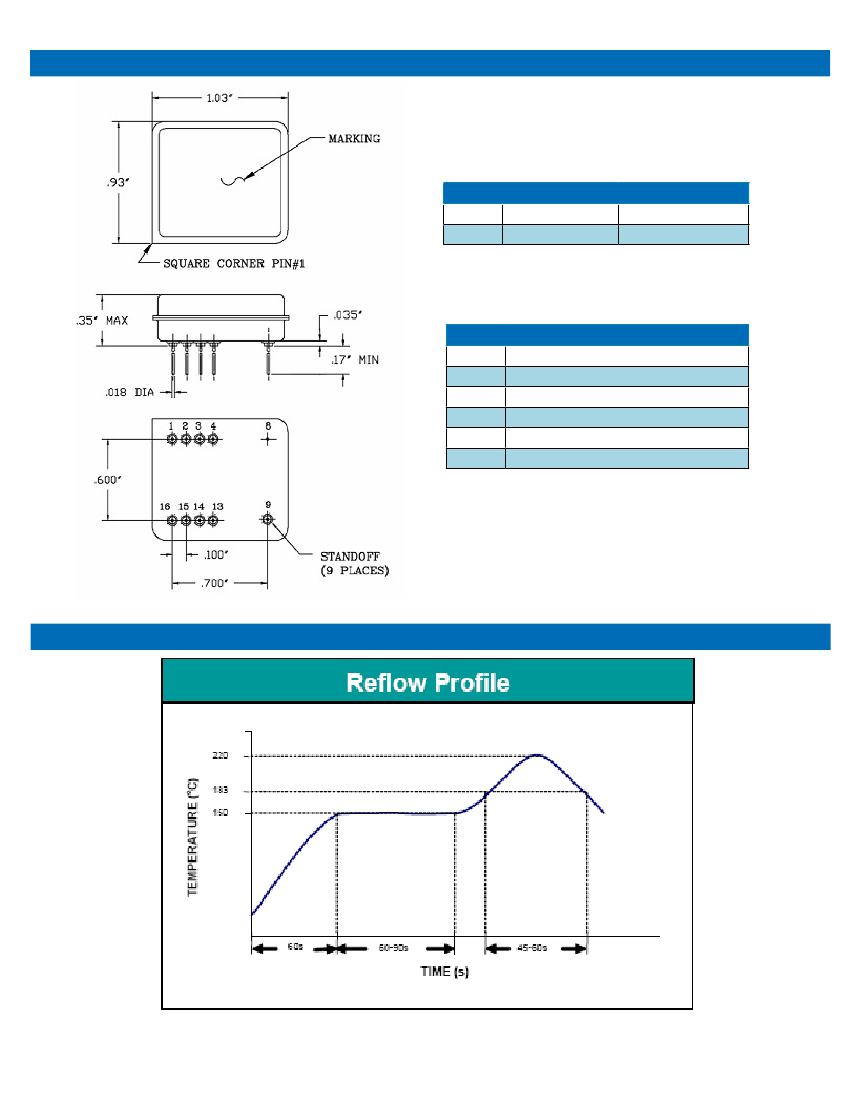

Outline Drawing / Enclosure
Dimensions in inches
Type A
Code
0
Height “H”
0.35”
Pin Length “L”
0.17”
Pin Connections
1
2-4
8
9
13 - 15
16
EFC \ No Connect
No Connect
Ground (Case)
RF Output
No Connect
Supply Voltage Input
Recommended Reflow Profile
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
3 of 4
Ordering Information
EX - 200 0 - D A J - 508 0 - 10M0000000
Product Family
EX: EMXO
Package
25 x 25 mm
Height
0: A0.35”
Supply Voltage
D: 5 Vdc
E: 3.3 Vdc
RF Output Code
A: HCMOS
E: Sinewave
Stability Code
208: ±20ppb
308: ±30ppb
508: ±50ppb
Temperature Range
E: -40°C to +85°C
J: -20°C to +70°C
T: 0°C to +70°C
Frequency
Frequency Control
0: Fixed Frequency (HCMOS)
1: Fixed Frequency (0 dBm)
2: Fixed Frequency (+3 dBm)
3: Electrical Tuning (HCMOS)
4: Electrical Tuning (0 dBm)
5: Electrical Tuning (+3 dBm)
Notes:
1.
Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2.
Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3.
Phase noise degrades with increasing output frequency.
4. Subject to technical modification.
5.
Contact factory for availability.
For Additional Information, Please Contact
Vectron International
267 Lowell Road, Unit 102
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
USA:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Europe:
Vectron International
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: 86.21.6194.6886
Fax: 86.21.6194.6699
Asia:
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
