54138UF: DescriptionRing Terminal, 4mm2,; CategoryThe connector terminals; File Size40KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

54138UF Overview

Ring Terminal, 4mm2,

54138UF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	4 mm2
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

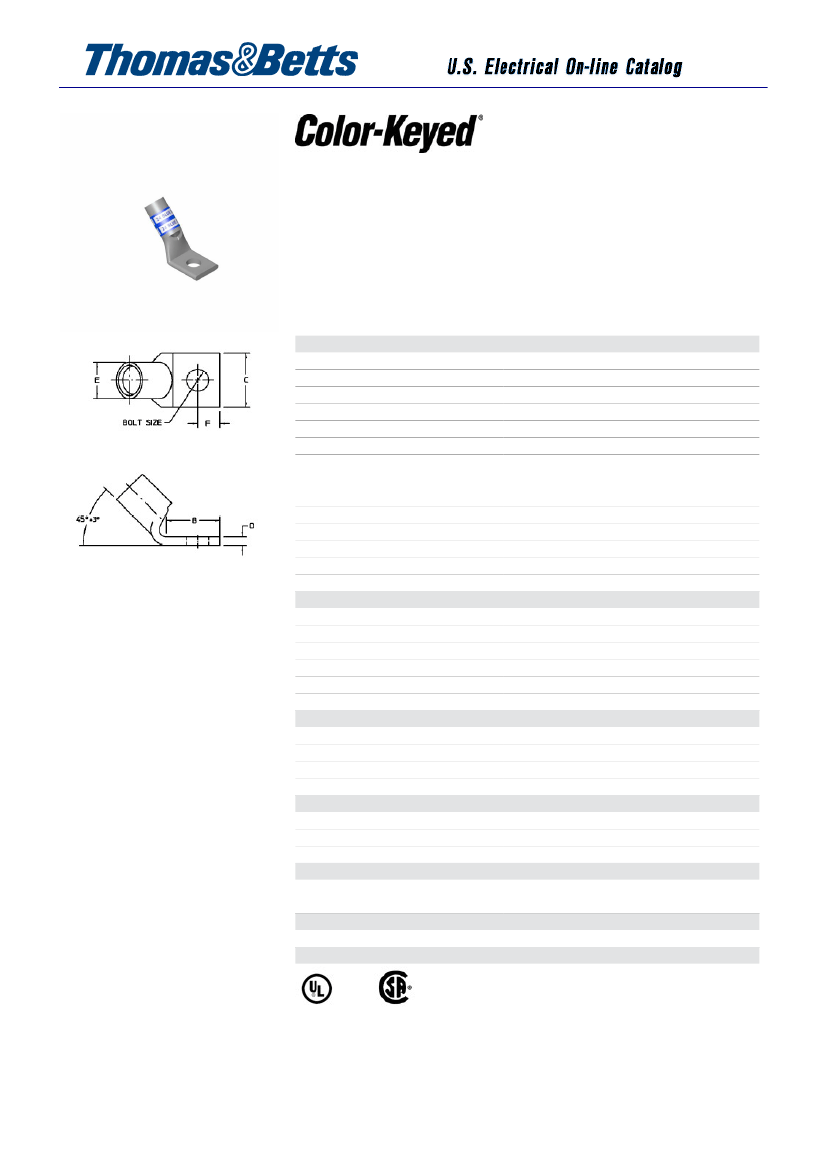

T&B Catalog Number:

UPC Number:

Description:

54138UF

78621068678

Copper One-Hole Lug - 45 degree Stan-

dard Barrel - max 35KV, #4 AWG Wire,

#10 Bolt Size, Tin Plated with Inspection

Hole, Grey 29

P

Status:

General

Material

Finish

Wire Size

Number of Studs

Stud Size

Tongue Angle

Barrel Length

Barrel Shape

Tongue Width

Peep Hole

Marking

Hole Shape

Die Color

Die Code

Copper

Tin Plated

#4 AWG

1

#10

45

Standard

Y

Standard

Round

Grey

29

1.188

0.469

0.563

0.109

0.359

0.219

50

500

Each

3.2 lbs. per 100

ta00675-tb2

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Dimension Information

A (inches)

B (inches)

C (inches)

D (inches)

E (inches)

F (inches)

Packaging

T&B Inner Pack

Package in Units

T&B Sold in UOM

T&B Weight Per UOM

Application Support

T&B Instruction Sheets

Overview

Connector & Tooling Chart

Notes

Certifications

RoHS Compliance

Yes

Certifications

File Nbr:

E9809

54138UF Related Products

	54138UF
Description	Ring Terminal, 4mm2,
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	4 mm2
Wire gauge	4 AWG
Base Number Matches	1

Recommended Resources

Three-phase phase loss alarm light circuit

Battery fast charging control integrated circuit design

Power outage emergency light circuit

Input status indication circuit

Fluorescent lamp energy-saving electronic ballast circuit 2

LA4185 power amplifier circuit
