411CY-231102A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 411CY-231102A

411CY-231102A: DescriptionRF Coaxial Relay, SPDT, Failsafe, 0.135A (Coil), 28VDC (Coil), 3780mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,; CategoryMechanical and electronic products relay; File Size133KB，3 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric Compare View All

411CY-231102A Overview

RF Coaxial Relay, SPDT, Failsafe, 0.135A (Coil), 28VDC (Coil), 3780mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,

411CY-231102A Parametric

Parameter Name	Attribute value
Maker	Dow-Key Microwave Corporation
Reach Compliance Code	unknown
body width	32 mm
body height	44.2 mm
Body length or diameter	32 mm
Maximum coil current (DC)	0.135 A
Coil power	3780 mW
Coil resistance	207.41 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Maximum input power	30 W
Maximum insertion loss	0.9 dB
Maximum isolation	55 dB
Installation features	PANEL MOUNT
Maximum operating frequency	40000 MHz
Minimum operating frequency
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
physical size	32mm x 32mm x 44.2mm
Relay action	FAILSAFE
Relay function	SPDT
Relay type	RF COAXIAL RELAY
seal	DUST PROOF
surface mount	NO
switching time	20 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.9
Base Number Matches	1

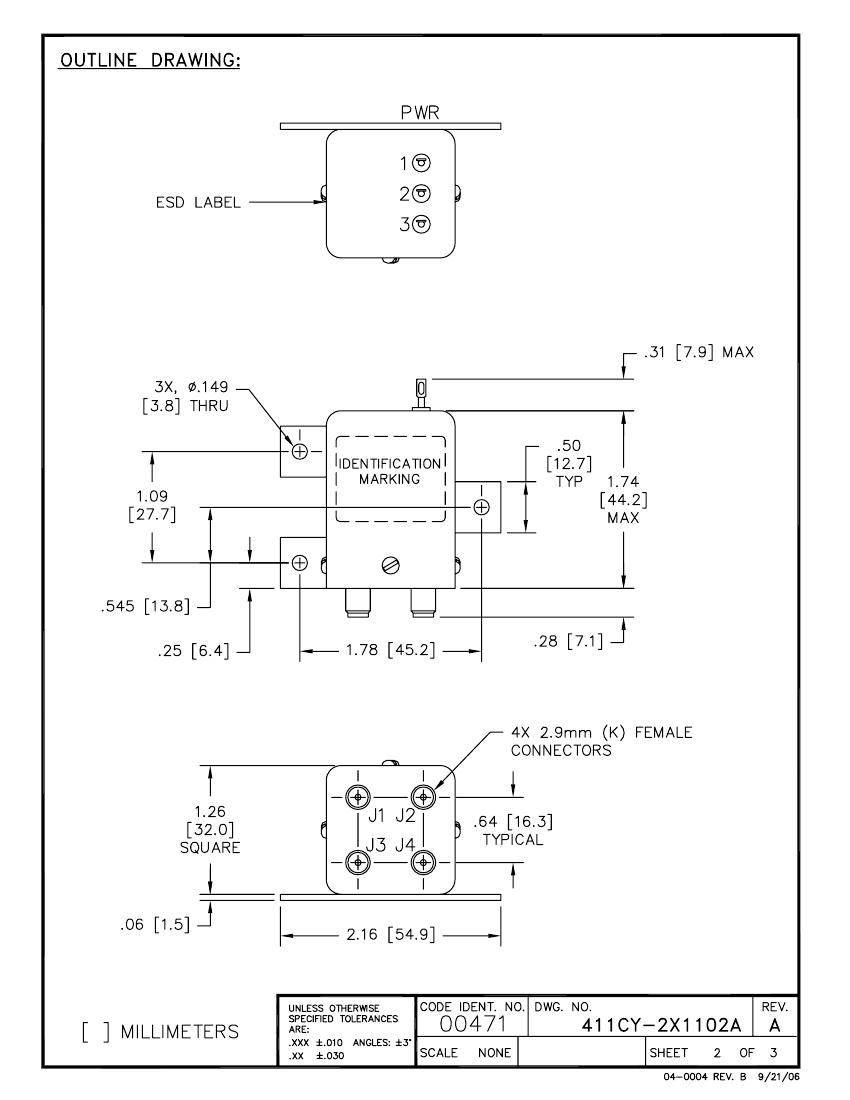

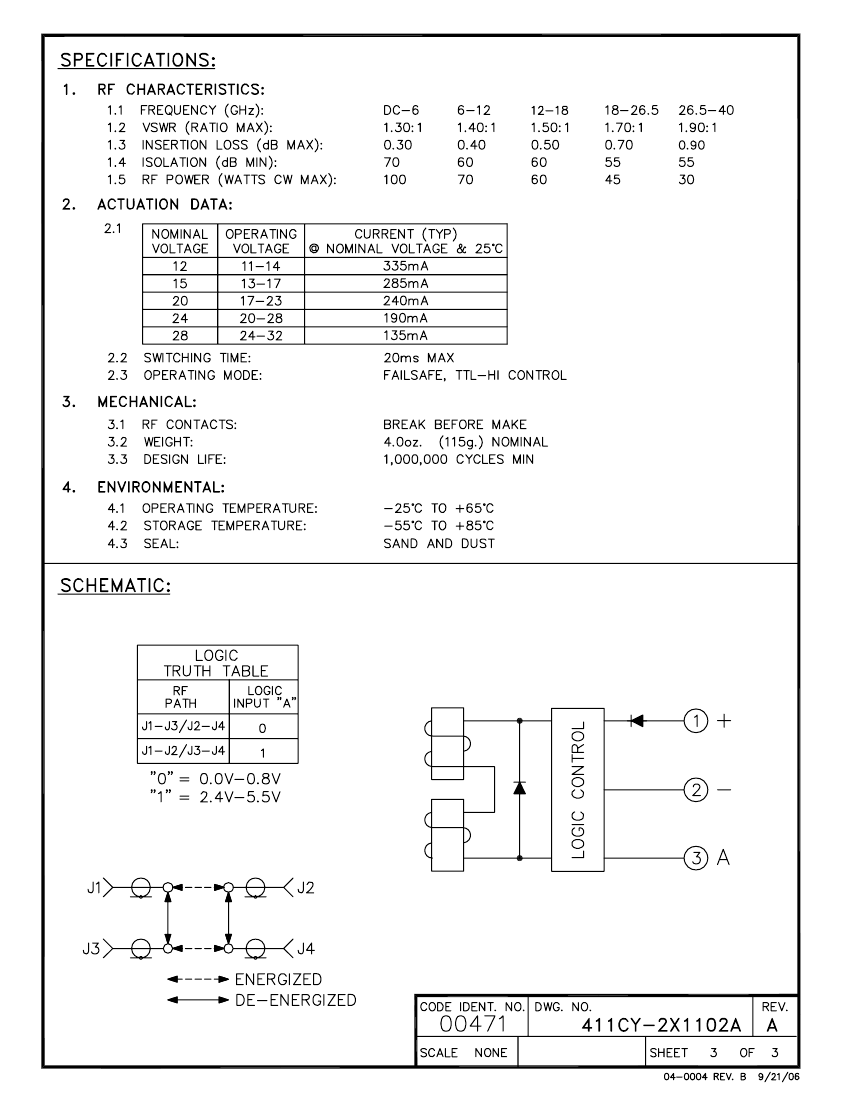

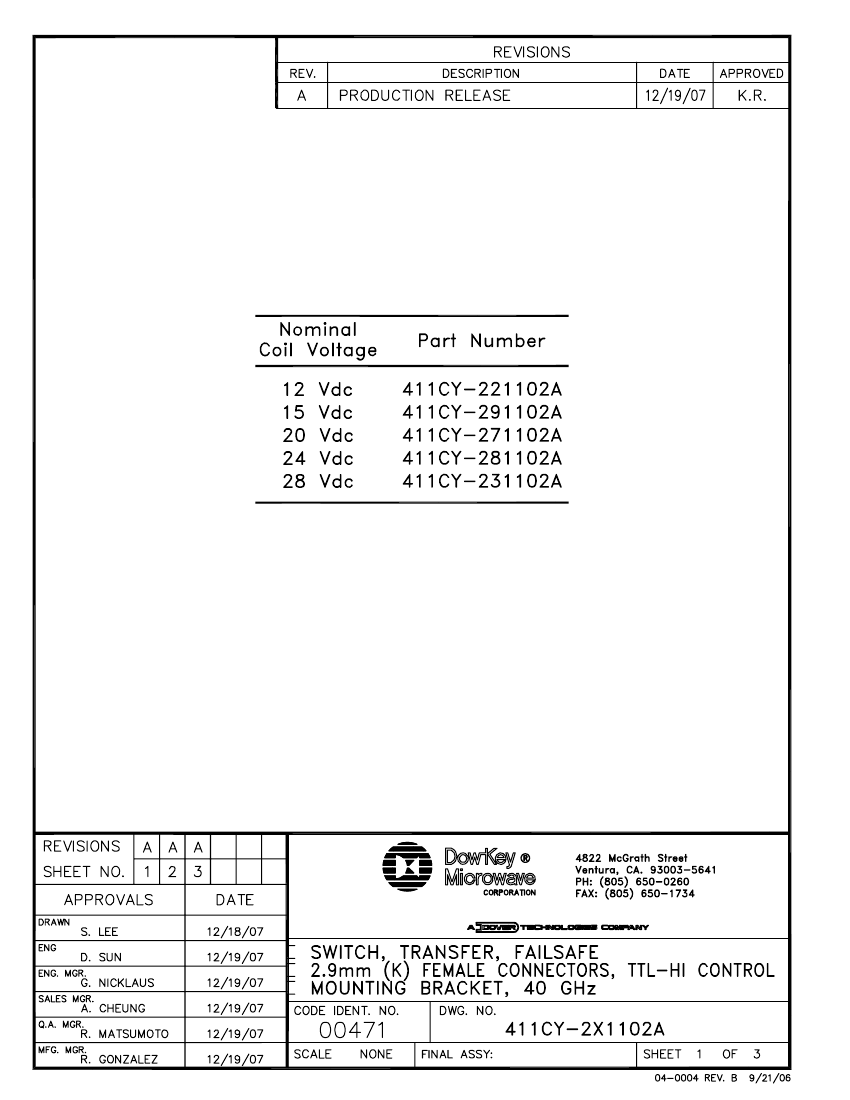

Preview

Download Datasheet

View All

411CY-231102A Related Products

	411CY-231102A	411CY-271102A	411CY-291102A	411CY-221102A	411CY-281102A
Description	RF Coaxial Relay, SPDT, Failsafe, 0.135A (Coil), 28VDC (Coil), 3780mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SPDT, Failsafe, 0.24A (Coil), 20VDC (Coil), 4800mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SPDT, Failsafe, 0.285A (Coil), 15VDC (Coil), 4275mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SPDT, Failsafe, 0.335A (Coil), 12VDC (Coil), 4020mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,	RF Coaxial Relay, SPDT, Failsafe, 0.19A (Coil), 24VDC (Coil), 4560mW (Coil), 40000MHz, 30W (RF Input), DC Input, Panel Mount,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
body width	32 mm	32 mm	32 mm	32 mm	32 mm
body height	44.2 mm	44.2 mm	44.2 mm	44.2 mm	44.2 mm
Body length or diameter	32 mm	32 mm	32 mm	32 mm	32 mm
Maximum coil current (DC)	0.135 A	0.24 A	0.285 A	0.335 A	0.19 A
Coil power	3780 mW	4800 mW	4275 mW	4020 mW	4560 mW
Coil resistance	207.41 Ω	83.33 Ω	52.63 Ω	35.82 Ω	126.32 Ω
Maximum coil voltage (DC)	28 V	20 V	15 V	12 V	24 V
Coil/Input Power Type	DC	DC	DC	DC	DC
Maximum input power	30 W	30 W	30 W	30 W	30 W
Maximum insertion loss	0.9 dB	0.9 dB	0.9 dB	0.9 dB	0.9 dB
Maximum isolation	55 dB	55 dB	55 dB	55 dB	55 dB
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating frequency	40000 MHz	40000 MHz	40000 MHz	40000 MHz	40000 MHz
Maximum operating temperature	65 °C	65 °C	65 °C	65 °C	65 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	32mm x 32mm x 44.2mm	32mm x 32mm x 44.2mm	32mm x 32mm x 44.2mm	32mm x 32mm x 44.2mm	32mm x 32mm x 44.2mm
Relay action	FAILSAFE	FAILSAFE	FAILSAFE	FAILSAFE	FAILSAFE
Relay function	SPDT	SPDT	SPDT	SPDT	SPDT
Relay type	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY	RF COAXIAL RELAY
seal	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF	DUST PROOF
surface mount	NO	NO	NO	NO	NO
switching time	20 ms	20 ms	20 ms	20 ms	20 ms
Termination type	SOLDER/CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR	SOLDER/CONNECTOR
voltage standing wave ratio	1.9	1.9	1.9	1.9	1.9
Base Number Matches	1	1	1	1	1
Maker	Dow-Key Microwave Corporation	Dow-Key Microwave Corporation	-	Dow-Key Microwave Corporation	-
