2217S-206TU-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2217S-206TU-L

2217S-206TU-L: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size202KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

2217S-206TU-L Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

2217S-206TU-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
body width	0.3 inch
subject depth	0.449 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2217
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

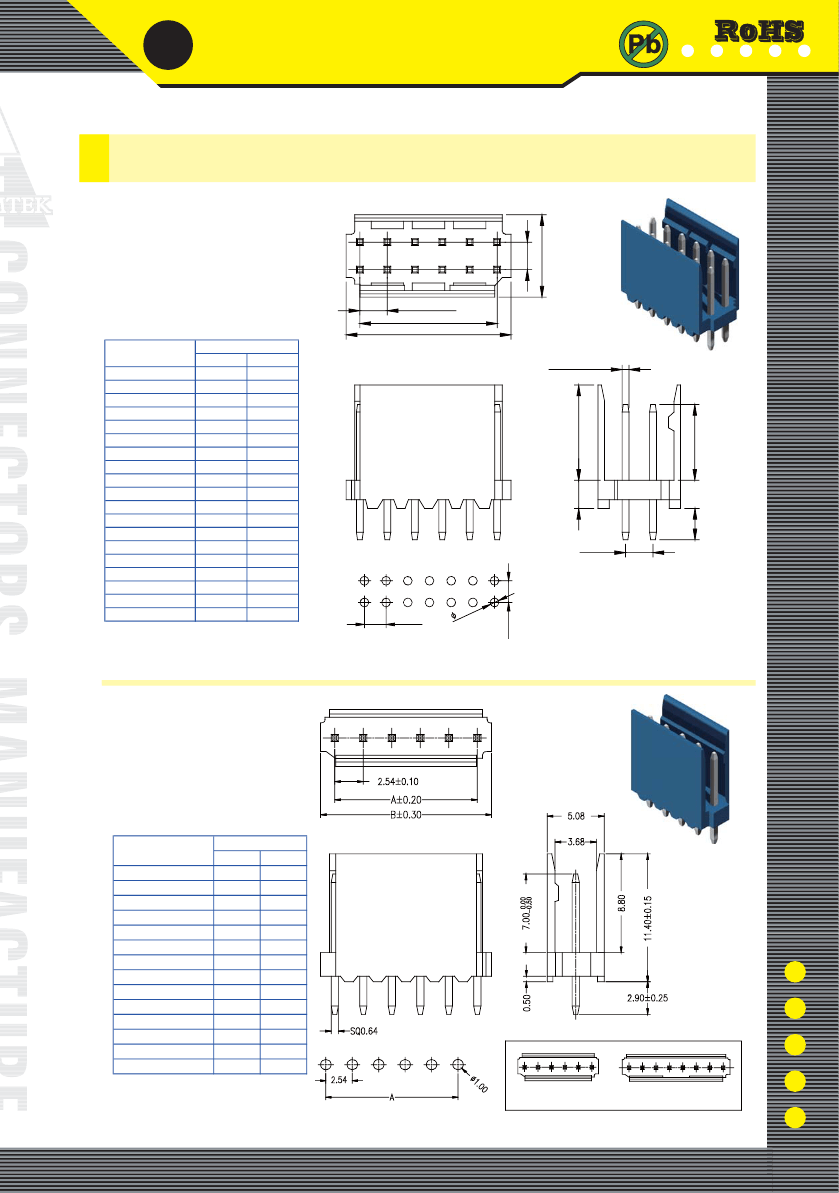

ousing Wafer Terminal

2.54mm Wafer Straight Type

Specifications

Current Rating: 3A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +105°C

Contact Resistance: 20m

Max.

Insulation Resistance: 1000M

Min.

Withstanding Voltage: 1000V AC/minute

Terminal: Brass / Gold or Tin Plated

Material: Nylon 66,UL94V-0

Part No.

2217S-202TU-L

2217S-203TU-L

2217S-204TU-L

2217S-205TU-L

2217S-206TU-L

2217S-207TU-L

2217S-208TU-L

2217S-209TU-L

2217S-210TU-L

2217S-211TU-L

2217S-212TU-L

2217S-213TU-L

2217S-214TU-L

2217S-215TU-L

2217S-216TU-L

2217S-217TU-L

2217S-218TU-L

2217S-219TU-L

2217S-220TU-L

Dimensions

5.08

2.54

7.62

5.08

10.16

7.62

12.70

10.16

15.24

12.70

17.78

15.24

20.32

17.78

22.86

20.32

25.40

22.86

27.94

25.40

30.48

27.94

33.02

30.48

35.56

33.02

38.10

35.56

40.64

38.10

43.18

40.64

45.72

43.18

48.26

45.72

50.80

48.26

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

Part No.:2217S-2XXTU-L

Specifications

Current Rating: 3A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +105°C

Contact Resistance: 20m

Max.

Insulation Resistance: 1000M

Min.

Withstanding Voltage: 1000V AC/minute

Terminal: Brass / Gold or Tin Plated

Material: Nylon 66,UL94V-0

Part No.

2217S-102TU-L

2217S-103TU-L

2217S-104TU-L

2217S-105TU-L

2217S-106TU-L

2217S-107TU-L

2217S-108TU-L

2217S-110TU-L

2217S-112TU-L

2217S-113TU-L

2217S-115TU-L

2217S-117TU-L

2217S-118TU-L

2217S-120TU-L

Dimensions

5.08

2.54

7.62

5.08

10.16

7.62

12.70

10.16

15.24

12.70

17.78

15.24

20.32

17.78

25.40

22.86

30.48

27.94

33.02

30.48

38.10

35.56

43.18

40.64

45.72

43.18

50.80

48.26

02~06 Pin

Recommended P.C.B Layout(Top Side)

(PCB BOARD TOLERANCE±0.05)

08~20 Pin

Part No.:2217S-1XXTU-L

www.amtek-co.com.tw
