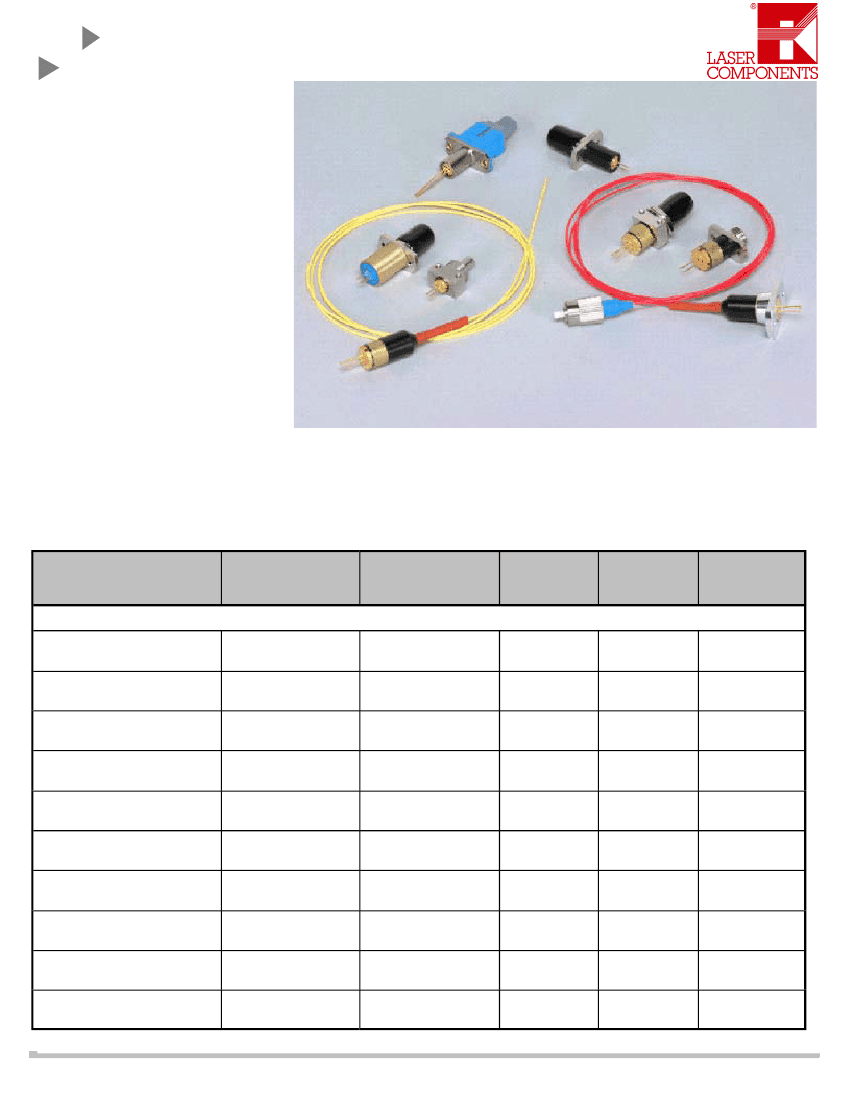

PL63/65/67 Series Visible Laser Diode Modules
PD-LD Inc. offers a variety of
packaging options for its’ Visible Series
of
laser diodes. These units are
available in ready-to-use, fiber-coupled
packages, including FC, ST, and SC
receptacles, as well as fiber- pigtailed
units.
The laser diodes offered by PD-
LD are of proven design and
manufacture; the standard wavelengths
are centered at 630nm, 650nm and
670nm. Fiber-coupled CW (continuous-
wavelength) output powers range from
0.1 - 10 mW, depending on the fiber
type and desired performance level.
Devices may be optimized for coupling
to sensor or telecommunication size
optical fiber, from 3um to 200um core.
Optional board- or panel -mount
flanges are available for pigtailed
devices; contact PD-LD Sales. Also,
PD-LD Inc. will package non-standard
lasers or parts specified by a customer
using standard or custom receptacle or
pigtailing techniques.
In may
case several different pin-out options
are available for similar wavelength
Applications
•
Fiber optic communications
•
Optical Sensing
•
Process Control
•
Test and Measurement Equipment
•
Optical Alignment Systems
Fiber Size and Coupling Efficiency
•
•
•
•
•
3/125um
5/125um
9/125um
50/125um
62.5/125um
8~10%
10~15%
15~20%
25~30%
30~40%
Monitor PD
Current (mA)
Min. Typ.
PD-LD
Part No.
1
Wavelength (nm)
Min. Typ. Max.
Continuous Wavelength Lasers @ 25C
PL63C005100A -0-0-01
PL63H003300A -0-0-01
PL65T0.8UN11-T-0
PL65Q0.8UN11-T-0
PL65T001100A-0-0-01
PL65R005FC14-T-0
PL65S005FC11-T-0
PL66N0026FCA -0-0-01
PL67T0016STA-0-0-01
PL66N005100A -0-0-01
1
Examples
Min. Fiber
Threshold
Operating
Coupled Power
Current (mA) Current (mA)
(mW)
Typ. Max.
Typ.
Max.
Performance Specifications
1mW
into 9/125 SMF
3mW
62.5/125 MMF
0.8 mW
into 9/125 SMF
0.8mW
Into 9/125 SMF
1 mW
Into 9/125 MMF
5mW
Into 100/140 MMF
5mW
Into 9/125 SMF
2.0 mW
into 3/125 SMF
1.0 mW
into 3/125 SMF
5 mW
into 9/125 SMF
625
625
640
640
640
645
—
645
660
645
635
635
650
650
650
640
640
660
660
660
50
45
30
40
30
25
40
45
45
45
75
70
55
70
55
60
50
70
65
70
70
55
35
50
35
35
80
85
70
85
95
85
60
80
60
70
110
120
90
120
0.05
0.2
0.07
0.10
0.07
0.1
0.1
0.05
0.5
0.05
0.17
0.4
0.25
0.20
0.25
0.5
0.3
0.3
1.5
0.3
655 660
655 665
658
670
658
666
680
666
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
8-04 Visible Series. Rev.C
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49
(0)8142
28640,
Fax: +49 (0)8142 286411,
info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
Inc
LD
PL63/65/67 Series Visible Laser Diode Modules
PL63/65/67 Series Visible Laser Diode Modules

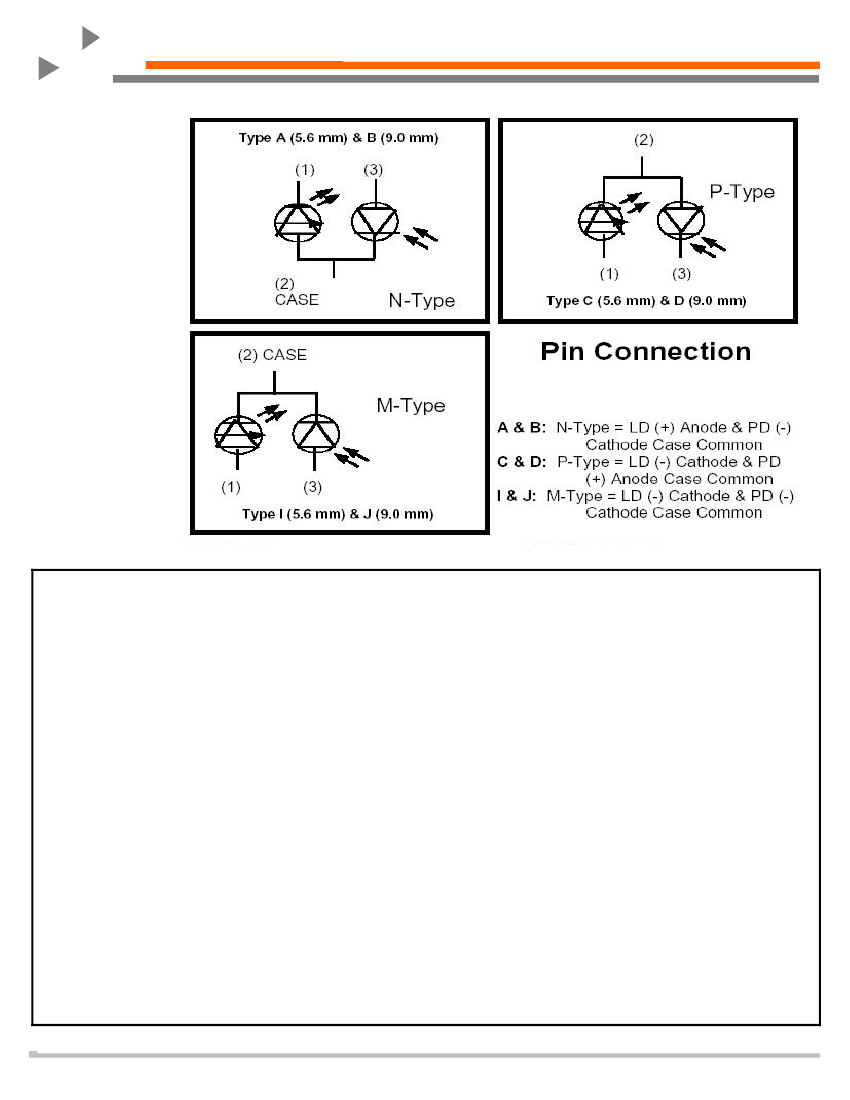

Laser Diode Pin-Out Styles
Ordering Information
Lasers Pigtailed
Laser Receptacle
PLWWWPPPFCCB-0-V-LL
L = Laser
WWW=Wavelength and Pin-out
630nm: 63C,63H,
650nm: 65P, 65Q, 65R, 65S,65T, 65Y
658nm: 66N
670nm: 67S, 67T
690nm: 67G
PLWWWPPPRRRF-O-V
PPP = Fiber-Coupled Power
0.1
= 0.10 mW (100
µW)
0.8
= 0.8 mW (800
µW
)
0.2
= 0.20 mW (200
µW)
001
= 1.0 mW
0.5
= 0.5 mW (500
µW)
002
= 2.0 mW
F = Fiber Type
B = Bracket Type
RRR=Receptacle Type
O=Orientation
1 =
9/125 SMF
A
= None
FC1=FC Panel mount
0=N/A
2 =
50/125 MMF
B
= Panel Mount(9mm)
FC2=FC Board mount
A=Bracket Shipped Loose (pigtailed unit
3 =
62.5/125 MMF
D
= Board Mount(5.6mm)
SC1=SC Panel mount only Specify orientation as required
4 =
100/140 MMF
E
= Panel Mount(5.6mm)
SC2=SC Panel/board mount
6 =
3/125 SMF
ST7=ST low profile
V=Version
7=
5/125 SMF
ST8=ST high profile
0=Standard
8=
7/125 SMF
Unique Codes for specific requirements
A=
200/240 MMF
PM Fiber available on request
LL = Length in meters
(01,02,.5 ect.) (pigtailed devices only)
CC = Connector Type
(pigtailed devices only)
ST
= ST/PC
SC
= SCPC
SA=SC/APC
FC
= FC/PC
FA
= FC/APC
FU
= FC/UPC
OO
= None
TA
= ST/APC
SM
= SMA 905
BC
= Biconic
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
8-04 Visible Series. Rev.C
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49
(0)8142
28640,
Fax: +49 (0)8142 286411,
info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
Inc
LD
PD-LD
Laser Code
63C
63H
65R
65S
65P
65Q
65T
65Y
66N
67G
67S
67T
Nominal Wavelength
(nm)
635nm –10/+5nm
633nm+/-8nm
655nm+5nm/-10nm
655nm+/-10nm
655nm+/-10nm
650nm+/-10nm
650nm+/-10nm
650nm+/-10nm
658nm+7nm/-13nm
690nm+5/-10nm
670nm+/-10nm
670nm+/-10nm
PL63/65/67 Series Visible Laser Diode Modules
Visible Laser Diodes Available from Stock
TO Package Size
9.0mm
9.0mm
5.6mm
5.6mm
5.6mm
5.6mm
5.6mm
9.0mm
5.6mm
5.6mm
5.6mm
5.6mm
Laser Pinning
N
N
M
N
P
P
N
N
P
P
N
N
Maximum Total
Power (mW)*
10.0
5.0
10.0
30.0
7.0
7.0
5.0
5.0
35.0
30.0
5.0
10.0
* The power listed is the total light output from the semiconductor laser chip as measured from the dis-
creet TO package. The amount of light coupled into the optical fiber will be dependent on the fiber type.
Please contact PD-LD Sales to discuss wavelength, pinning and power requirements not listed above.
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
8-04 Visible Series. Rev.C
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49
(0)8142
28640,
Fax: +49 (0)8142 286411,
info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
Inc
LD
PL63/65/67 Series Visible Laser Diode Modules

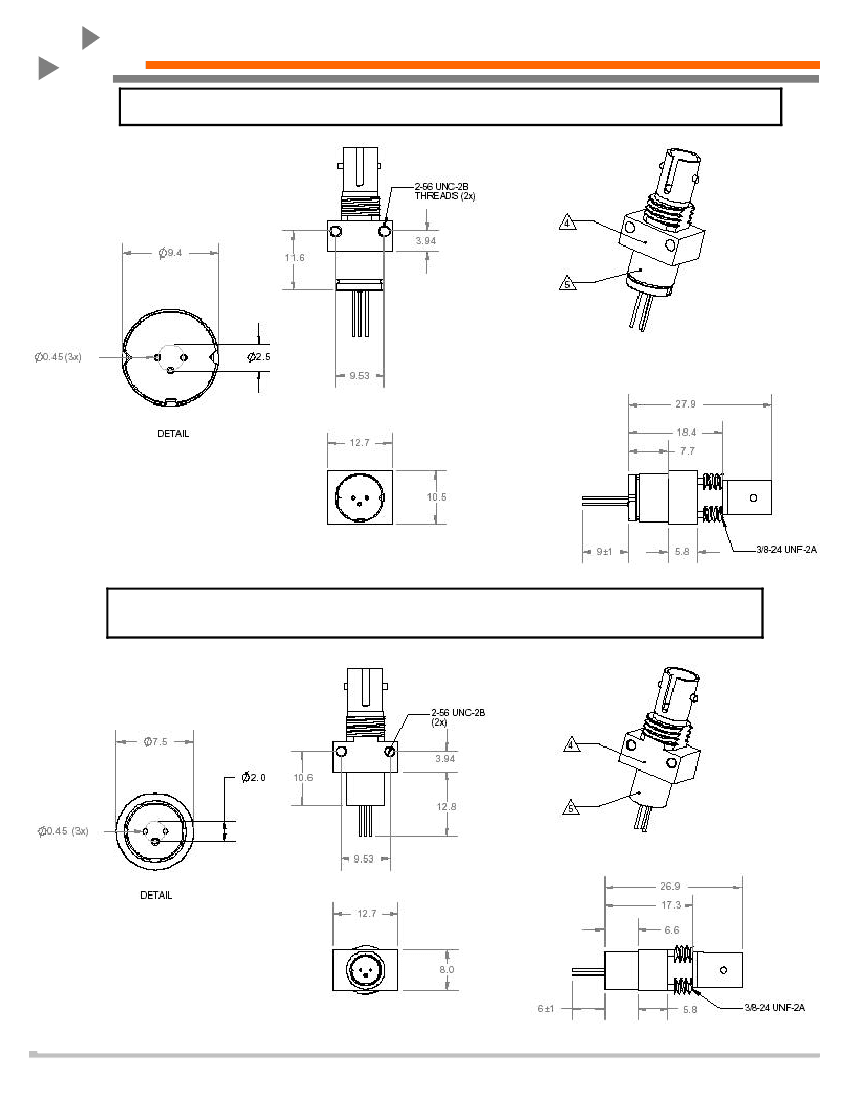

9mm Diameter Laser Mounted in High Profile ST8 Receptacle
5.6mm Diameter Laser Mounted in Low Profile ST7 Receptacle
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
8-04 Visible Series. Rev.C
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49
(0)8142
28640,
Fax: +49 (0)8142 286411,
info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
PD
Inc
LD
PL63/65/67 Series Visible Laser Diode Modules

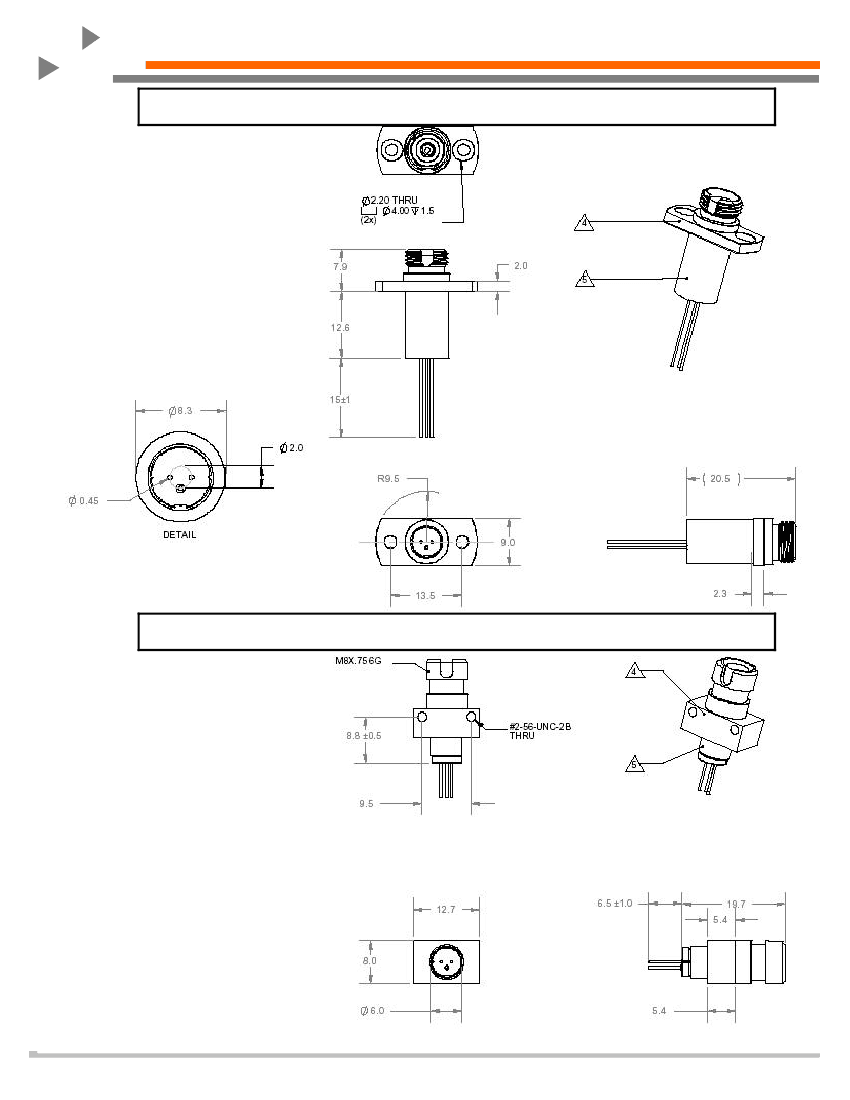

5.6mm Diameter Laser In FC Panel Mount Receptacle
5.6mm Diameter Laser in FC Board Mount Receptacle
1
Examples
only; most device/packaging combinations available.
Changes to specifications may be made without notice.
8-04 Visible Series. Rev.C
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49
(0)8142
28640,
Fax: +49 (0)8142 286411,
info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
