BR247D-600C1-28V datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> BR247D-600C1-28V

BR247D-600C1-28V: DescriptionPower/Signal Relay, 2 Form C, DPDT, Latched, 0.047A (Coil), 28VDC (Coil), 1316mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size167KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

BR247D-600C1-28V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR247D-600C1-28V	-	-	View	Buy Now

BR247D-600C1-28V Overview

Power/Signal Relay, 2 Form C, DPDT, Latched, 0.047A (Coil), 28VDC (Coil), 1316mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount,

BR247D-600C1-28V Parametric

Parameter Name	Attribute value
Maker	Microsemi
Reach Compliance Code	compliant
ECCN code	EAR99
body width	13.34 mm
body height	28.58 mm
Body length or diameter	26.04 mm
Maximum coil current (DC)	0.047 A
Coil operating voltage (DC)	18 V
Coil power	1316 mW
Coil release voltage (DC)	13 V
Coil resistance	600 Ω
Maximum coil voltage (DC)	28 V
Nominal coil voltage	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated load I	8A@115VAC
Contact (AC) maximum rated load M	4A@115VAC
Contact (AC) maximum rated R load	10A@208VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	208 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1250 Vrms
Dielectric strength between breaking contacts	1250 Vrms
Electrical life	100000 Cycle(s)
Input switching control type	Random
Insulation resistance	100000000 Ω
JESD-609 code	e3
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	11
operating hours	11 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	26.04mm x 13.34mm x 28.58mm
Guideline	MIL-PRF-83536
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	11 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
weight	39.69 g
Base Number Matches	1

Preview

Download Datasheet

View All

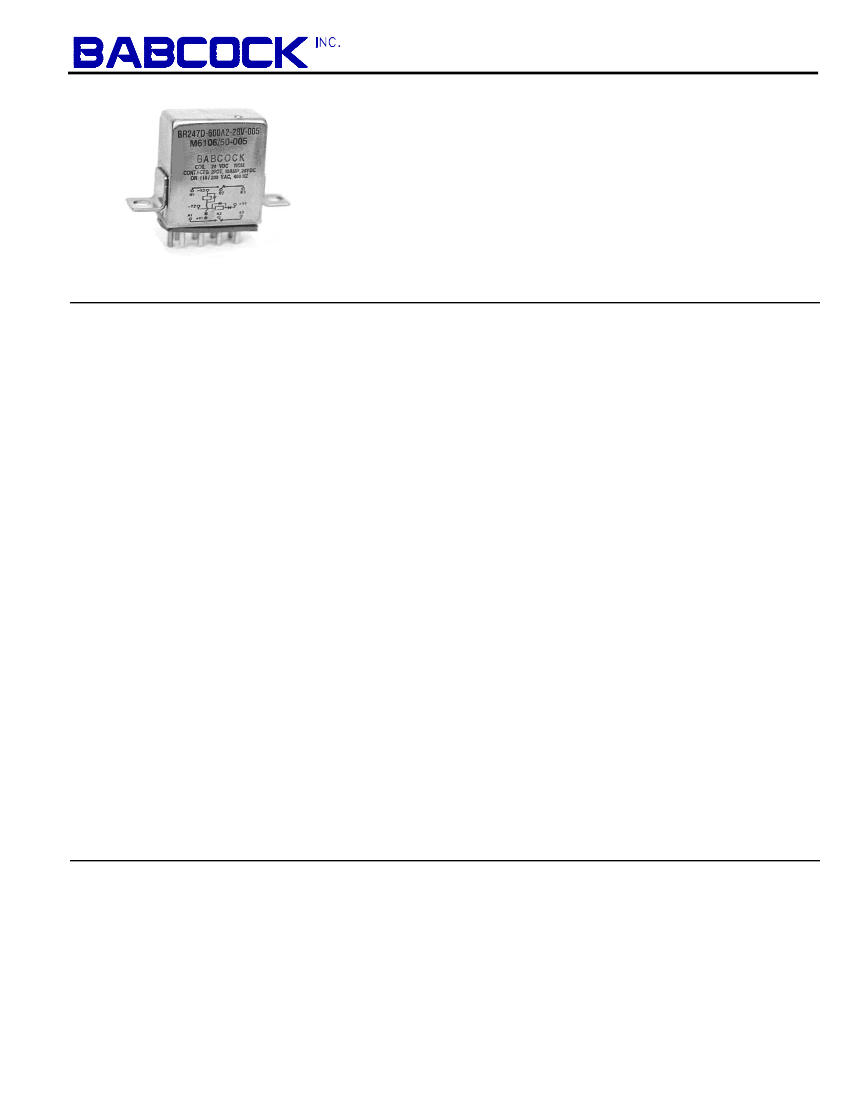

BR247D

Miniature

10 Amps • 2PDT

Magnetic Latching

To MIL-PRF-83536

DC Suppressed Coils

SPECIFICATIONS

GENERAL

Contact Arrangement

.............................. 2PDT (2 Form C)

Magnetic Latching

Weight............................................................1.4

oz approx.

Designed to meet the requirements of MIL-PRF-83536

PERFORMANCE

Contact Rating

(Note 1):

Resistive...................................... 10 Amps @ 28 VDC or

115/208V 400 Hz

Latch/Reset Time:

Excluding bounce time at nominal coil voltage

Contact Bounce Time..........................................

1 ms max

@ rated contact load, 28 VDC

Contact Voltage Drop:

Before Life ............................... 100 mv max @ 10 Amps

and 6 VDC

After Life .................................. 125 mv max @ 10 Amps

and 6 VDC

ENVIRONMENTAL

Temperature Range..................................

-70

C to +125

Vibration

(Note 2).................................0.12" DA 10 - 70 Hz

30 G's 70 - 3,000 Hz

Shock (Operating)(Note

2) .............................200 G's 6 ms

ELECTRICAL CHARACTERISTICS

Duty Cycle

......................................................... Continuous

Insulation Resistance

..................................100 megohms

@ 500V 25

Dielectric Strength:

Sea Level:

Contact to Case ..................................... 1,250 VRMS

Contact to Coil ....................................... 1,250 VRMS

Coil to Case ........................................... 1,000 VRMS

Across Open Contacts ........................... 1,250 VRMS

80,000 Feet:

All Points................................................... 350 VRMS

DC Coil

10 ms max

(Case Grounded)

Inductive........................................ 8 Amps @ 28 VDC or

115/208V 400 Hz

4 Amps @ 115/208V 60 Hz

Motor............................................. 4 Amps @ 28 VDC or

(Case Grounded)

115/208V 400 Hz

3 Amps @ 115/208V 60 Hz

(Case Grounded)

Lamp ............................................. 2 Amps @ 28 VDC or

(Case Grounded)

115/208V 400 Hz

1.5 Amps @ 115/208V 60 Hz

(Case Grounded)

Life

....................... 100,000 operations minimum @ rated

resistive load, 125

Latch/Reset Power

....................................500 mw approx.

MIL-PRF-83536/13 QUALIFIED to ER level L

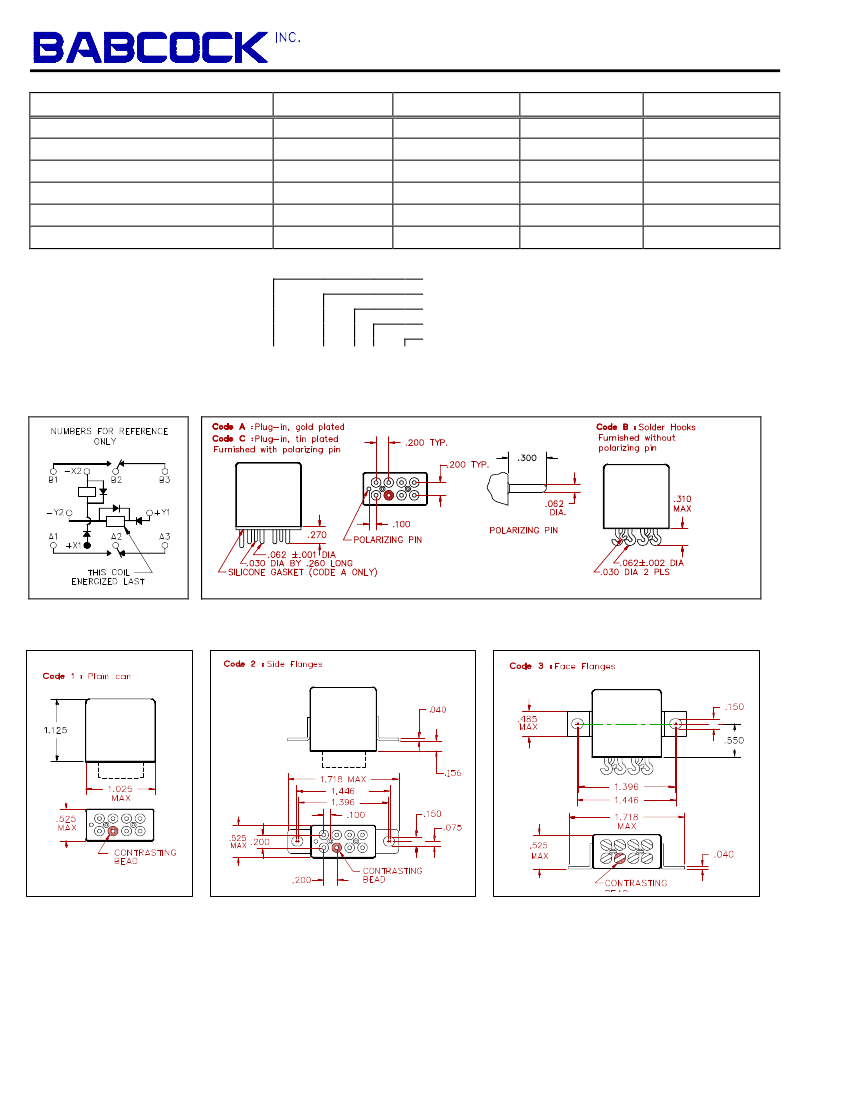

Notes:

For other ratings consult the factory.

For aplications requiring higher shock

and vibration, consult the factory.

AC coil line frequency 50 to 400 Hz.

14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013

W:2000, Rev. 7
