PD2-8000/12000-100S datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PD2-8000/12000-100S

PD2-8000/12000-100S: DescriptionSplitter, 8000MHz Min, 12000MHz Max, 0.3dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size79KB，4 Pages; ManufacturerMITEQ Inc

Download Datasheet Parametric View All

PD2-8000/12000-100S Overview

Splitter, 8000MHz Min, 12000MHz Max, 0.3dB Insertion Loss-Max

PD2-8000/12000-100S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1982366149
Reach Compliance Code	unknown
YTEOL	8.35
Other features	SMA-F, ISOLATION-MIN (DB):20
structure	COAXIAL
Maximum input power (CW)	50 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	12000 MHz
Minimum operating frequency	8000 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

HIGH POWER DIVIDERS/COMBINERS

INSERTION

PHASE

POWER

LOSS

BALANCE ISOLATION VSWR (Watts)

(±dB, Max.) (±Deg. Max.) (dB, Min.) (Max.)

(CW)

STANDARD

CONNECTORS

INPUT/OUTPUT

SMA female

N female

SMA female

N female

SMA female

FREQUENCY

(MHz)

0.16 – 0.32

0.225 – 0.40

0.32 – 0.60

0.64 – 1.2

0.8 – 0.9

0.93 – 1.25

1–2

1.2 – 1.4

1.4 – 2.3

2–4

5 – 5.6

4–8

8 – 12

MODEL

NUMBER

PD2-160/320-200S

PD2-225/400-200S

PD2-320/600-200S

PD2-640/1200-200S

PD2-800/900-250N

PD2-930/1250-200S

PD2-1000/2000-200S

PD2-1000/2000-500N

PD2-1200/1400-200S

PD2-1400/2300-200S

PD2-2000/4000-100S

PD2-5000/5600-100N

PD2-4000/8000-100S

PD2-8000/12000-100S

OUTLINE

2-WAY DIVIDERS

0.3

0.4

0.3

0.2

0.3

0.2

0.25

0.6

0.25

0.3

1.25:1

200

500

200

100

4-WAY DIVIDERS

0.225 – 0.40

0.30 – 0.40

0.44 – 0.88

0.80 – 0.90

0.80 – 0.96

0.95 – 1.7

0.50 – 2.5

1–2

1.2 – 1.4

2–4

4–8

12.25 – 12.75

14 – 14.5

PD4-225/400-300N

PD4-300/400-100S

PD4-440/880-300N

PD4-800/900-300N

PD4-800/960-200N

PD4-950/1700-200S

PD4-500/2500-100N

PD4-1000/2000-200N

PD4-1200/1400-100N

PD4-2000/4000-100N

PD4-4000/8000-100N

PD4-1225/1275-50N

PD4-14000/14500-50N

0.4

0.2

0.5

0.4

0.5

0.75

1.25:1

1.2:1

1.25:1

1.5:1

1.25:1

300

100

300

100

200

100

250

500

200

N female

SMA female

N female

SMA female

N female

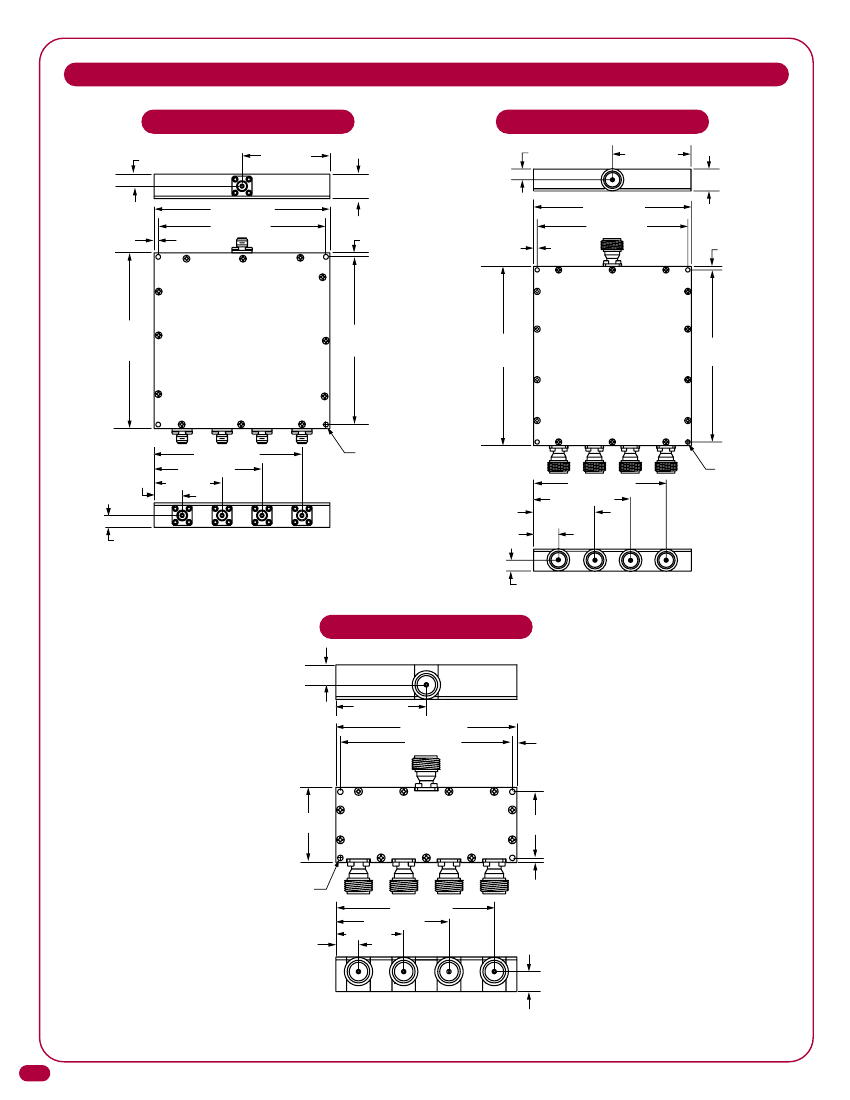

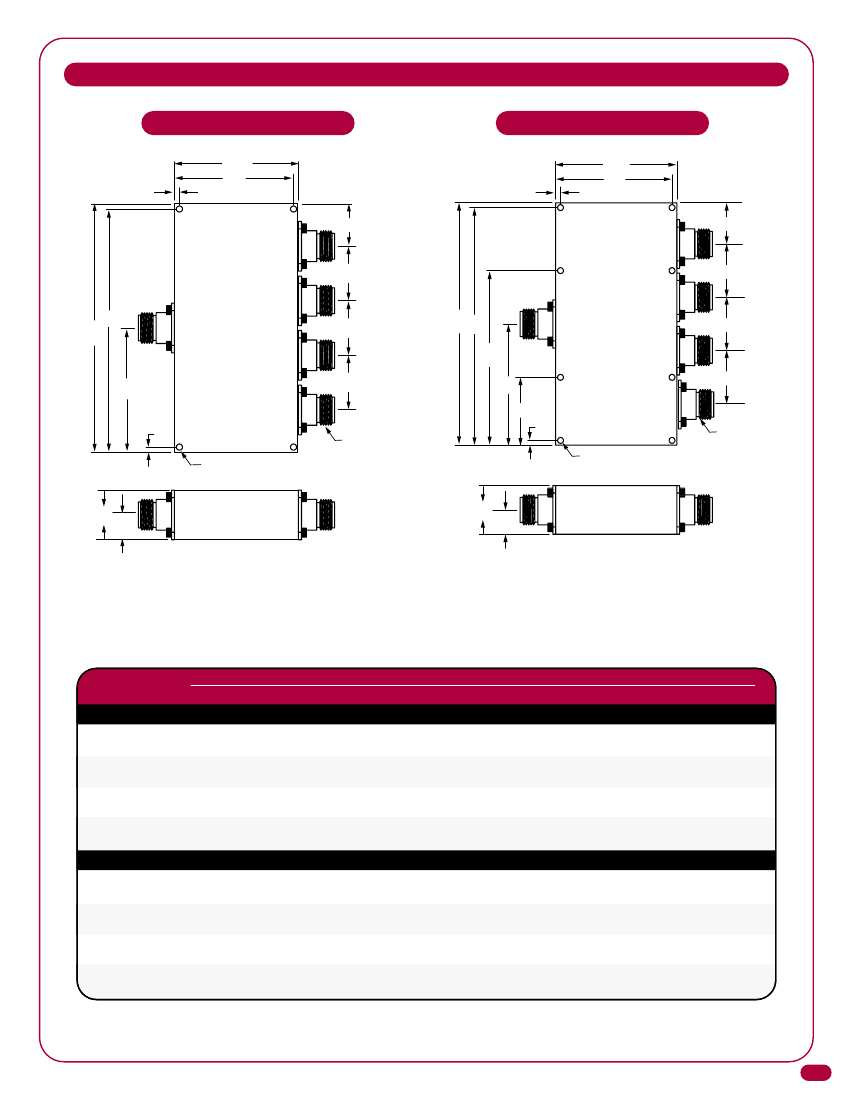

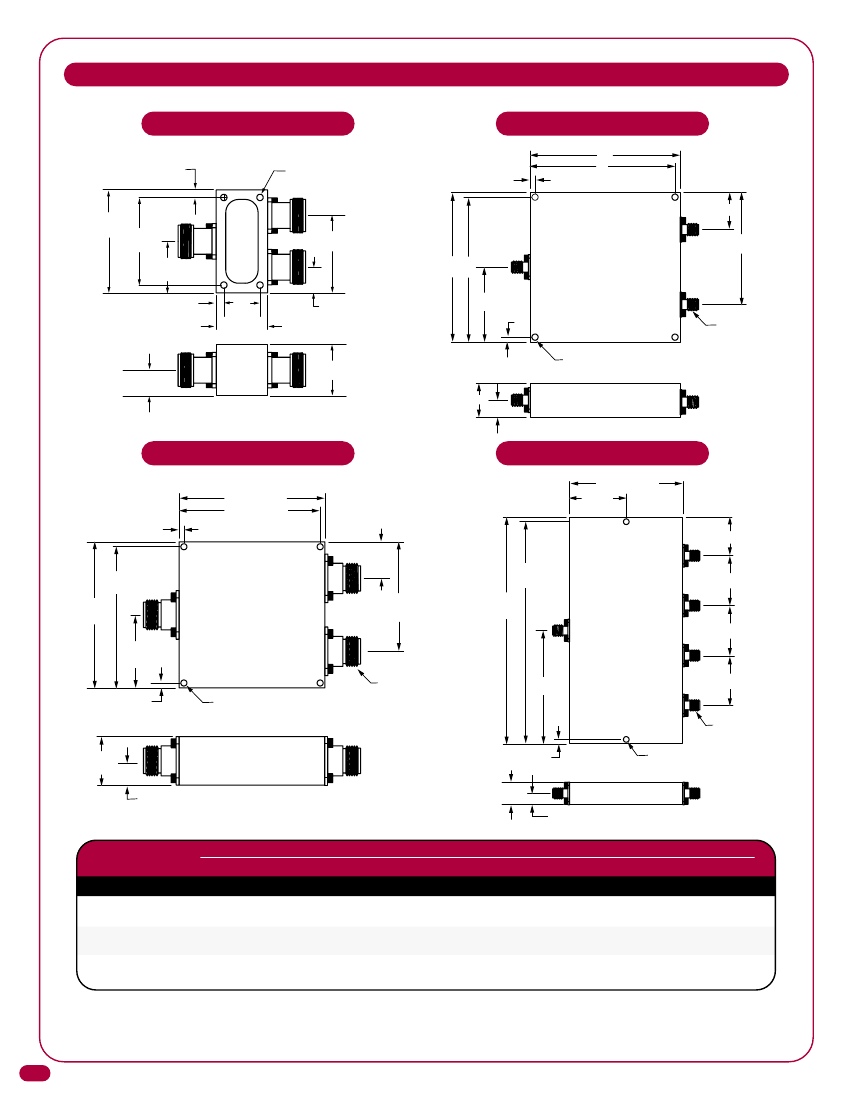

HIGH POWER DIVIDERS/COMBINERS OUTLINE DRAWINGS

.535

[13.589]

1.030

[26.162]

.440

[11.176]

2.005 [50.927]

0.95 [24.13]

1.500

[38.10]

1.405

[35.687]

1.050

[26.67]

2.100 [53.34]

0.95

[24.13]

MOUNTING HOLES

4–40 X .250 [6.35] DEEP

(4 PLACES)

NOTE: DIMENSIONS SHOWN IN BRACKETS [ ] ARE IN MILLIMETERS.
