Part Number

Search

572131

Description
Board Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector
File Size200KB,1 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

572131 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Plug

572131 Parametric

Parameter NameAttribute value
Objectid304372854
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.132 inch
subject depth0.256 inch
body length1.317 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage800VAC V
Filter functionNO
Insulation resistance1000000000 Ω
insulator materialPOLYETHYLENE
Plug contact pitch0.098 inch
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Rated current (signal)2.5 A
GuidelineUL
Termination typeCRIMP
Total number of contacts13
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG

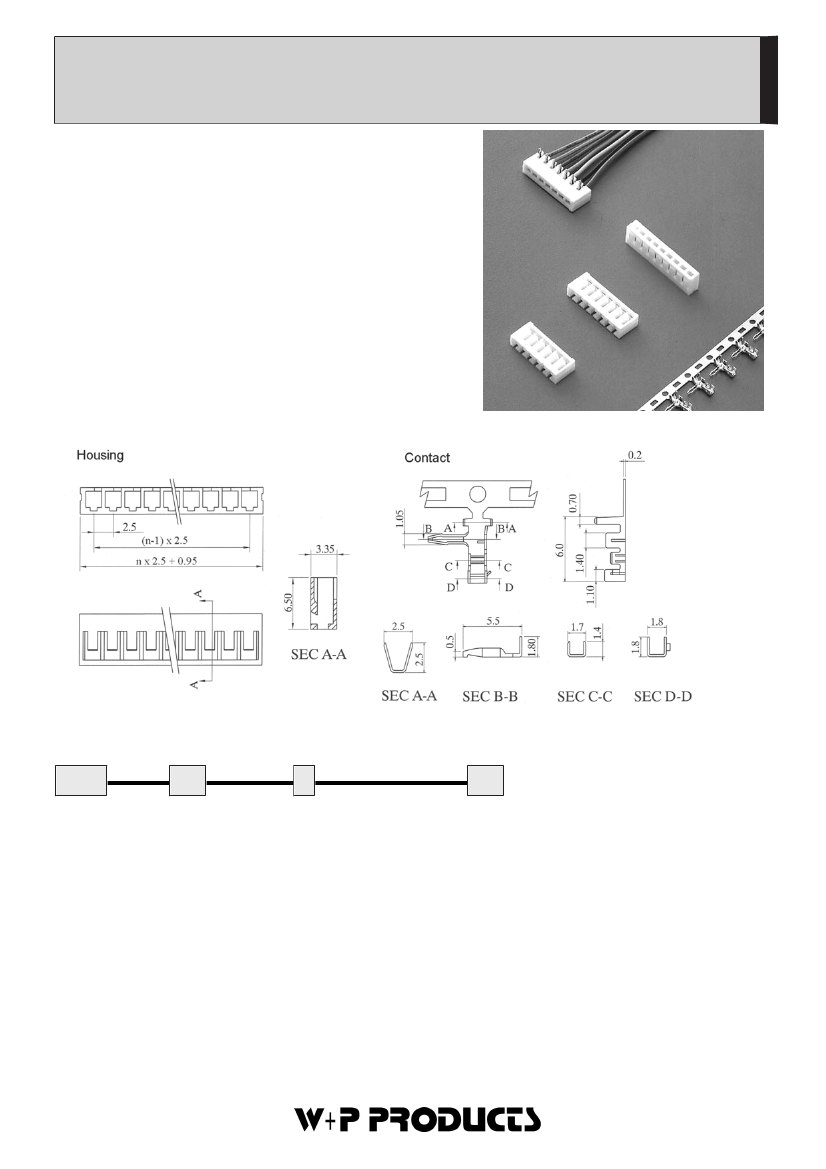

572
Crimp-Rast-System - RM 2,5mm
Crimp Housing - Pitch 2,50mm
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Messing
Contact Material
Brass
Aderquerschnitt
AWG 22 ... 28
Applicable wire Gauge
AWG 22 ... 28
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 10mΩ
Contact Resistance
< 10mΩ
9
Isolationswiderstand
> 10
9
Insulation Resistance
> 10
Spannungsfestigkeit
800V
AC
Test Voltage
800V
AC
Nennspannung
250V
AC/DC
max.
Voltage Rating
250V
AC/DC
max.
Nennstrom
2,5A
Current Rating
2,5A
Temperaturbereich
-25°C ... +85°C
Temperature Range
-25°C ... +85°C
Series
Contacts
*
Type
*
Plating
572
10
02-16
2
1
Crimp-Gehäuse
Crimp housing
2
Crimp-Kontakte
Crimp contacts
50
50
Verzinnt (für Gehäuse nicht erforderlich)
Tin plated (not used for housings)
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
© W+P PRODUCTS
