10900FL210024-01 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 10900FL210024-01

Preview

10900FL210024-01: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size84KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

10900FL210024-01 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator

10900FL210024-01 Parametric

Parameter Name	Attribute value
Objectid	308874618
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.098 inch
subject depth	0.081 inch
body length	0.488 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.039 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0 Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

Ratioplast-Electronics

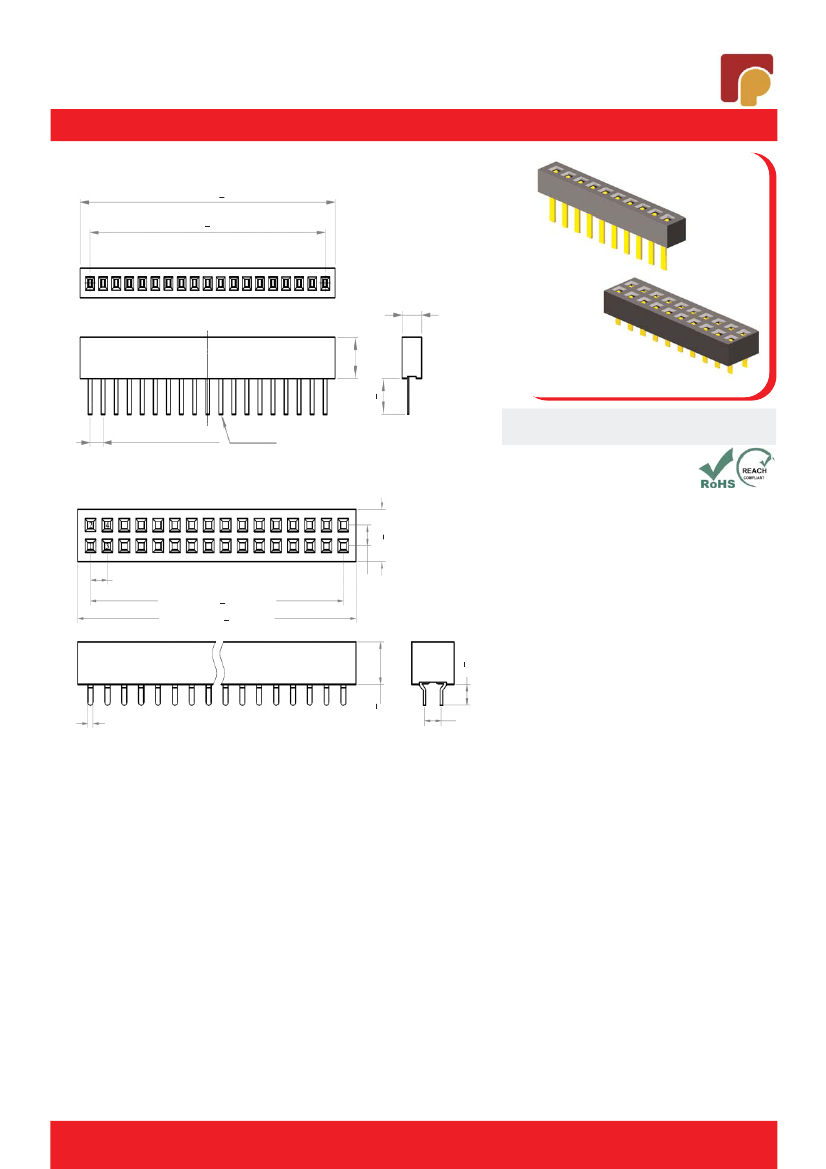

RASTER 1,0mm

PITCH 1,0mm

Serie 109

BUCHSENLEISTE

FEMALE HEADER

Nx1,0+0,50+0,35

N-1x1,0+0,10

1,50

2,10

1,80+0,25

1,00

0,3x0,10

Passende Stiftleiste Serie 036, 038

Mating with pin header serie 036, 038

(N/2-1)x1,0+0,20

(N/2)x1,0+0,40+0,35

1,00

2,50+0,15

2,05+0,15

1,00

0,3x0,15

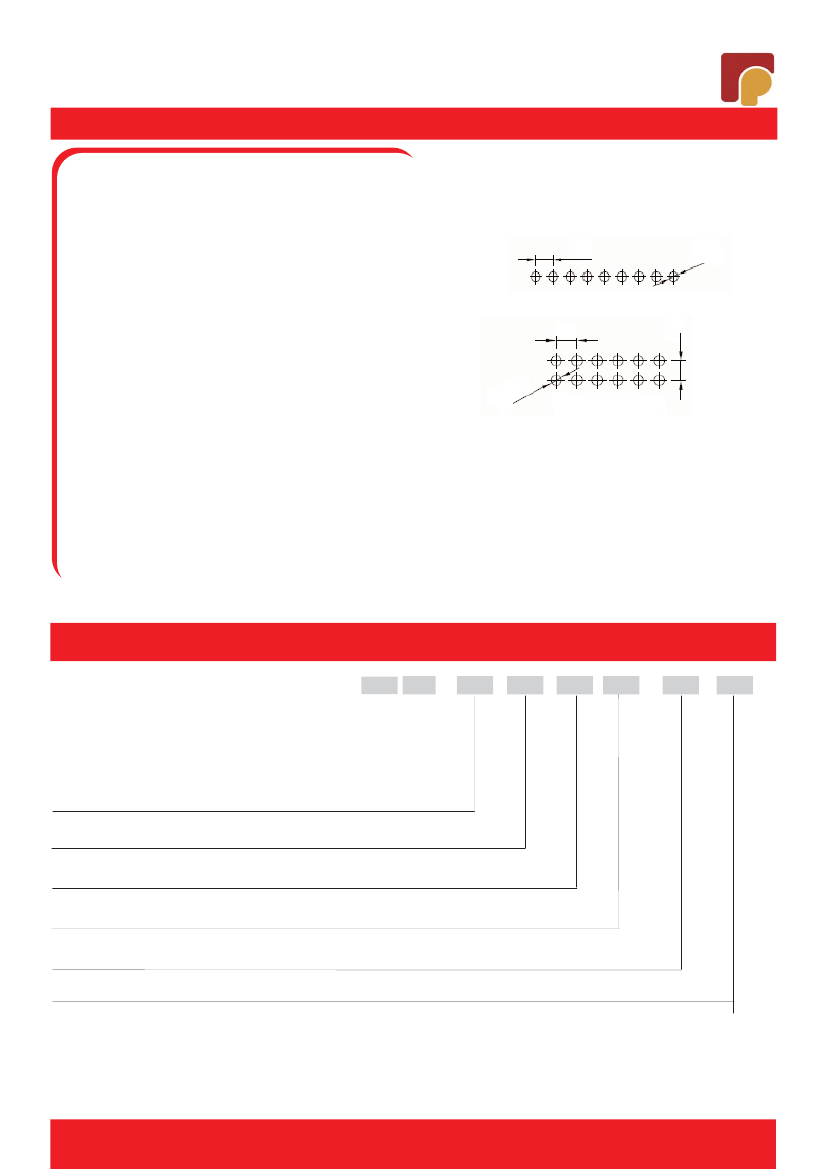

Seite: 14

www.ratioplast.com

1,00+0,25
