2504R-06TR-L: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

2504R-06TR-L Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Receptacle

2504R-06TR-L Parametric

Parameter Name	Attribute value
Objectid	304375173
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.236 inch
subject depth	0.382 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Filter function	NO
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

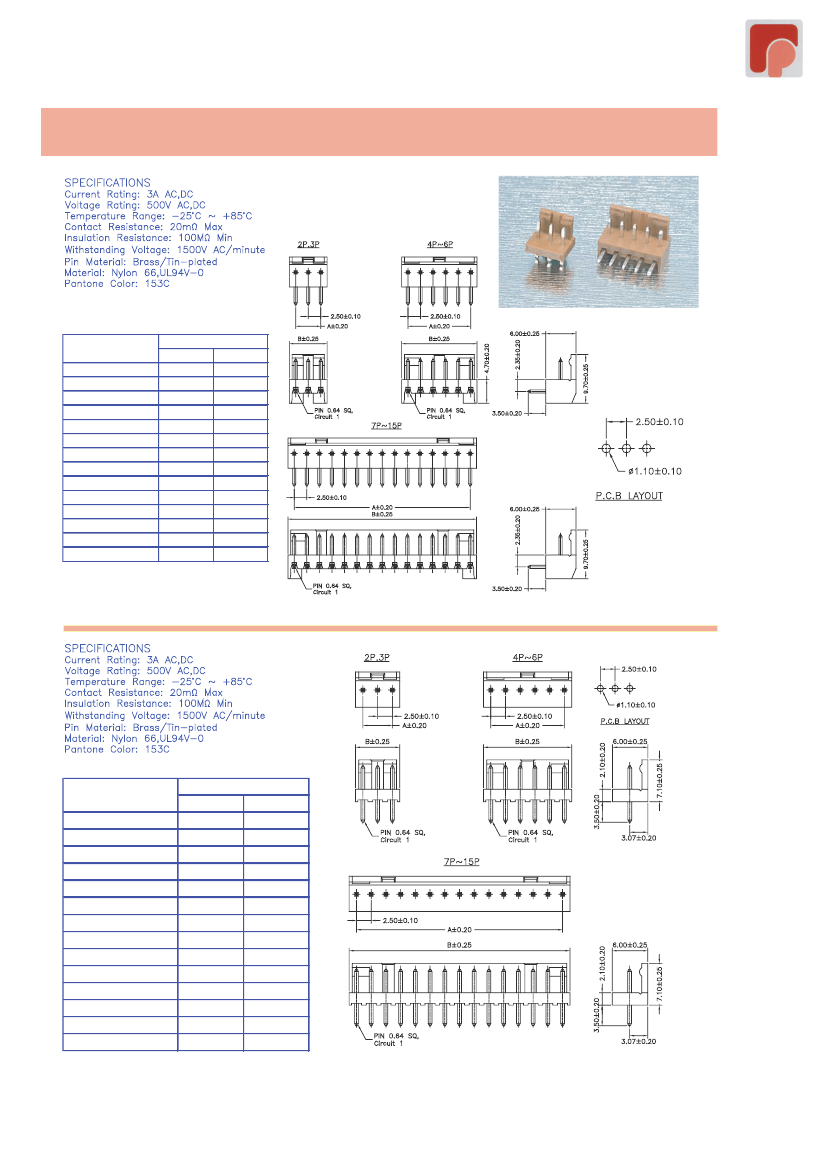

2.5mm WAFER RIGHT ANGLE / STRAIGHT TYPE

PART NO.

2504R-02TR-L

2504R-03TR-L

2504R-04TR-L

2504R-05TR-L

2504R-06TR-L

2504R-07TR-L

2504R-08TR-L

2504R-09TR-L

2504R-10TR-L

2504R-11TR-L

2504R-12TR-L

2504R-13TR-L

2504R-14TR-L

2504R-15TR-L

Dimensions

A

B

2.50

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

27.50

30.00

32.50

35.00

37.50

Part No.:2504R-XXTR-L

PART NO.

2504S-02TR-L

2504S-03TR-L

2504S-04TR-L

2504S-05TR-L

2504S-06TR-L

2504S-07TR-L

2504S-08TR-L

2504S-09TR-L

2504S-10TR-L

2504S-11TR-L

2504S-12TR-L

2504S-13TR-L

2504S-14TR-L

2504S-15TR-L

Dimensions

A

B

2.50

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

27.50

30.00

32.50

35.00

37.50

Part No.:2504S-XXTR-L
