2505H-13W-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2505H-13W-L

Preview

2505H-13W-L: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Plug; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

2505H-13W-L Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Plug

2505H-13W-L Parametric

Parameter Name	Attribute value
Objectid	304376966
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.15 inch
subject depth	0.28 inch
body length	1.358 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
Termination type	CRIMP
Total number of contacts	13
Maximum wire diameter	22 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

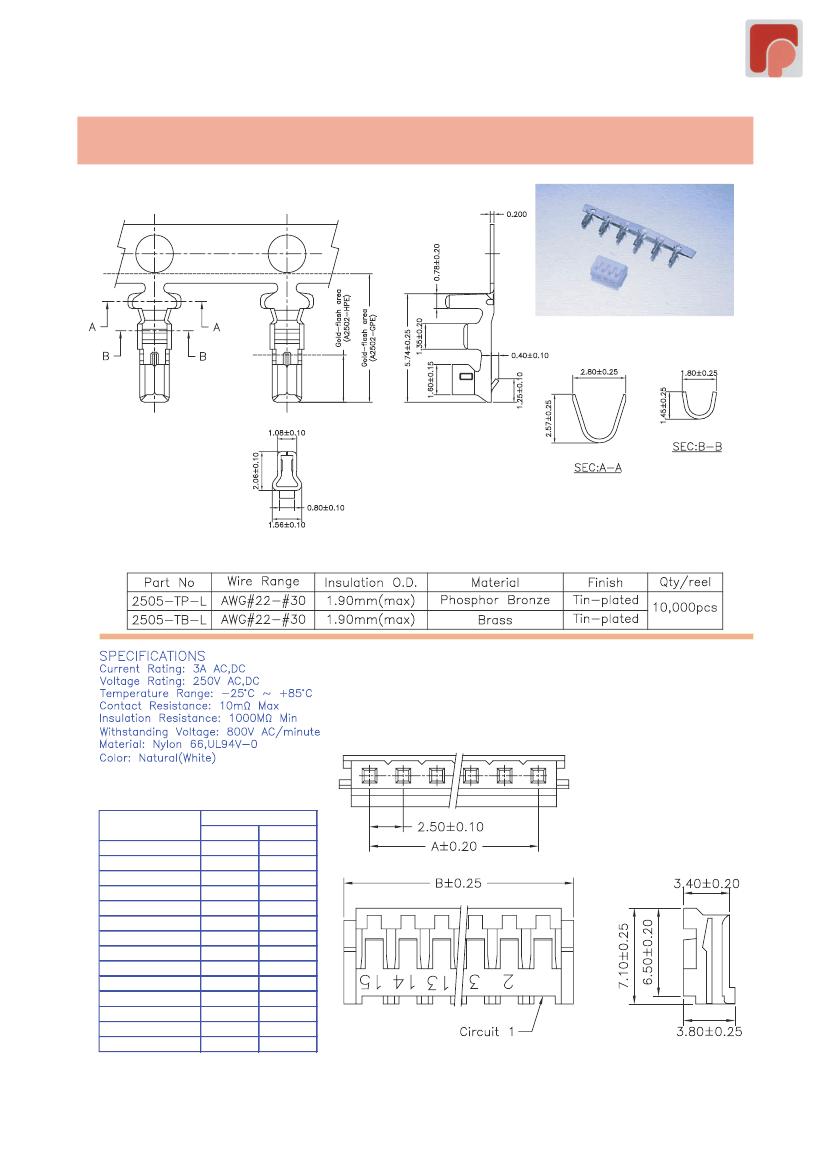

Ratioplast - Electronics

2.5mm TERMINAL / HOUSING

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

Part No.:2505-T-L

PART NO.

2505H-02W-L

2505H-03W-L

2505H-04W-L

2505H-05W-L

2505H-06W-L

2505H-07W-L

2505H-08W-L

2505H-09W-L

2505H-10W-L

2505H-11W-L

2505H-12W-L

2505H-13W-L

2505H-14W-L

2505H-15W-L

Dimensions

A

B

2.50

7.00

5.00

9.50

7.50

12.00

10.00

14.50

12.50

17.00

15.00

19.50

17.50

22.00

20.00

24.50

22.50

27.00

25.00

29.50

27.50

32.00

30.00

34.50

32.50

37.00

35.00

39.50

Part No.:2505H-XXW-L
