#A960AW-1R2M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> #A960AW-1R2M

Preview

#A960AW-1R2M: DescriptionGeneral Purpose Inductor, 1.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size127KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

#A960AW-1R2M Overview

General Purpose Inductor, 1.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT

#A960AW-1R2M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.046 Ω
Nominal inductance(L)	1.2 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum rated current	1.97 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

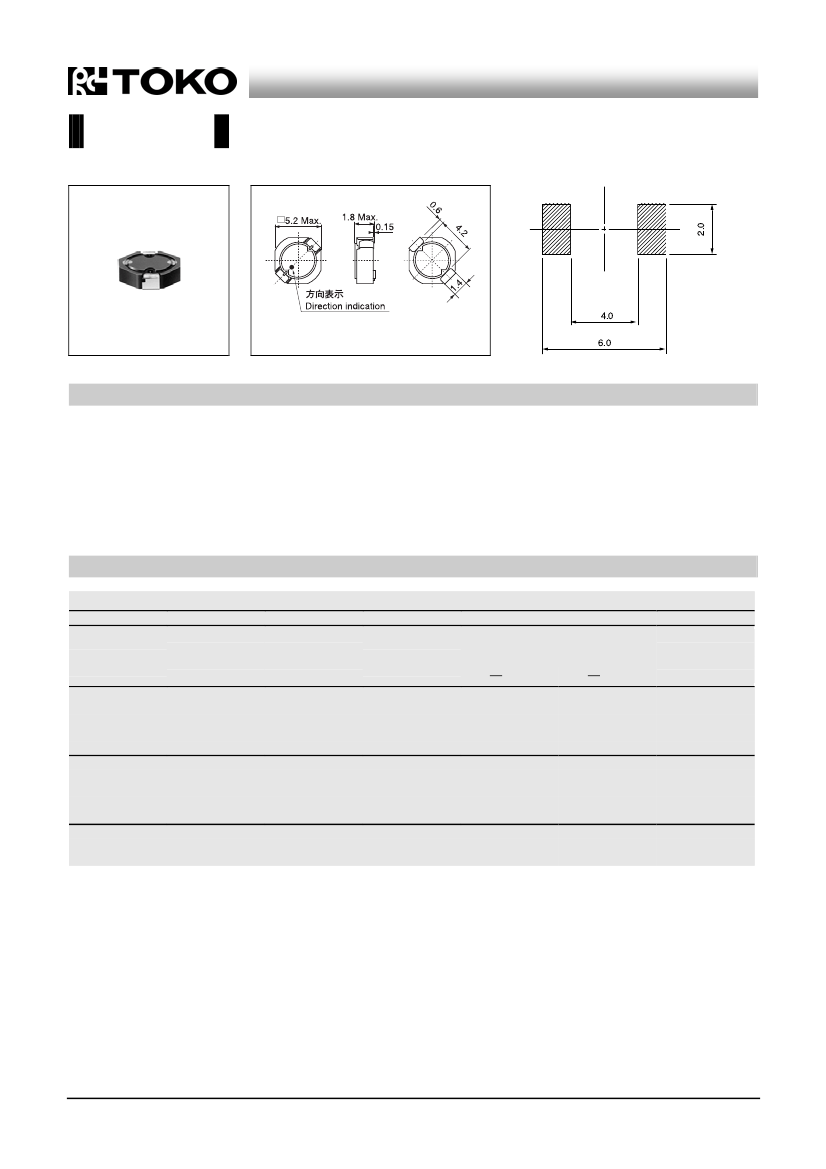

Preview

Download Datasheet

View All

Ferrite Inductors

フェライトインダクタ

D518LC

Inductance Range:

1.2~47H

Recommended patterns

推奨パターン図

4.0

(Unit: mm)

6.0

(Unit: mm)

FEATURES



特長

小型薄½構造（5.2mm角Max.、高さ1.8mm

Max.）

閉磁路構造、½直流抵抗

大電流対応

各種機器のDC-DCコンバータ用インダクタに最適

各種携帯型電子機器の薄½化、高密度実装への対応に

最適



RoHS指令対応



Low profile (5.2mm Max. square, 1.8 mm Max. height).

Magnetically shielded construction and low DC resistance.

Suitable for large currents.

ideal for a variety of DC-DC converter inductor applications.

Most suitable for portable electronic equipments requining

low profile and high density mounting.



RoHS compliant.

TOKO STANDARD PART NUMBERS

東光標準品一覧

TYPE D518LC (Quantity/reel; 2,000 PCS)

東光品番

TOKO

Part

Number

#A960AW-1R2M

#A960AW-1R8M

#A960AW-2R3M

#A960AW-3R6M

#A960AW-4R3M

#A960AW-5R1M

#A960AW-6R8M

#A960AW-100M

#A960AW-150M

#A960AW-180M

#A960AW-220M

#A960AW-330M

#A960AW-470M

インダクタンス

Inductance

(H)

1.2

1.8

2.3

3.6

4.3

5.1

6.8

10

15

18

22

33

47

(1)

許容差

Tolerance

(%)



20



20



20



20



20



20



20



20



20



20



20



20



20



直流抵抗

(2)

DC

(2)

Resistance

(m) Max. (Typ.)

46 (38)

54 (45)

63 (53)

82 (68)

92 (77)

105 (86)

130 (105)

180 (150)

270 (225)

320 (265)

450 (375)

640 (530)

930 (780)

直流重畳許容電流

Inductance

(3)

Decrease Current

(A) Max. (Typ.)

L

L

=10%

L

=30%

1.60 (2.15)

1.40 (1.94)

1.20 (1.66)

1.00 (1.35)

0.92 (1.23)

0.82 (1.10)

0.72 (0.97)

0.60 (0.81)

0.48 (0.65)

0.44 (0.59)

0.38 (0.52)

0.31 (0.42)

0.25 (0.34)

2.00 (2.78)

1.80 (2.48)

1.50 (2.13)

1.20 (1.73)

1.10 (1.55)

1.00 (1.43)

0.94 (1.26)

0.80 (1.07)

0.64 (0.86)

0.56 (0.76)

0.49 (0.66)

0.41 (0.55)

0.33 (0.45)

(3)

2.0

温度上昇許容電流

Temperature

(3)

Rise Current

T=40C

(A) Max. (Typ.)

1.97 (2.32)

1.77 (2.08)

1.67 (1.96)

1.42 (1.68)

1.34 (1.58)

1.18 (1.39)

1.14 (1.34)

0.95 (1.12)

0.77 (0.90)

0.70 (0.83)

0.62 (0.73)

0.49 (0.58)

0.39 (0.46)

(3)

(1) Inductance is measured with a LCR meter 4284A (Agilent

Technologies) or equivalent.

Test frequency at 100kHz

(2) DC resistance is measured with 34420A (Agilent Technologies) or

3541(HIOKI). (Reference ambient temperature 25°C)

(3) Maximum allowable DC current is that which causes a 30%

inductance reduction from the initial value, or coil temperature to

rise by 40°C, whichever is smaller. (Reference ambient

temperature 20°C)

(1)

インダクタンスはLCRメータ4284A（Agilent

Technologies）

または同等品により測定する。

測定周波数は100kHz。

(2)

直流抵抗は測定器34420A（Agilent

Technologies）または3541

（HIOKI）と同等品により測定する。（周囲温度25°C）

(3)

最大許容電流は、直流重畳電流を流した時インダクタンスの値が

初期値より30％減少する直流電流値、または直流電流により、

コイルの温度が40°C上昇の½れか小さい値。（周囲温度20°Cを基

準とする。）

#A960AW-1R2M Related Products

	#A960AW-1R2M	#A960AW-330M
Description	General Purpose Inductor, 1.2uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 33uH, 20%, 1 Element, SMD, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	Murata	Murata
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
DC Resistance	0.046 Ω	0.64 Ω
Nominal inductance(L)	1.2 µH	33 µH
Inductor Applications	DC-DC CONVERTER	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1
Number of terminals	2	2
Maximum rated current	1.97 A	0.49 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	YES	YES
surface mount	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz
Tolerance	20%	20%
