FCN-724Q026-G/VM datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> FCN-724Q026-G/VM

Preview

FCN-724Q026-G/VM: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,26 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,GUIDE SLOT; CategoryThe connector The connector; File Size62KB，2 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

FCN-724Q026-G/VM Overview

HEADER CONNECTOR,PCB MNT,PLUG,26 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL,GUIDE SLOT

FCN-724Q026-G/VM Parametric

Parameter Name	Attribute value
Objectid	301196114
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
body width	0.22 inch
subject depth	0.248 inch
body length	1.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	PALLADIUM
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	POLYESTER
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

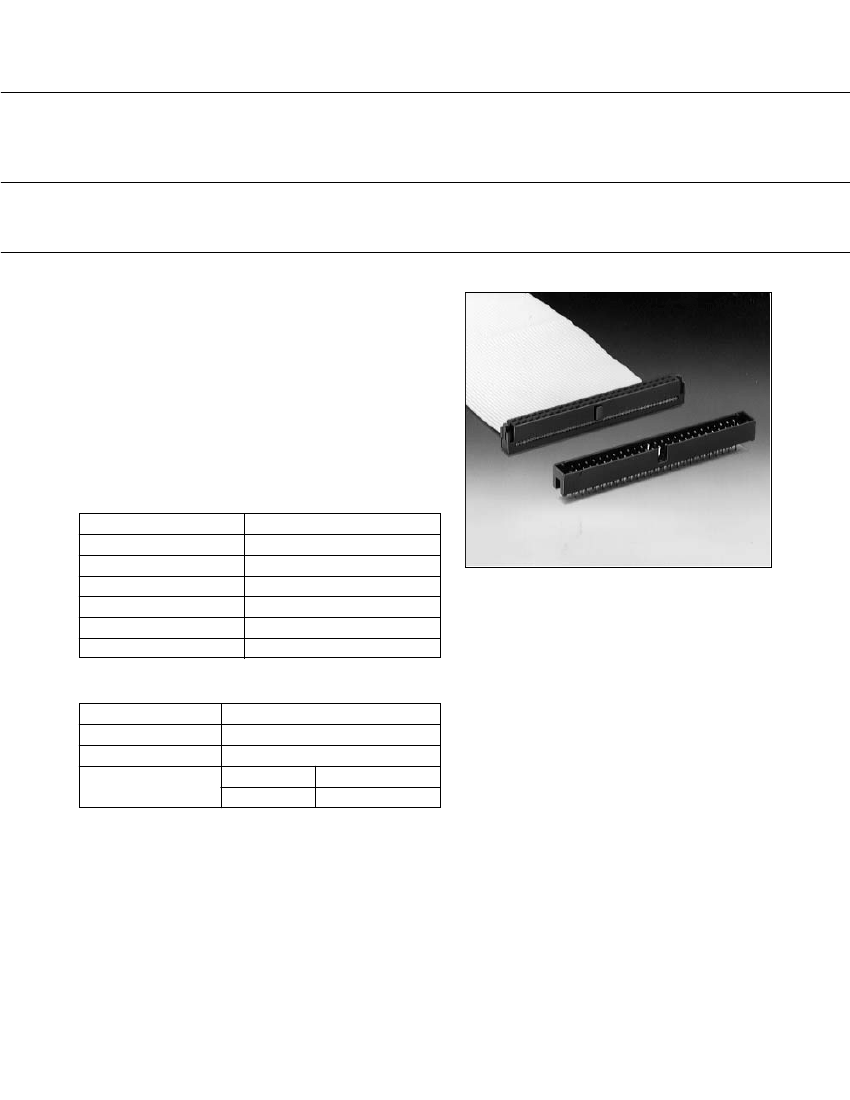

FUJITSU TAKAMISAWA

COMPONENT CATALOG

PC BOARD CONNECTORS

720M SERIES (FOR FLAT CABLE CONNECTIONS)

s

FEATURES

• The 720M series connectors can be used for 1.0 mm

(0.039 in.) pitch flat cable connections.

• Pins are arranged in a 2.0 mm (0.079 in.) grid,

enabling high-density mounting.

• These connectors can be used for 2.5-inch HDD

connections.

• The bump structure is used to prevent incorrect

insertion.

• Straight plugs are also available.

s

SPECIFICATIONS

Item

Operating temperature range

Current rating

Voltage rating

Contact resistance

Insulation resistance

Dielectric strength

Specification

–55°C to +105°C

DC 1 A

AC 250 V

20 mΩ max. (20 mV, 10 mA)

1000 MΩ min. (DC 500 V)

AC 500 V for 1 minute

s

MATERIALS

Item

Insulating material

Conductor

Plating

Terminal

Materials

Polyester resin (UL94V-0)

Copper alloy

Contact

Gold

Palladium
